METER AND GAUGE

8E–3

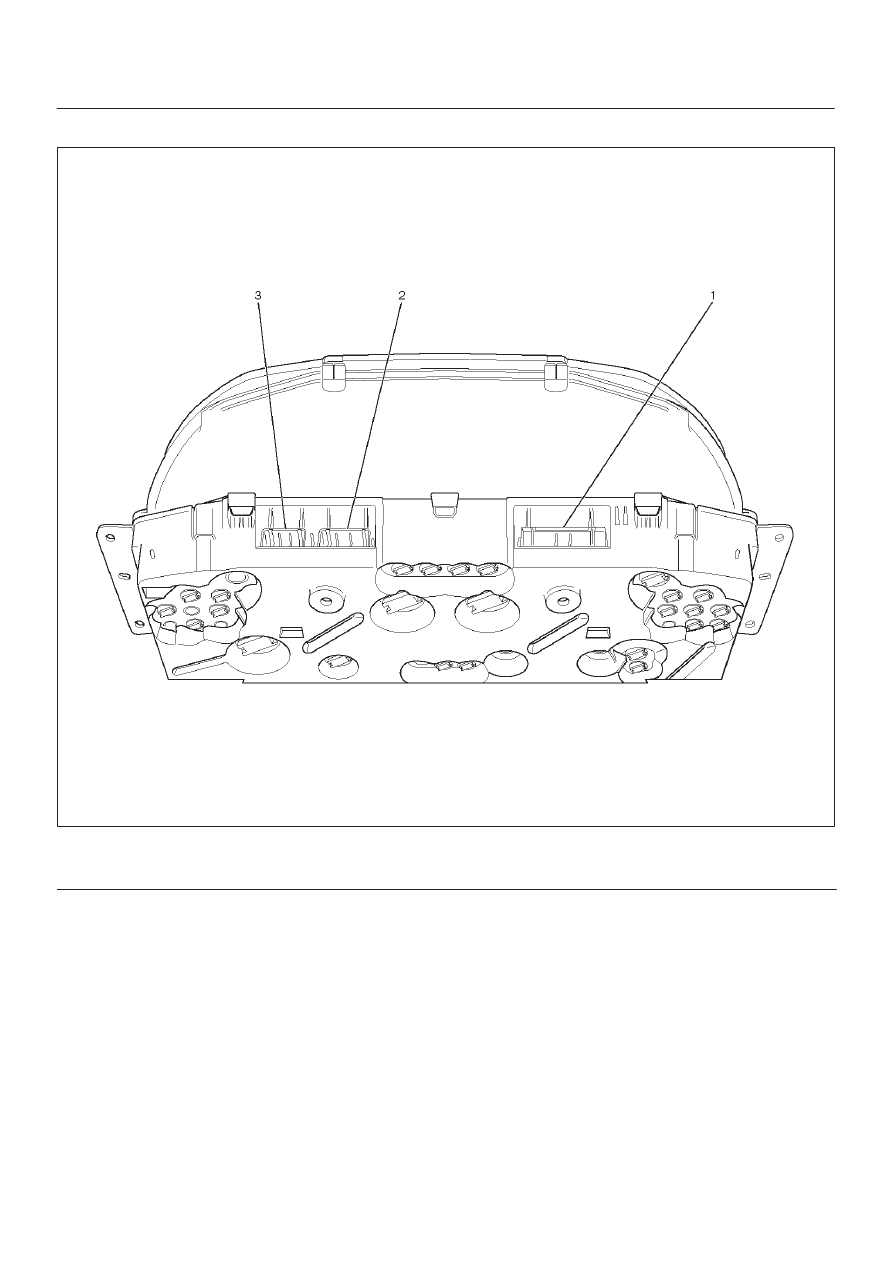

Rear View

821R200018

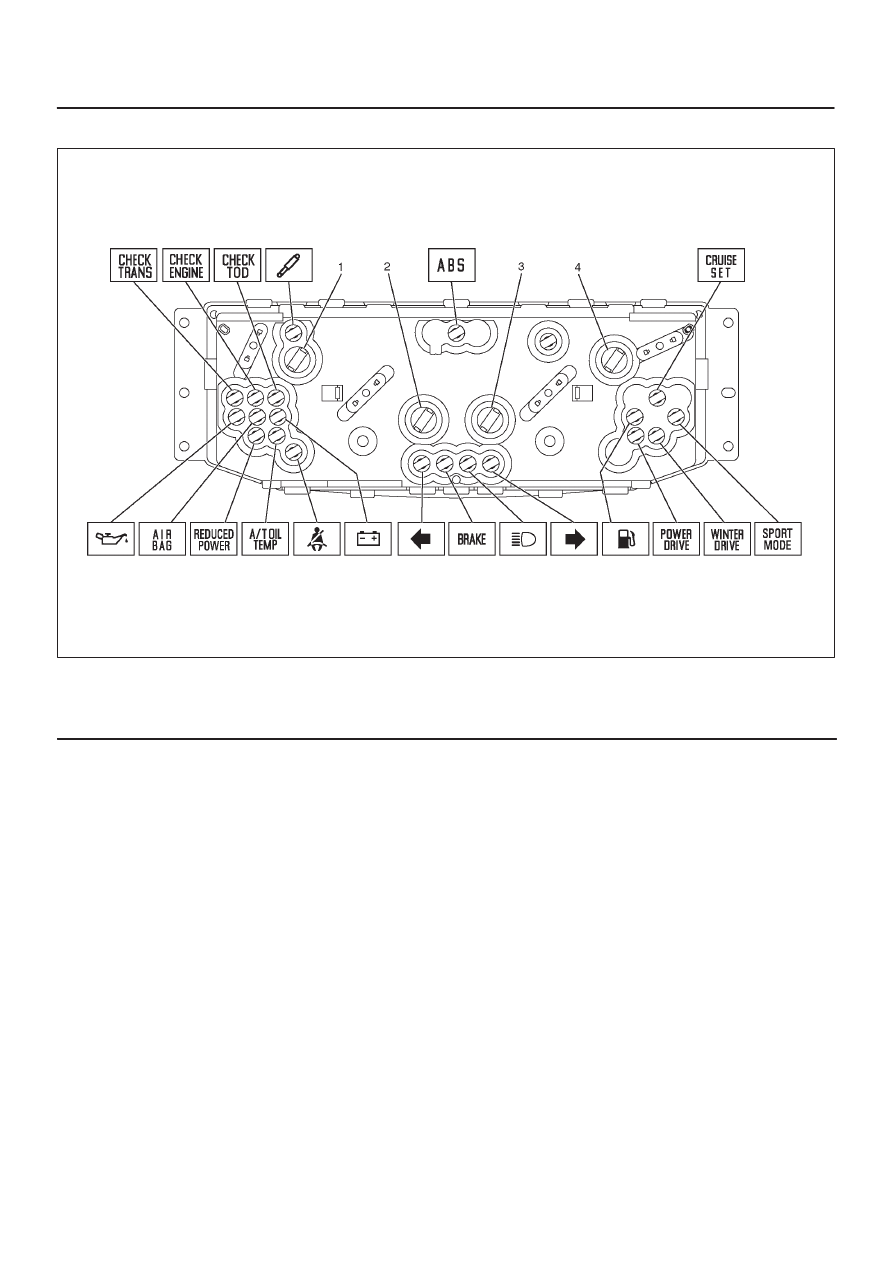

Legend

(1)

Illumination Light Bulb

(2)

Illumination Light Bulb

(3)

Illumination Light Bulb

(4)

Illumination Light Bulb

8E–4

METER AND GAUGE

Table for Meter/Gauge Connector Terminal Connections

821RY00053

Legend

(1)

Connector A

(2)

Connector B

(3)

Connector C

METER AND GAUGE

8E–5

Connector A

Terminal

Function

1

—

2

Intelligent suspension indicator light

3

TOD indicator light “Rear”

4

—

5

TOD indicator light “AUTO”

6

—

7

TOD indicator light “Front”

8

A/T shift indicator light “3”

9

A/T shift indicator light “D”

10

A/T shift indicator light “2”

11

SRS – air bag warning light

12

Ground

13

Battery

14

Stater switch

15

A/T oil temperature warning light

16

Seat belt indicator light

17

Charge warning light

18

—

19

—

20

—

21

A/T shift indicator light “L”

22

ABS warning light

23

—

24

—

25

Reduced power warning light

26

Oil pressure warning light

27

Check trans warning light

28

MIL(check engine) warning light

29

Check TOD

30

Engine coolant temperature gauge

Connector B

Terminal

Function

1

A/T shift indicator light “R”

2

A/T shift indicator light

3

A/T shift indicator light “N”

4

A/T shift indicator light “P”

5

Illumination light

6

Engine revolution pulse

7

Speed sensor pulse

8

Turn signal indicator light (LH)

9

Brake warning light

10

High beam indicator light (+)

11

High beam indicator light (–)

12

Turn signal indicator light (RH)

13

Turn signal indicator light

14

—

15

Illumination light

16

Ground

Connector C

Terminal

Function

1

Starter switch

2

—

3

Fuel gauge

4

Low fuel warning light

5

Cruise set indicator light

6

—

7

—

8

—

9

—

10

Sport mode indicator light

11

—

12

Winter drive indicator light

13

Power drive indicator light

14

—

8E–6

METER AND GAUGE

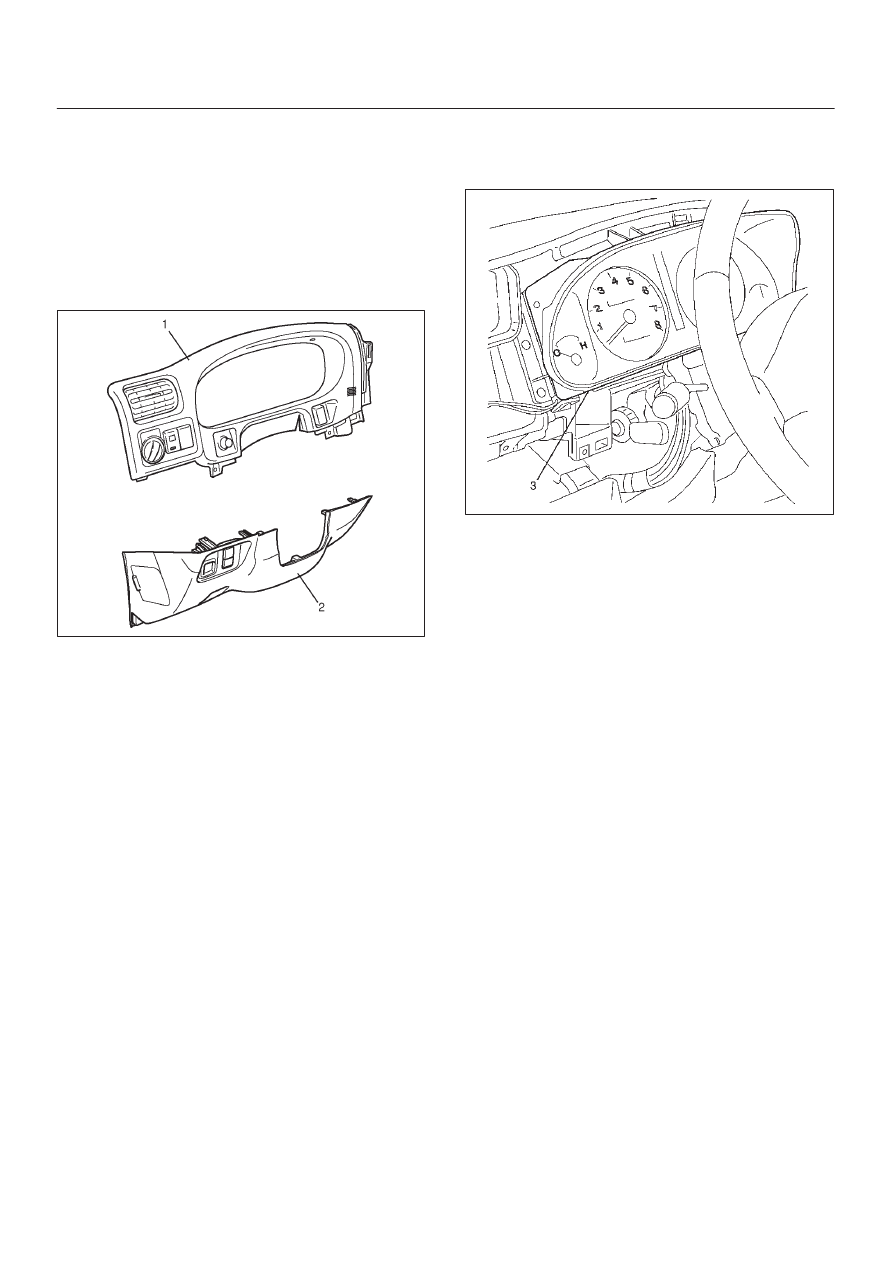

Removal

1. Disconnect the battery ground cable.
2. Remove the Dash Side Trim Panel –LH.
3. Remove the lower cover Assembly(2).

D

Refer to

Instrument Panel Assembly in Body

Structure section.

4. Remove the meter cluster Assembly(1).

D

Refer to

Instrument Panel Assembly in Body

Structure section.

821R200020

5. Remove the meter assembly(3).

D

Remove four fixing screws.

D

Disconnect the meter connectors.

825RW197

CAUTION: The removed meter assembly should be
placed upright or with its face side up.

Installation

To install, follow the removal steps in the reverse order.

Warning Light Bulb and Indicator Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the meter assembly.

D

Refer to

Meter Assembly in this section.

3. Remove the bulb.

D

Hold the bulb socket by hand, rotate it
counterclockwise and pull it out.

Installation

To install, follow the removal steps in the reverse order.
