8C–5

Audio

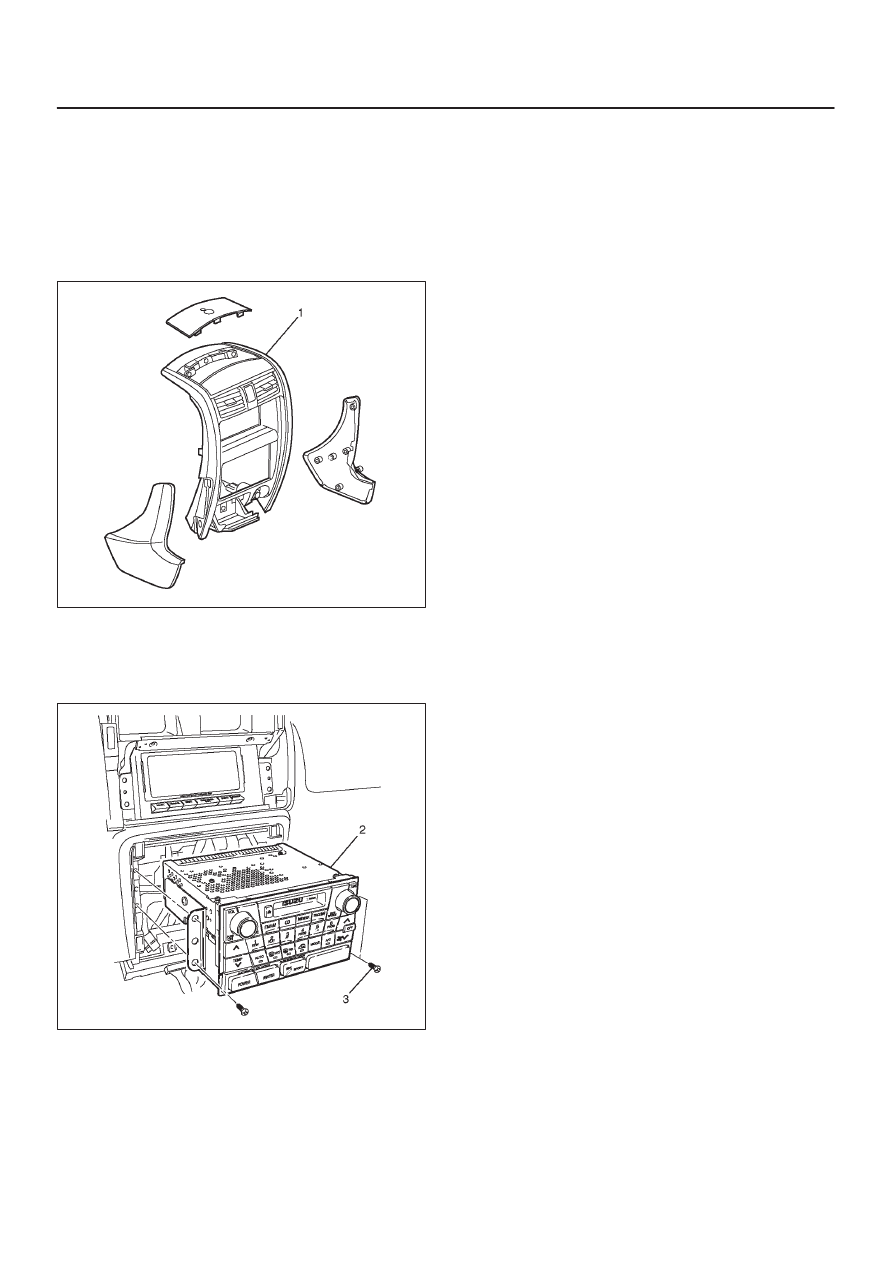

Removal

1. Disconnect the battery ground cable.
2. Remove the center cluster assembly (1).

D

Refer to

Instrument Panel Assembly in Body

Structure section.

890R200032

3. Remove the audio (2).

D

Remove the two fixing screws (3).

D

Disconnect the connector and the antenna cable.

890R200033

Installation

To install, follow the removal steps in the reverse order.

8C–6

ENTERTAINMENT

Speaker

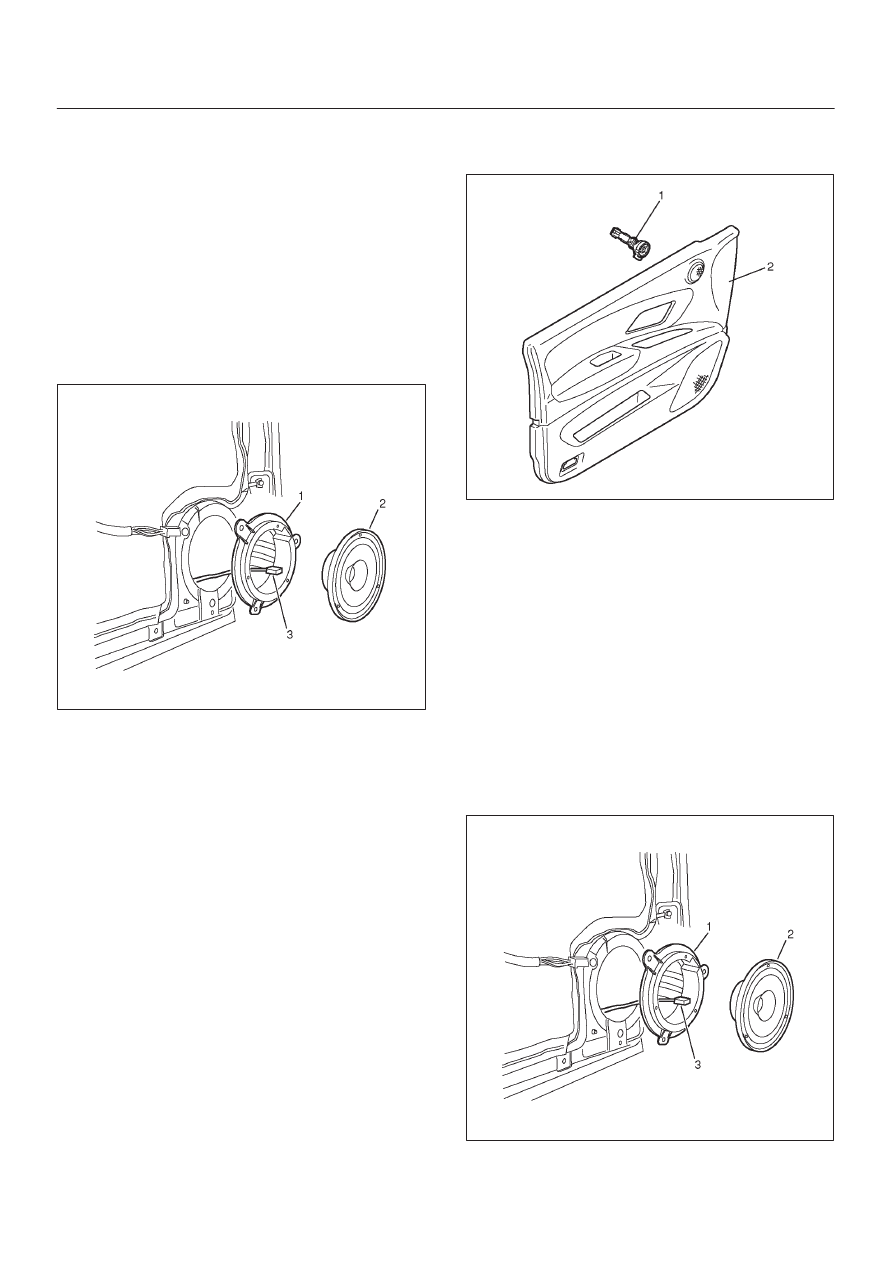

Front Speaker

Removal

1. Disconnect the battery ground cable.
2. Remove the front door trim pad.

D

Refer to

Front Door in Body Structure section.

3. Remove the front speaker (2).

D

Remove the three screws and the speaker spacer
(1).

D

Disconnect the connector (3).

890R200028

Installation

To install, follow the removal steps in the reverse order.

Front Tweeter Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the front door trim pad (2).

D

Refer to

Front Door in Body Structure section.

3. Remove the tweeter (1).

D

Disconnect the connector.

890R200030

Installation

To install, follow the removal steps in the reverse order.

Rear Door Speaker

Removal

1. Disconnect the battery ground cable.
2. Remove the rear door trim pad.

D

Refer to

Rear Door in Body Structure section.

3. Remove the rear speaker (2).

D

Remove the three screws and the speaker spacer
(1).

D

Disconnect the connector (3).

890R200028

ENTERTAINMENT

8C–7

Installation

To install, follow the removal steps in the reverse order.

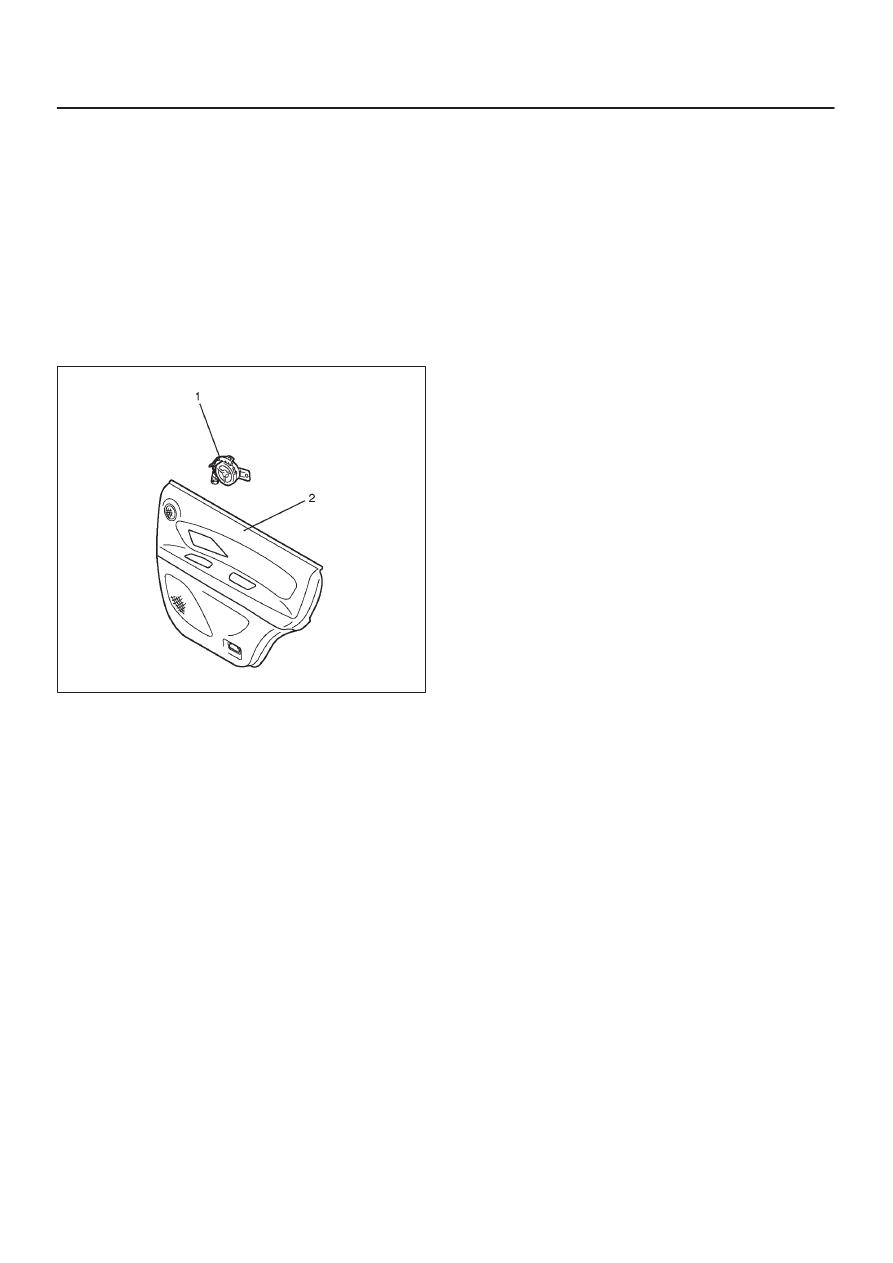

Rear Tweeter Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the rear door trim pad (2).

D

Refer to

Rear Door in Body Structure section.

3. Remove the tweeter (1).

D

Disconnect the connector.

890R200031

Installation

To install, follow the removal steps in the reverse order.

8C–8

ENTERTAINMENT

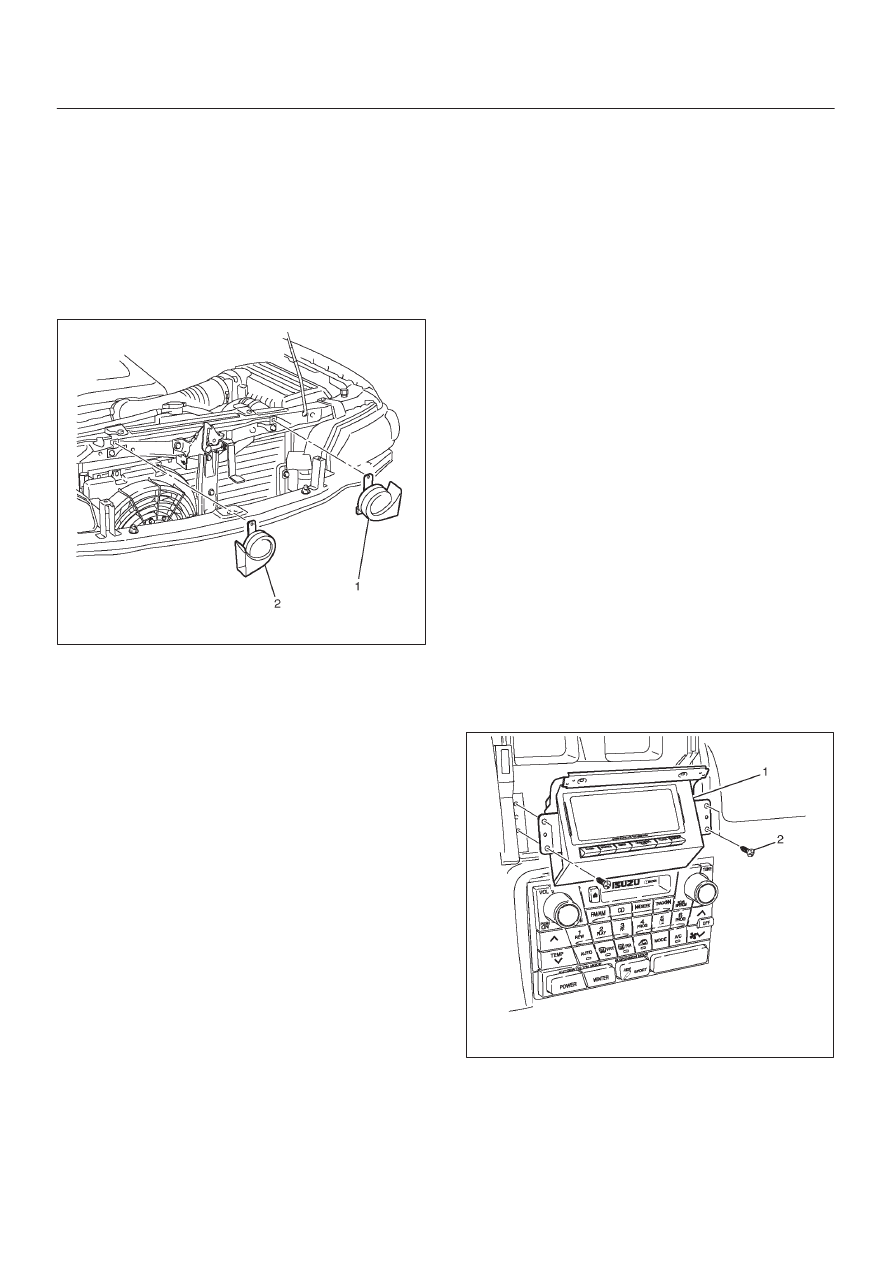

Horn

Removal

1. Disconnect the battery ground cable.
2. Remove the horn.

D

Disconnect the connector.

D

Remove the horn mounting bolt.

NOTE: High (1), Low (2)

828R200003

Installation

To install, follow the removal steps in the reverse order.

Display (MID)

Removal

1. Disconnect the battery ground cable.
2. Remove the cluster upper cover.

D

Disconnect the sun sensor connector and the GPS
control unit connector.

3. Remove the center cluster.

D

Refer to

Instrument Panel Assembly in Body

Structure.

4. Remove the Display (1).

D

Remove the screws (2).

D

Disconnect the Display connector and MID control
unit connector.

890R200036

Installation

To install, follow the removal steps in the reverse order.
