7A–41

AUTOMATIC TRANSMISSION (4L30–E)

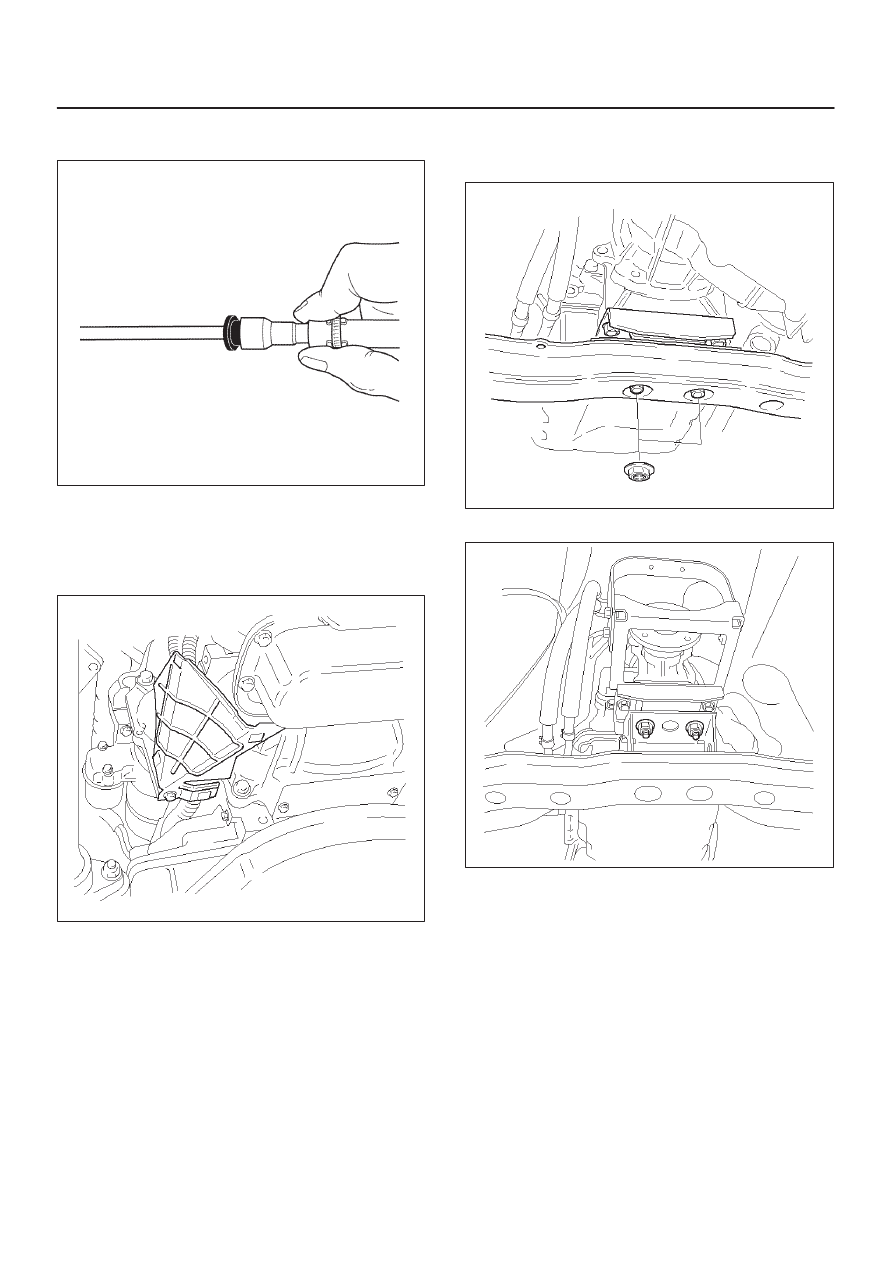

3. Gently pull on the connector to check that it is

securely latched.

141RY00006

8. Disconnect transmission harness connector and clip.

Connector : Adapter case, mode switch, main case,
magnetic sensor, transfer switch (4

×

4), 2–4 actuator

(4

×

4) and car speed sensor.

9. Remove harness heat protector.

815RW002

10. Support transmission with a jack.

Remove rear mount nuts from third crossmember.

(4

×

4)

F07RW008

(4

×

2)

F07R100005

11. Remove third crossmember.

12. Disconnect transmission oil cooler pipes from A/T

side.

13. Remove oil pipe clamp and bracket from the

converter housing.

7A–42

AUTOMATIC TRANSMISSION (4L30–E)

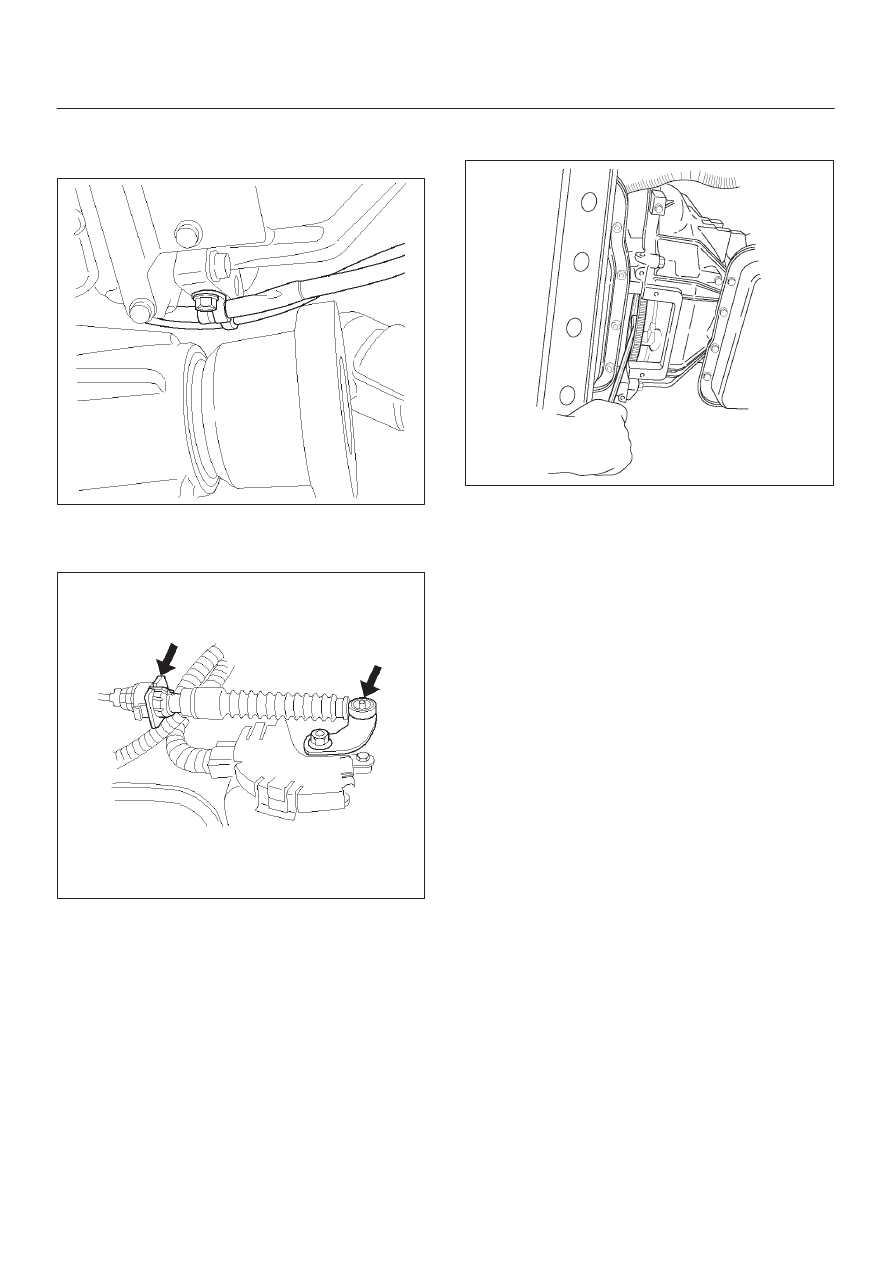

14. Loosen oil cooler pipe clamp bolt at the engine mount

side.

(4

×

4)

253RY001

15. Remove select cable by disconnecting inner cable

from select lever and removing outer cable with
bracket.

256RW025

16. Remove starter.
17. Remove under covers from the transmission and

engine.

18. Remove flex plate torque converter fixing bolts (6

pieces) by turning crankshaft.

240RX010

19. Remove engine transmission fixing bolts.
20. Pull out transmission assembly from the engine.
21. Remove the rear mount rubber and propeller

protector assembly if required (4

×

2).

7A–43

AUTOMATIC TRANSMISSION (4L30–E)

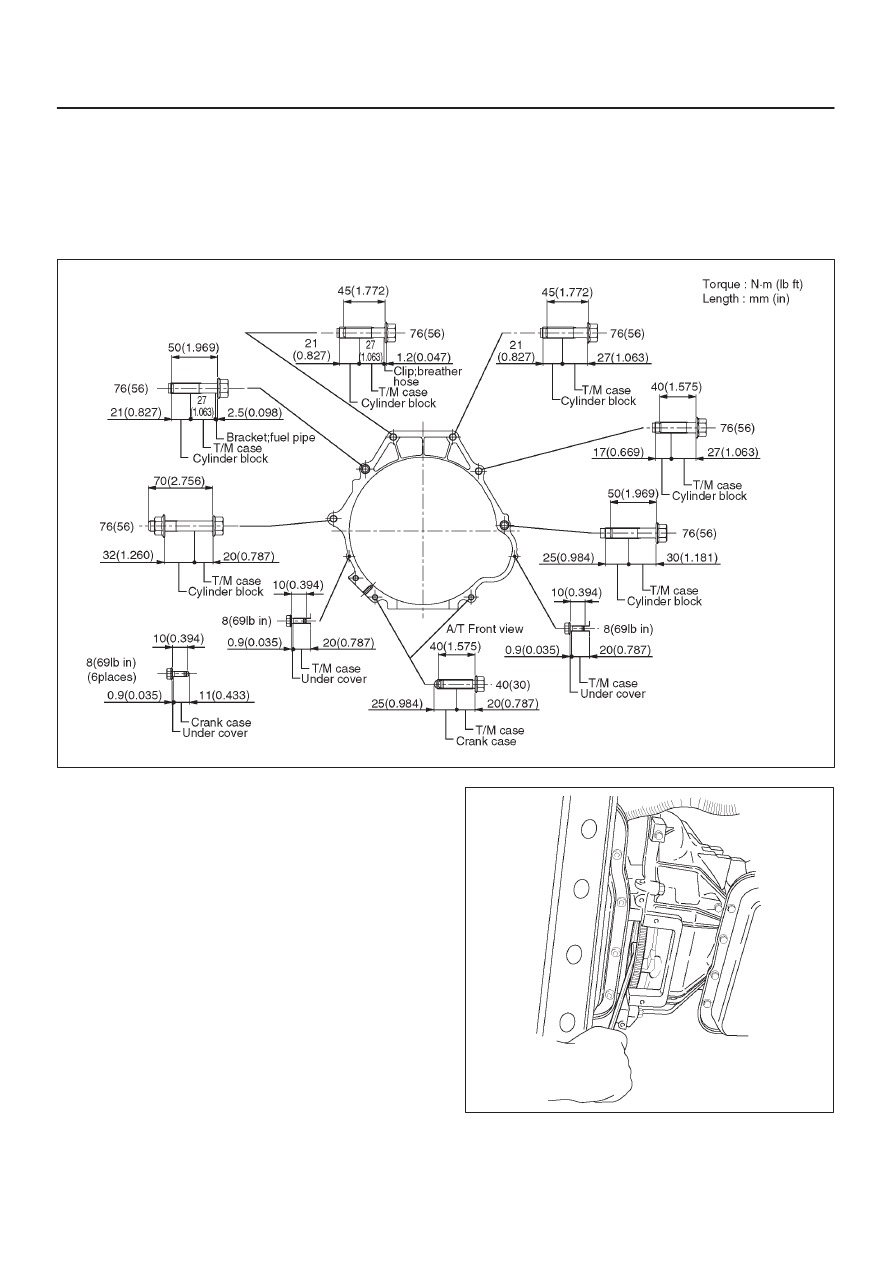

Installation

1. Slowly raise transmission jack until front of the

transmission assembly is aligned with rear of the
engine. Attach the transmission assembly to the
engine.

2. Tighten engine transmission bolts as shown in the

figure.

F07R200004

3. Align the flex plate torque converter bolt boss with flex

plate hole by turning the torque converter. Install flex
plate torque converter bolts (6 pieces) by turning the
crankshaft.

Torque: 54 N

•

m (40 lb ft)

NOTE: Do not reuse the flex plate torque converter bolt.

240RX010

7A–44

AUTOMATIC TRANSMISSION (4L30–E)

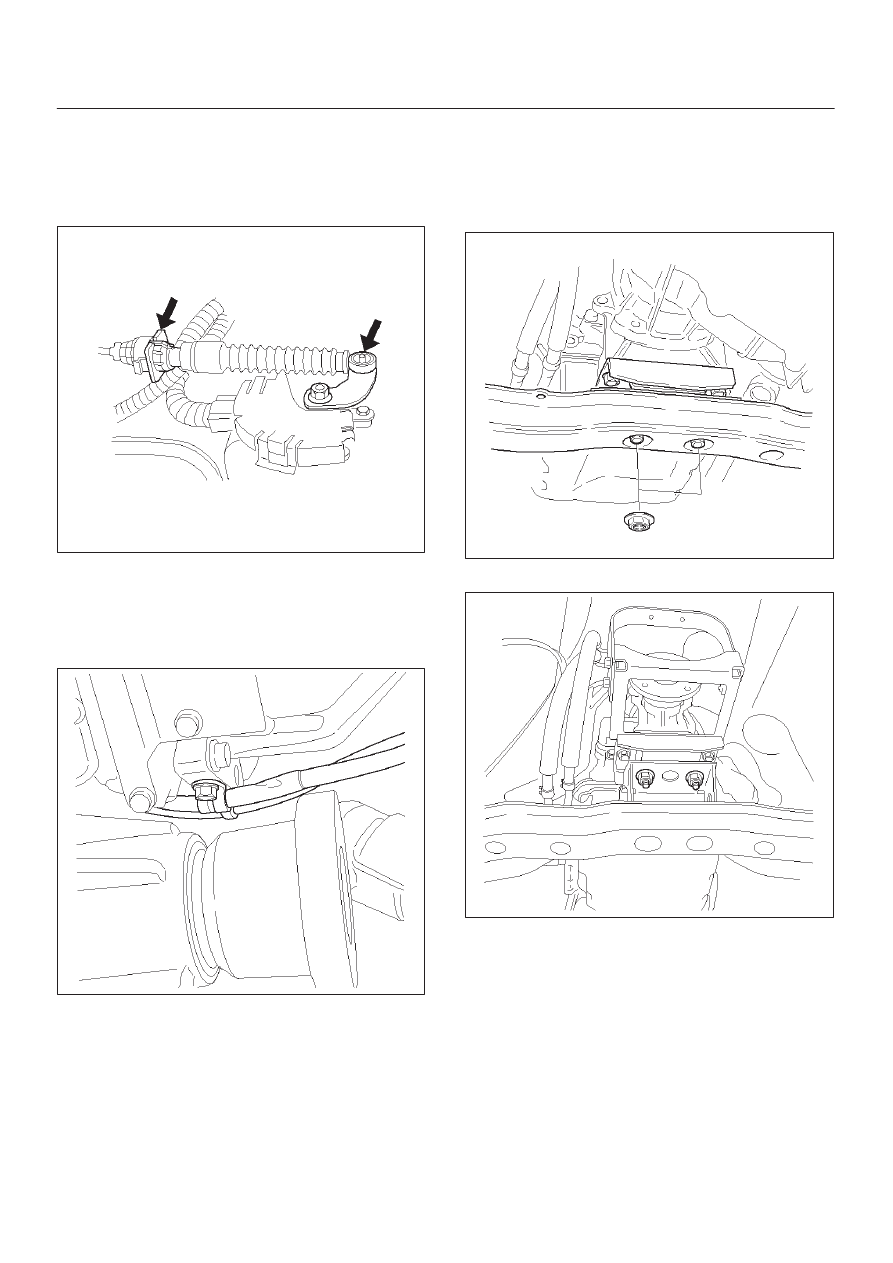

4. Install under covers to the transmission and engine.
5. Install starter.

Torque: 40 N

•

m (30 lb ft)

6. Install select cable by connecting inner cable to select

lever and installing outer cable with bracket.

256RW025

7. Connect transmission oil cooler pipes to A/T.

Torque: 44 N

•

m (33 lb ft)

8. Install oil cooler pipe clamp and bracket to the

converter housing.

(4

×

4)

253RY001

9. Tighten oil cooler pipe clamp bolt at the engine mount

side.

10. Install third crossmember.

Torque: 116 N

•

m (85 lb ft)

11. Install rear mount nuts.

Torque: 50 N

•

m (37 lb ft)

(4

×

4)

F07RW008

(4

×

2)

F07R100005
