7A–29

AUTOMATIC TRANSMISSION (4L30–E)

10. Remove selector lever subassembly.

256R200005

Installation

1. Install selector lever subassembly.
2. Connect harness connector.
3. Connect shift lock cable.

D

Refer to

Shift Lock Cable in this section.

4. Connect select cable.

D

Refer to

Select Cable in this section.

5. Install selector lever knob and cover assembly.
6. Install front console.
7. Install rear console.
8. Install center cluster assembly, cluster upper cover

and knee pads.

9. Connect negative (–) battery cable.

10. After installation, make sure that the selector lever

operates normally, and that each selector position is
properly indicated. (The red mark shows through the
window.)

Select Cable

Removal

1. Set selector lever in “P” position.
2. Remove knee pads, cluster upper cover, center

cluster assembly, rear console, front console,
selector lever knob and cover assembly.

D

Refer to

Selector Lever in this section.

3. Disconnect inner cable by pulling projection on pin.

256R200006

7A–30

AUTOMATIC TRANSMISSION (4L30–E)

4. Press down claws and disconnect cable assembly.

A07RW017

5. Remove nuts that fasten grommet in select cable

assembly.

6. Disconnect inner cable.

210RW013

7A–31

AUTOMATIC TRANSMISSION (4L30–E)

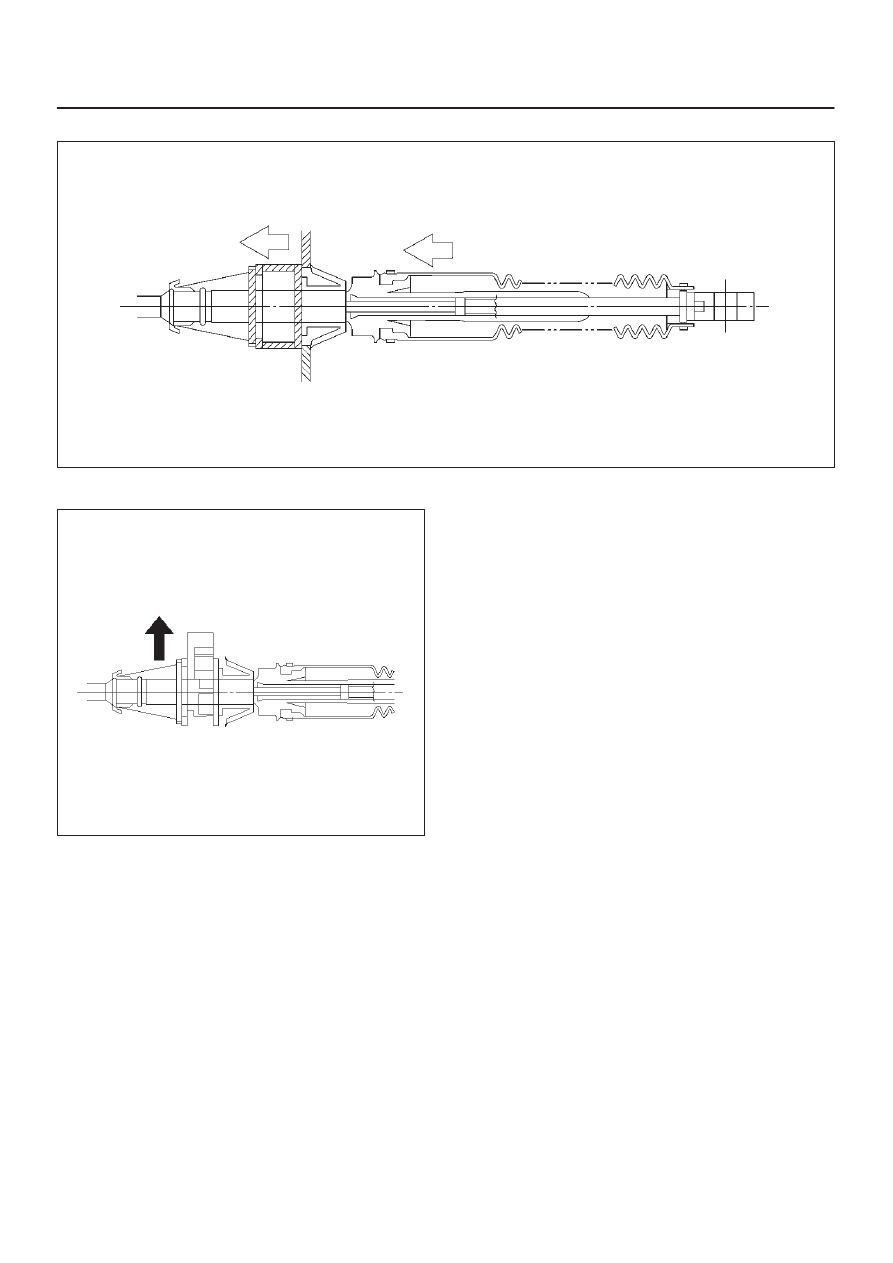

7. Slide sleeve and disconnect cable assembly.

A07RW082

8. Pull lock.

A07RW015

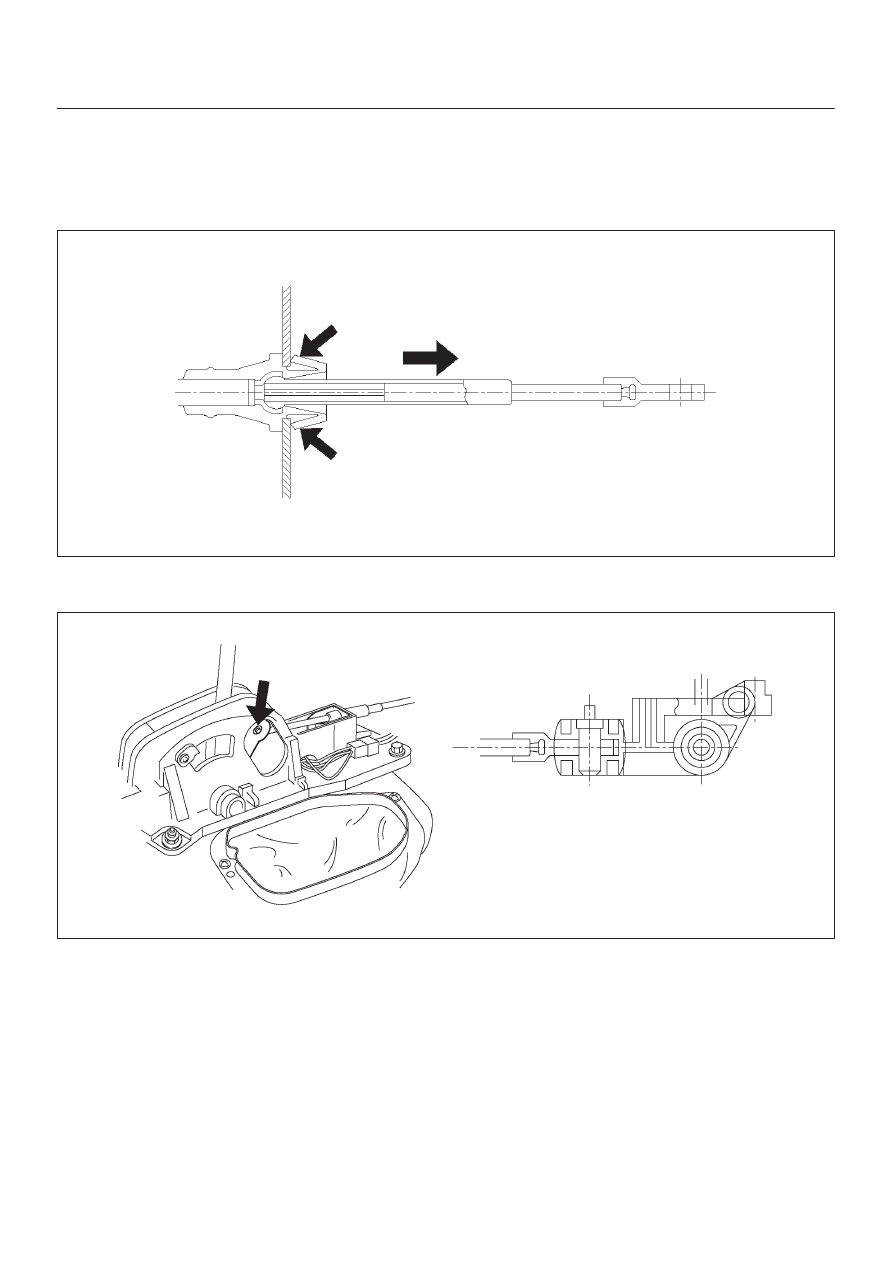

9. Draw select cable assembly into the interior side.

7A–32

AUTOMATIC TRANSMISSION (4L30–E)

Installation

1. Set selector lever in “P” position.

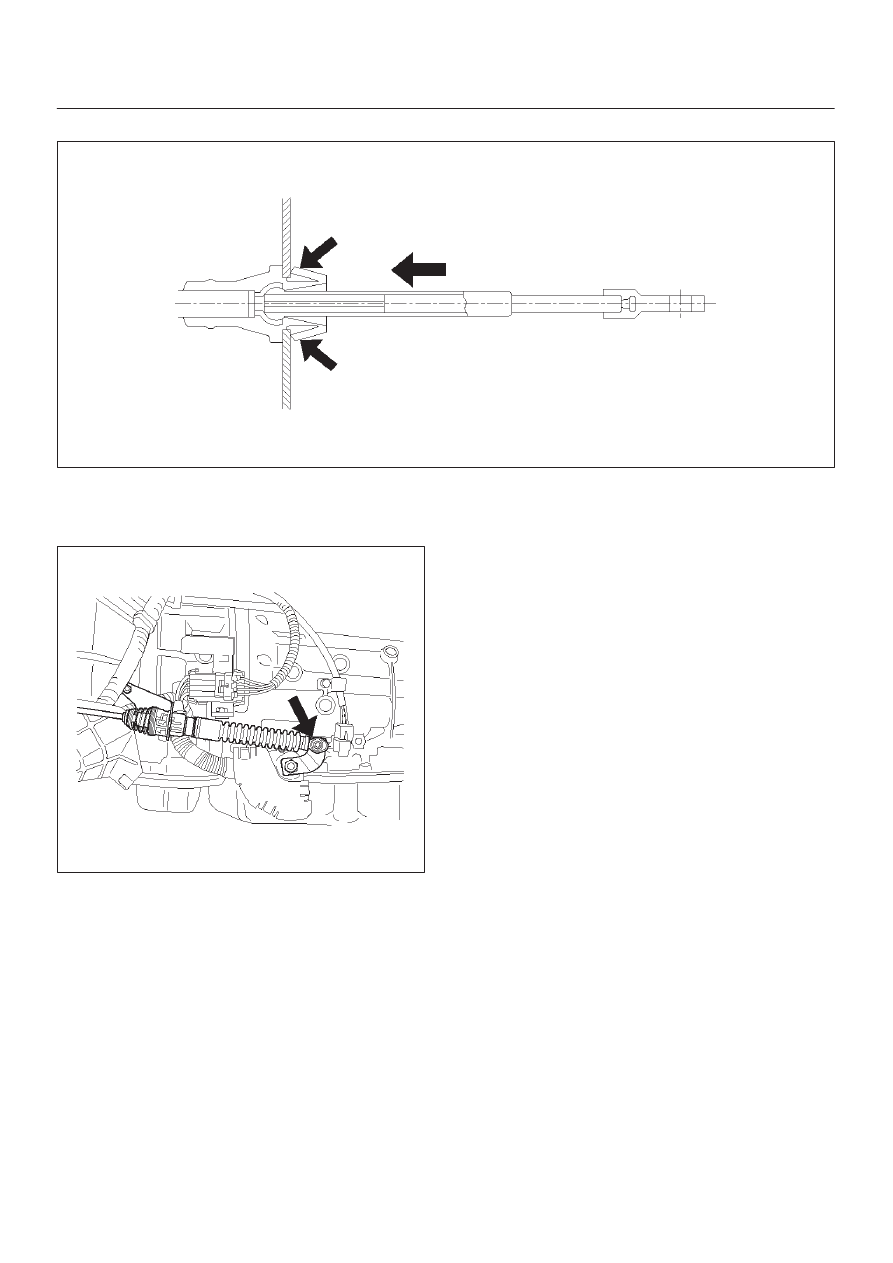

2. Let out select cable transmission side end from floor

hole.

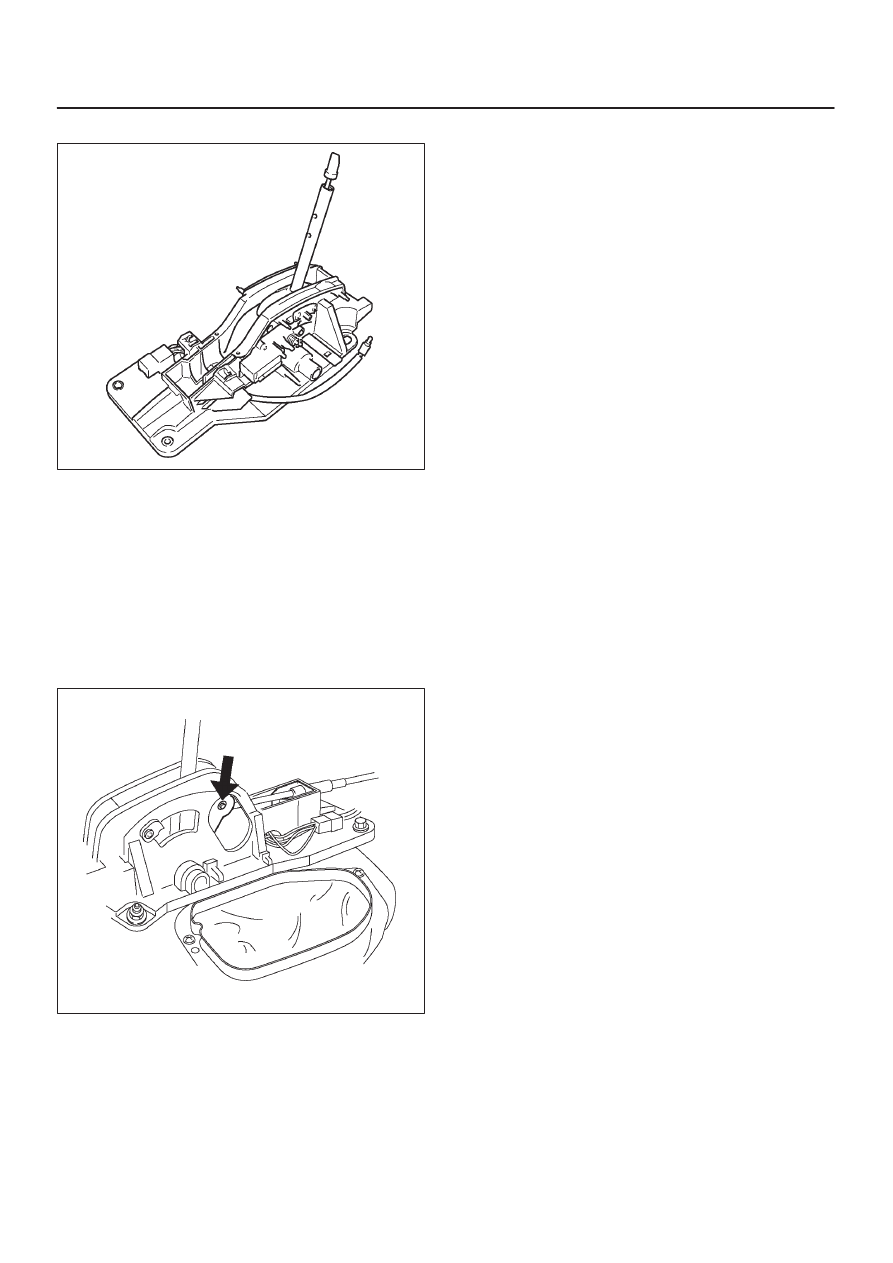

3. Fit outer cable into bracket in selector lever assembly.

A07RW016

4. Set inner cable end in selector lever and push pin into

selector lever hole and inner cable end.

256R200007
