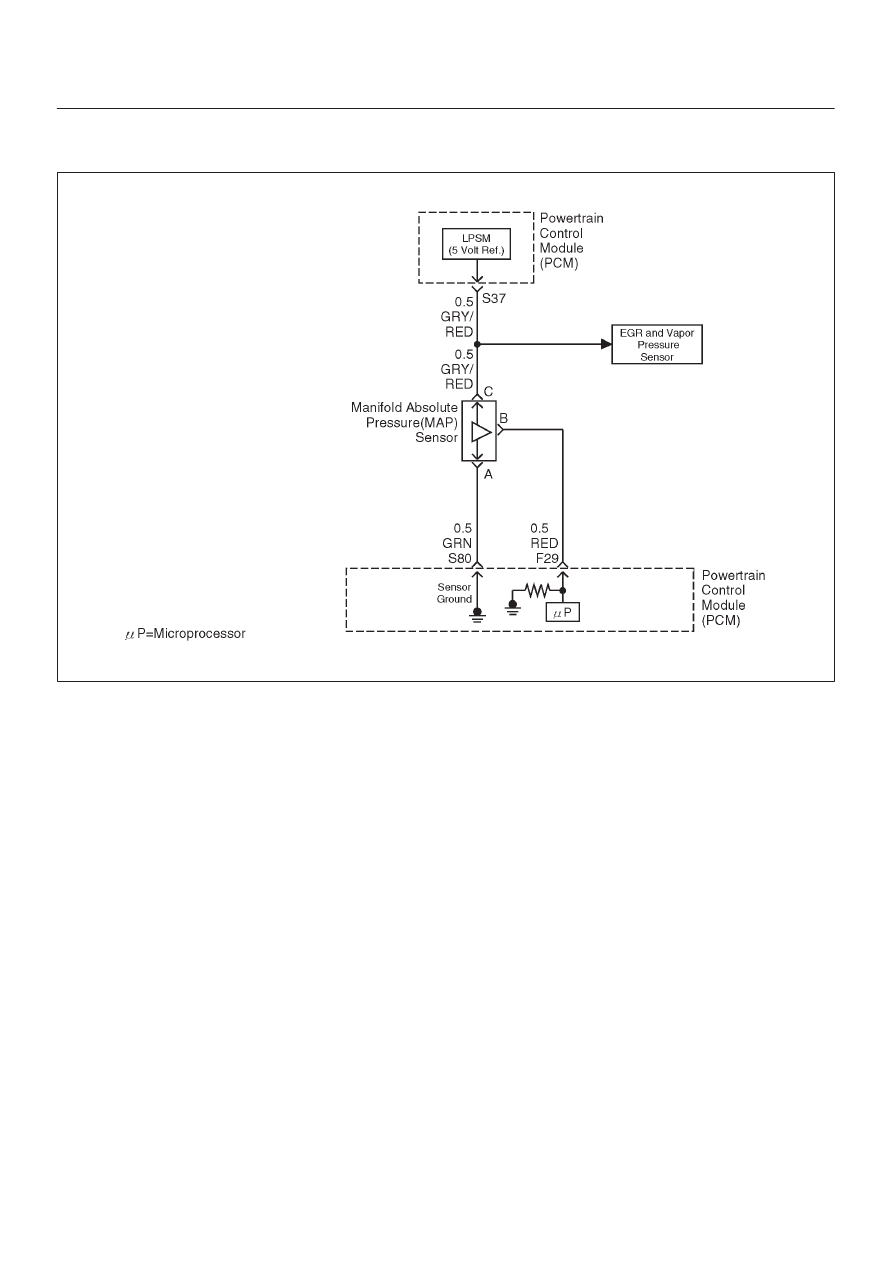

6E–386 6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1107 MAP Circuit Intermittent Low Voltage 060R200051 Circuit Description The manifold absolute pressure (MAP) sensor responds DTC P0401), to determine engine vacuum level for some other diagnostics and to determine Conditions for Setting the DTC D No TP sensor DTCs are present. D Engine is running. D Ignition voltage is more than 11 volts. D Throttle angle is above 1% if engine speed is less than D Throttle angle is above 3% if engine speed is above D The MAP sensor indicates an intermittent manifold approximately 5 seconds over a 16-second period of Action Taken When the DTC Sets D The PCM will not illuminate the malfunction indicator D The PCM will store conditions which were present Conditions for Clearing the MIL/DTC D A history DTC P1107 will Clear after 40 consecutive D DTC P1107 can be cleared by using the Tech 2 “Clear Diagnostic Aids Check for the following conditions: D Poor connection at PCM – Inspect harness connectors D The MAP Sensor shares a 5 Volt reference with the D The MAP Sensor share a ground with the EGR Valve |
