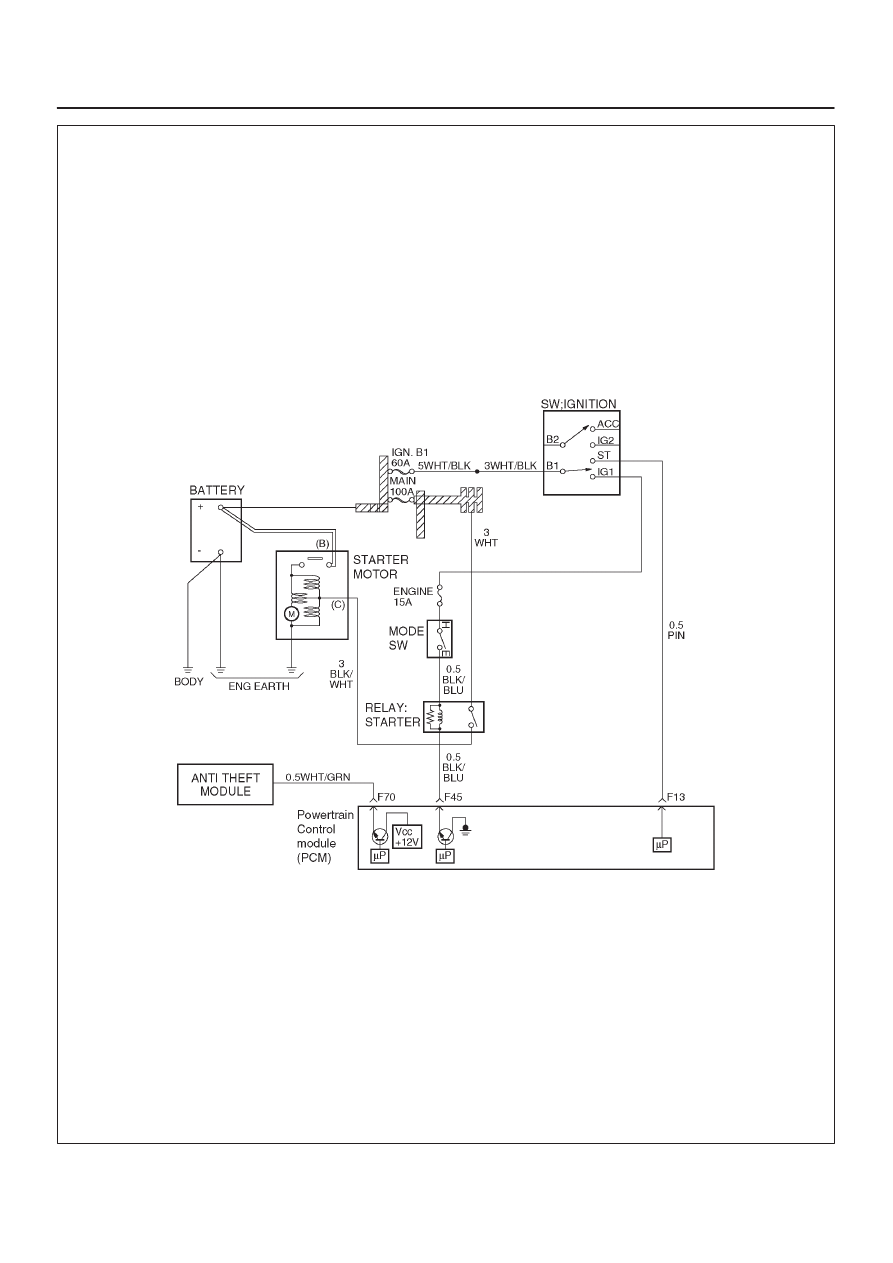

6D3–3

STARTING AND CHARGING SYSTEM (6VE1 3.5L)

060R200062

6D3–4

STARTING AND CHARGING SYSTEM (6VE1 3.5L)

Diagnosis

Condition

Possible cause

Correction

Starter does not run

Charging failure

Repair charging system

Battery Failure

Replace Battery

Terminal connection failure

Repair or replace terminal connector
and/or wiring harness

Starter switch failure

Repair or replace starter switch

Starter relay failure

Replace

Starter failure

Repair or replace starter

6D3–5

STARTING AND CHARGING SYSTEM (6VE1 3.5L)

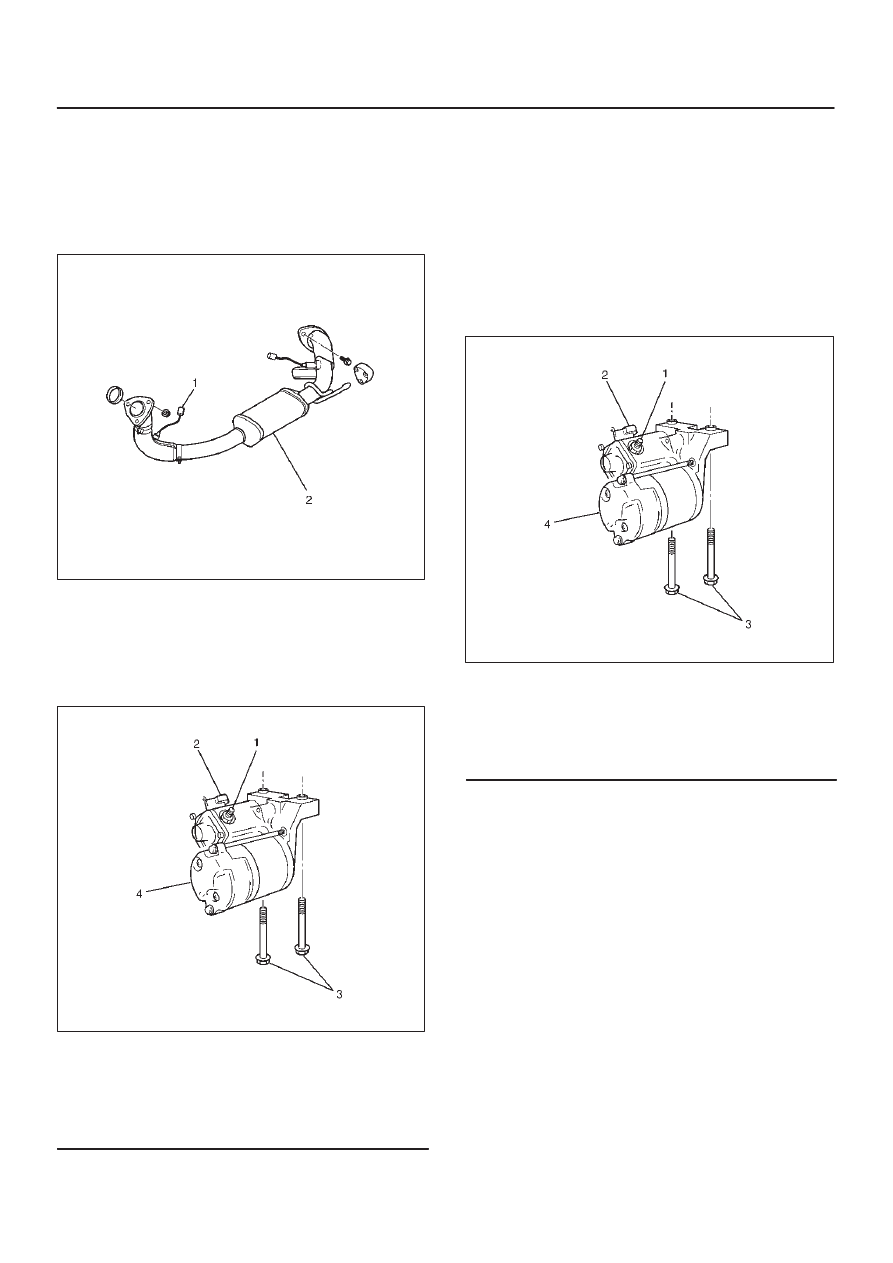

Starter

Removal

1. Battery ground cable.
2. Disconnect Heated O

2

 Sensor connector (1).

3. Remove exhaust front left pipe(2).

150R100011

4. Disconnect starter wiring connector from terminals

“30” (1) and “50” (2).

5. Remove starter assembly mounting bolts on inside

and outside(3).

6. Remove starter assembly (4) toward the bottom of

engine.

065RY00050

Legend

(1) Terminal “30”
(2) Terminal “50”
(3) Fixing Bolts
(4) Starter Assembly

Installation

1. Install starter assembly(4).
2. Install mounting bolts and tighten bolts to specified

torque(3).

Torque: 40 N·m (30 lb ft)

3. Reconnect the connectors to terminals “50” (2)

tighten terminals “30” (1) to specified torque.

Torque: 9 N·m (78 lb in)

065RY00050

Legend

(1) Terminal “30”
(2) Terminal “50”
(3) Fixing Bolts
(4) Starter Assembly

4. Install exhaust front left pipe (2) and tighten bolts and

nuts to specified torque.

Stud Nuts
Torque: 67 N·m (49 lb ft)
Bolts
Torque: 43 N·m (32 lb ft)

6D3–6

STARTING AND CHARGING SYSTEM (6VE1 3.5L)

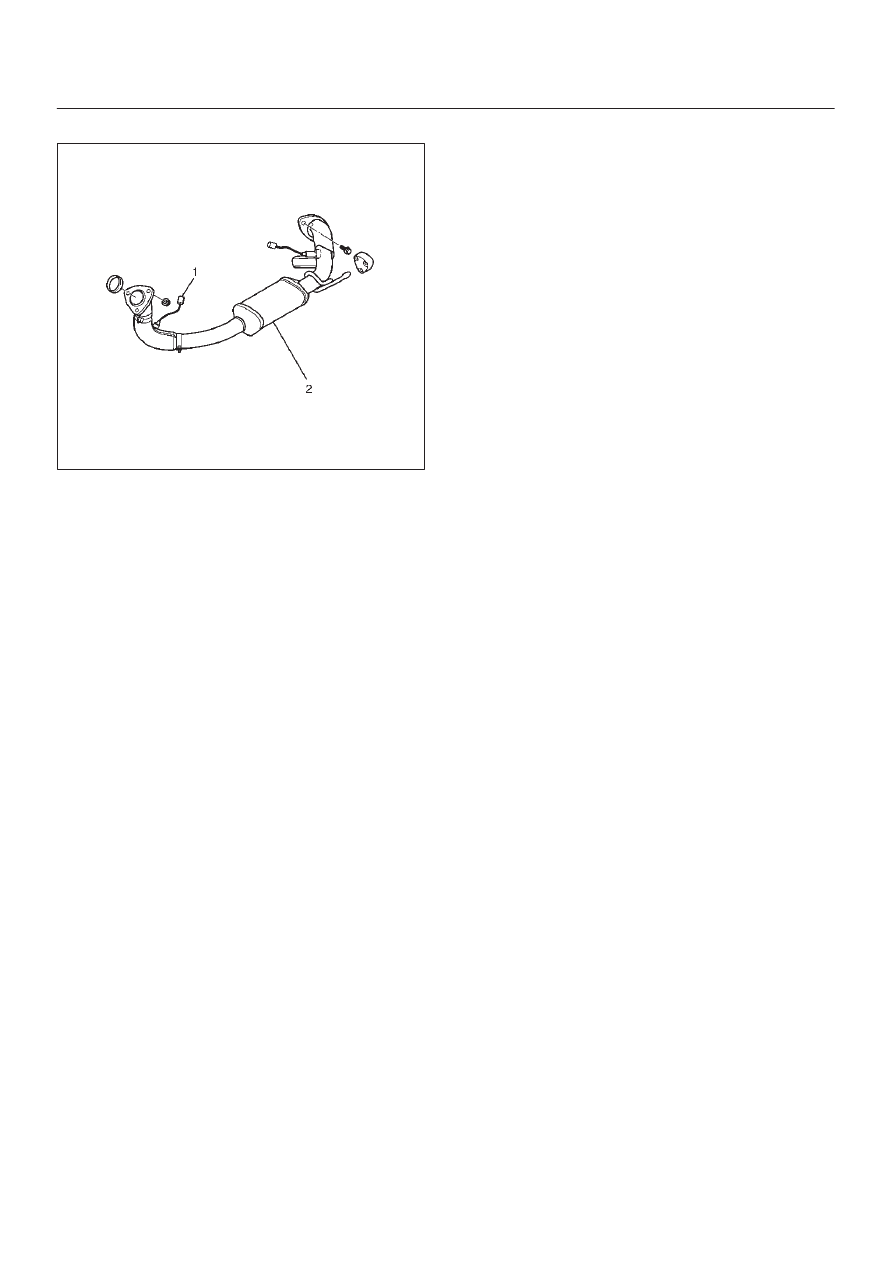

5. Connect two Heated O

2

 Sensor connector (1).

150R100011

6. Reconnect the battery ground cable.
