6A–87

ENGINE MECHANICAL (6VE1 3.5L)

Main Data and Specification

General Specification

Item

Specifications

Item

6VE1

Engine type, number of cylinders and arrangement

Water cooled, four cycle V6

Form of combustion chamber

Pent-roof type

Valve mechanism

4-Cams, 4-Valves, DOHC Gear & Belt Drive

Cylinder liner type

Casted in cylinder drive

Total piston displacement

3494 cc

Cylinder bore x stroke

93.4mm x 85mm

(3.677 in x 3.346 in)

Compression ratio

9.1

Compression pressure at 300rpm

1.37 MPa (14.0 Kg/cm

2

)

Engine idling speed rpm

Non adjustable (750)

Valve clearance

Intake: 0.28 mm (0.11 in)

Exhaust: 0.30mm (0.12in)

Oil capacity

5.3 liters

Ignition timing

Non adjustable (20

°

 BTDC at idle rpm)

Spark plug

PK16PR11, RC10PYP4, K16PR-P11

Plug gap

1.0 mm–1.1 mm(0.0394 in – 0.0433 in)

6A–88

ENGINE MECHANICAL (6VE1 3.5L)

Torque Specifications

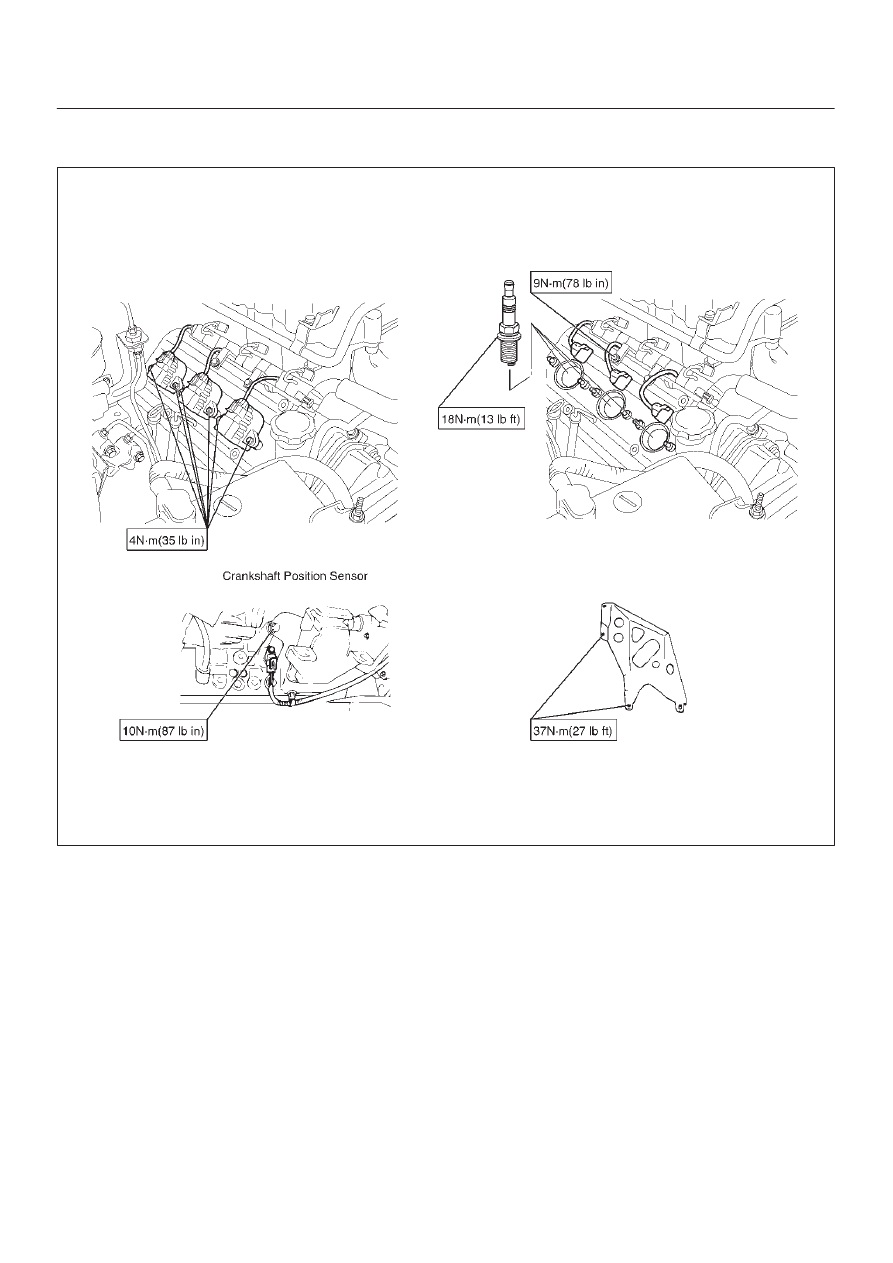

Ignition coil, Spark plug, Crankshaft position sensor and Under cover

E06R100001

6A–89

ENGINE MECHANICAL (6VE1 3.5L)

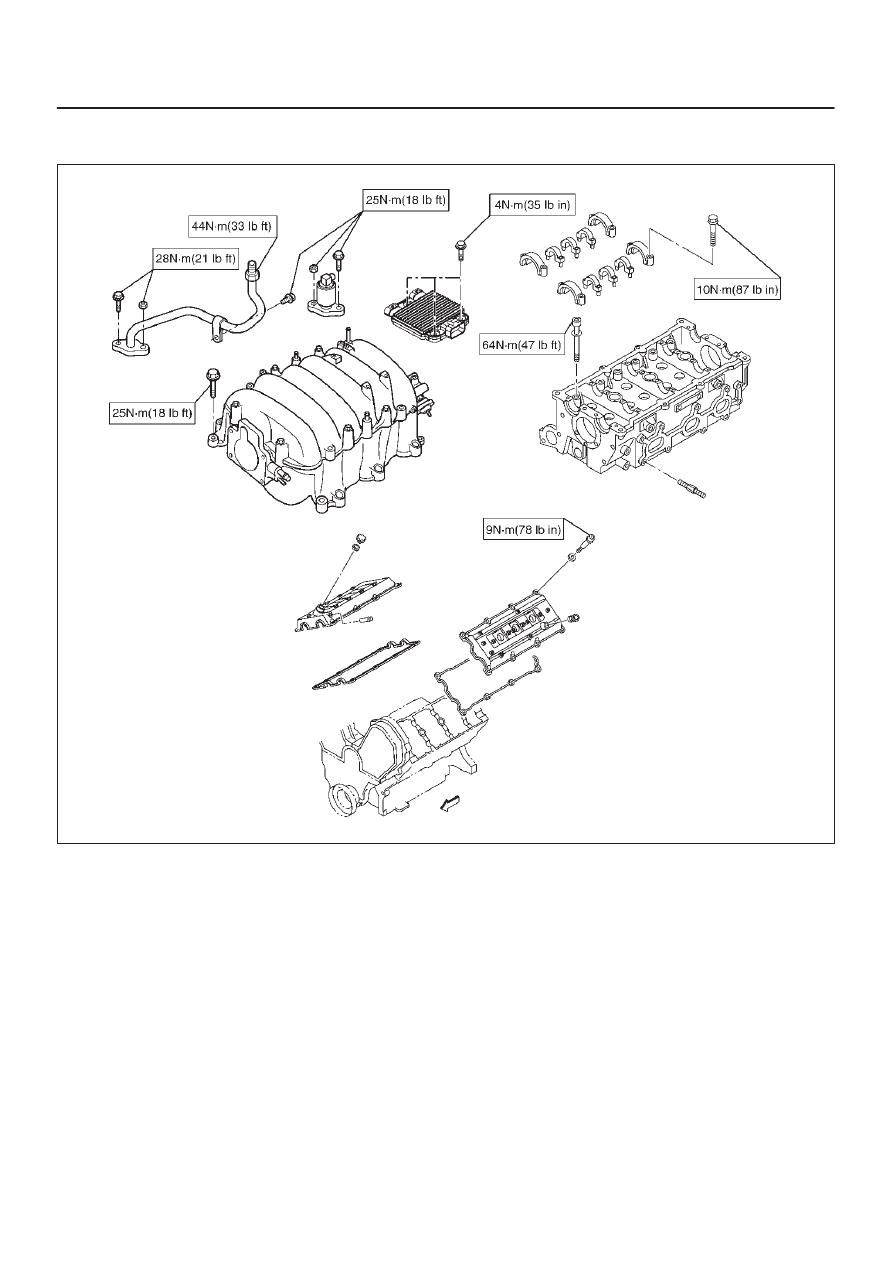

Cylinder head cover, Cylinder head, Camshaft bearing cap, Common chamber, EGR valve and EGR pipe, Ion
sensing module

E06R100002

6A–90

ENGINE MECHANICAL (6VE1 3.5L)

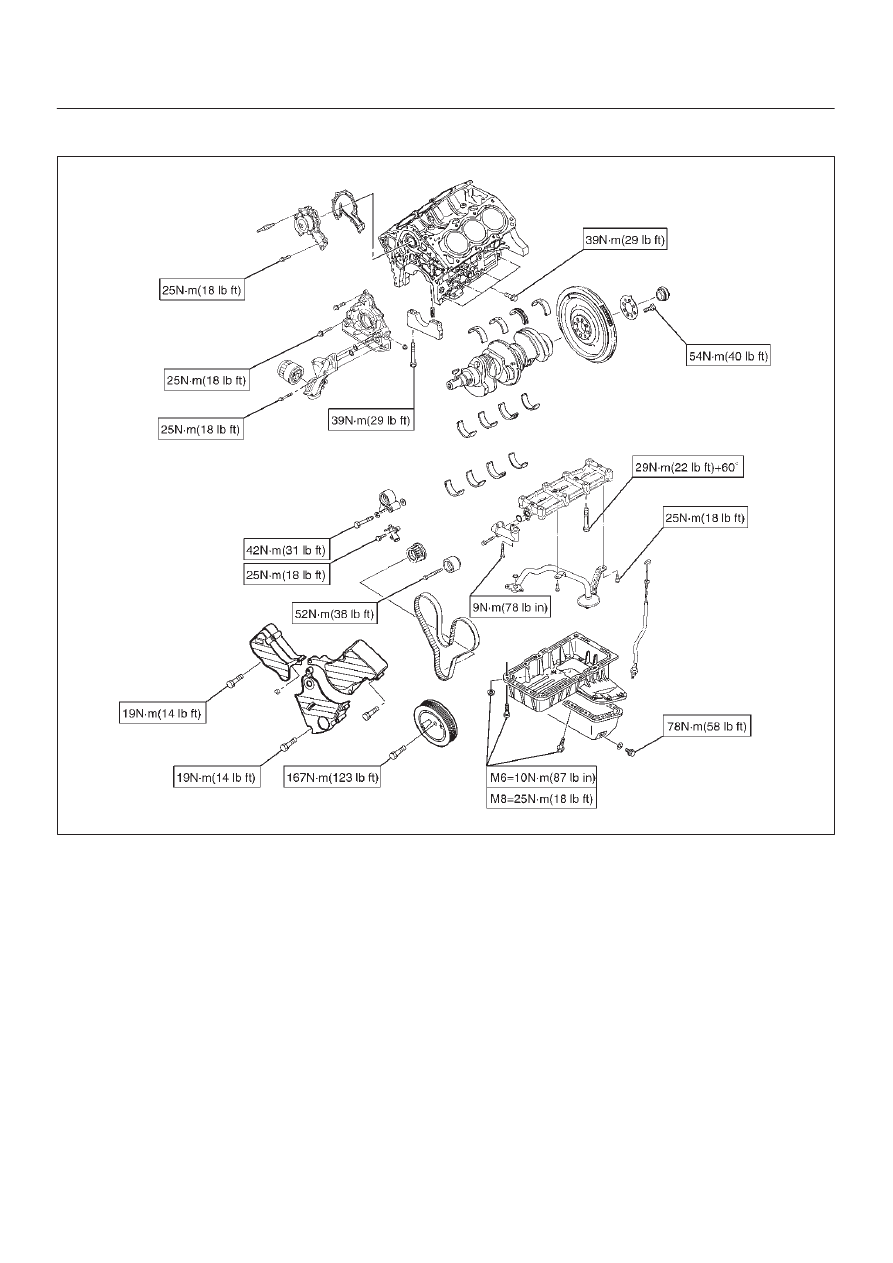

Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt
cover, Oil pump, Oil gallery, Oil strainer and water pump

E06R100004
