5. Install fan pulley bracket and tighten fixing bolts to the

specified torque.

Torque : 22 N·m (16 lb ft)

6. Install power steering pump assembly and tighten to

the specified torque.

Torque :
M8 bolt : 22 N·m (16 lb ft)
M10 bolt : 46 N·m (34 lb ft)

7. Install cooling fan assembly and tighten bolts/nuts to

the specified torque.

Torque : 22 N·m (16 lb ft) for fan pulley and fan
bracket.

Torque : 7.5 N·m (66.4 lb in) for fan and clutch
assembly.

8. Move drive belt tensioner to loose side using wrench,

then install drive belt to normal position.

850RW001

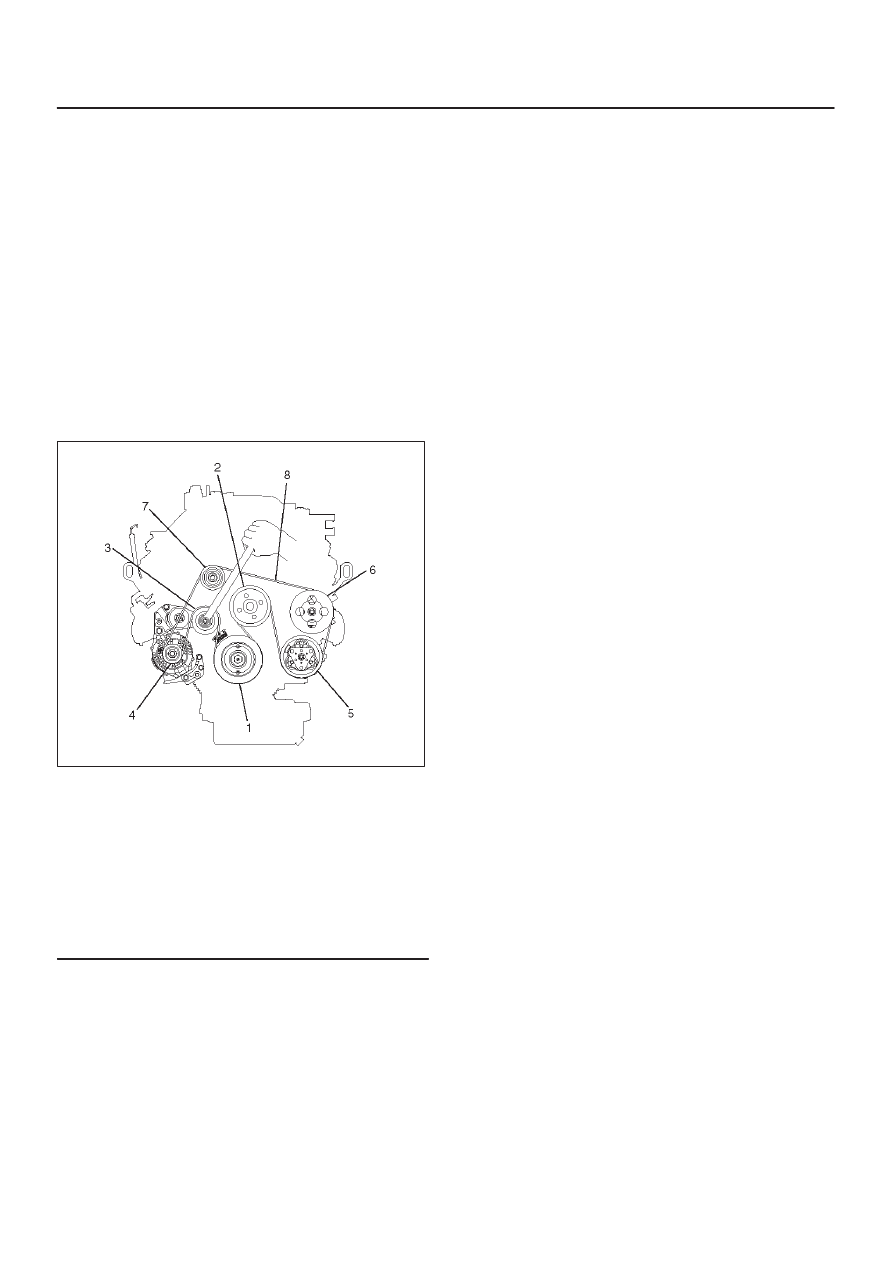

Legend

(1) Crankshaft Pulley
(2) Cooling Fan Pulley
(3) Tensioner
(4) Generator
(5) Air Conditioner Compressor
(6) Power Steering Oil Pump
(7) Idle Pulley
(8) Drive Belt

9. Install radiator upper fan shroud.

10. Install air cleaner assembly.

6A–32

ENGINE MECHANICAL (6VE1 3.5L)

Camshaft

Removal

1. Disconnect battery ground cable.
2. Remove crankshaft pulley.

D

Refer to removal procedure for Crankshaft Pulley in
this manual.

3. Remove timing belt.

D

Refer to removal procedure for Timing Belt in this
manual.

4. Remove cylinder head cover LH.

D

Refer to removal procedure for Cylinder Head
Cover LH in this manual.

5. Remove cylinder head cover RH.

D

Refer to removal procedure for Cylinder Head
Cover RH in this manual.

6. Remove twenty fixing bolts from inlet and exhaust

camshaft bearing cap on one side bank, then
camshaft bearing cap.

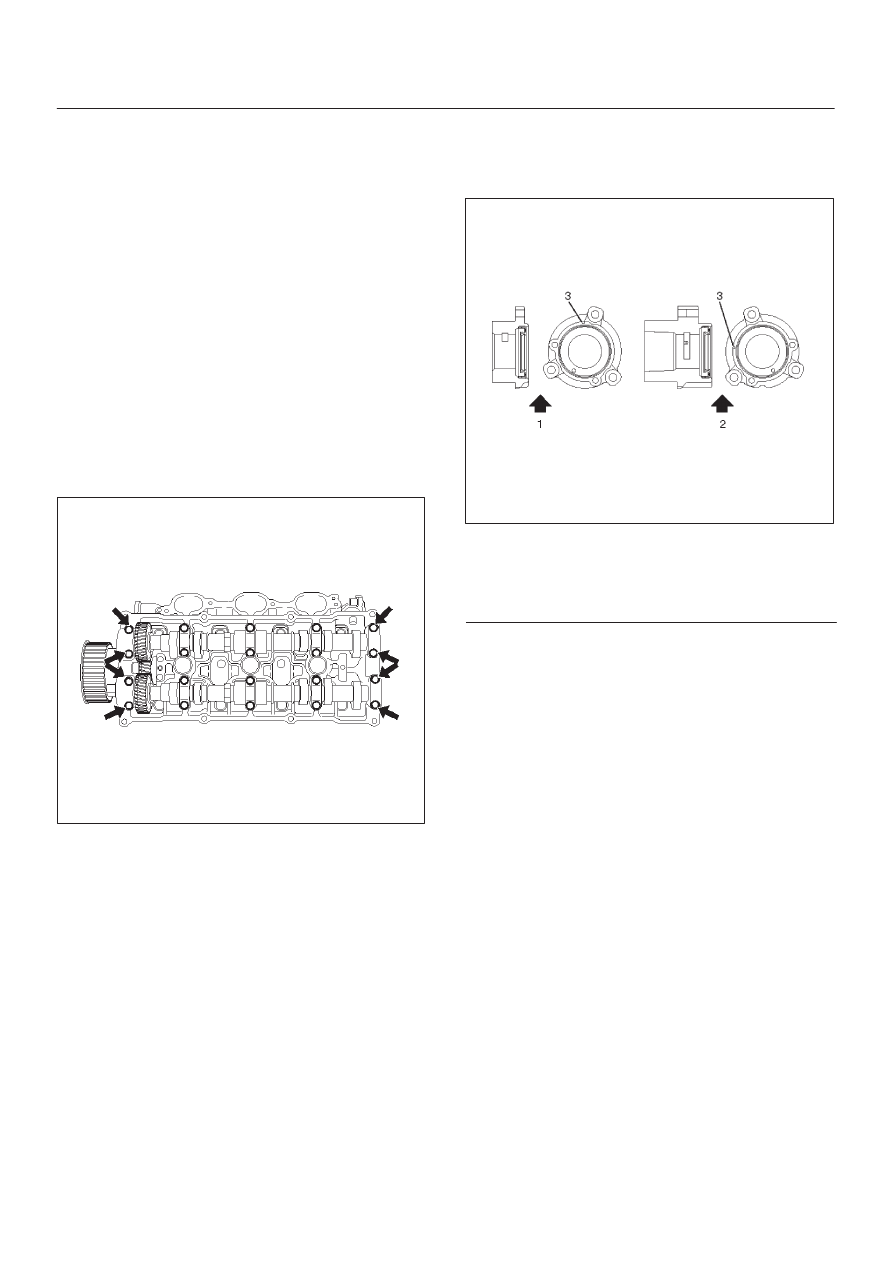

014RW027

7. Remove camshaft assembly.
8. Remove fixing bolt for camshaft drive gear pulley.

9. Remove three fixing bolts from camshaft drive gear

retainer, then camshaft drive gear assembly.

014RW026

Legend

(1) Right Bank
(2) Left Bank
(3) Timing Mark on Retainer

6A–33

ENGINE MECHANICAL (6VE1 3.5L)

Installation

1. Install camshaft drive gear assembly and tighten

three bolts to the specified torque.

Torque : 10 N·m (87 lb in)

2. Tighten bolt for camshaft drive gear assembly pulley

to the specified torque.

Torque : 98 N·m (72 lb ft)

3. Tighten sub gear setting bolt.

1. Use J-42686 to turn sub gear to right direction

until it aligns with the M5 bolt hole between
camshaft driven gear and sub gear.

2. Tighten the M5 bolt to a suitable torque to prevent

the sub gear from moving.

014RW041

4. Install camshaft assembly and camshaft bearing

caps, tighten twenty bolts on one side bank to the
specified torque.
1. Apply engine oil to camshaft journal and bearing

surface of camshaft bearing caps.

2.  Align timing mark on intake camshaft (one dot for

right bank, two dot for left bank) and exhaust
camshaft (one dots for right bank, two dots for left
bank) to timing mark on camshaft drive gear (one
dot).

014RW020

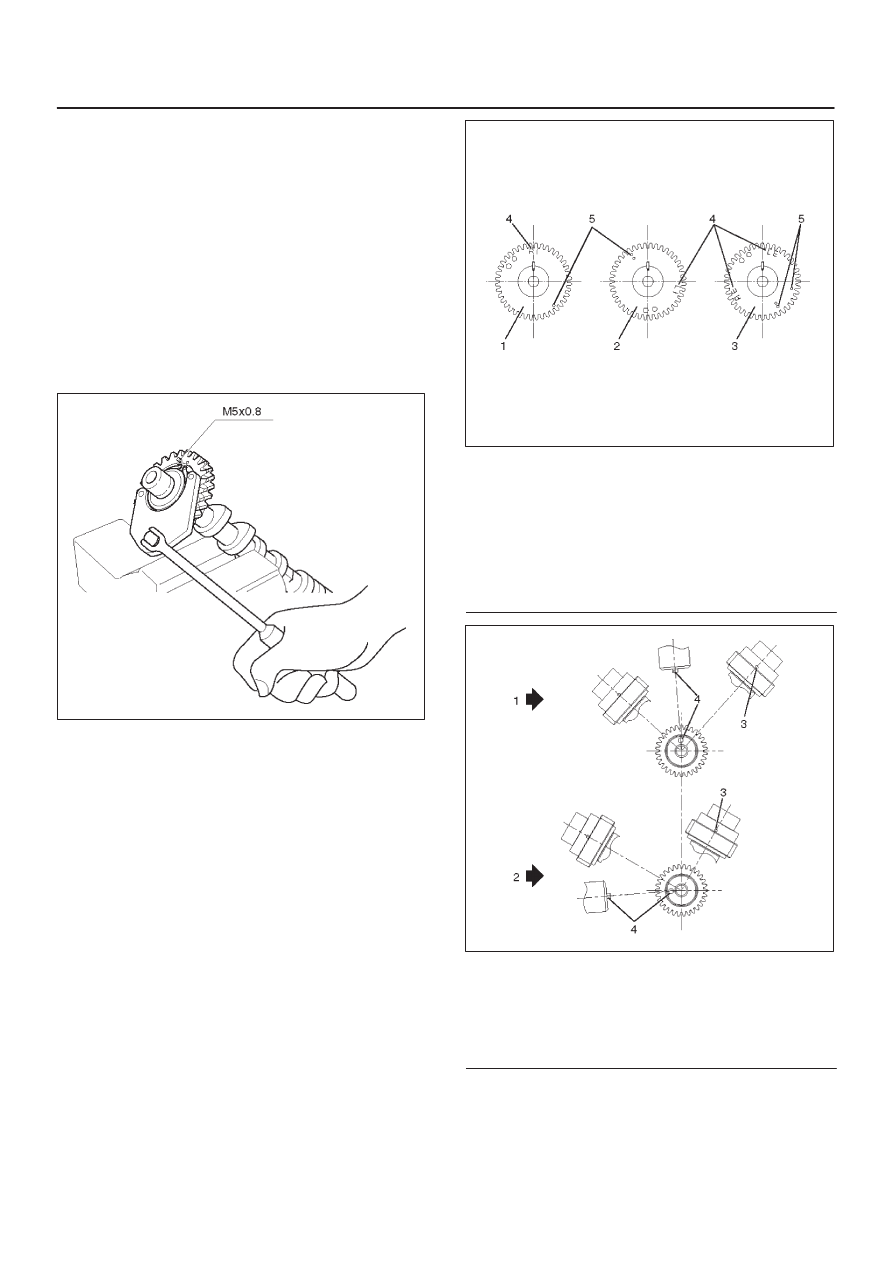

Legend

(1) Intake Camshaft Timing Gear for Right Bank
(2) Intake Camshaft Timing Gear for Left Bank
(3) Exhaust Camshaft Timing Gear
(4) Discrimination Mark

(LI: Left bank intake, RI: Right bank intake)
(LE: Left bank exhaust, RE: Right bank
exhaust)

014RW023

Legend

(1) Right Bank Camshaft Drive Gear
(2) Left Bank Camshaft Drive Gear
(3) Timing Mark on Drive Gear
(4) Dowel Pin

6A–34

ENGINE MECHANICAL (6VE1 3.5L)

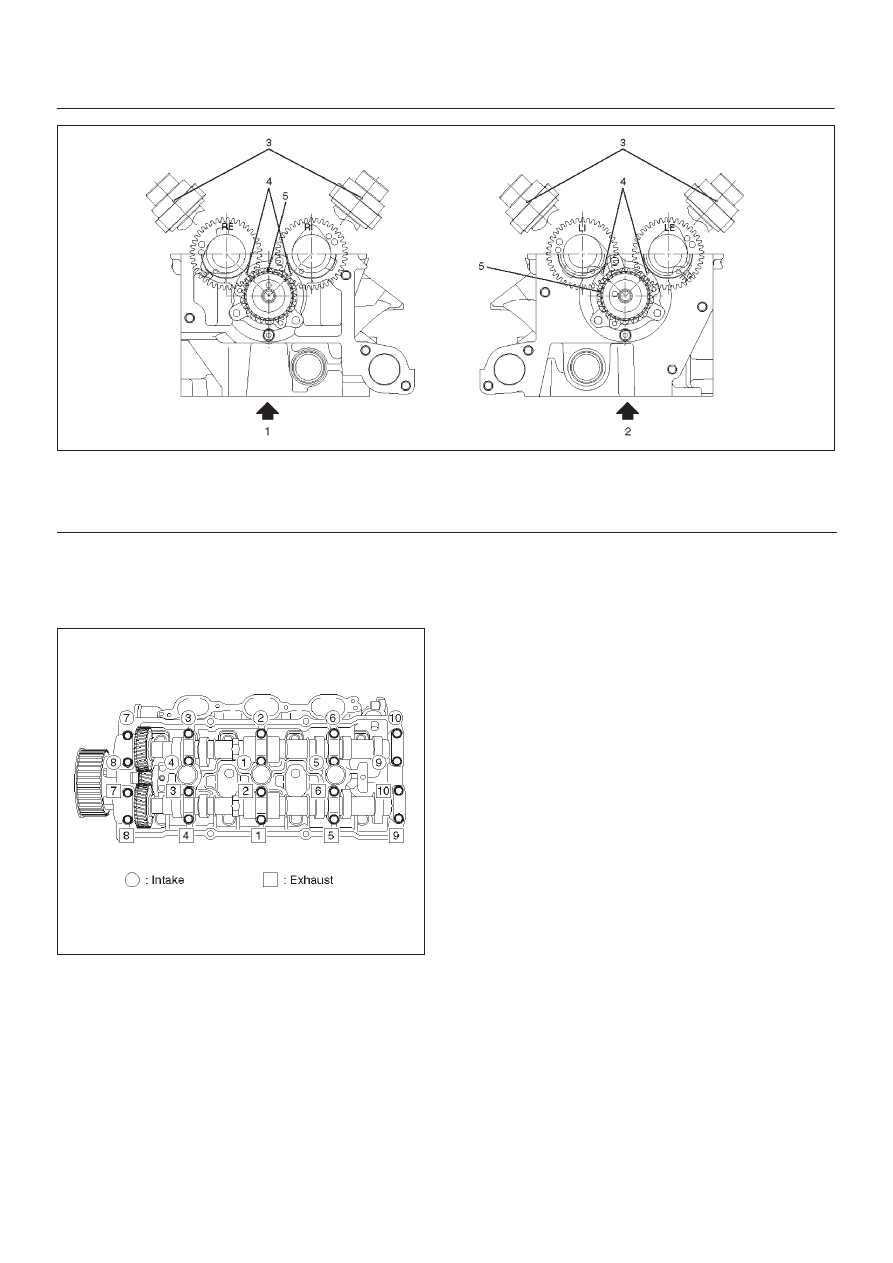

014RW024

Legend

(1) Right Bank
(2) Left Bank

(3) Alignment Mark on Camshaft Drive Gear
(4) Alignment Mark on Camshaft
(5) Alignment Mark on Retainer

3. Tighten twenty bolts on numerical order an one

side bank as shown in the illustration.

Torque : 10 N·m (87 lb in)

014RW031

5. Install cylinder head cover RH.

D

Refer to installation procedure for CYLINDER
HEAD COVER RH in this manual.

6. Install cylinder head cover LH.

D

Refer to installation procedure for CYLINDER
HEAD COVER LH in this manual.

7. Install timing belt.

D

Refer to installation procedure for TIMING BELT in
this manual.

8. Install crankshaft pulley.

D

Refer to installation procedure for CRANKSHAFT
PULLEY in this manual.
