9J1–7

RESTRAINT CONTROL SYSTEM

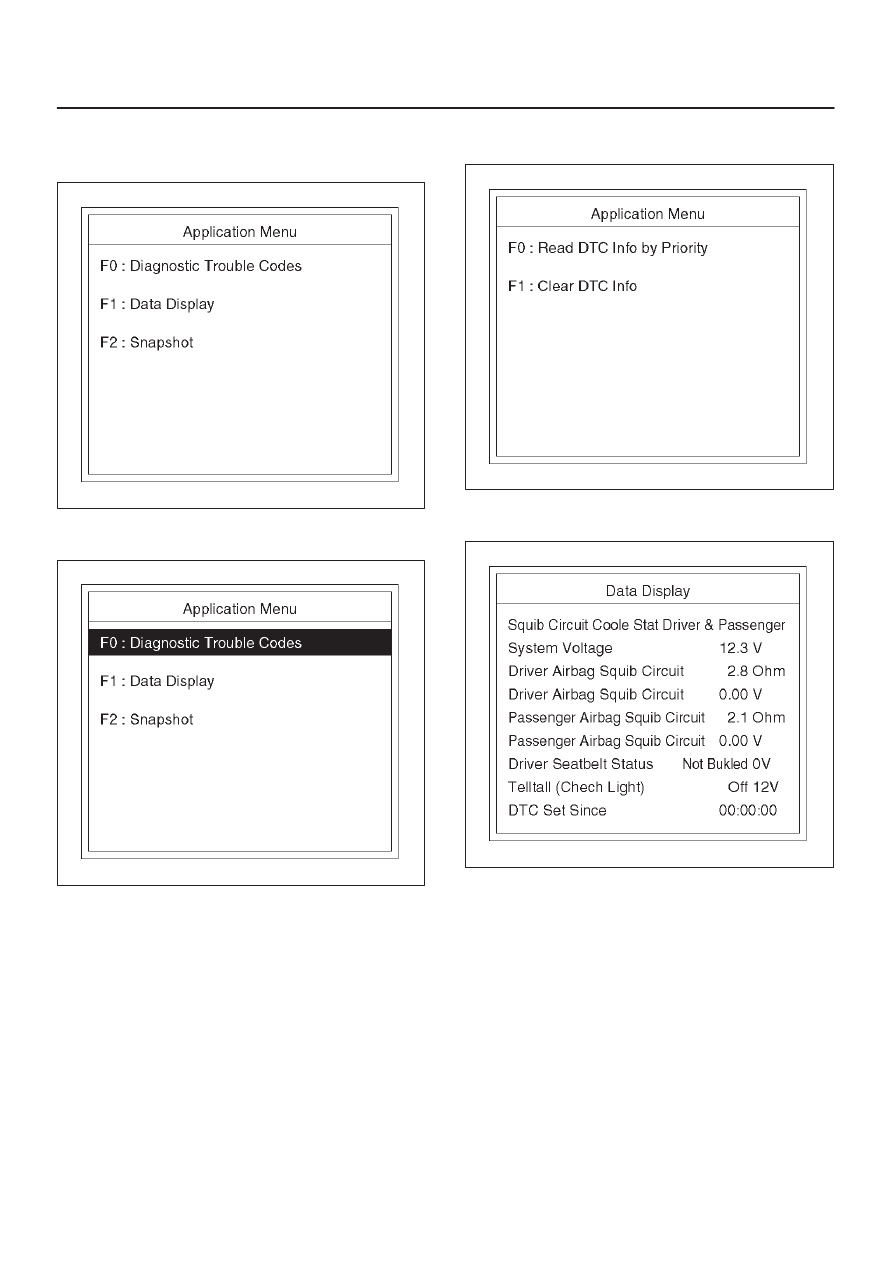

Menu

D

The following table shows which functions are used
for the available equipment versions.

060RY00113

DTC Modes

060RY00114

D

Read DTC info by Priority

D

Clear Info

060RY00115

Data Display

060R100083

Plotting Snapshot Graph

This test selects several necessary items from the data
list to plot graphs and makes data comparison on a long
term basis. It is an effective test particularly in emission
related evaluations.
For trouble diagnosis, you can collect graphic data (snap
shot) directly from the vehicle.
You can replay the snapshot data as needed. Therefore,
accurate diagnosis is possible, even though the vehicle is
not available.

RESTRAINT CONTROL SYSTEM

9J1–8

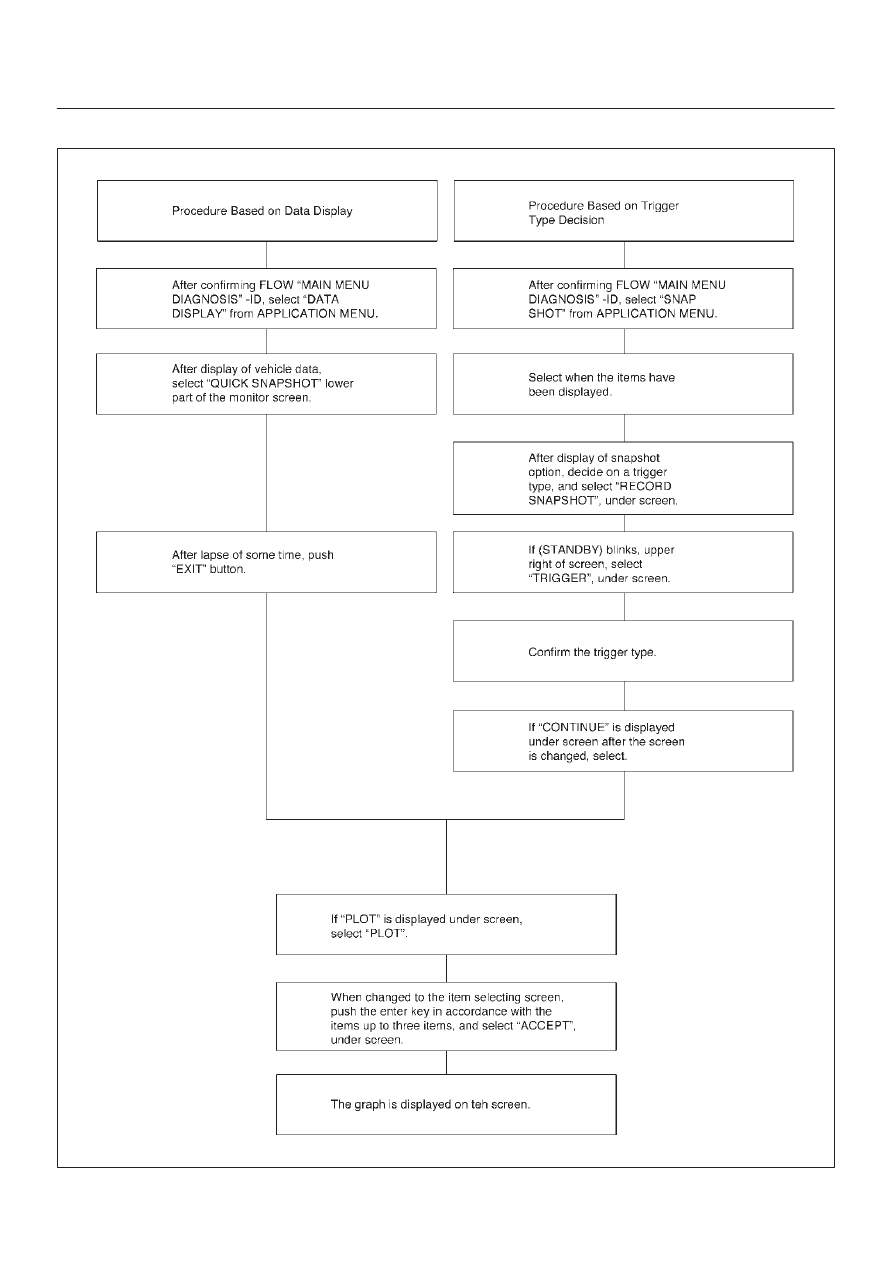

Plotting Graph Flow Chart (Plotting graph after obtaining vehicle information)

060RX041

9J1–9

RESTRAINT CONTROL SYSTEM

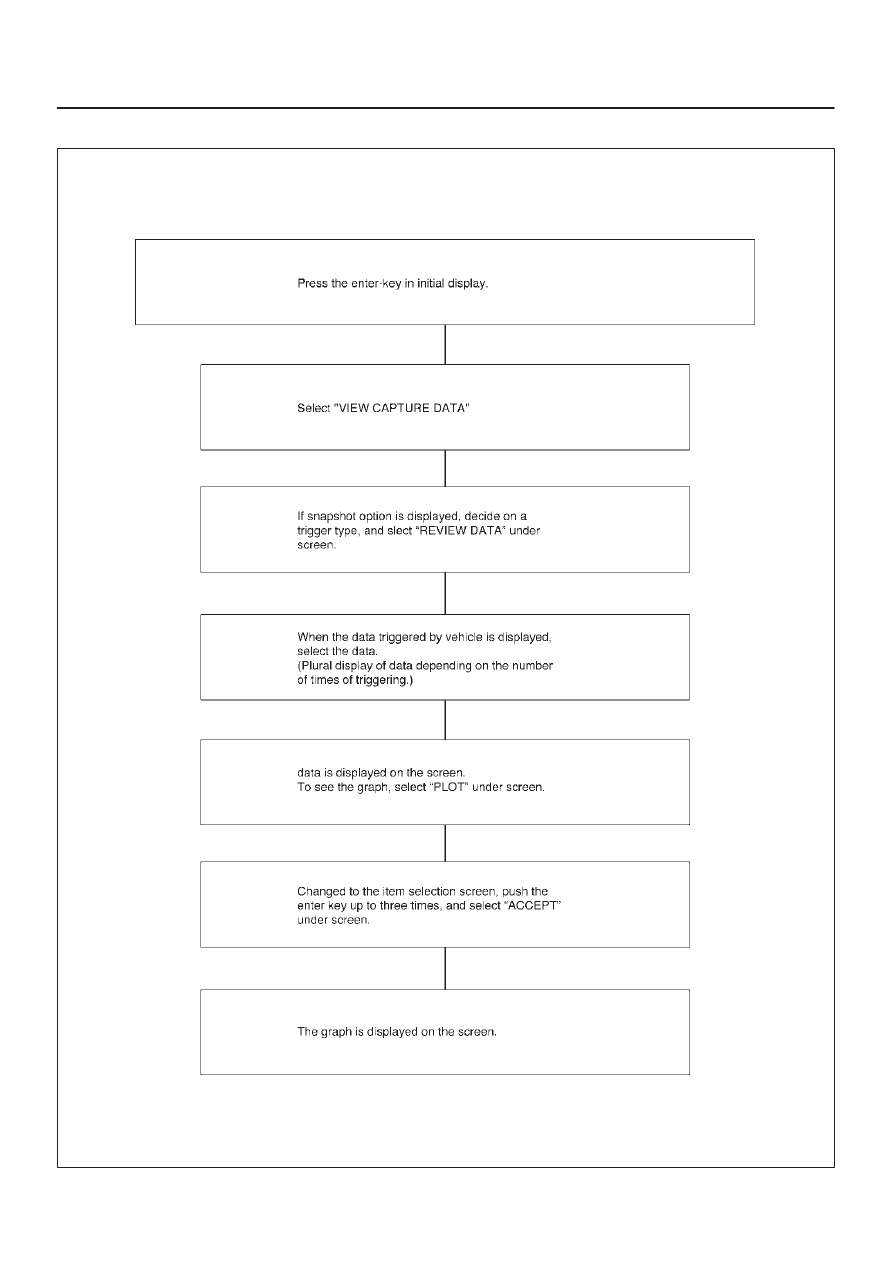

Flow Chart for Snapshot Replay (Plotting Graph)

060RX040

RESTRAINT CONTROL SYSTEM

9J1–10

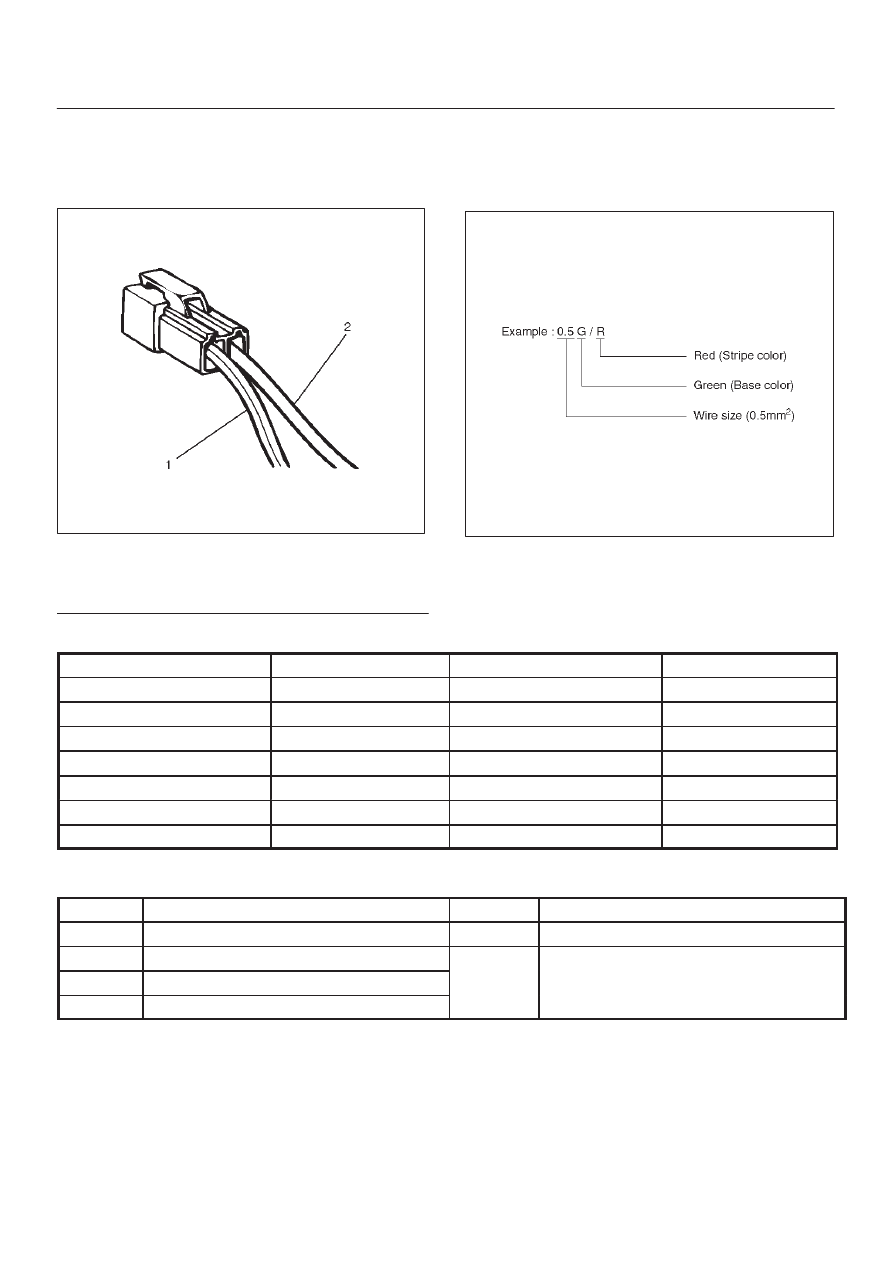

Parts For Electrical Circuit

Wiring

Wire Color

D08RX174

Legend

(1) Colored Stripe
(2) Single Color

All wires have color–coded insulation.
Wires belonging to a system’s main harness wil have a
single color. Wires belonging to a system’s sub–circuits
will have a colored stripe. Striped wires use the following
code to show wire size and colors.

D08RX175

Abbreviations are used to indicate wire color within a
circuit diagram.
Refer to the following table.

Wire Color Coding

Color–coding

Meaning

Color–coding

Meaning

B

Black

BR

Brown

W

White

LG

Light green

R

Red

GR

Grey

G

Green

P

Pink

Y

Yellow

LB

Light blue

L

Blue

V

Violet

O

Orange

Distinction of Circuit by Wire Base Color

Base color

Circuits

Base color

Circuits

B

Starter circuit and grounding circuit

Y

Instrument circuit

W

Charging circuit

L, O, BR,

R

Lighting circuit

L, O, BR,

LG, GR, P,

SB V

Other circuit

G

Signal circuits

SB, V
