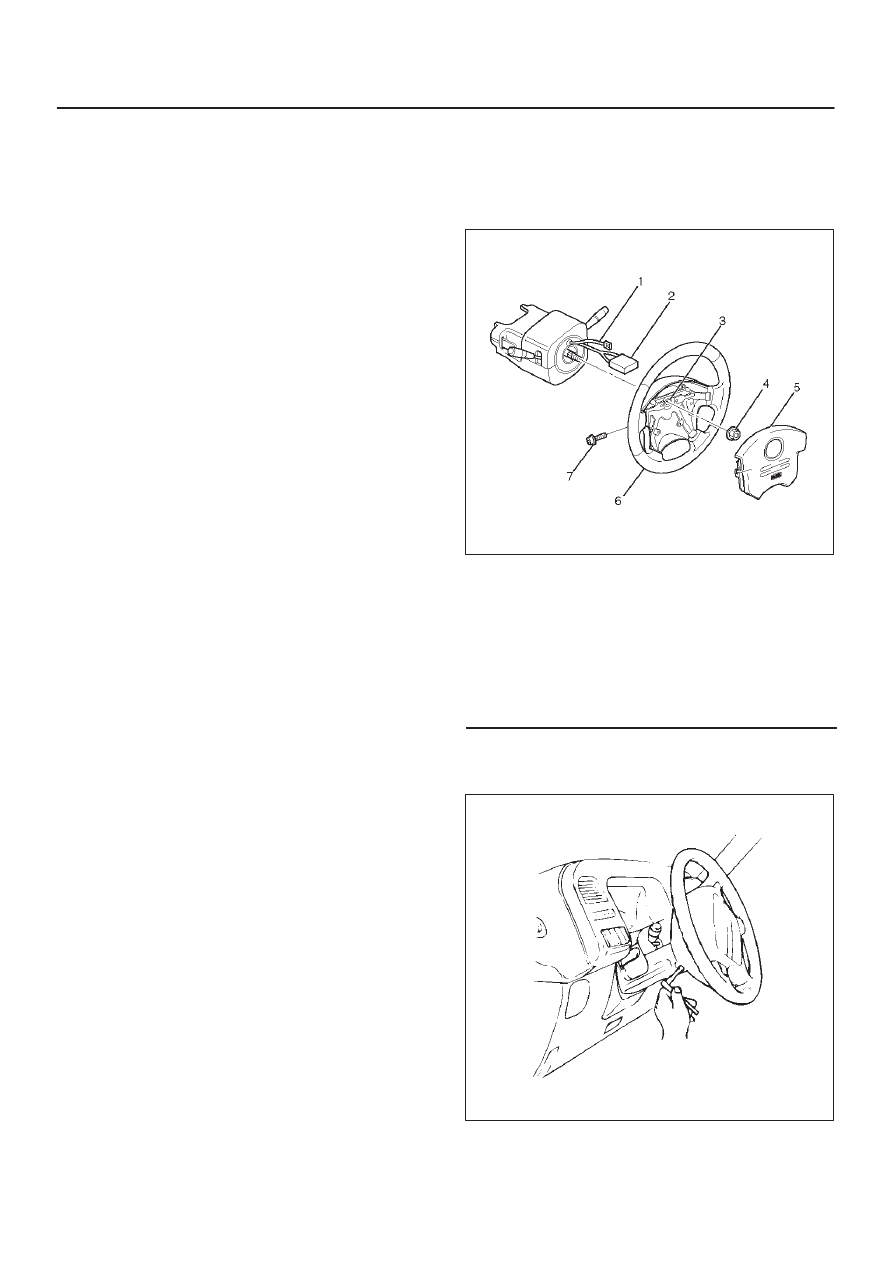

SUPPLEMENTAL RESTRAINT SYSTEM

9J–33

Steering Wheel

Service Precautions

WARNING: SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY–PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING: WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE: In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

Removal

1. Disable the SRS. (Refer to “Disabling the SRS” in this

section.)

827RX034

Legend

(1) Horn Lead Connector
(2) Air Bag Harness Connector
(3) Setting Mark
(4) Steering Fixing Nut
(5) Driver Air Bag Assembly
(6) Steering Wheel
(7) Driver Air Bag Fixing Bolts

2. Remove the air bag assembly (5) from steering wheel

(6) by removing two bolts (7). Lift air bag assembly out
of steering wheel.

827RW040

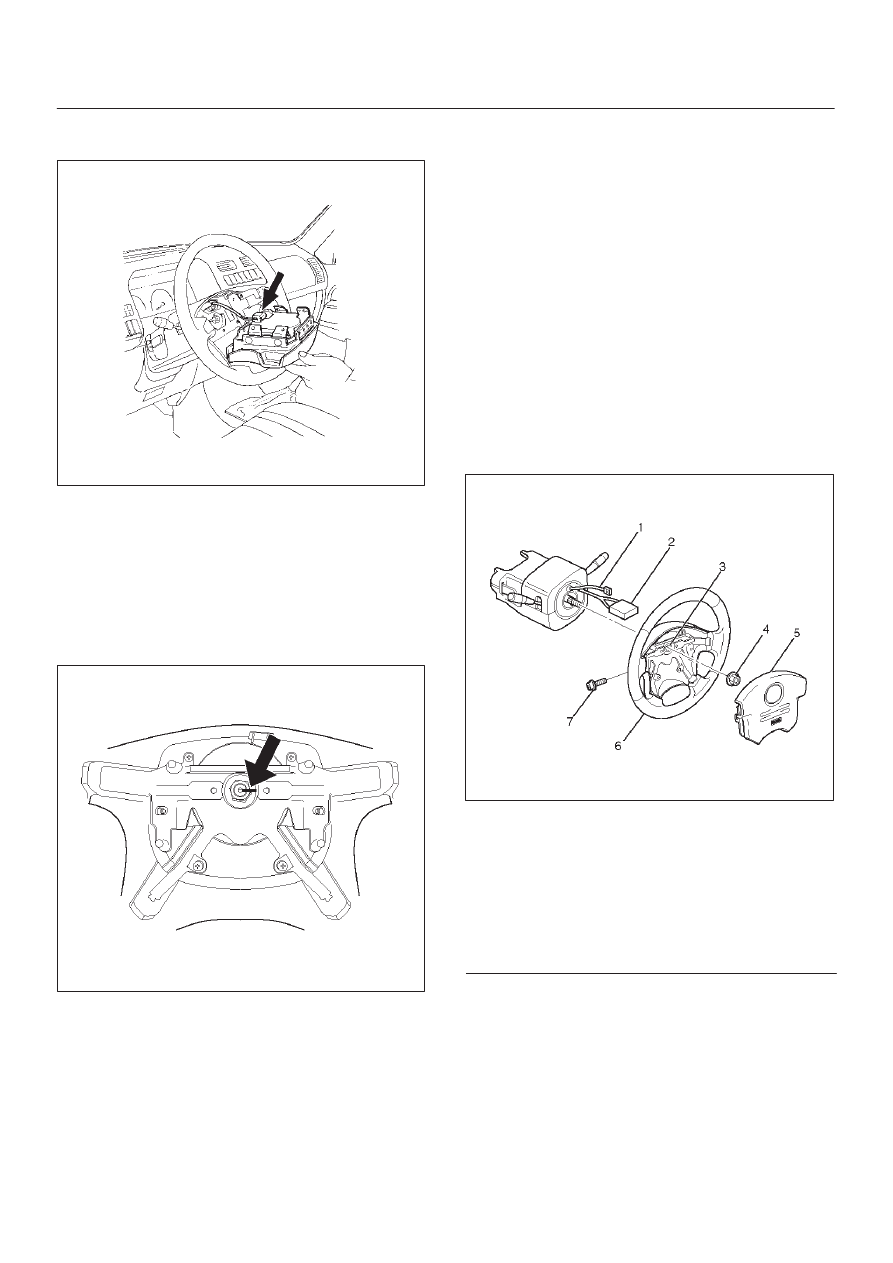

SUPPLEMENTAL RESTRAINT SYSTEM

9J–34

3. Disconnect connector (2) and remove air bag

assembly.

827RS015

4. Disconnect horn lead (1)
5. Remove steering wheel attachment nut (4).
6. Move the tires to the straight ahead position before

removing the steering wheel. Install steering wheel
puller onto steering wheel and remove steering wheel
with J–29752.

7. Apply a setting mark (3) across the steering wheel

and shaft so parts can be reassembled in their
original position.

827RW063

8. Feed wiring through the wheel and remove wheel.

CAUTION: Never apply force to the steering wheel
in direction of the shaft by using a hammer or other
impact tools in an attempt to remove the steering
wheel. The steering shaft is designed as an energy
absorbing unit.

Installation

1. Install the steering wheel and align the setting marks

(3).

2. Tighten the steering wheel fixing nut (4) to the

specified torque.

Torque: 34 N·m (3.5 kg·m/25 lb ft)

3. Connect horn lead (1).
4. Connect air bag to wiring harness connector (2).

NOTE: Pass the lead wire through the tabs on the plastic
cover (wire protector) of air bag to prevent lead wire from
being pinched.

5. Install air bag into steering wheel and tighten bolts (7)

to specified sequence as show in figure.

Torque: 8.8 N·m (0.9 kg·m/78 lb in)

CAUTION: Never use the air bag assembly from
another vehicle. Use only the air bag assembly for
UE.

827RX034

Legend

(1) Horn Lead Connector
(2) Air Bag Harness Connector
(3) Setting Mark
(4) Steering Fixing Nut
(5) Driver Air Bag Assembly
(6) Steering Wheel
(7) Driver Air Bag Fixing Bolts

6. Enable the Supplemental Restraint System (SRS).

(Refer to “Enabling The SRS” in this section.)

SUPPLEMENTAL RESTRAINT SYSTEM

9J–35

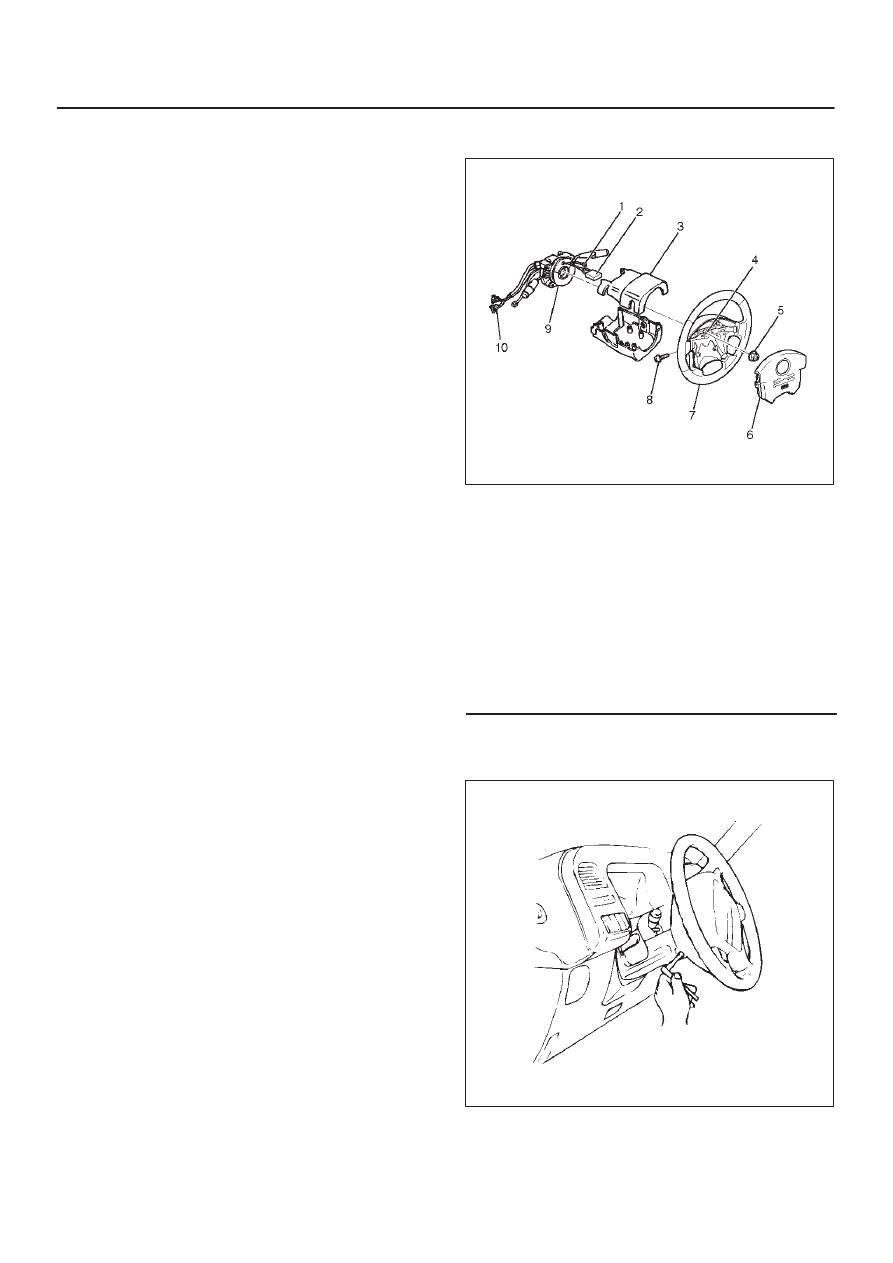

SRS Coil Assembly

Service Precaution

NOTE: In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

Removal

1. Disable the SRS. (Refer to ”Disabling the SRS” in this

section.)

825RX047

Legend

(1) Horn Lead Connector
(2) Air Bag Harness Connector
(3) Steering Column Cover
(4) Setting Mark
(5) Steering Fixing Nut
(6) Driver Air Bag Assembly
(7) Steering Wheel
(8) Driver Air Bag Fixing Bolts
(9) Combination Switch Assembly

(10) Wiring Harness Connectors

2. Remove the air bag assembly (6) from steering wheel

(7) by removing two bolts (8). Lift air bag assembly out
of steering wheel.

827RW040

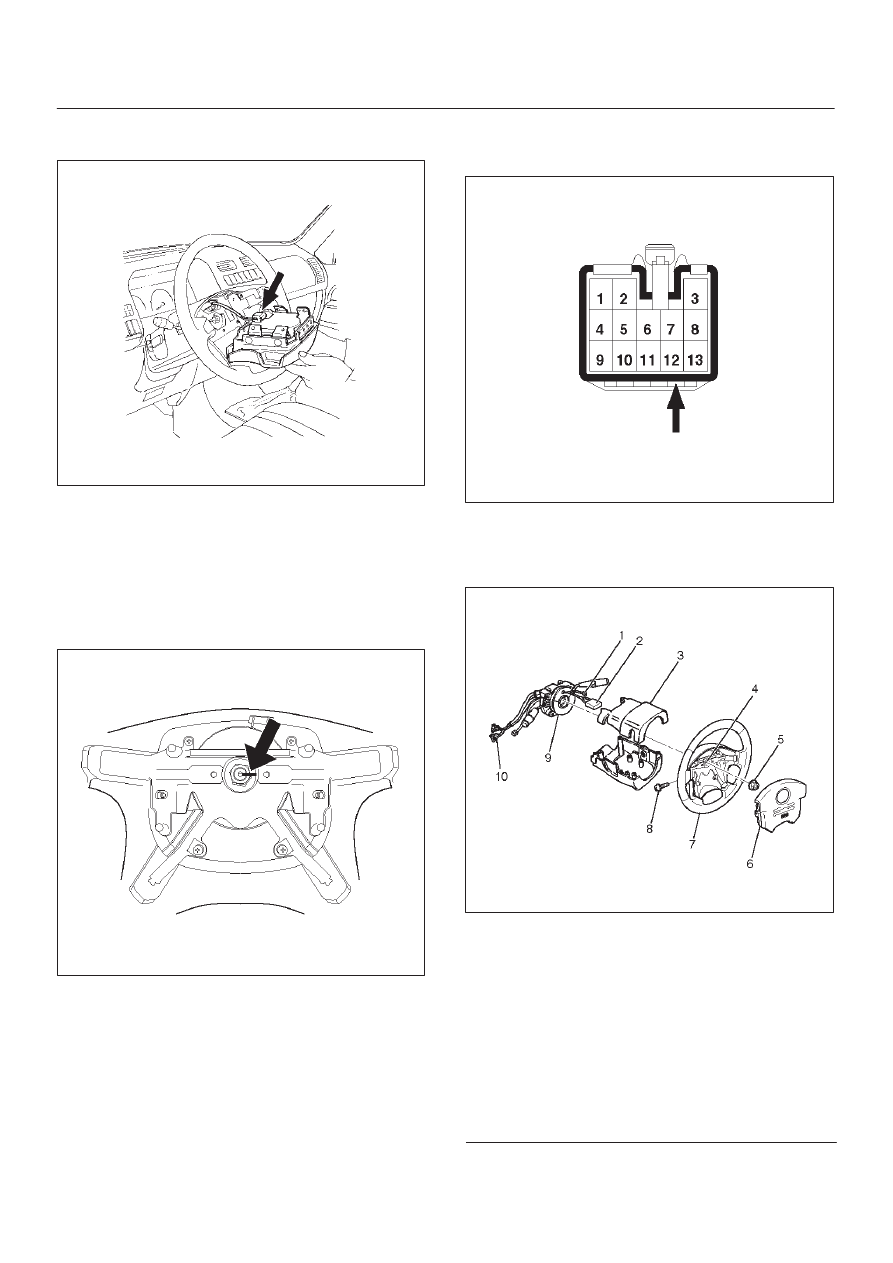

SUPPLEMENTAL RESTRAINT SYSTEM

9J–36

3. Disconnect the 2–pin yellow connector (2) and

remove air bag assembly.

827RS015

4. Disconnect horn lead connector (1).
5. Remove the steering wheel attachment nut (5).
6. Move the tires to the straight ahead position before

removing the steering wheel and remove wheel with
J–29752.

7. Apply a setting mark (4) across the steering wheel

and shaft so parts can be reassembled in their original
position.

827RW063

8. Feed wiring though the wheel and remove wheel.

CAUTION: Never apply force to the steering wheel
in the direction of the shaft by using a hammer or
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.

9. Remove the steering lower cover.

10. Remove the driver knee bolster assembly.

11. Remove the steering column cover (3).

12. Disconnect the wiring harness connectors (10)

located at the base of steering column.

13. Disconnect the horn terminal NO.2 from connector

and remove the tape binding harness. (Refer to How
to Disconnect the horn terminal in this section.)

827RX029

14. Remove four bolts of combination switch assembly

(9) attached to steering lock and remove the
combination switch assembly (with SRS coil) from
steering shaft.

825RX047

Legend

(10) Wiring Harness Connectors
