SEAT BELT SYSTEM
9A–17
755R100006
2. Remove the headrests.
3. Pull the release knobs and fall down the seat back
assembly forward.
4. Remove the front luggage floor carpets.
• Pull the nine carpet fixing clips at each from the
backside of the seat back assembly.
5. Remove the four lower anchorage strikers.
• Remove the two fixing bolts of each lower
anchorage striker.
Installation
To install, follow the removal steps in the reverse order,
noting the following points.

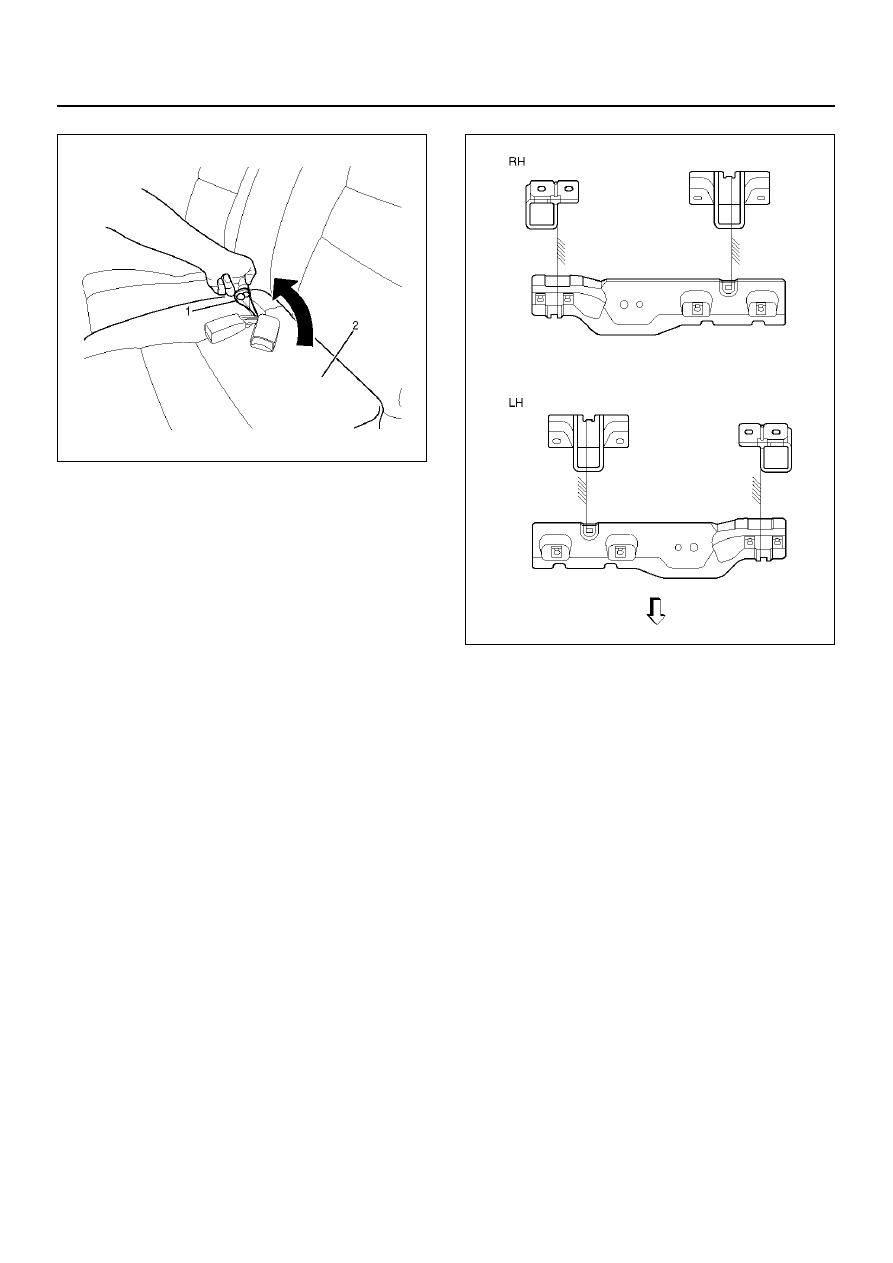

1. Install the lower anchorage strikers with matching
the inside of the tab and the trim edge of the body
floor panel.
755R100008

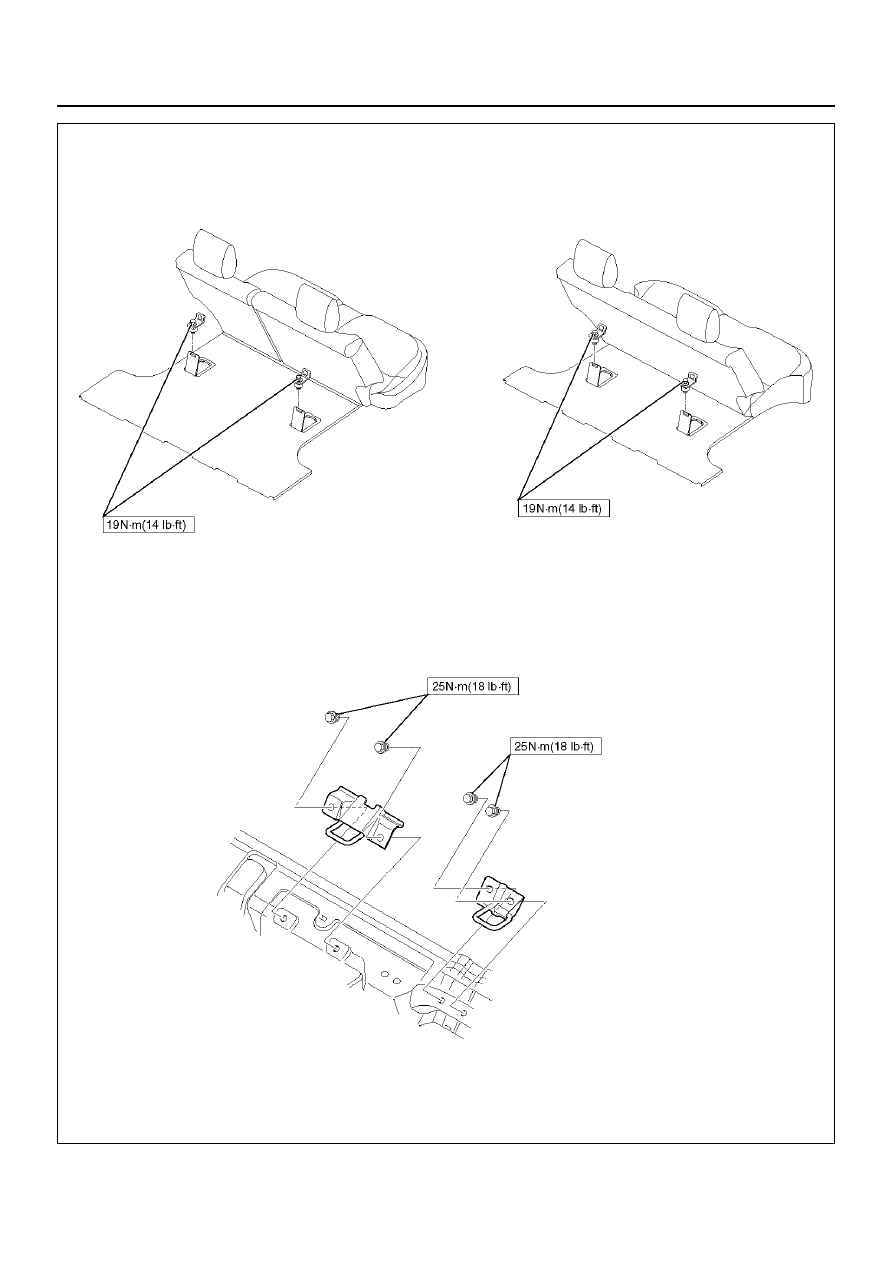

2. Tighten the lower anchorage striker fixing bolts to
the specified torque.
Torque: 25 N·m (18 lb ft)
