SUN ROOF/CONVERTIBLE TOP

8I–5

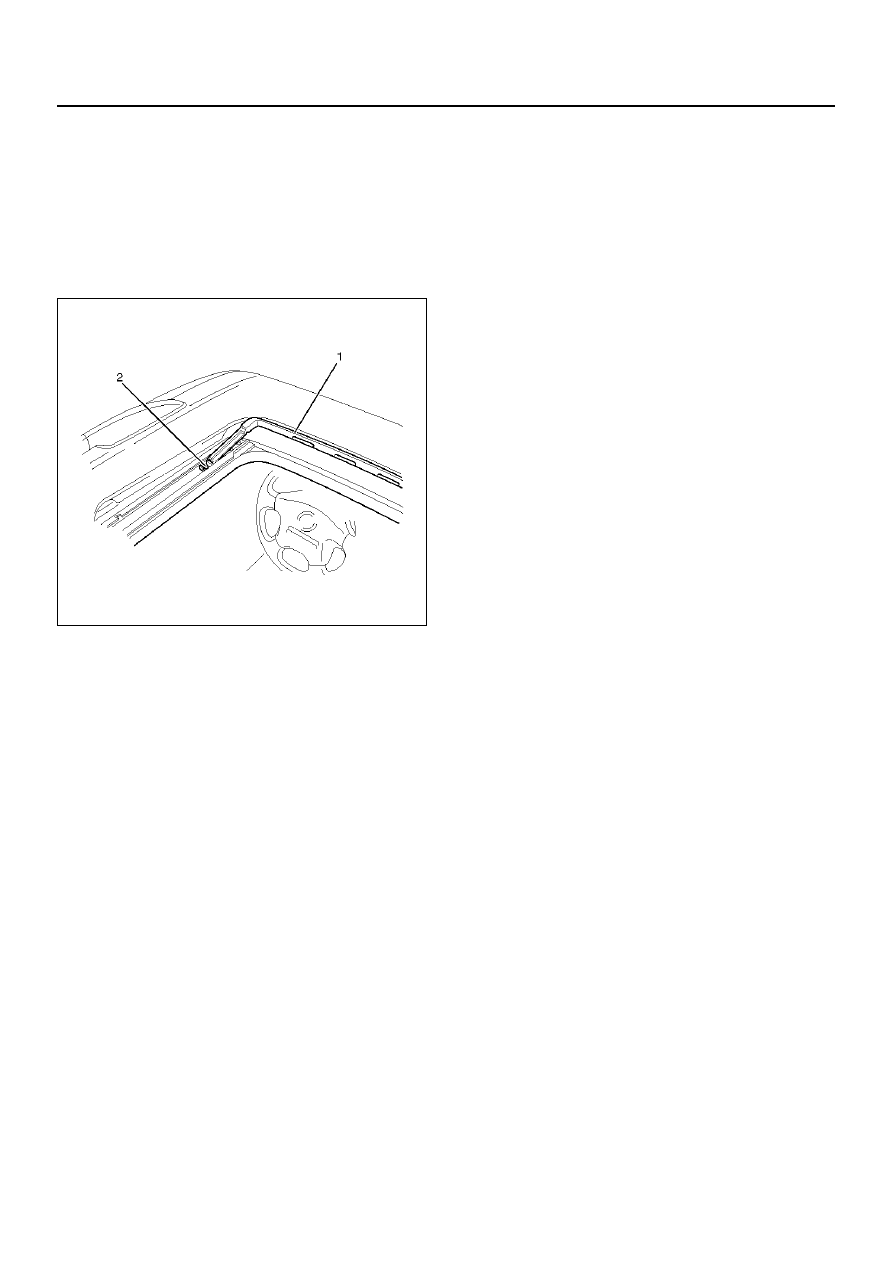

Sunroof Deflector (LWB)

Removal

1. Open the sunroof.

• Let a 5 mm drill go through two blind rivets (2) to

disengage riveted portions.

2. Remove the sunroof deflector (1).

665RW008

Installation

To install, follow the removal steps in the reverse order.

8I–6

SUN ROOF/CONVERTIBLE TOP

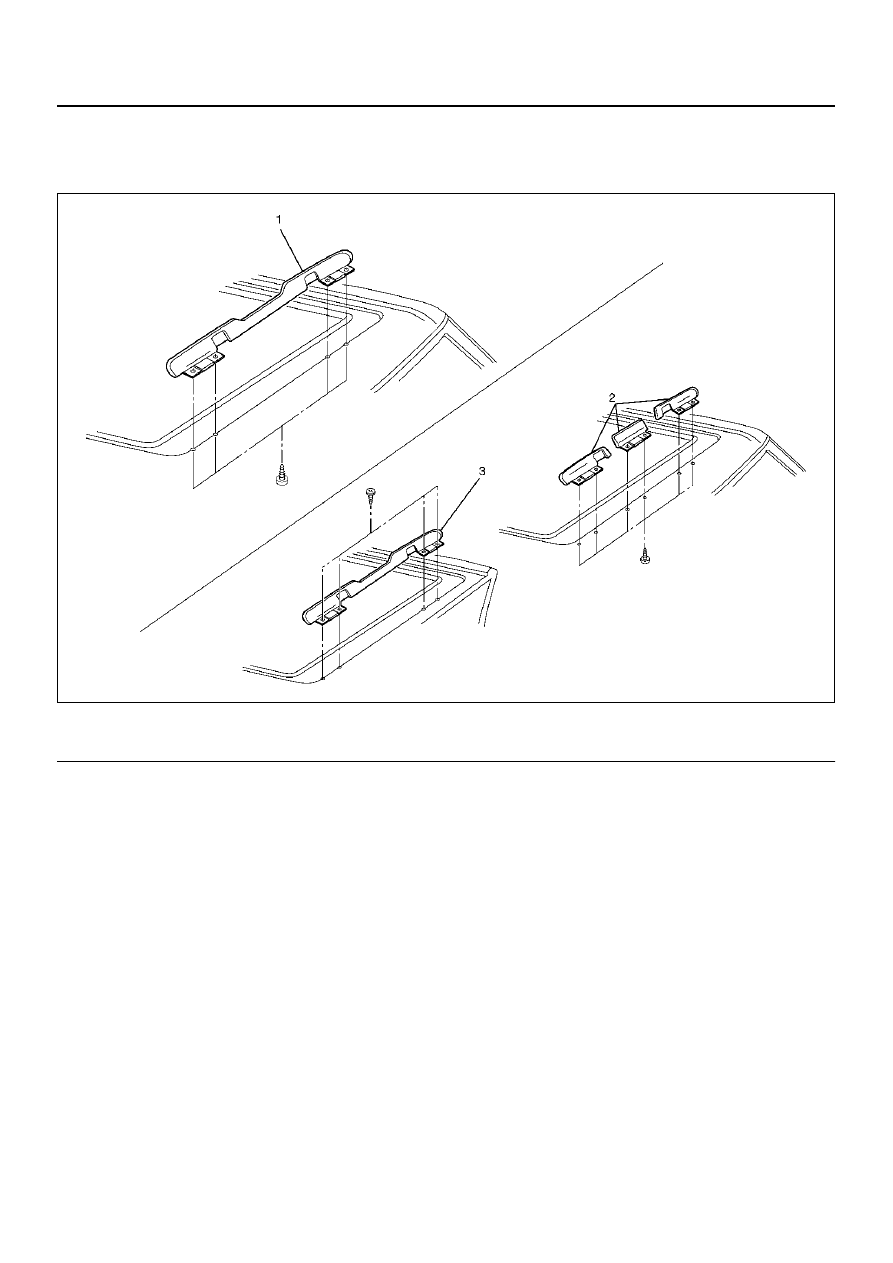

Sunroof Deflector (SWB)

Parts Location

665RY00002

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the sunroof glass.

• Refer to Sunroof Glass in this section.

3. Remove the headlining (Front roof side).

• Refer to Headlining in Exterior/Interior Trim

section.

4. Remove the sunroof deflector.

• Remove the fixing screws.

Installation

To install, follow the removal steps in the reverse order.

Legend

(1) Sunroof Deflector Assembly (Soft Top)

(2) Front Sunroof Deflector Assembly (Resin Top)
(3) Rear Sunroof Deflector Assembly (Resin Top)

SUN ROOF/CONVERTIBLE TOP

8I–7

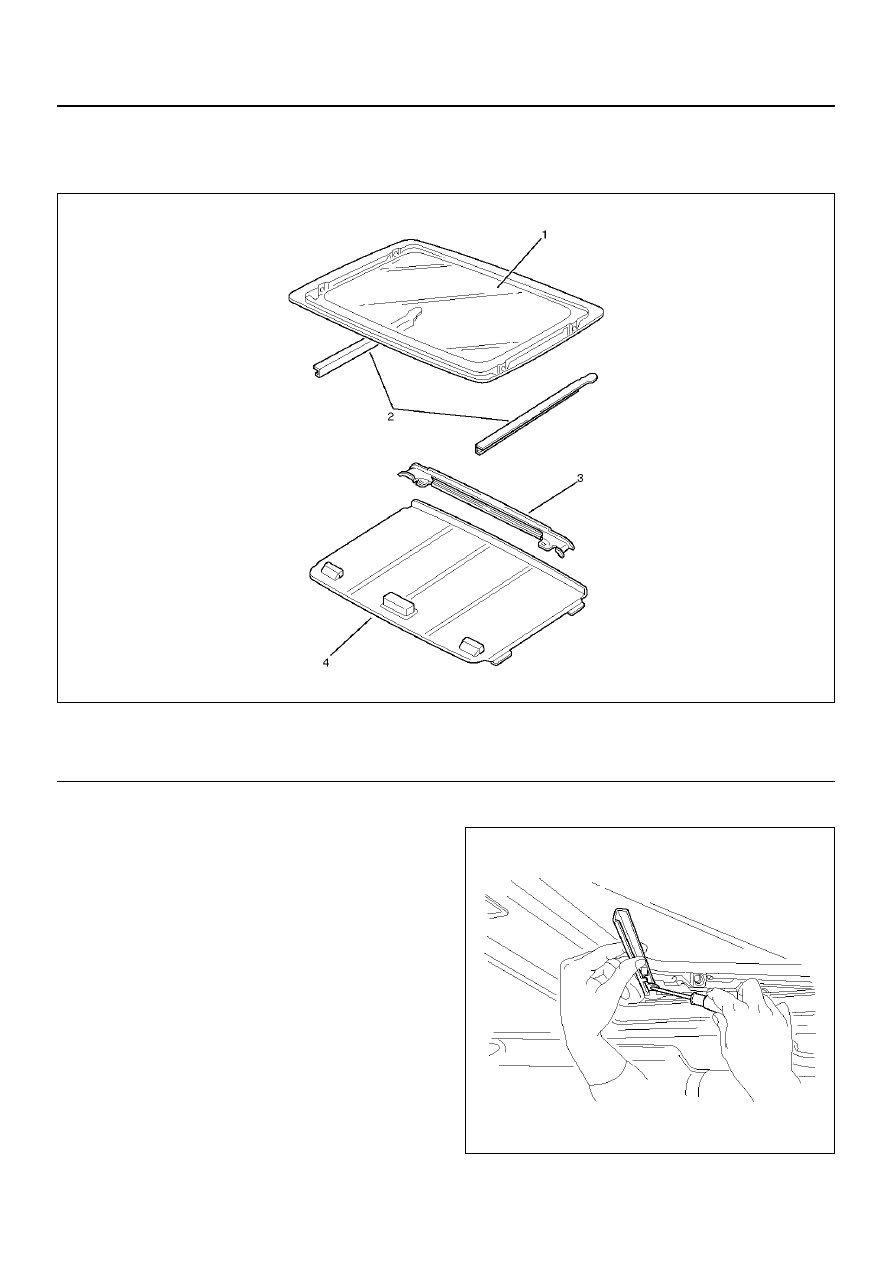

Sunshade (LWB)

Disassembled View

665RW012

EndOFCallout

Removal

1. Tilt the sunroof.

2. Disconnect the battery ground cable.

3. Remove the sunroof glass.

• Refer to Sunroof Glass in this section.

4. Pull the sight shield upward using screwdriver.

665RW006

Legend

(1) Sunroof Glass
(2) Sight Shield

(3) Sunshade Stopper
(4) Sunshade

8I–8

SUN ROOF/CONVERTIBLE TOP

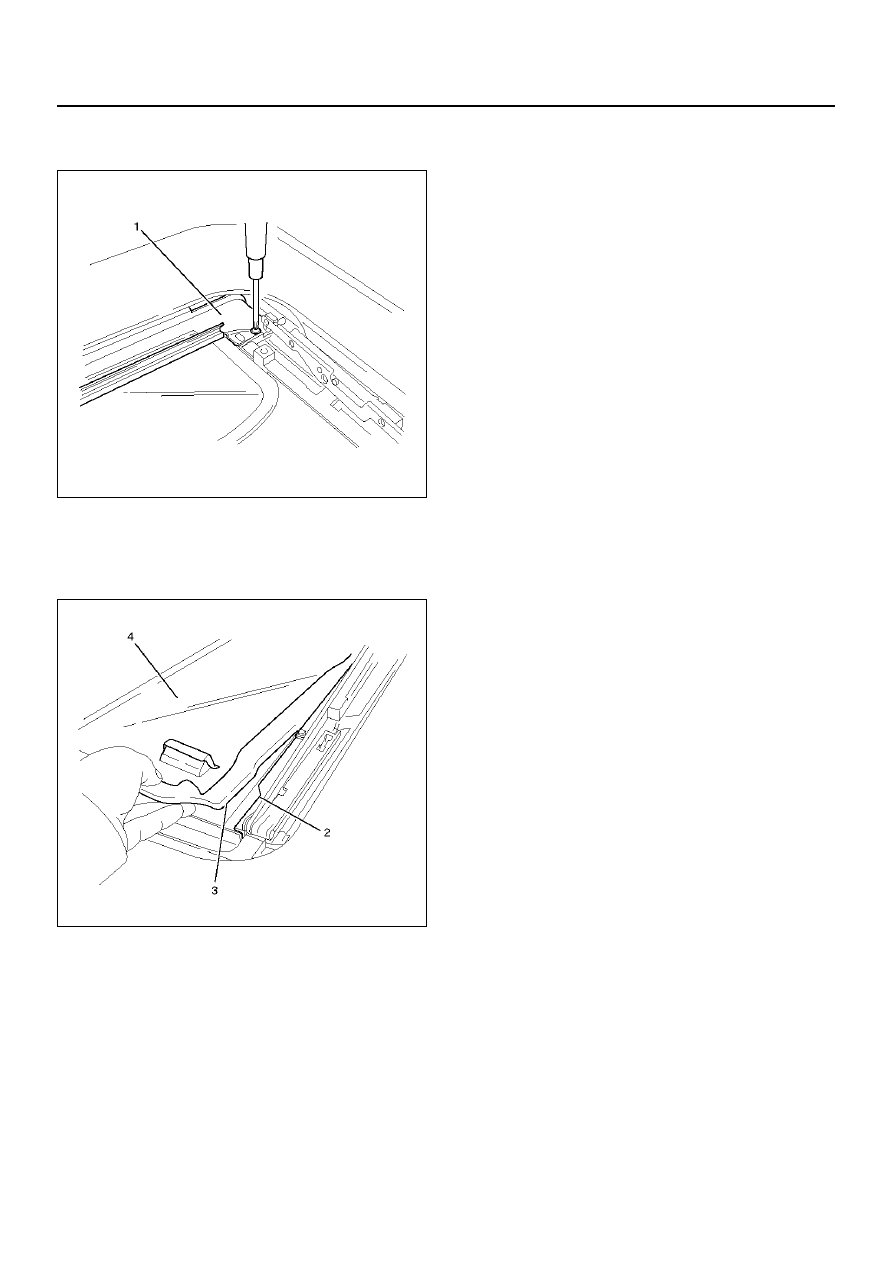

5. Remove 2 sunshade stopper fixing screws and

remove sunshade stopper (1).

665RW007

6. Pull out the sunshade (4) up to the guide rail edge.

Lift the front of sunshade and clear the projection (3)
of sunshade through the notch (2) of guide rail
edge, then draw the sunshade out of the roof.

665RW009

Installation

To install, follow the removal steps in the reverse order.
