SEATS

8G–9

Removal

1. Remove the hinge covers.

2. Remove the seat cushion fixing bolts.

3. Remove the seat cushion assembly (2).

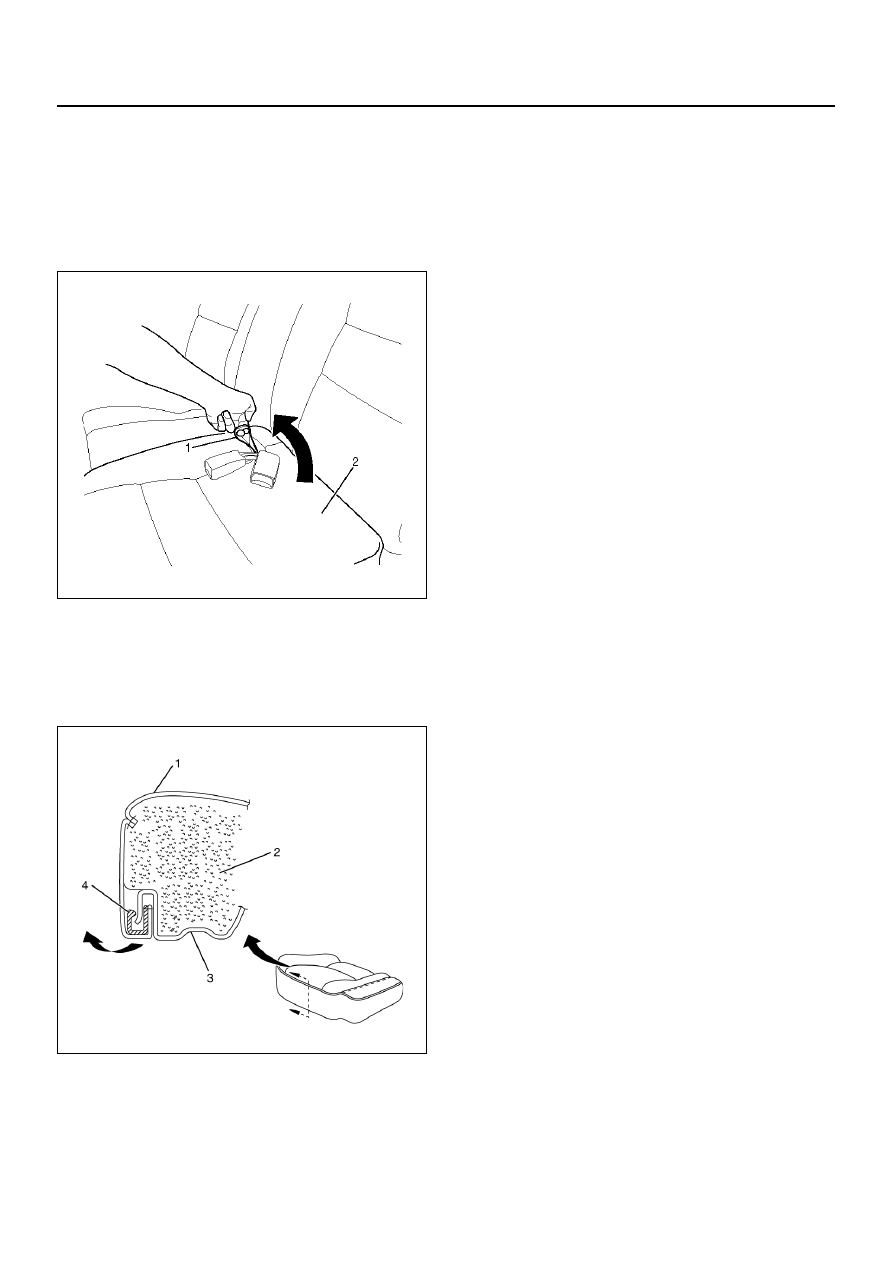

• Pull the strap (1) of the rear seat lock assembly to

release the seat lock.

755R100006

4. Remove the seat cushion hinges.

5. Remove the rear cushion trim cover (1) and rear

seat cushion pad (2).

• Remove cushion trim cover from the rear cushion

frame (3) by prying on the plastic retainers (4).

755RX028

6. Remove the rear seat lock assembly and rear seat

belt buckle assembly.

7. Remove the rear seat lock strikers.

• Remove the four bolts at each striker.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the rear seat lock assembly and rear seat

belt buckle assembly fixing bolts to the specified
torque.

Torque: 39 N·m (29 lb ft)

2. Tighten the rear seat lock striker fixing bolts to the

specified torque.

Torque: 39 N·m (29 lb ft)

3. Tighten the seat cushion hinge fixing bolts to the

specified torque.

Torque: 39 N·m (29 lb ft)

8G–10

SEATS

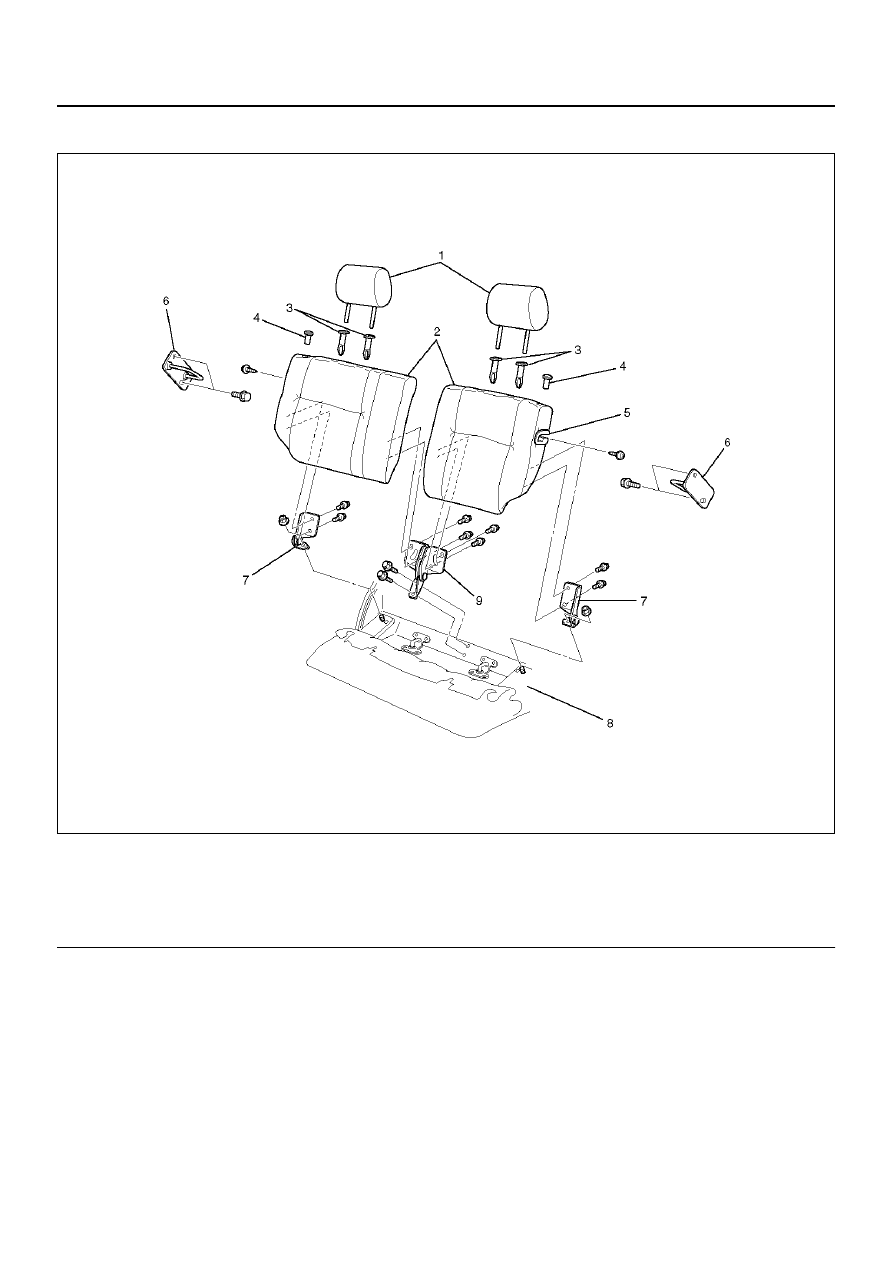

Rear Seat Back Assembly and Associated Parts

755R100005

EndOFCallout

Removal

1. Pull the release knob and pull the seat back

assembly forward.

2. Remove the luggage floor carpets.

• Pull the nine carpet fixing clips from the backside

of the seat back assembly.

3. Remove the seat back assembly.

• Remove the four fixing bolts at each seat back.

4. Remove the seat lock covers.

5. Remove the headrests.

6. Remove the release knobs.

• Turn the knob counterclockwise to remove it.

7. Remove the trim covers.

8. Remove the guide holders.

9. Remove the side hinges.

• Remove the one fixing nut at each side hinge.

10. Remove the center hinge.

• Remove the two fixing bolts.

Legend

(1) Headrest
(2) Seat Back Assembly
(3) Guide Holder
(4) Release Knob

(5) Seat Lock Cover
(6) Seat Lock Striker
(7) Side Hinge
(8) Body Floor Panel
(9) Center Hinge

SEATS

8G–11

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the center hinge fixing bolts to the specified

torque.

Torque: 39 N·m (29 lb ft)

2. Tighten the side hinge fixing nuts to the specified

torque.

Torque: 29 N·m (22 lb ft)

3. Tighten the side lock striker fixing bolts to the

specified torque.

Torque: 19 N·m (14 lb ft)

8G–12

SEATS

Rear Seat Assembly (SWB)

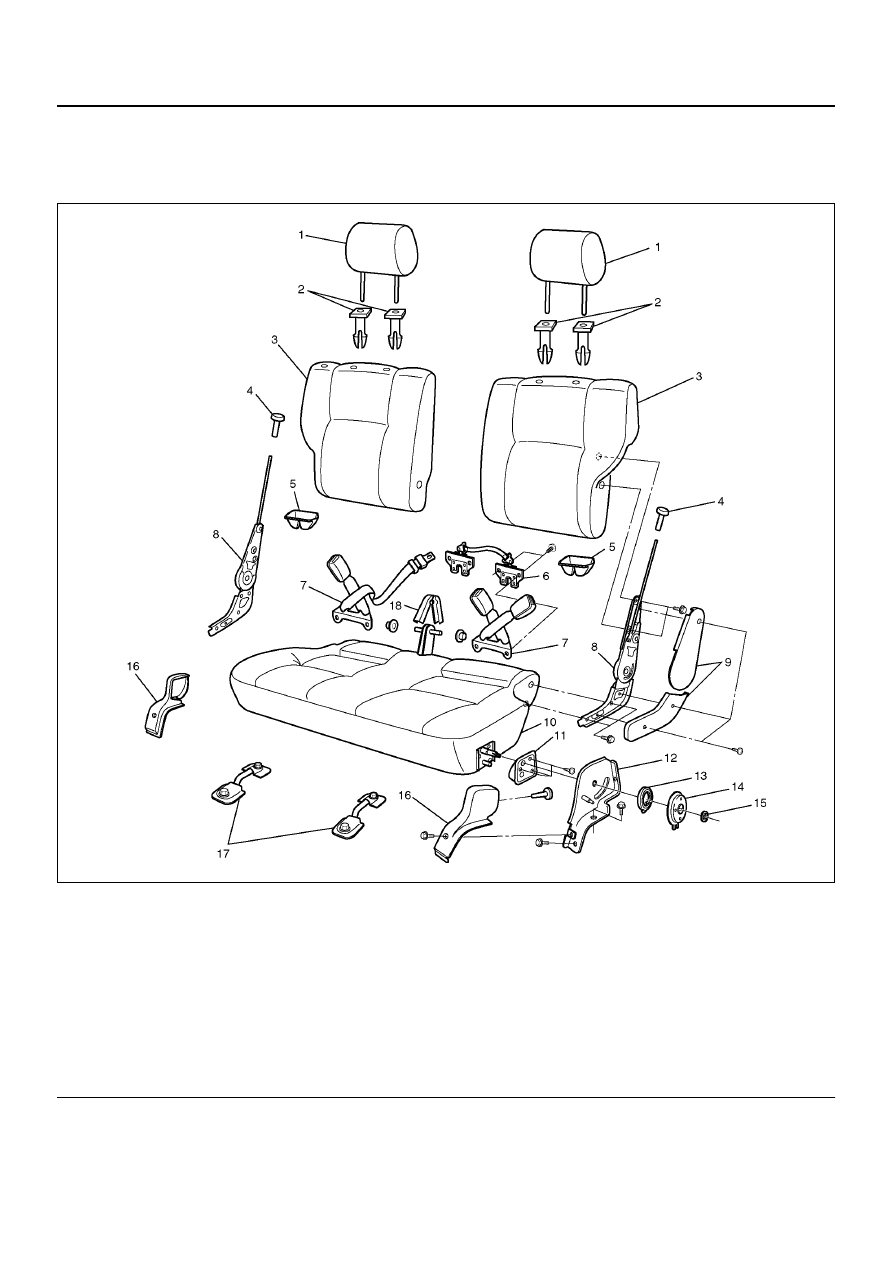

Rear Seat Assembly and Associated Parts

755R200014

EndOFCallout

Legend

(1) Headrest
(2) Guide Holder
(3) Rear Seat Back Assembly
(4) Release Knob
(5) Seat Lock Cover
(6) Seat Lock Assembly
(7) Rear Seat Belt Buckle Assembly
(8) Reclining Device
(9) Device Cover

(10) Rear Seat Cushion Assembly

(11) Support Cover

(12) Rear Seat Leg
(13) Spiral Spring
(14) Rear Cushion Damper
(15) Push Nut
(16) Rear Seat Leg Cover
(17) Rear Floor Lock Striker
(18) Free Hinge Cover
