8F–74

BODY STRUCTURE

Installation

1. Rear quarter glass.

• Clean the bonding surfaces of both the glass and

the body panel.

• Be absolutely sure to apply glass primer to the

side glass.

• Be absolutely sure to apply body primer fully to

the body.

NOTE:  Immediately wipe off the primer left on the body
or extruded sealant.

• Attach the fastener to the indicated position of

body with sealant as shown in the figure.

• Apply the sealant to the circumference of glass

as shown in the figure.

• Insert the location pins on glass into the panel,

push the glass against the panel, and bond them.

• Attach the molding to the body with sealant.

• Cure the bonding at a temperature of 20

°C  –

30

°C (68°F – 86°F) for 24 hours.

• Check the rear quarter glass for any signs of

water leak.

2. Install the rear quarter trim panel.

BODY STRUCTURE

8F–75

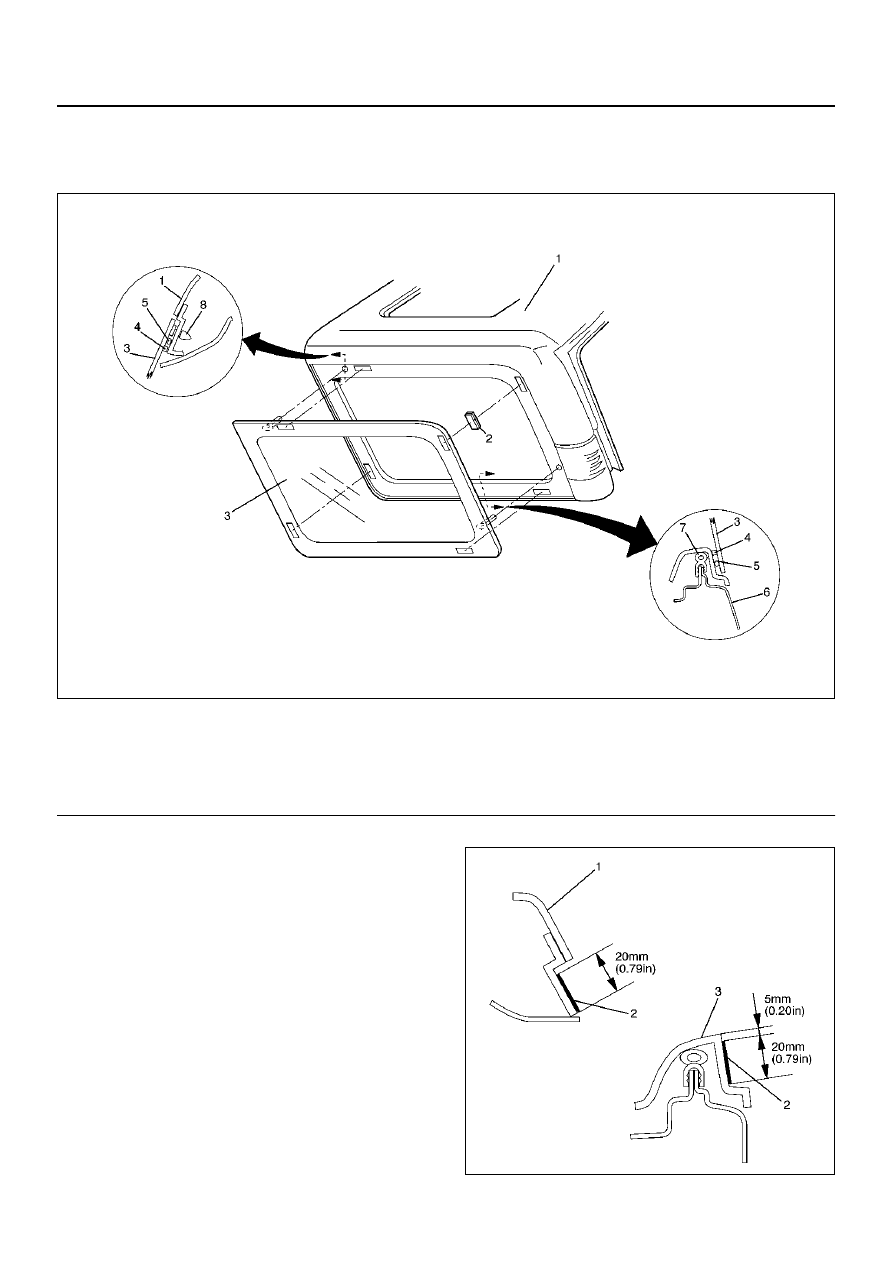

Rear Quarter Glass (Resin Top)

Parts Location

641RW011

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the rear quarter glass assembly.

• Refer to Windshield in this section.

Installation

1. Use alcohol or the like to wipe clean the areas of the

resin top and glass assembly that are to be affixed
to each other.

2. Apply the primer (2) to the area of the resin top to

which the glass is to be affixed.

• Top edge (1) and bottom edge (3) primer coat

areas.

641RX002

Legend

(1) Resin Top
(2) Fastener Tape
(3) Rear Quarter Glass Assembly
(4) Dam Seal

(5) Adhesive
(6) Body Panel
(7) Weather Strip
(8) Clip

8F–76

BODY STRUCTURE

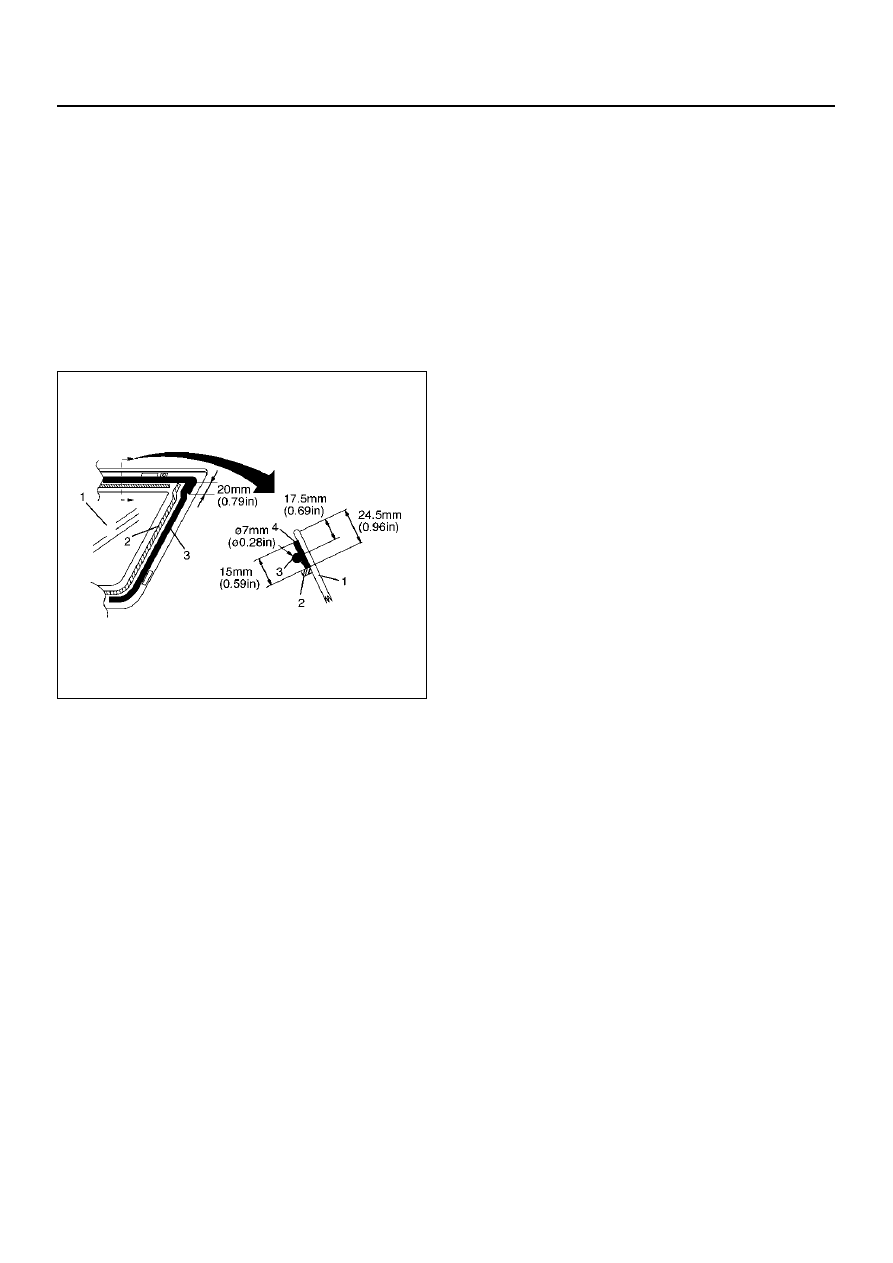

3. Stick the fasteners tape to the body in the specified

locations.

4. Install the rear quarter glass assembly (1).

• Apply the primer (4) to the rear quarter glass as

shown in the figure.

• Stick the dam seal (2) in place and then apply

adhesive (3), as shown in the figure.

• Allow a 20mm (0.79 in) overlap at the ends of the

adhesive.

• Insert the glass clips into the hole in the panel

and then push the glass against the panel to affix
it in place.

641RX001

BODY STRUCTURE

8F–77

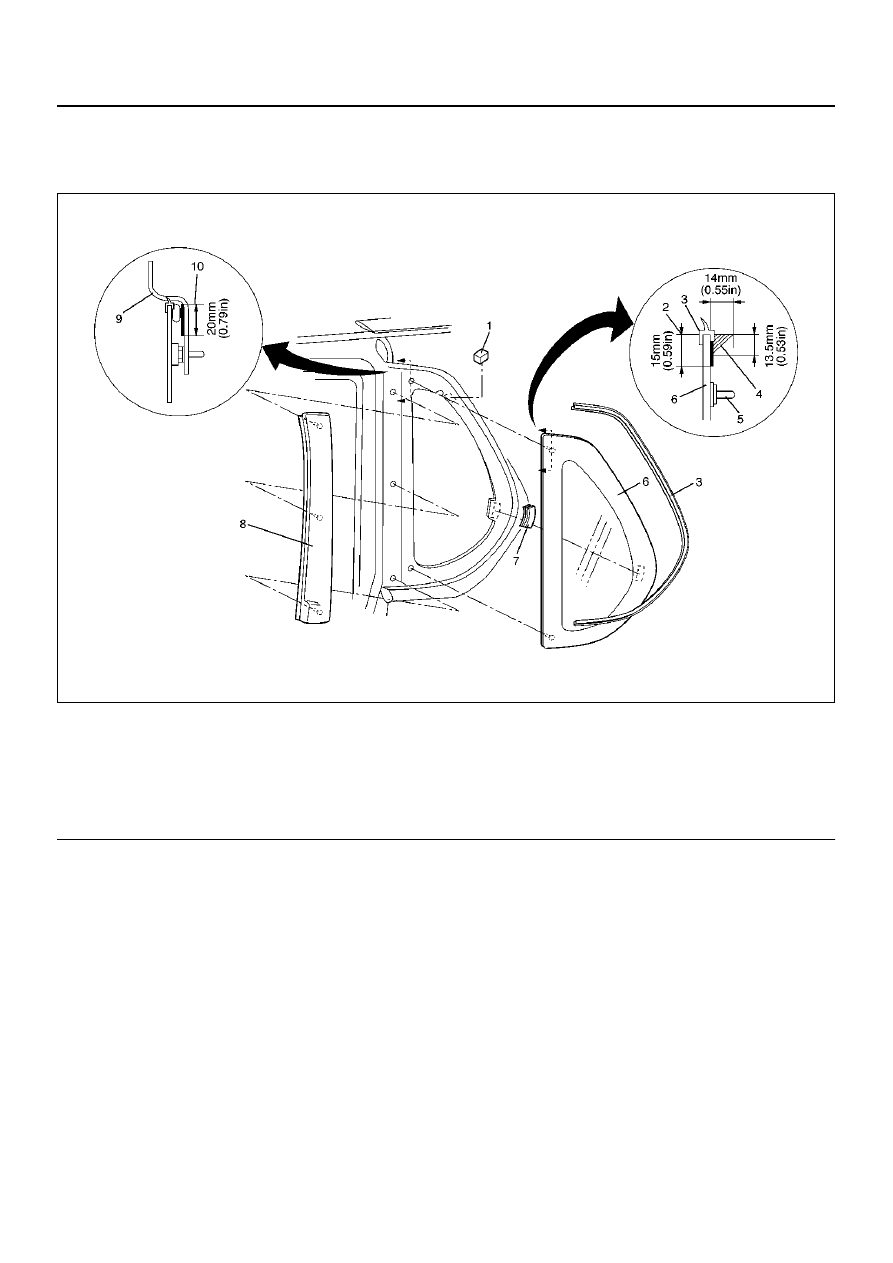

Side Window Glass (SWB)

Parts Location

641RX003

EndOFCallout

Removal

1. Remove the quarter trim cover.

• Refer to Interior Trim Panels (SWB) in Exterior/

Interior Trim section.

2. Remove the side window garnish assembly.

• Pull out the three clips to disengage them.

3. Remove the side window molding.

4. Remove the side window glass.

• Refer to Windshield in this section.

Installation

1. Install the side window glass.

• Clean the areas of the glass and body panel that

are to be affixed to each other.

• Apply the primer to the specified areas of the

glass and body panel.

• Stick the spacer and fastener tape in place in the

specified locations.

• Apply the adhesive to the entire circumference of

the glass, as shown in the figure.

• Insert the glass clips into the panel and then push

the glass against the panel to affix it in place.

• Wipe away any adhesive that oozes out around

the edges.

2. Install the side window garnish assembly.

• Install it securely and inspect for snug fit.

3. Install the side window molding.

• Insert it securely and inspect for snug fit.

• Make sure that there is no water leakage from the

side window glass.

4. Install the quarter trim cover.

Legend

(1) Spacer
(2) Primer Coating Area on Glass Side
(3) Side Window Molding
(4) Adhesive
(5) Clip

(6) Side Window Glass
(7) Fastener Tape
(8) Side Window Garnish Assembly
(9) Body Panel

(10) Primer Coating Area on Body Side
