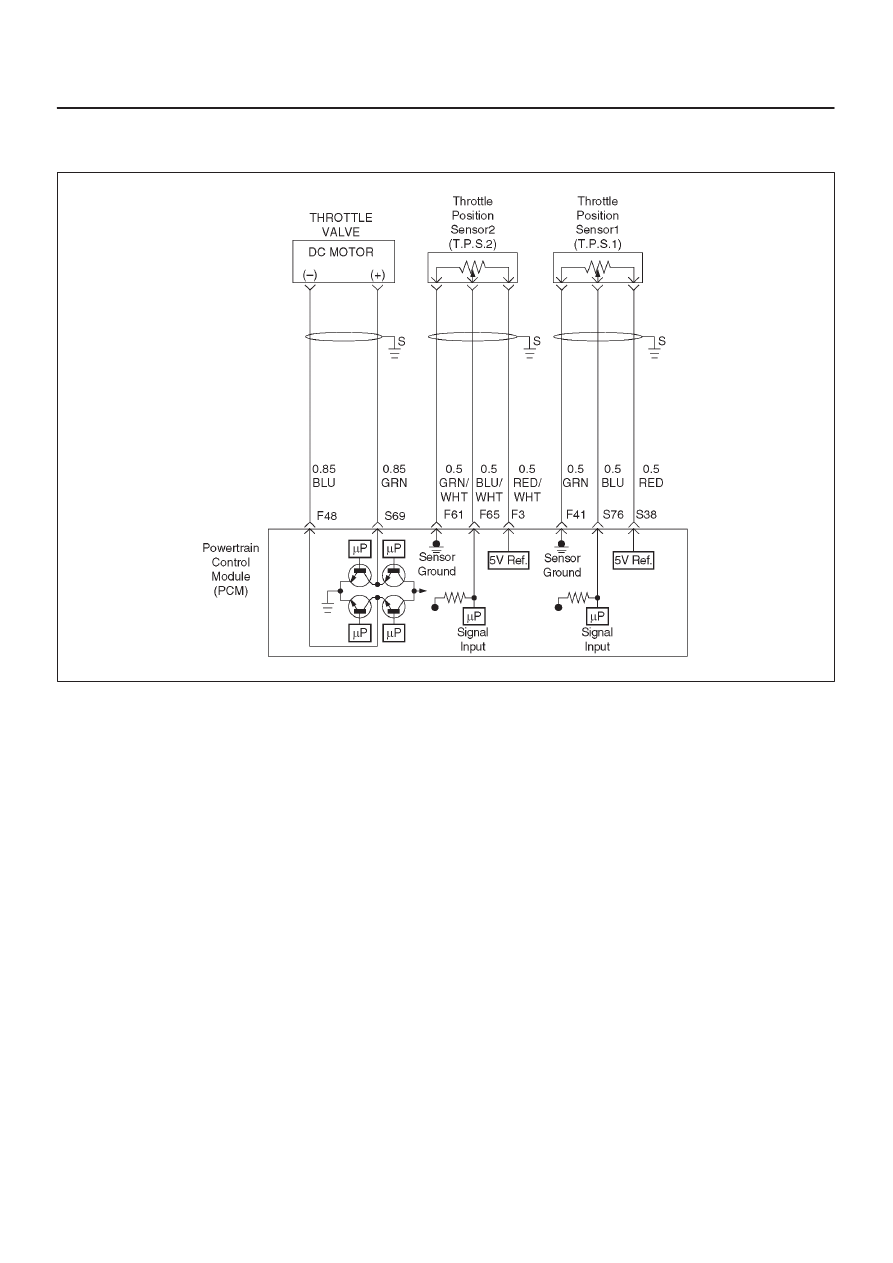

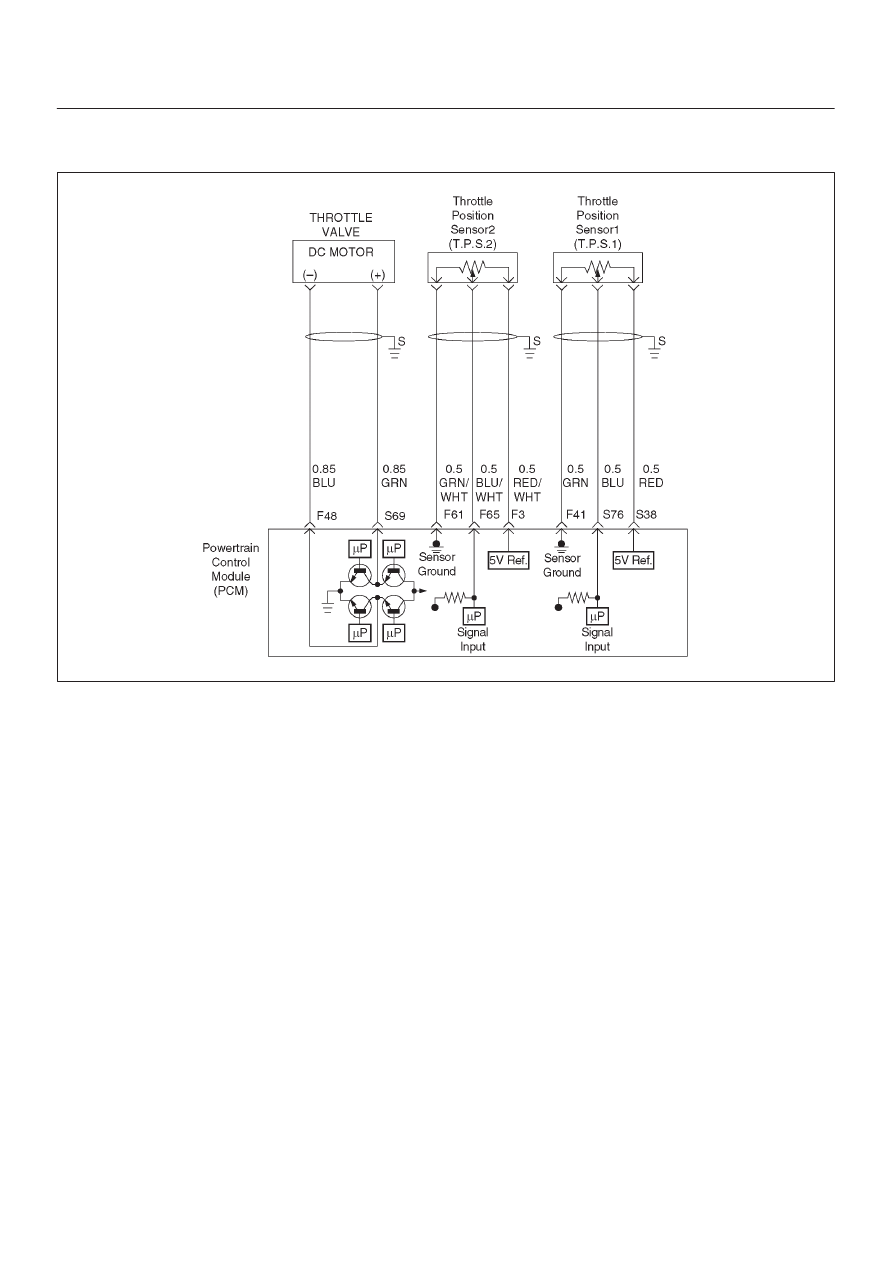

6E2–479 RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1515 Command - Actual TPS Correlation Error D06RY00111 Circuit Description D The throttle position (TP) sensor circuit provides a D The DC motor circuit provides a voltage signal relative D This DTC ditects the difference between actual throttle Conditions for setting the DTC D The ignition is “ON”. D Throttle actuation mode is normal. D Command Throttle position - Actual Throttle position is Action Taken When the DTC Sets D The PCM will illuminate the malfunction indicator lamp D The PCM calculates an air flow value based on idle air D The PCM will store condition which were present when Conditions for Clearing the MIL/DTC D The PCM will turn the MIL “OFF” on the third D A history DTC P1515 will clear after 40 cosecutive trip D DTC P1515 can be cleared using the Tech 2 “Clear Diagnostic Aids An intermittent may be caused by the following: D Poor connectons. D Mis routed harness. D Rubbed through wire insulation. D Broken wire inside the insulation. Check for the following conditions: D Poor connection at PCM-Inspect harness connectors D Damaged harness-Inspect the wiring harness for |
