Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 1233

6E1–8

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

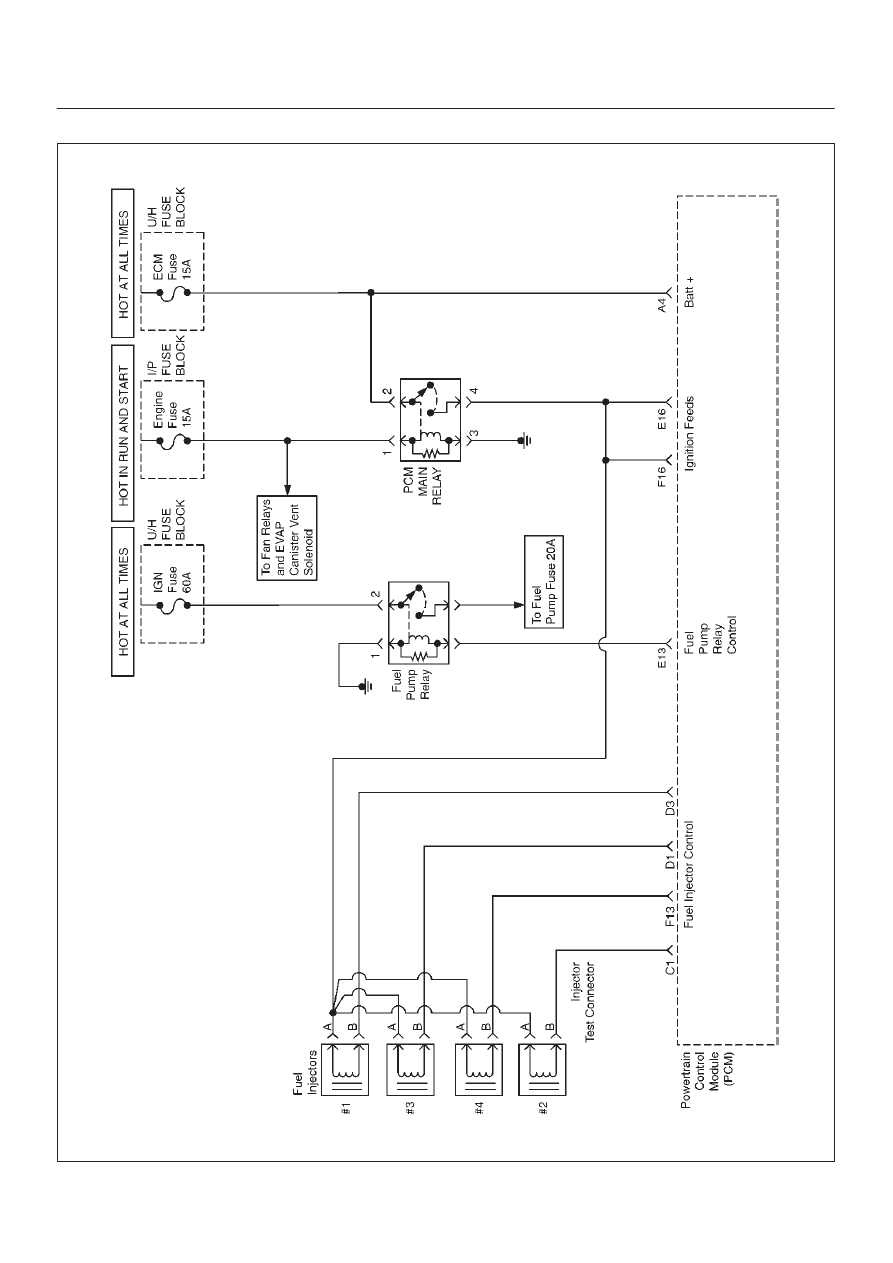

PCM WIRING DIAGRAM (2 of 13)

060R100004

6E1–9

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

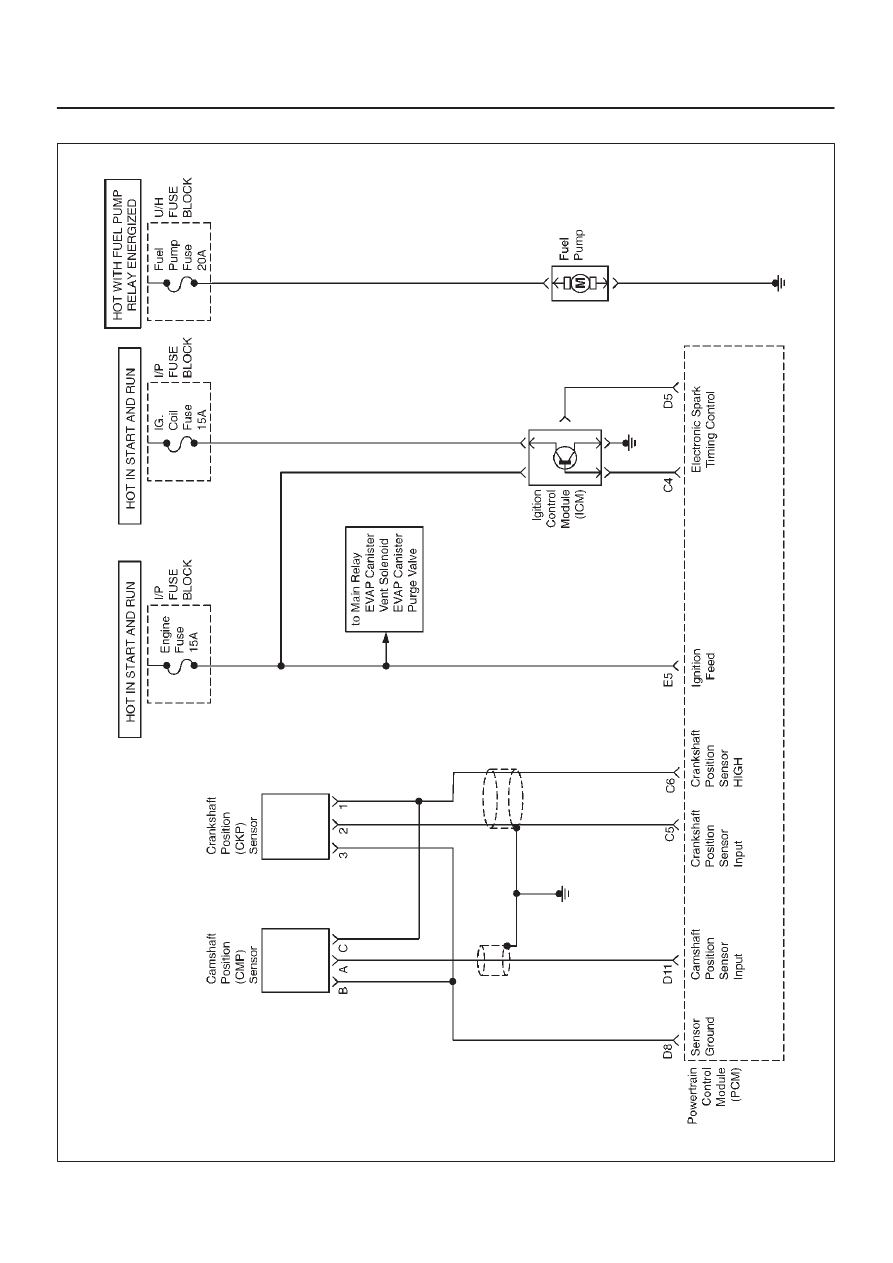

PCM WIRING DIAGRAM (3 of 13)

060R100005

6E1–10

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

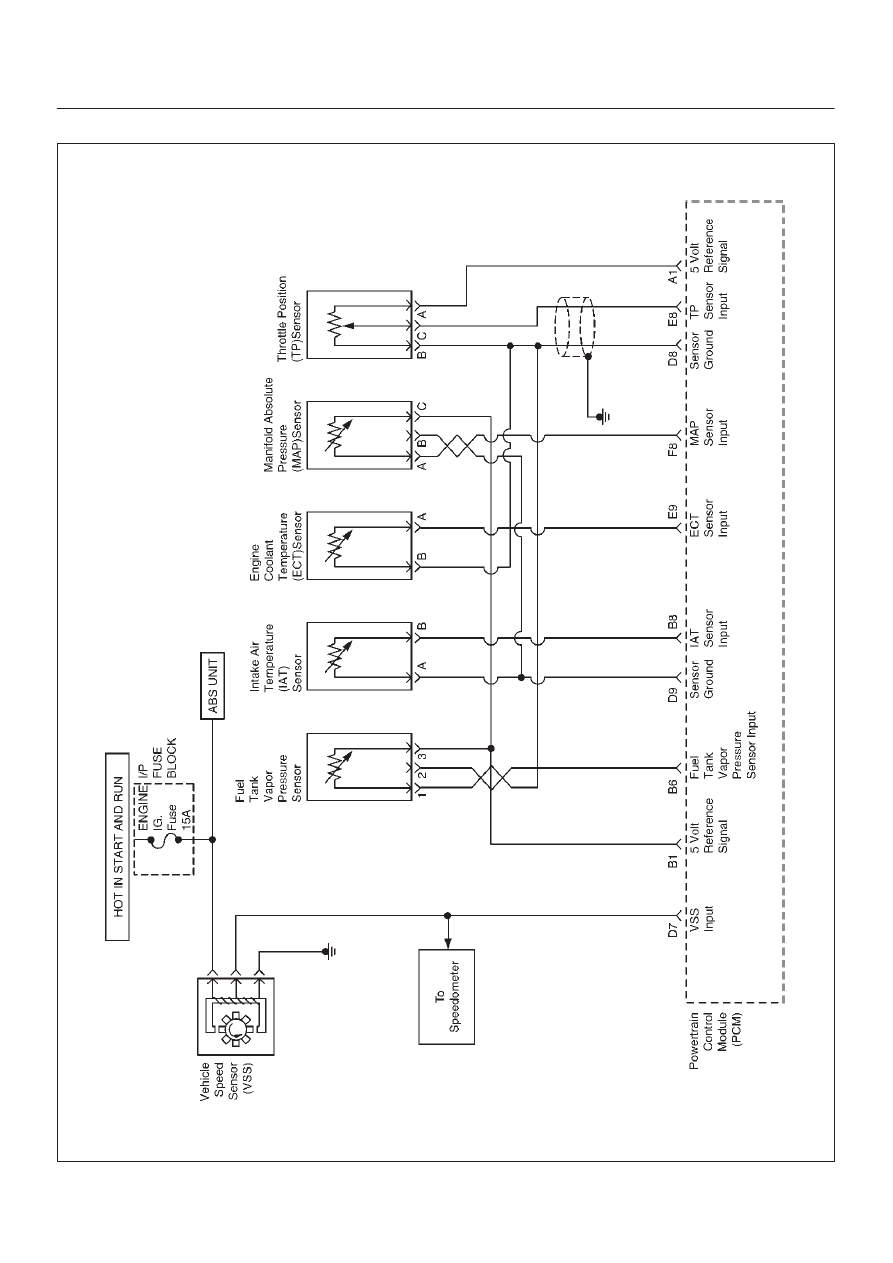

PCM WIRING DIAGRAM (4 of 13)

060R100006

6E1–11

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

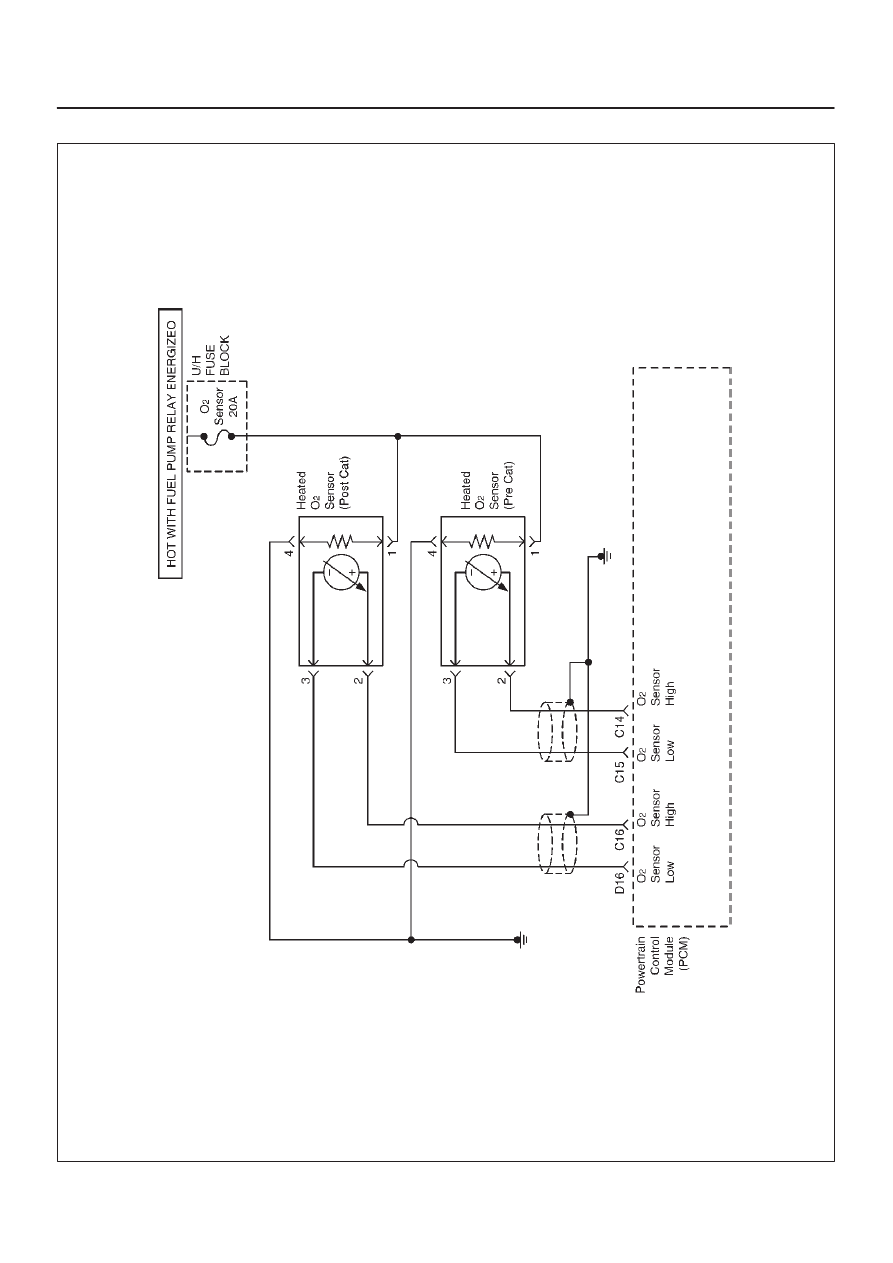

PCM WIRING DIAGRAM (5 of 13)

060R100007
