POWER-ASSISTED BRAKE SYSTEM

5C–39

2. Remove dust boot: piston.

3. Remove piston seal.

4. Remove bleeder with cap.

5. Remove caliper body.

Inspection and Repair

Make necessary parts replacement, if wear, damage,
corrosion or any other abnormal conditions are found
through inspection.
Check the following parts:

• Rotor

• Cylinder body

• Cylinder bore

• Piston

• Guide pin, lock pin

• Support bracket

NOTE:  The piston seal, boot ring and dust boot are to
be replaced each time the caliper is overhauled.
Discard these used rubber parts and replace them with
new ones.

Reassembly

1. Install caliper body.

2. Install bleeder with cap and tighten the cap to the

specified torque.

Torque: 8 N·m (69 lb in)

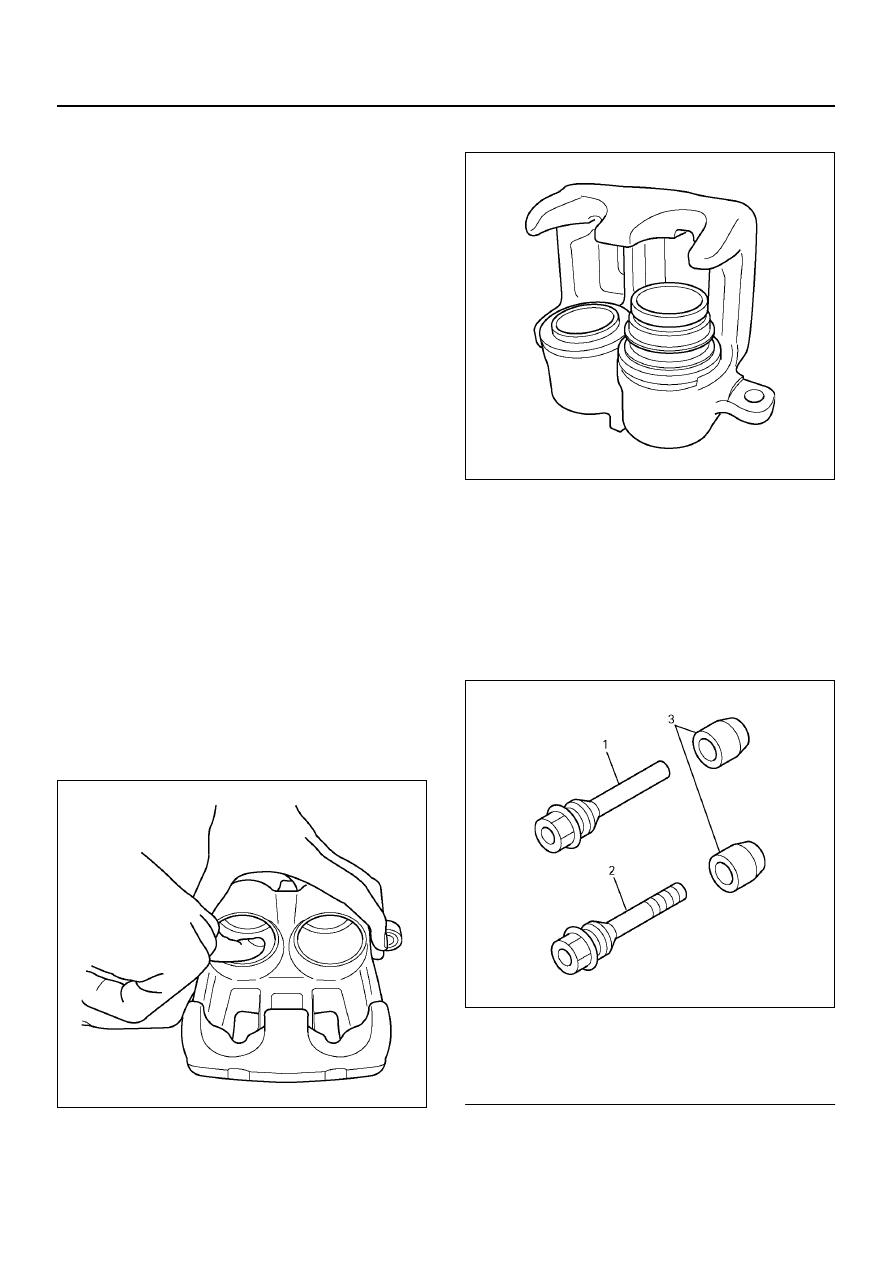

3. Apply special rubber grease to the piston seal and

cylinder wall, then insert the piston seal into the
cylinder. The special rubber grease is included in
the repair kit.

302R200013

4. When inserting the piston into the cylinder, use

finger pressure only and do not use a mallet or other
impact tool, since damage to the cylinder wall or
piston seal can result.

Install piston.

302R200015

5. Apply special grease (approximately 1 g) to the

piston and attach the dust boot to the piston and
caliper. Insert the dust boot ring into the dust boot.

6. Install guide bolt and lock bolt dust boot.

7. Install the dust boot on the support bracket after

applying special grease (approximately 1 g) onto
the dust boot inner surface.   Apply special grease
onto the lock pin and guide pin setting hole of the
support bracket.

302R200022

EndOFCallout

8. Install pin bolt and tighten the bolt to the specified

torque.

Torque: 45 N·m (33 lb ft)

Legend

(1) Guide Pin
(2) Lock Pin
(3) Pin Boot

5C–40

POWER-ASSISTED BRAKE SYSTEM

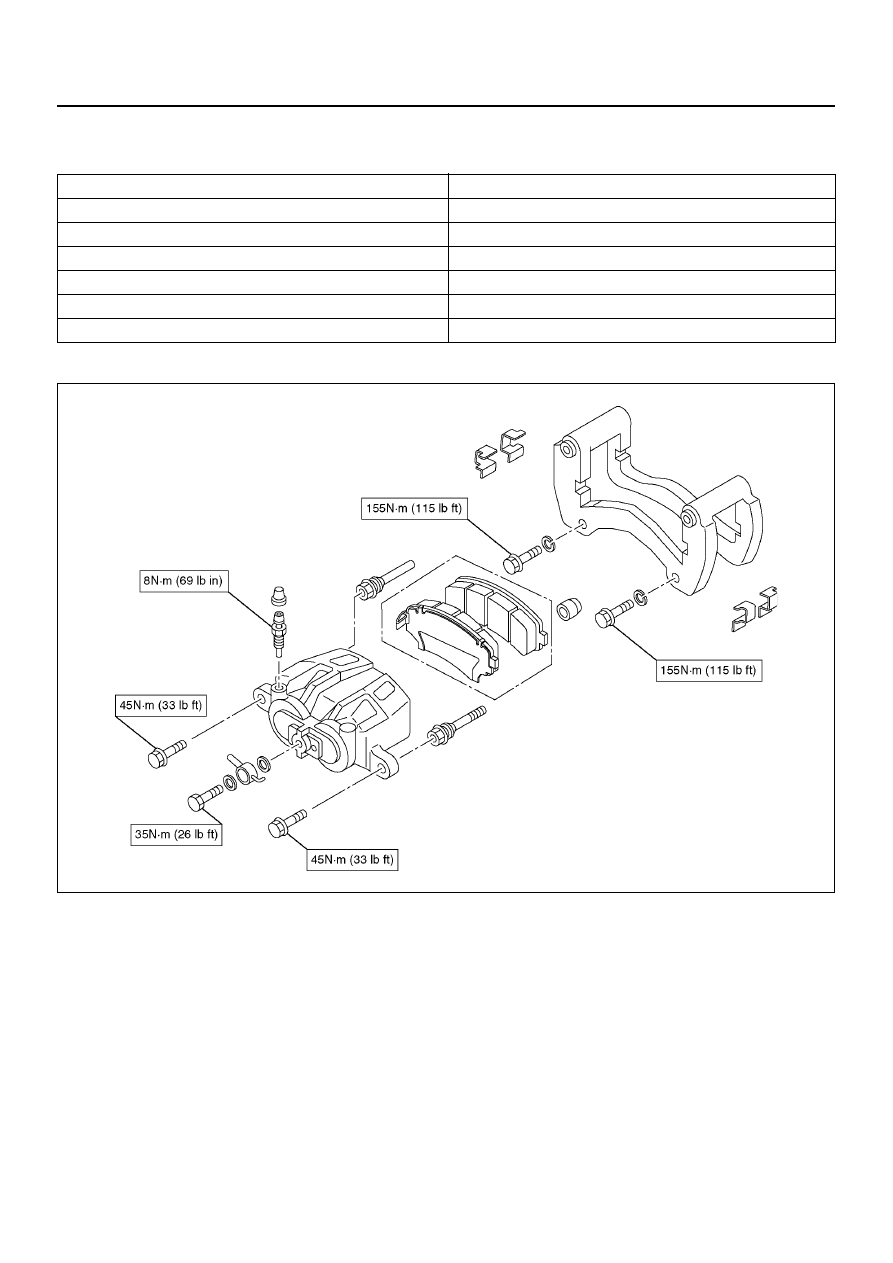

Main Data and Specifications

General Specifications

Torque Specifications

E05R200008

Type

Floating, pin slide

Pad dimension

48.7 cm



 (7.55 in



)

Adjusting method

Self–adjusting

Piston diameter

45.4 mm (1.79 in)

´2

Disc type

Ventilated

Disc thickness

26 mm (1.02 in)

Disc effective diameter

242 mm (9.53 in)

POWER-ASSISTED BRAKE SYSTEM

5C–41

Rear Disc Brake Pads (4

´4 Model)

Brake Pads Inspection

Check the outer pads by looking at each caliper from
above. Check the thickness on the inner pad by looking
down through the inspection hole in the top of the
caliper. Whenever the pad is worn to about the
thickness of the pad base, the pad should be removed
for further measurements. The pad should be replaced
anytime the pad thickness (1) is worn to within 1.0 mm
(0.039 in) of the pad itself.
Wear indicators are installed on disc brake pads, disc
brake pads need replacement when the wear
indicator is heard.

Minimum limit (1): 1.0 mm (0.039 in)

302RW016

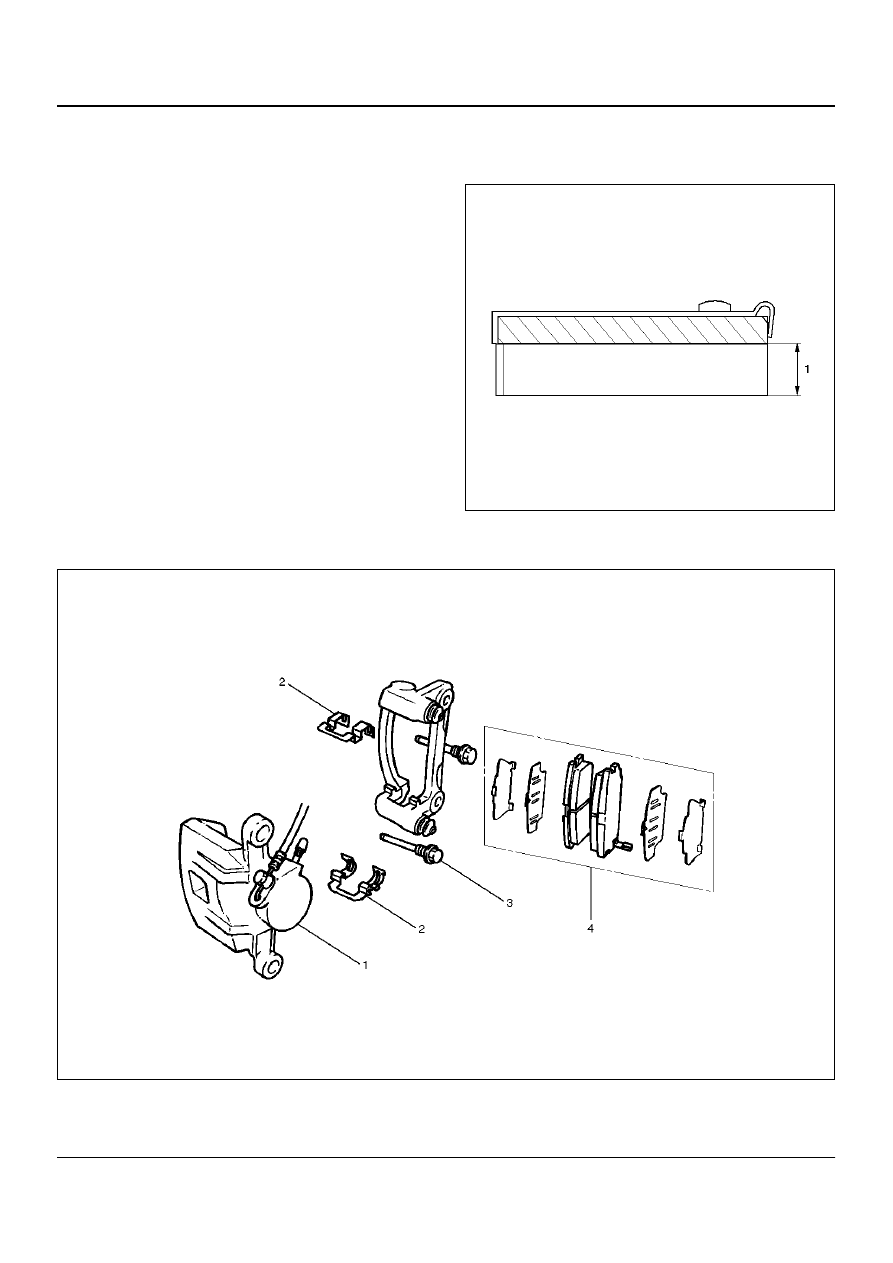

Brake Pads and Associated Parts

306RW001

EndOFCallout

Legend

(1) Caliper Assembly
(2) Clip

(3) Lock Bolt
(4) Pad Assembly

5C–42

POWER-ASSISTED BRAKE SYSTEM

Removal

NOTE:  If a squealing noise occurs from the rear brake
while driving, check the pad wear indicator plate. If the
indicator plate contacts the rotor, the disc pad assembly
should be replaced.

• Draw out two–thirds of the brake fluid from the

reservoir.

• Raise the vehicle and support it with suitable safety

stands.

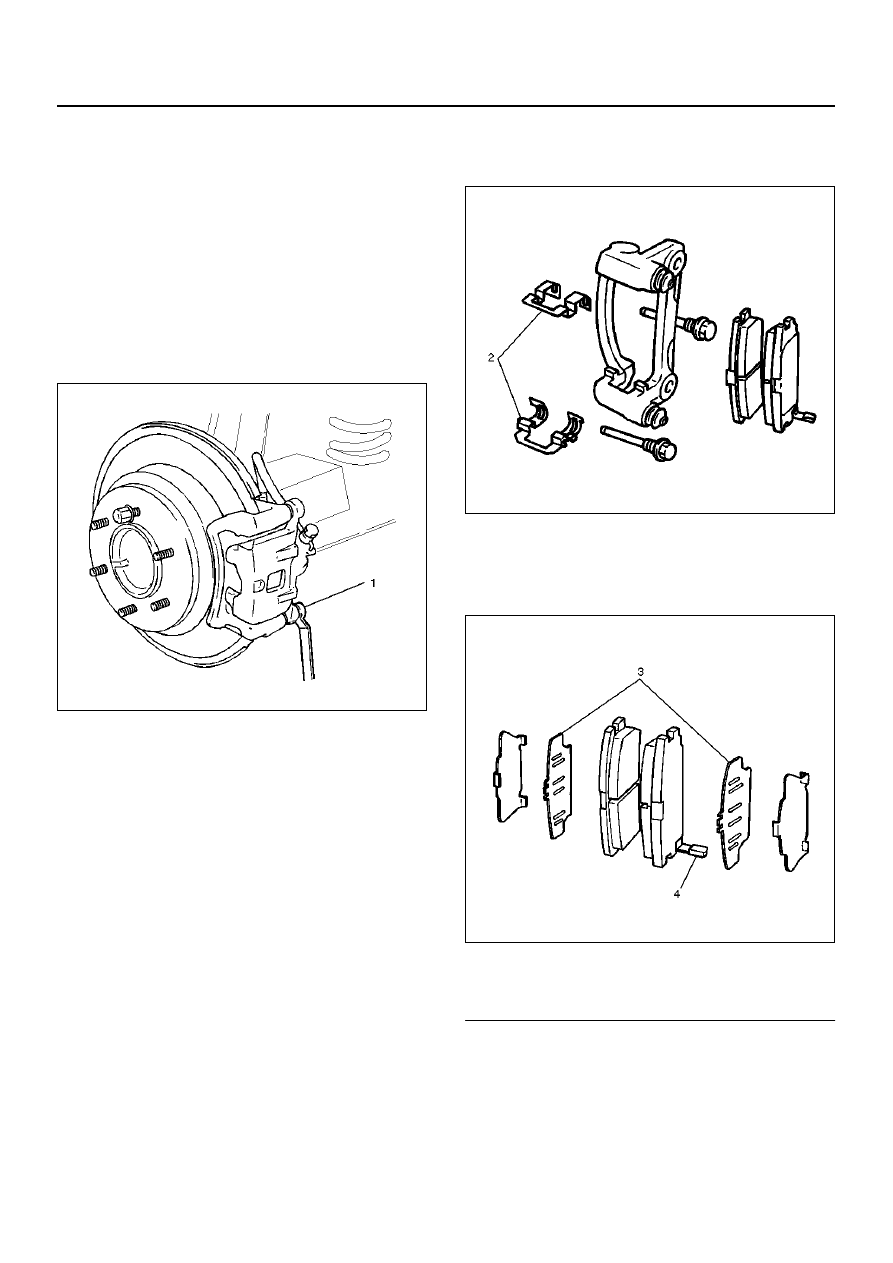

1. Remove wheel and tire assembly, referring to

Wheels and Tires System in Section 3E.

2. Remove lock bolt (1)

306RW002

3. Rotate caliper assembly and support the caliper

assembly so that the brake hose is not stretched or
damaged.

4. Remove pad assembly with shim.

5. Remove clip.

Installation

1. Install clip (2).

306RW003

2. Apply special grease (approximately 0.2 g) to both

contacting surfaces of the inner shims. Wipe off
extruded grease after installing. Install pad
assembly with shim.

306RW004

EndOFCallout

Legend

(3) Inner Shim
(4) Wear Indicator
