Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 1125





3F–30

INTELLIGENT SUSPENSION

DTC9–4 Control Unit Blown Fuse for RL Shock Absorber

Step

Action

Value(s)

Yes

No

1

1. Turn off the starter switch.

2. Disconnect the shock absorber connector F–7.

3. Measure the resistance between the shock

absorber side connector F–7 terminals 3 and 4.

Is the resistance within the specified value?

6.4– 7.2

W

Go to Step 2

Go to Step 3

2

1. Measure the resistance between the shock

absorber side connector F–7 terminals 7 and 8.

Is the resistance within the specified value?

6.4– 7.2

W

Go to Step 4

Go to Step 3

3

Replace the shock absorber RL.

Go to Step 7

4

1. If all steps are correct, check the continuity

between the control unit connector C–50 terminal
1 and connector-terminal C50–10, C50–23, C50–
11, C50–24.

Is there continuity?

Begin

diagnosis

again

Go to Step 5

Go to Step 6

5

Repair the circuit.

Go to Step 7

6

Replace the control unit.

Go to Step 7

7

1. Reconnect all components, ensure all

components are properly mounted.

2. Clear the DTC.

Was this step finished?

Go to “Basic

Diagnosis

FLow". Go

to

Step 7

INTELLIGENT SUSPENSION

3F–31

Control Unit

Control Unit and Associated Parts

828RY00001

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the front console assembly.

Refer to Consoles in Body and Accessories section.

3. Disconnect the connector from the control unit.

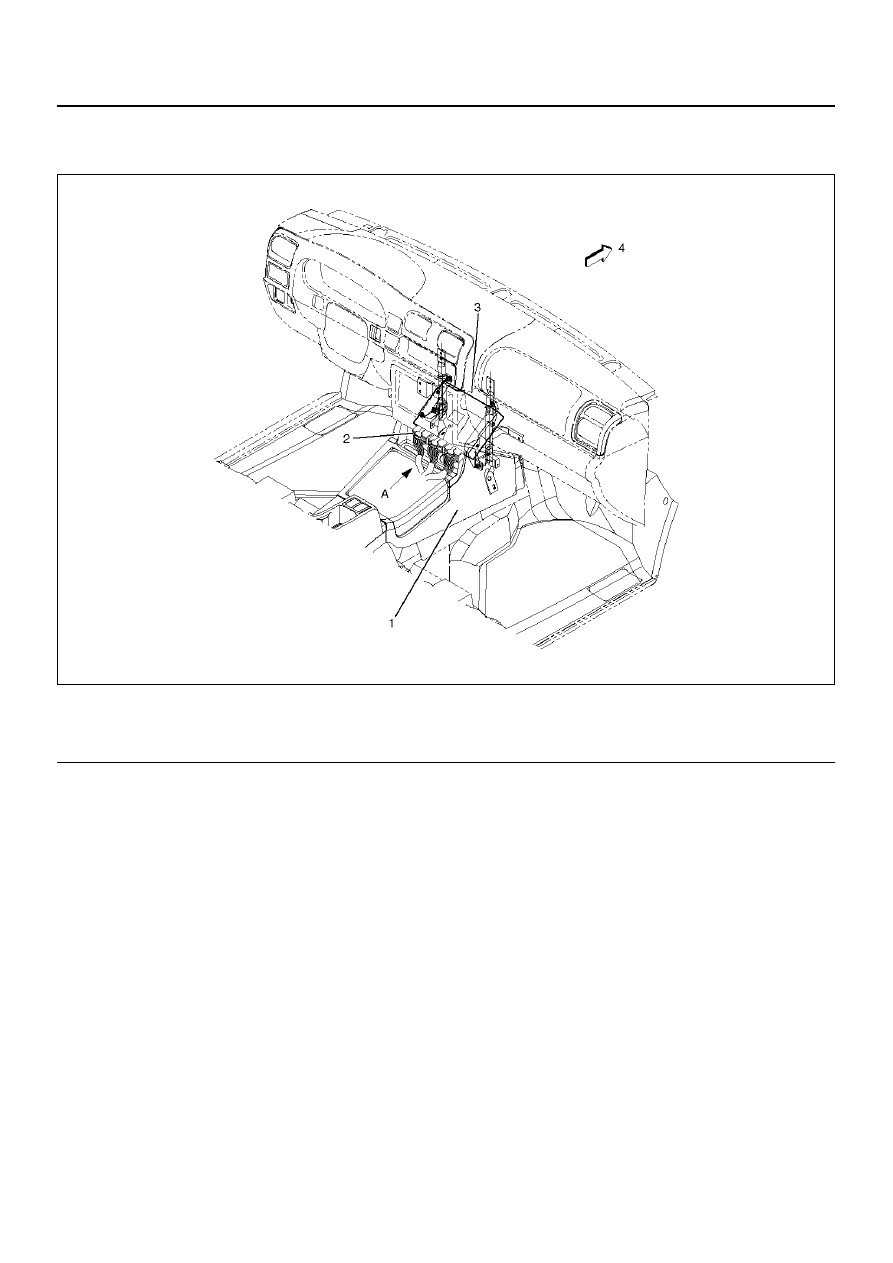

Legend

(1) Front Console
(2) Connector

(3) Control Unit
(4) Front

3F–32

INTELLIGENT SUSPENSION

View A

828RY00002

EndOFCallout

4. Remove 4 nuts.

5. Disconnect the control unit with brackets.

6. Remove 4 screws.

7. Disconnect the control unit from brackets.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.
Torque:
Nut (1) 8N·m  (69 lb in)

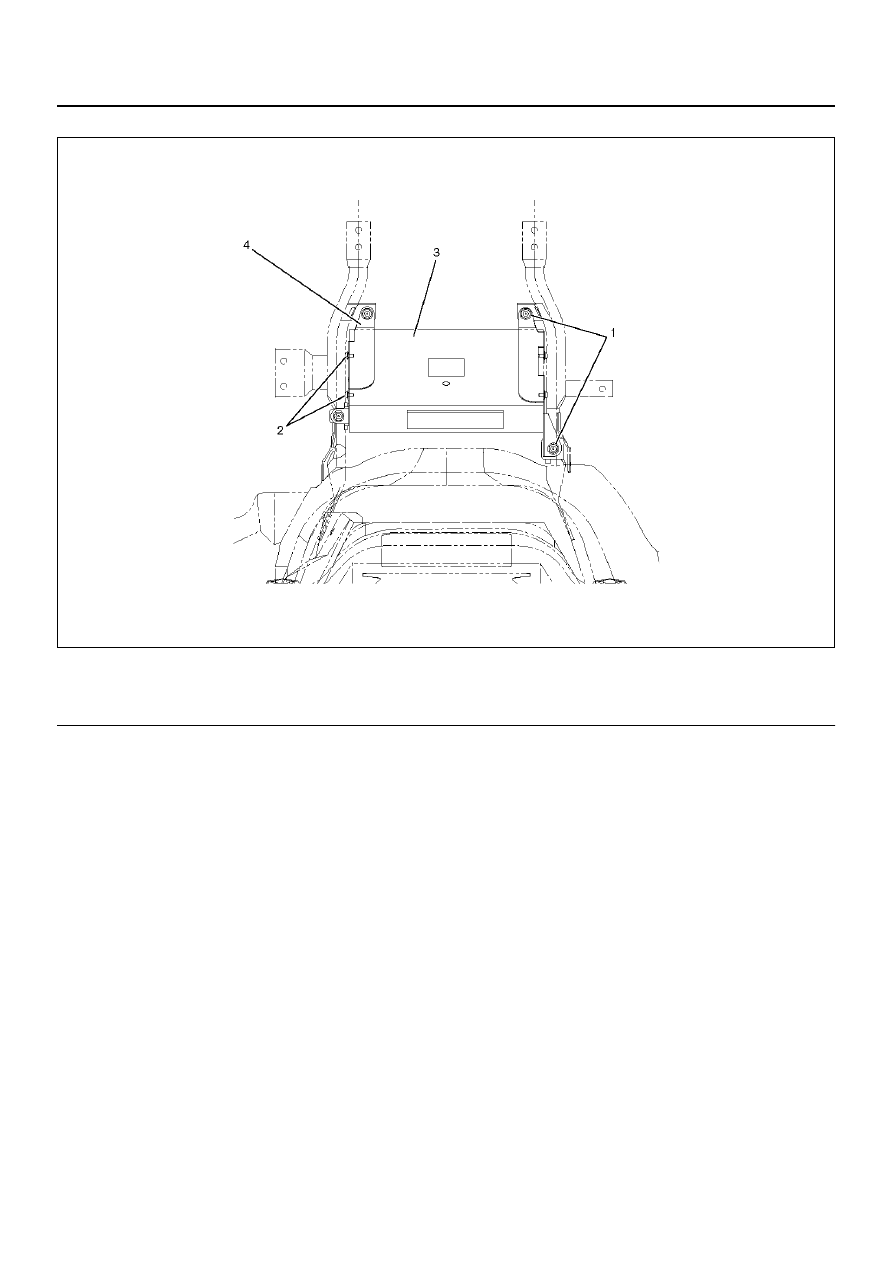

Legend

(1) Nut
(2) Screw

(3) Control Unit
(4) Bracket

INTELLIGENT SUSPENSION

3F–33

Front Actuator

Front Actuator and Associated Parts

RH

450RY00004

EndOFCallout

LH

450RY00003

EndOFCallout

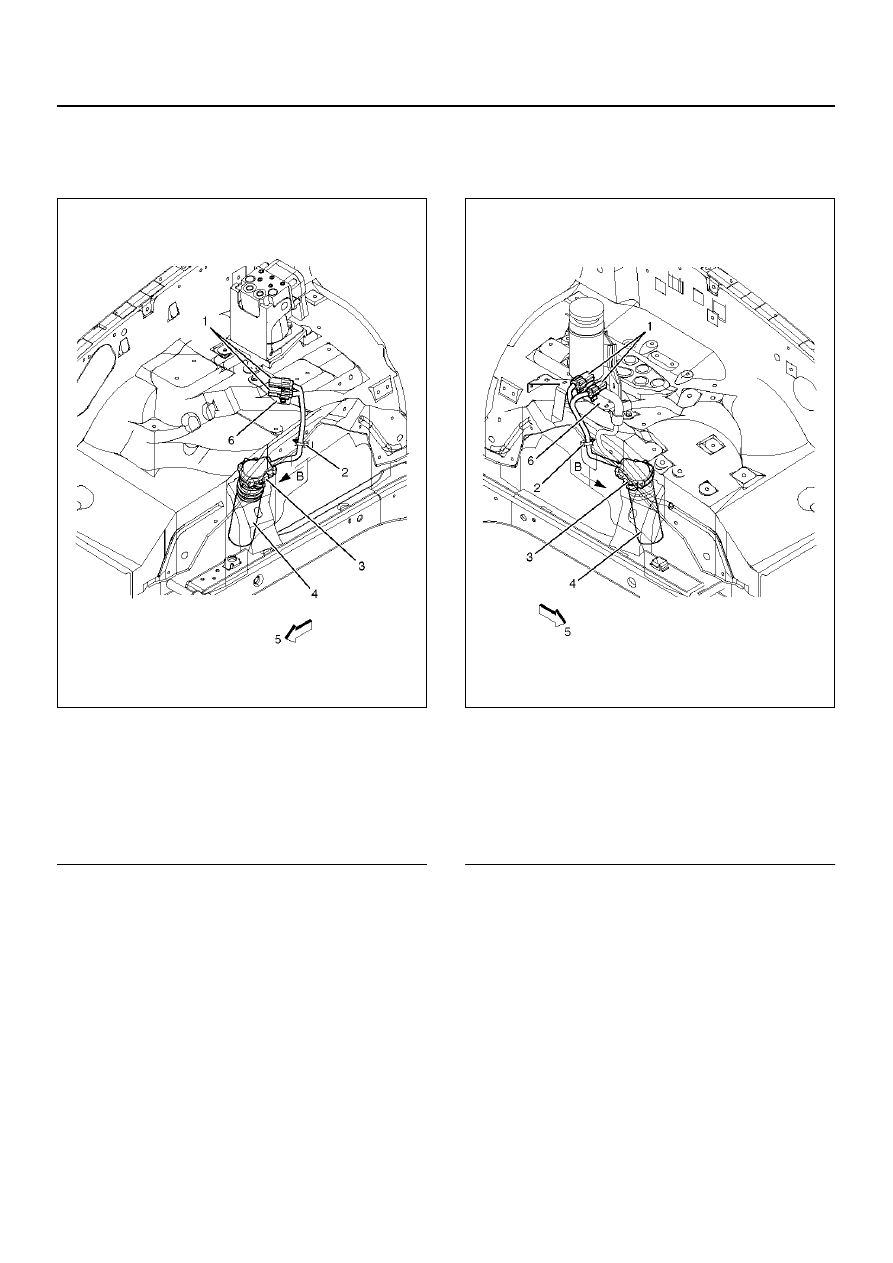

Legend

(1) Connector
(2) Clip
(3) Actuator
(4) Shock Absorber
(5) Front
(6) Bracket

Legend

(1) Connector
(2) Clip
(3) Actuator
(4) Shock Absorber
(5) Front
(6) Bracket
