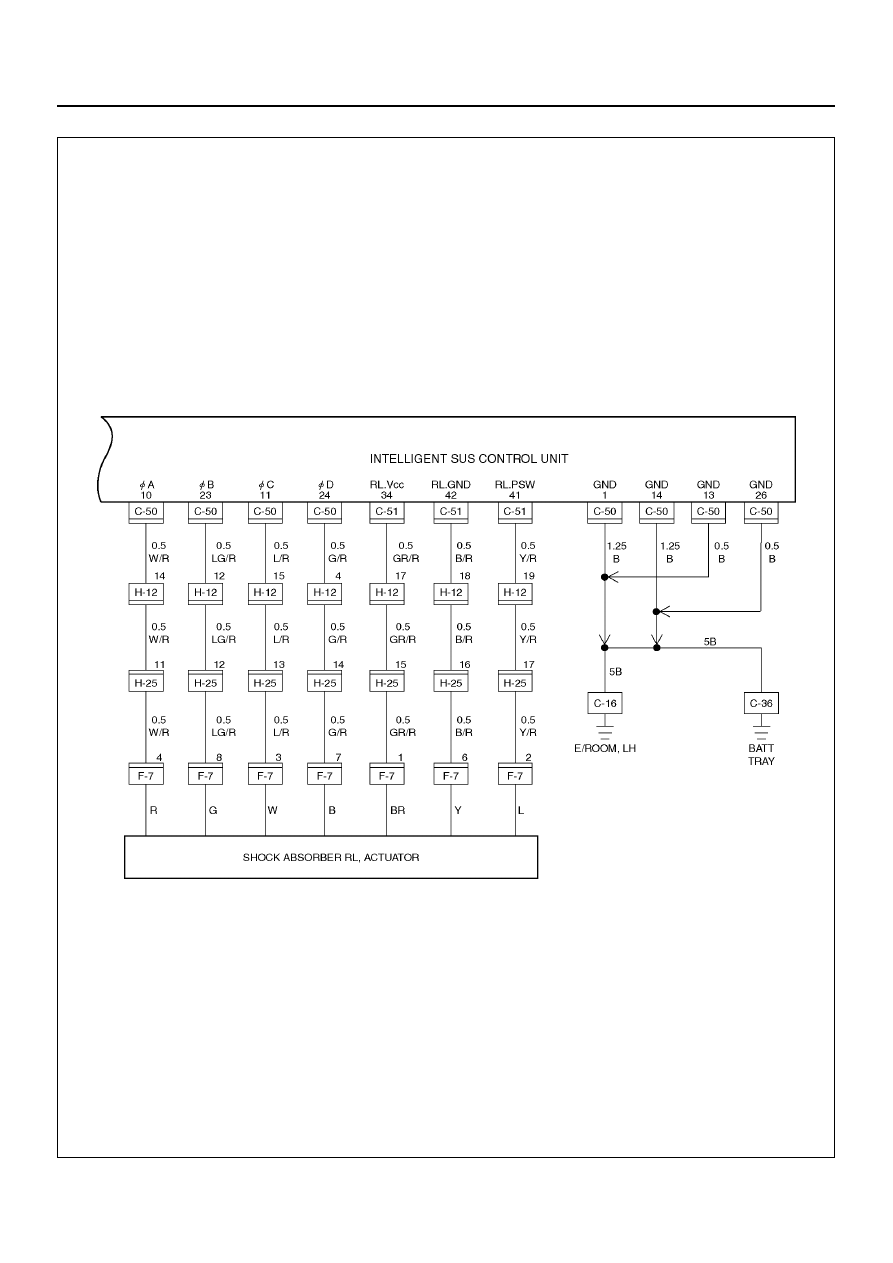

INTELLIGENT SUSPENSION

826R200027

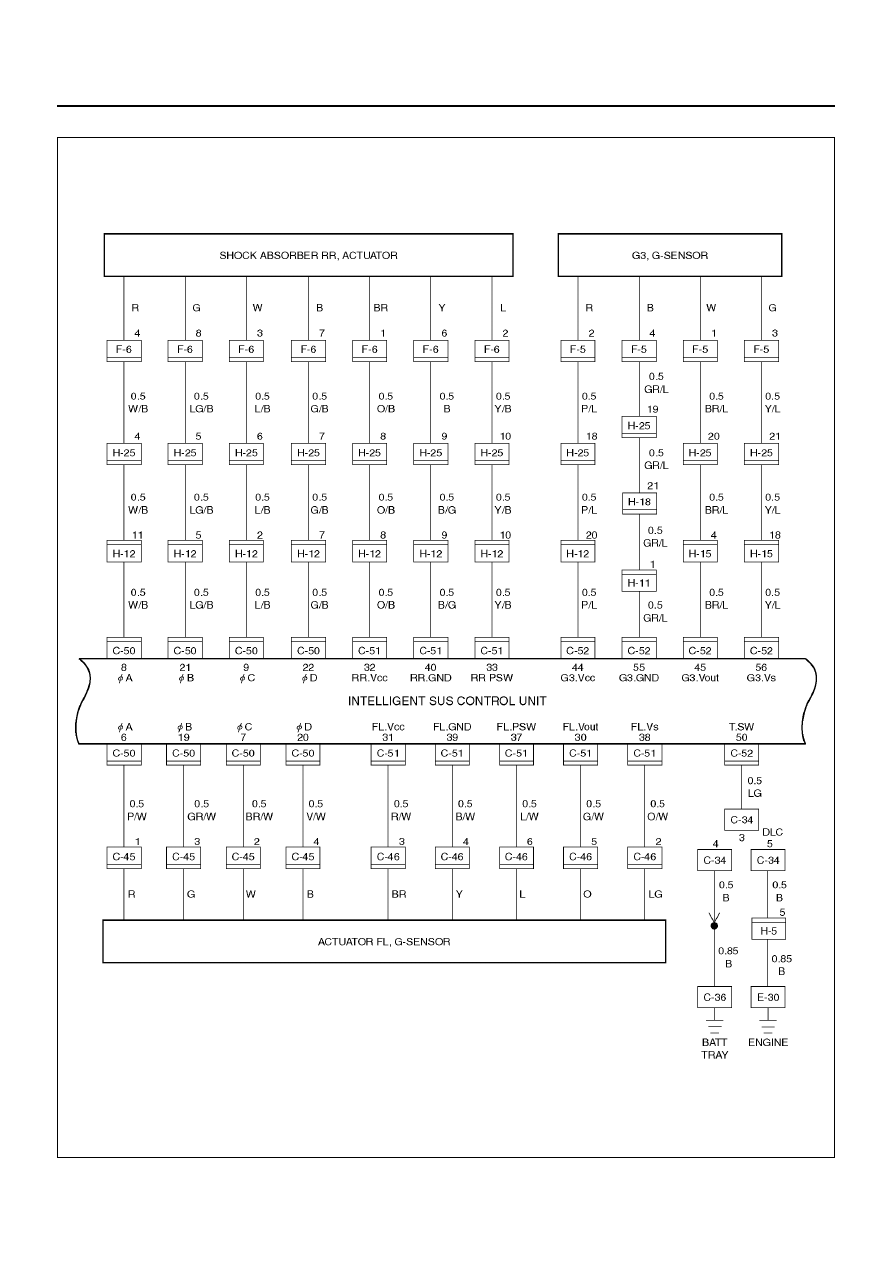

INTELLIGENT SUSPENSION

3F–11

826R200030

3F–12

INTELLIGENT SUSPENSION

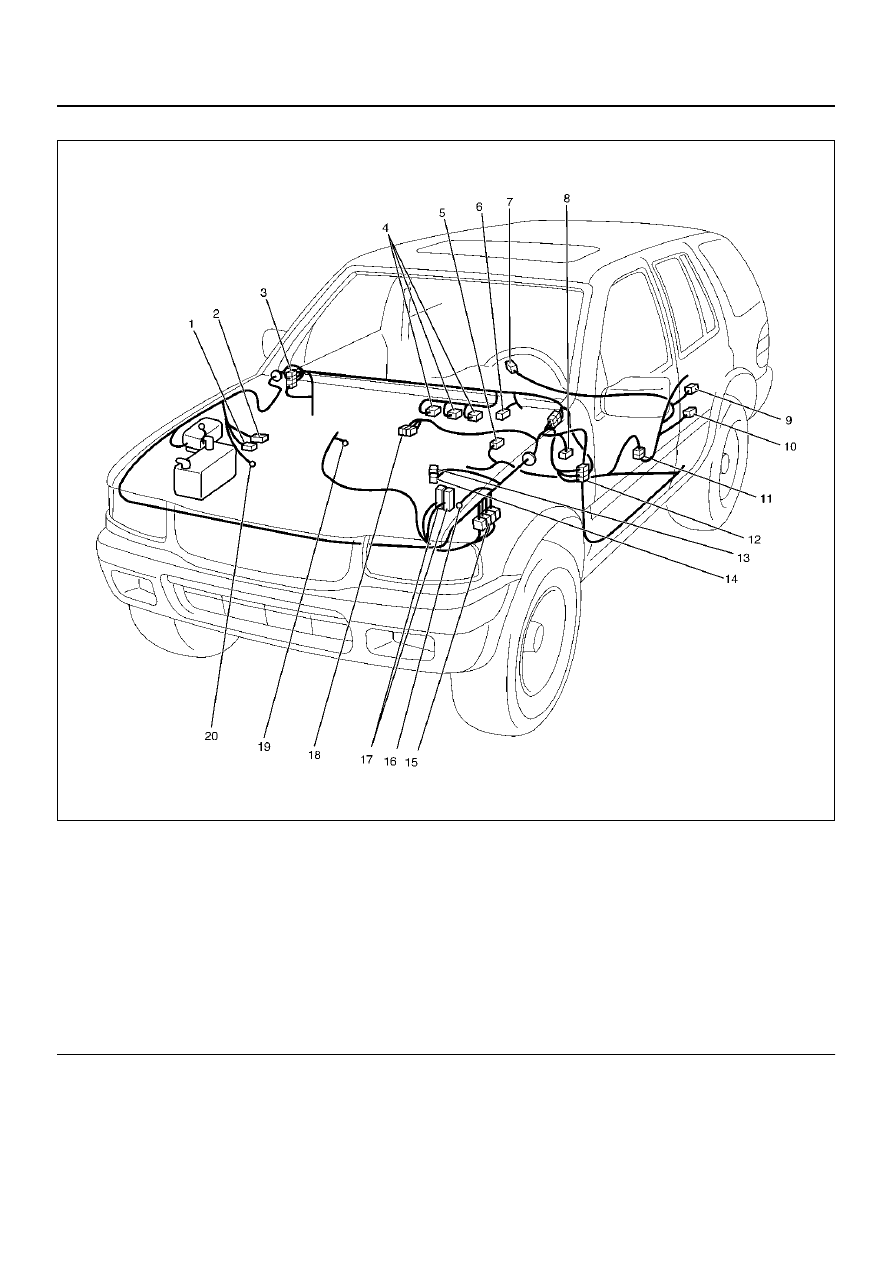

Parts Location

810R100003

EndOFCallout

Legend

(1) C–44
(2) C–43
(3) H–11, H–12, H–14, H–18
(4) I–1, I–2, I–9
(5) B–25
(6) I–18
(7) F–6
(8) C–34
(9) F–7

(10) F–5

(11) H–25

(12) H–15, H–16, H–17
(13) C–46
(14) C–45
(15) H–5, H–6, H–7
(16) C–16
(17) E–21, E–22
(18) C–50, C–51, C–52
(19) E–30
(20) C–36

INTELLIGENT SUSPENSION

3F–13

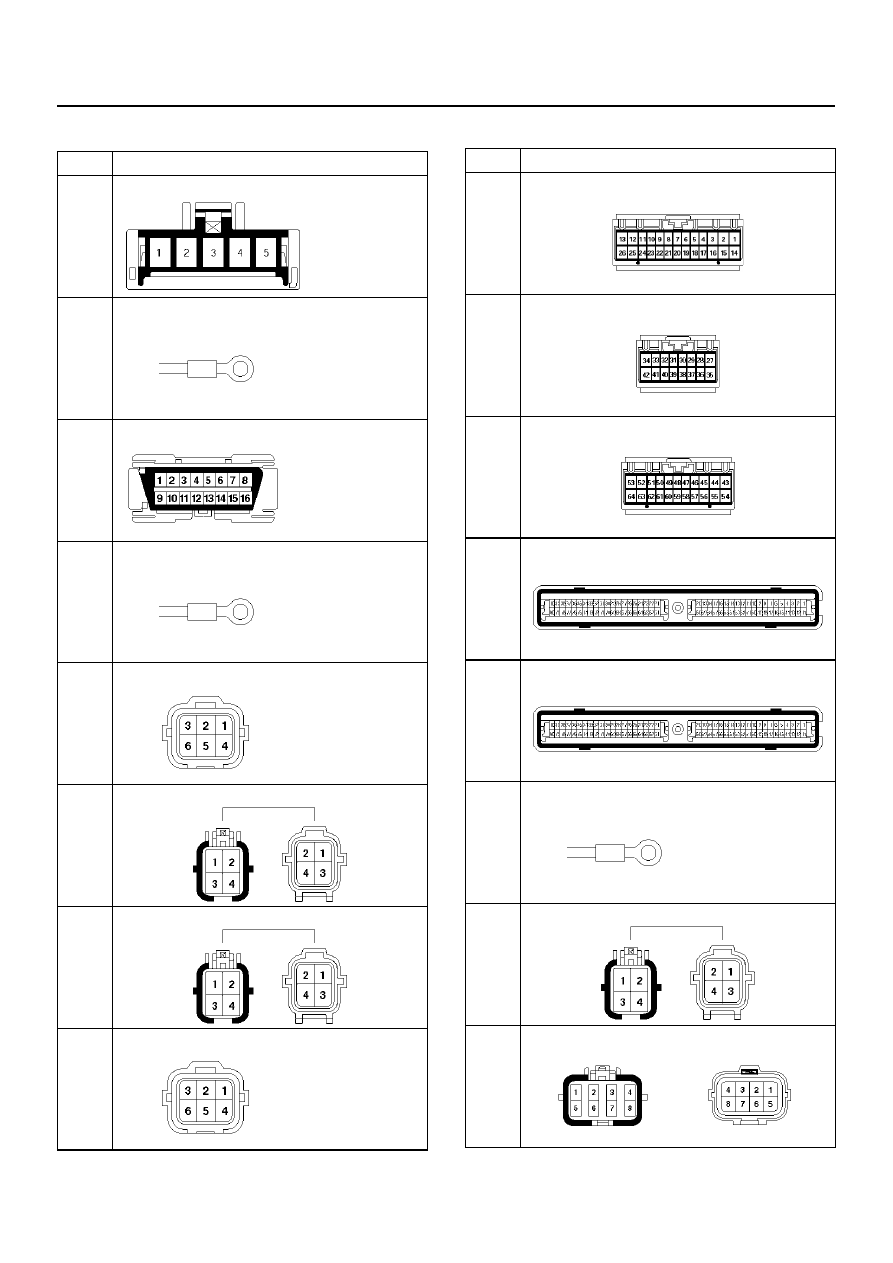

Connector List

No.

Connector face

B-25

C-16

C-34

C-36

C-43

C-44

C-45

C-46

C-50

C-51

C-52

E-21

E-22

E-30

F-5

F-6

No.

Connector face
