EXTERIOR/INTERIOR TRIM

8J–13

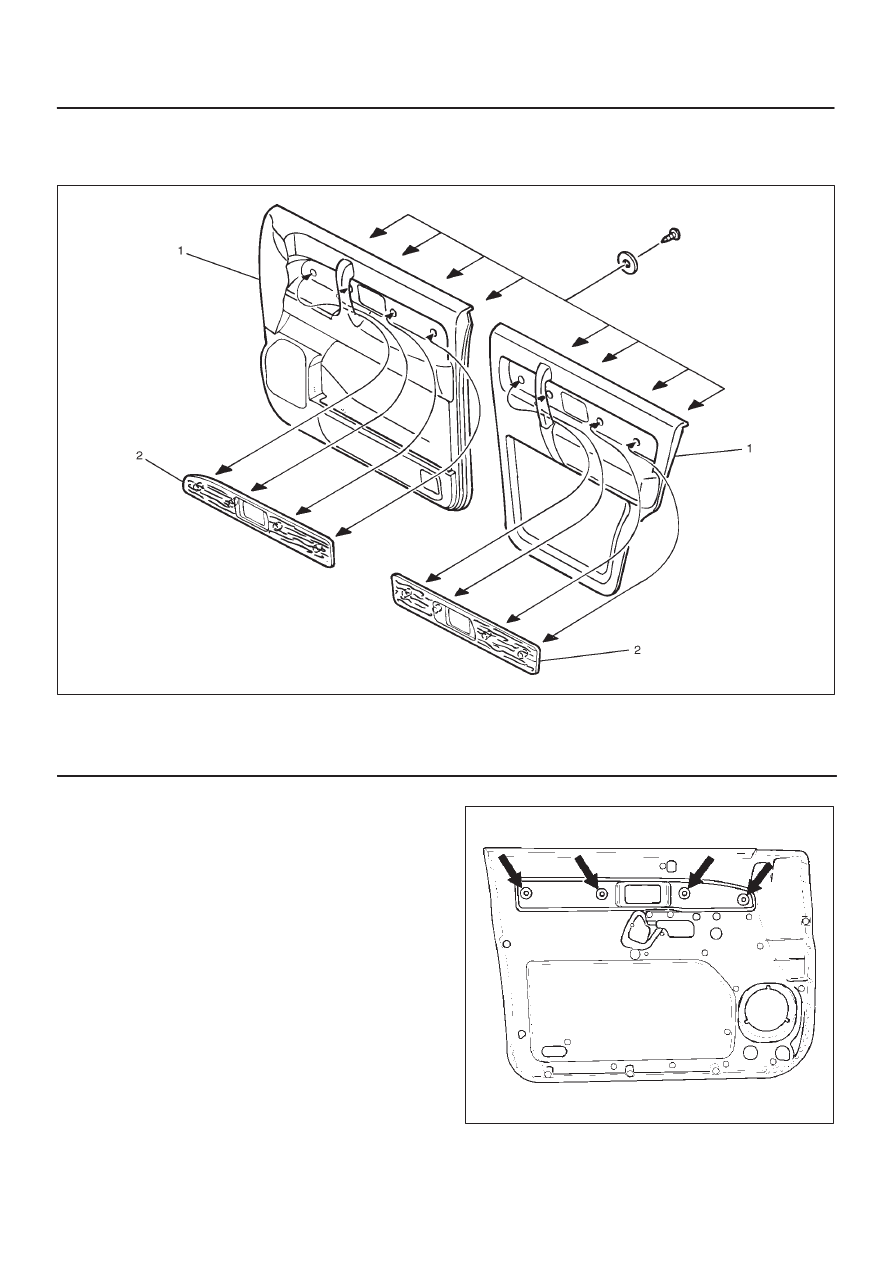

Door Wood Panel Assembly

Door Wood Panel Assembly and Associated Parts

635R200014

Legend

(1) Door Trim Panel
(2) Door Wood Panel Assembly

Removal

1. Remove the door trim panel(1).

D

Refer to the Front / Rear Door Trim Panel in this
section.

2. Remove the door wood panel assembly(2).

D

Remove four door wood panel assembly fixing
screws and washers.

NOTE: The removal and installation steps are common
to both front and rear doors.

635RS009

Installation

To install, follow the removal steps in the reverse order.

8J–14

EXTERIOR/INTERIOR TRIM

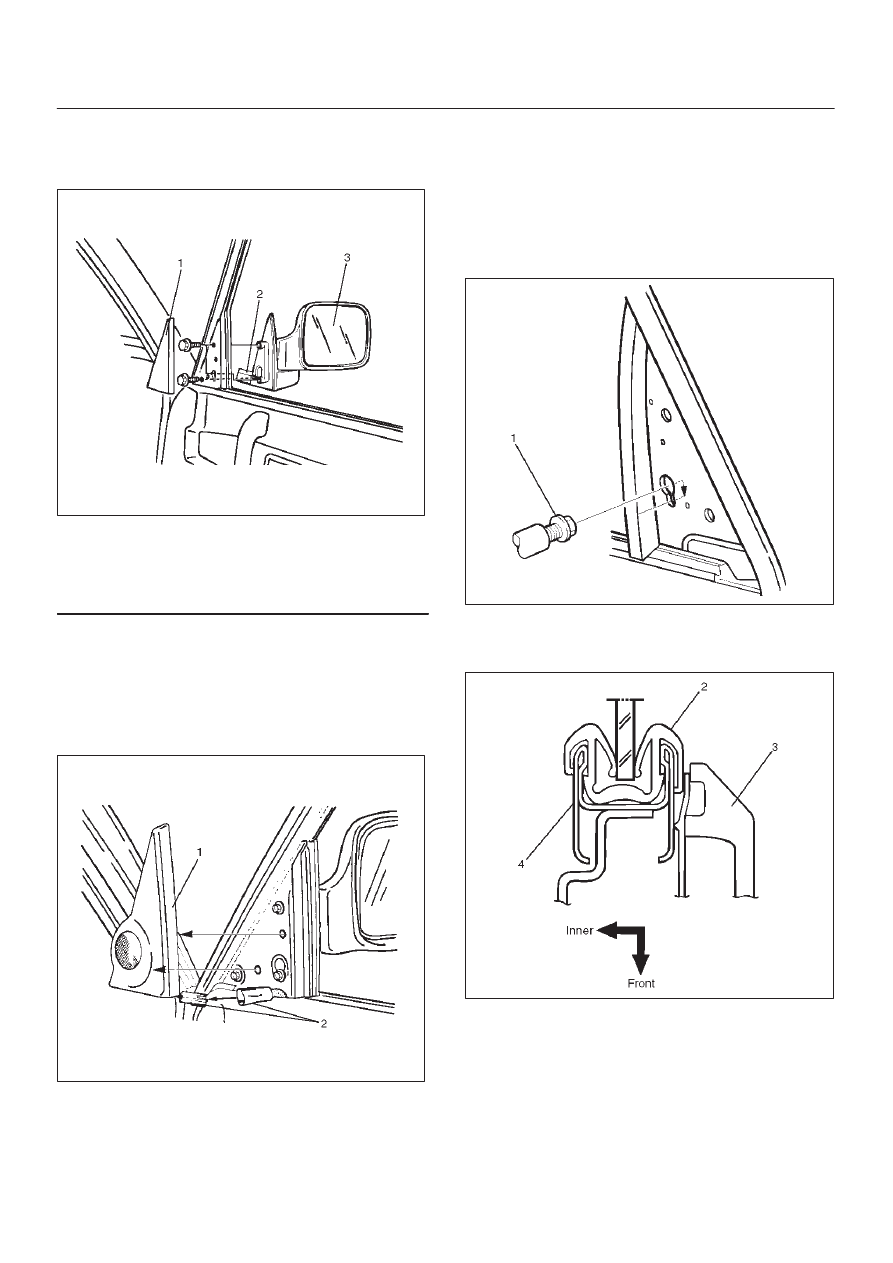

Door Mirror

Door Mirror and Associated Parts

720RS012

Legend

(1) Door Mirror Cover / Tweeter
(2) Door Mirror Connector
(3) Door Mirror

Removal

1. Disconnect the battery ground cable.
2. Remove the door mirror cover(1).

D

Remove the connectors(2) and the door mirror
cover, if equipped with a tweeter.

720RS007

3. Remove the door mirror connector.
4. Remove the door mirror.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. When you install the door mirror, install the bolt(1) to

the mirror temporarily, hook the bolt to the door side
hole and tighten the bolt from the inside.

720RS001

2. When installing the door mirror, hold the glass run

lip(2) between the door mirror base(3) and the center
sash(4).

A10RS001

3. Tighten the door mirror fixing bolts to the specified

torque.

Torque: 8 N·m (69 lb in)

EXTERIOR/INTERIOR TRIM

8J–15

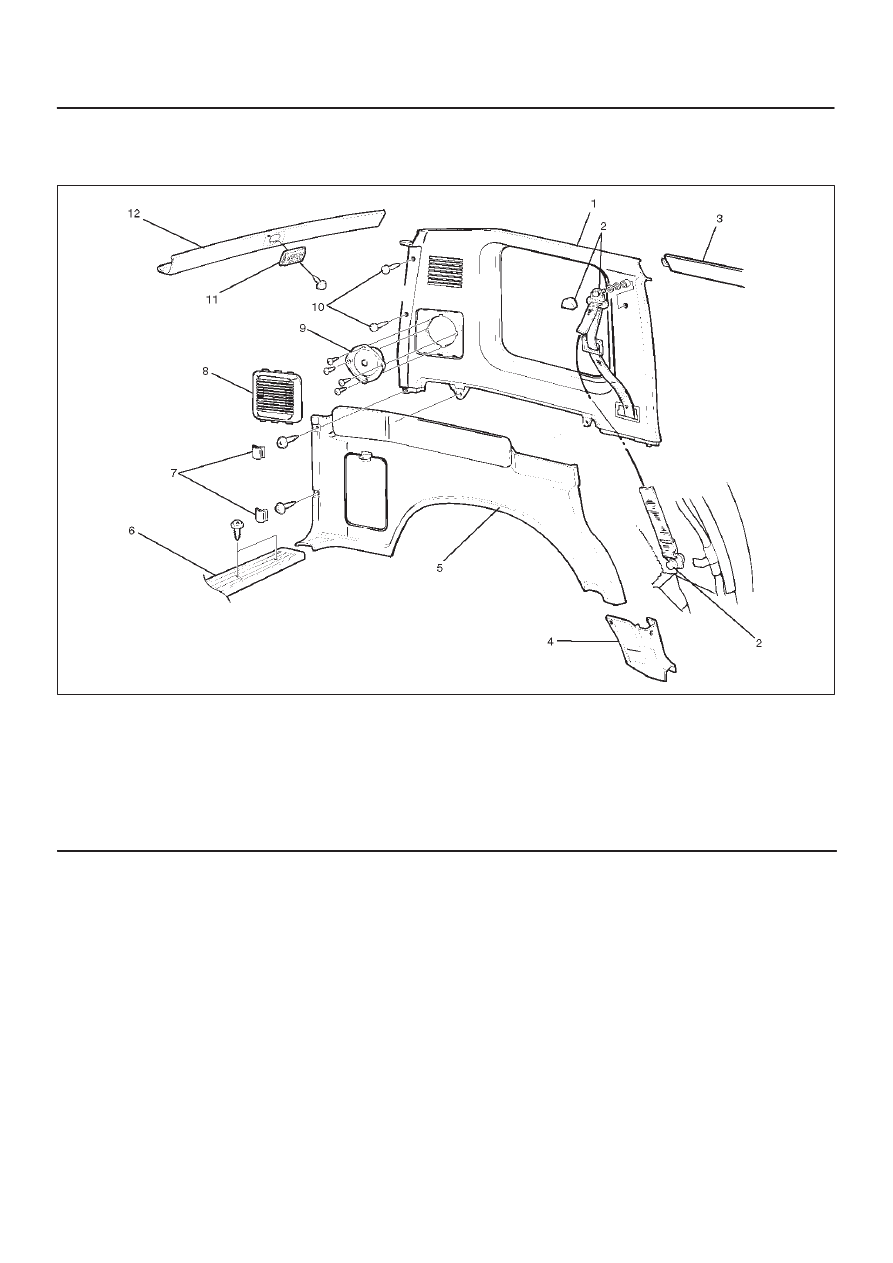

Luggage Side and Quarter Upper Trim Cover

Luggage Side, Quarter Upper Trim Cover and Associated Parts

687RS001

Legend

(1) Quarter Upper Trim Cover
(2) Rear Seat Belt Anchor Bolt Cover and Anchor

Bolt

(3) Roof Side Trim Cover
(4) Luggage Side Lower Cover
(5) Luggage Side Trim Cover

(6) Rear End Floor Trim Cover
(7) Luggage Side Cap
(8) Speaker Grille
(9) Rear Speaker

(10) Clip

(11) Luggage Room Light

(12) Rear Roof Trim Cover

Removal

1. Disconnect the battery ground cable.
2. Remove the rear end floor trim cover.
3. Remove the luggage side cap.
4. Remove the luggage side lower cover.

8J–16

EXTERIOR/INTERIOR TRIM

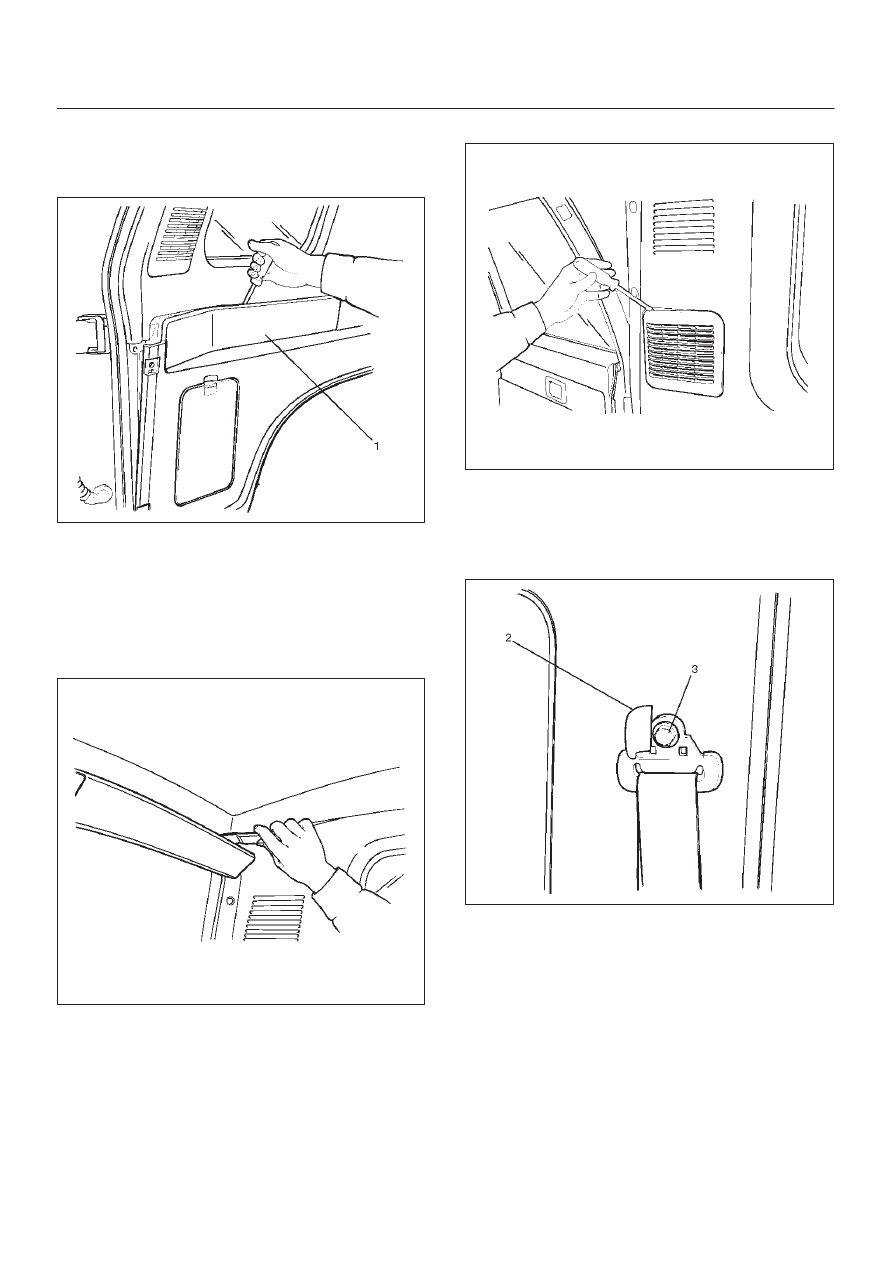

5. Remove the luggage side trim cover (1).

D

Remove the rear side fixing screws and pry the trim
cover retainers free from the body panel and the
upper trim cover.

687RS002

6. Remove the luggage room light.

D

Remove the luggage room light lens and the fixing
screws.

D

Disconnect the luggage room light connector.

7. Remove the rear roof trim cover.

D

Pry the trim cover retainers free from the body
panel.

666RS001

8. Remove the speaker grille.

687RS003

9. Remove the rear speaker.

D

Remove the rear speaker fixing screws and
disconnect the connector.

10. Remove the rear seat belt anchor bolt cover (2) and

the anchor bolt (3).

760RW005
