DIFFERENTIAL (FRONT)

4A1–16

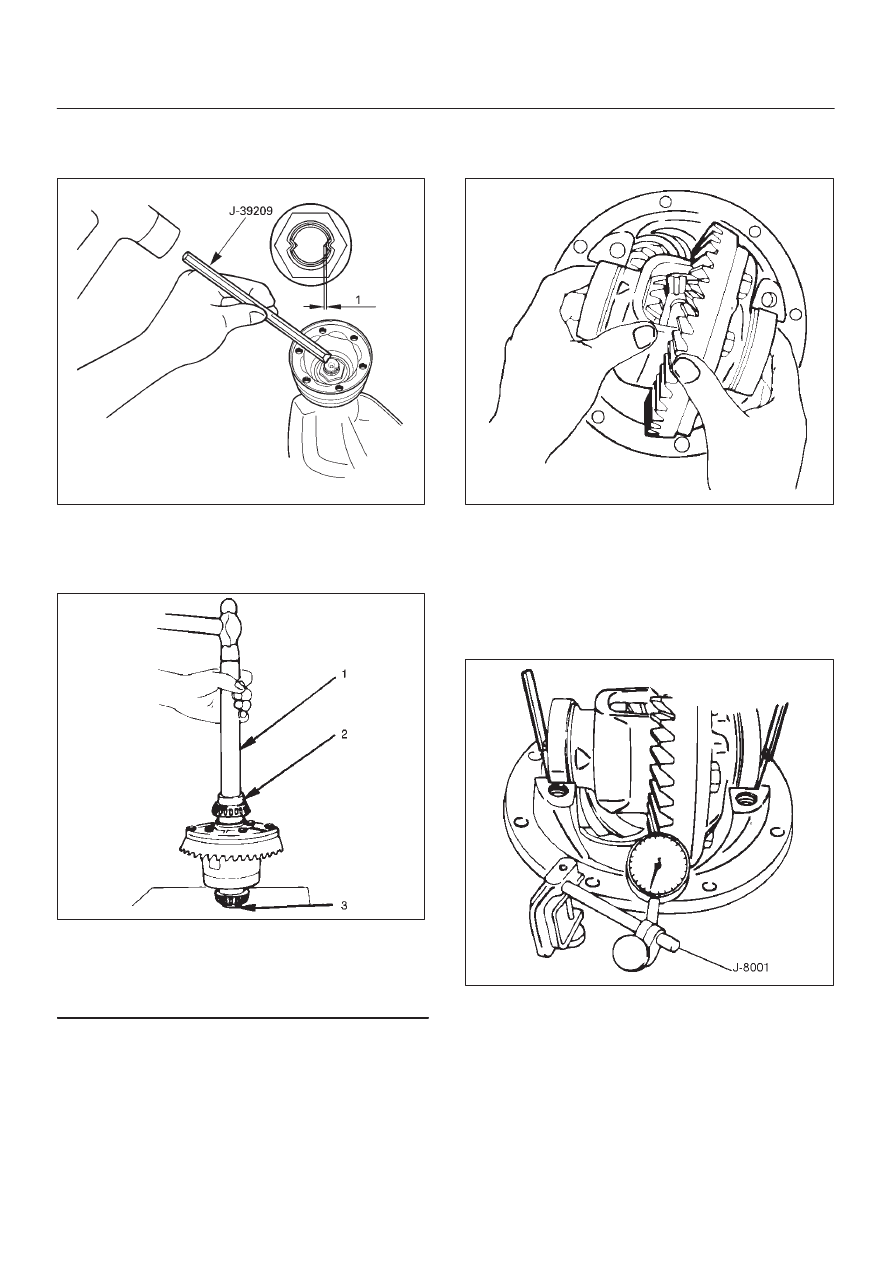

NOTE: When staking, be sure to turn the nut to insure
that there is no change in bearing preload. Make sure of
preload again as instructed in 3.

415R200004

11. Install adjust shim.

1. Attach the side bearing to the differential

assembly without shims. Support the opposite
side using a pilot to prevent bearing damage.

425RS029

Legend

(1) Drive handle:J–8092
(2) Installer:J–24244
(3) Pilot:J–8107–2

2. Insert the differential cage assembly with bearing

outer races into the side bearing bores of the
carrier.

425RS030

3. Using two sets of feeler gauges, insert a feeler

stock of sufficient thickness between each
bearing outer race and the carrier to remove all
end play. Make certain the feeler stock is pushed
to the bottom of the bearing bores.
Mount the dial indicator J–8001 on the carrier so
that the indicator stem is at right angles to a tooth
on the ring gear.

425RS031

4A1–17

DIFFERENTIAL (FRONT)

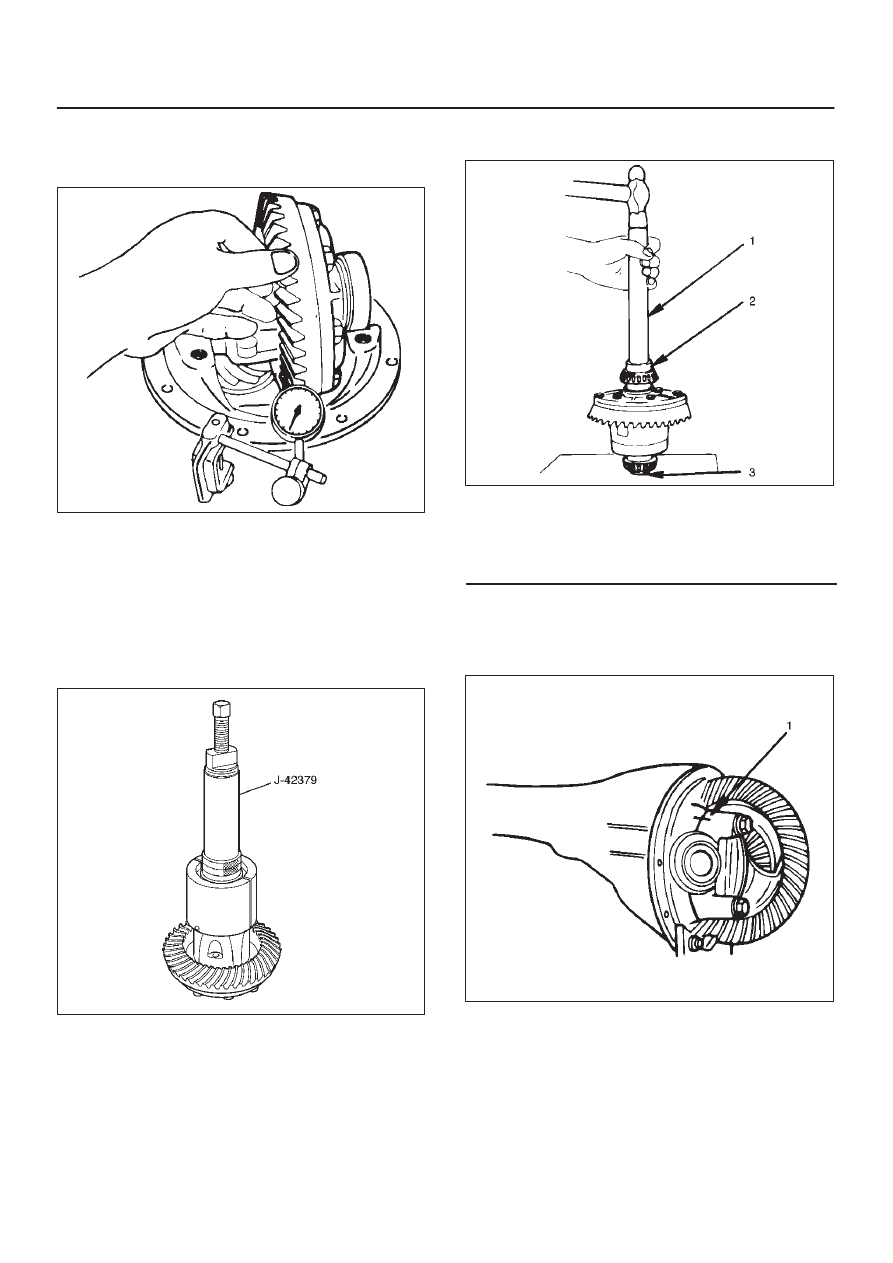

4. Adjust feeler gauge thickness from side to side

until ring gear backlash is in the specified range.

Backlash: 0.13–0.20 mm(0.005 –0.008 in)

425RS032

With zero end play and correct backlash estab-
lished, remove the feeler gauge packs, determine
the thickness of the shims required and add 0.025
mm (0.001 in) to each shim pack to provide side
bearing preload. Always use new shims.

5. Use bearing remover J–42379 and pilot

J–8107–2 to remove side bearing.

D

Select insert; 303173 and collet halves;44801
in remover kit J–42379.

415RW003

12. Install the side bearings together with the selected

shims.

425RS029

Legend

(1) Drive Handle:J–8092
(2) Installer: J–24244
(3) Pilot: J–8107–2

13. Install side bearing outer race.
14. Install differential cage assembly.
15. Install bearing cap then align the setting marks(1)

applied at disassembly.

425RS035

DIFFERENTIAL (FRONT)

4A1–18

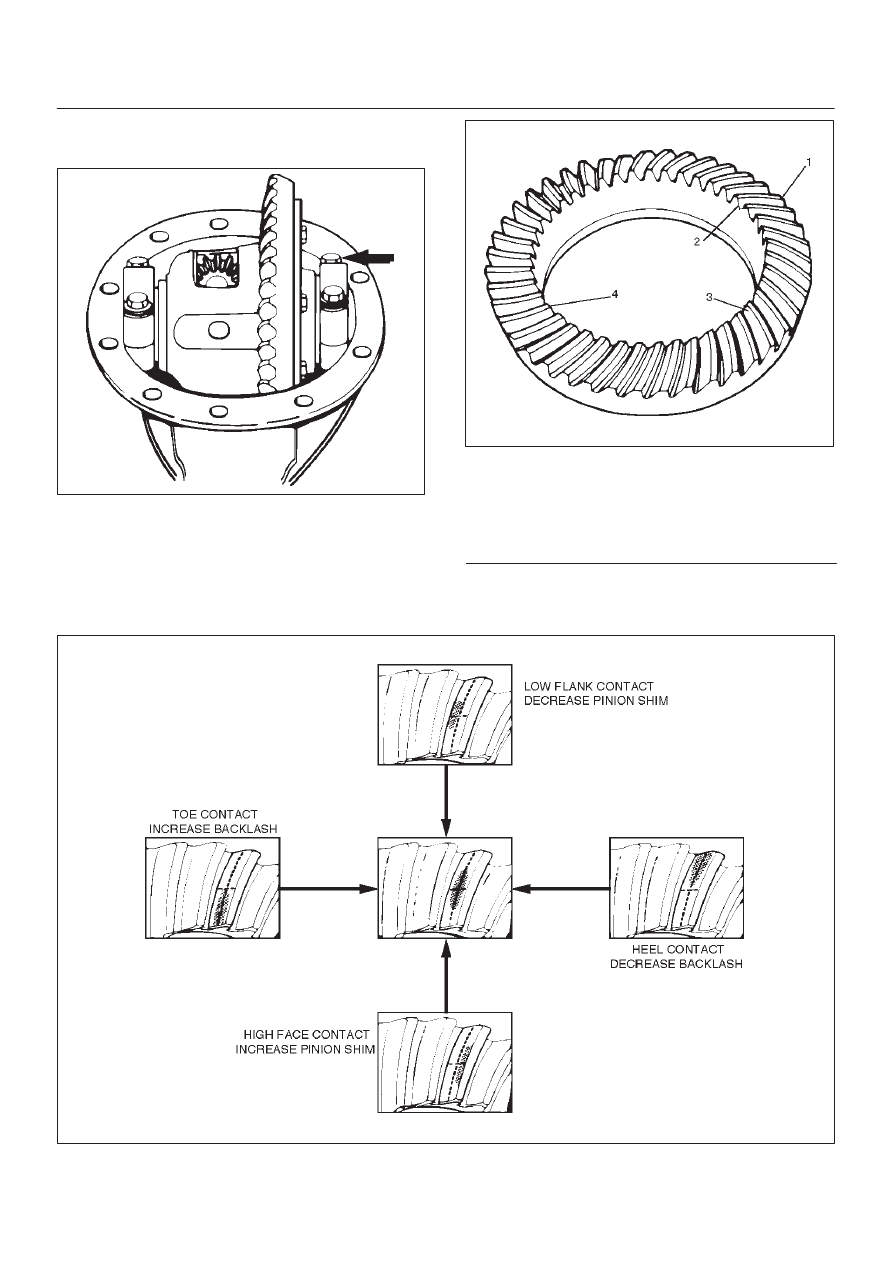

16. Tighten the cap  bolt to the specified torque.

Torque: 97 N·m (72 lb ft)

425RS036

Gear Tooth Contact Pattern Check and
Adjustment

1. Apply a thin coat of prussian blue or equivalent to

at least 7–8 ring gear teeth. Rotate the ring gear
and inspect the contact point of the impressions
and make the necessary adjustments as
described in the next page.

425RS038

Legend

(1) Heel
(2) Toe
(3) Concave Side(Coast)
(4) Convex Side(Drive)

425RS039

4A1–19

DIFFERENTIAL (FRONT)

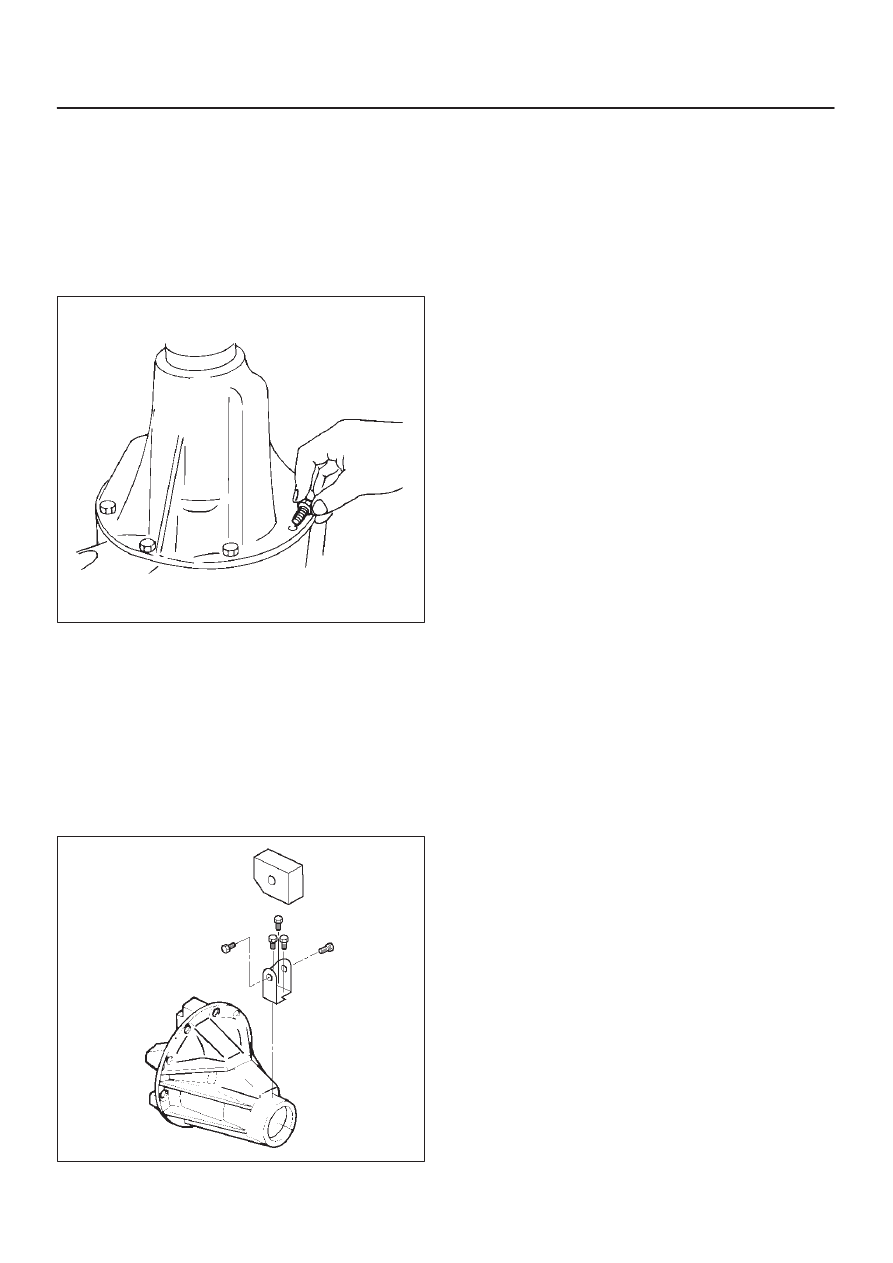

17. Install differential assembly.

1. Clean the faces of the front axle case and

differential carrier.
Apply Three Bond TB1215 or equivalent to the
sealing side of the axle case and the carrier.

2. Attach the differential case and the carrier

assembly to the front axle case and tighten the
nuts and bolts.

Torque: 25 N·m (19 lb ft)

415RS014

3. Fill the axle case with hypoid gear lubricant, up to

the base of the filler hole.

Lubricant capacity: 1.25 liter(1.32 US qt)

18. Install damper.

1. Clean the faces and bolt thread hole of differential

carrier.

2. Install the bracket with new bolts.

3. Install the damper to the bracket with new bolts.

Torque: 25 N·m (19 lb ft)

425RW042
