INTELLIGENT SUSPENSION
3F–5
Vertical G-Sensor
Front G-sensors installed inside front actuators and the
rear G-sensor installed on the rear left frame side detect
the vehicle vertical gravity and send a signal to the Control
Unit.
Lateral G-Sensor
The G-sensor installed inside the Control Unit detects the
vehicle turning speed and sends a signal to the Control
Unit.
Acronyms and Abbreviations
Several acronyms and abbreviations are commonly used
throughout this section:
BATT
Battery
DLC
Data Link Connector
DTC
Diagnostic Trouble Code
FL
Front Left
FR
Front Right
GND
Ground
HARN
Harness
IG
Ignition
PCM
Powertrain Control Module
RL
Rear Left
RR
Rear Right
SW
Switch
W/L
Warning Lamp
Vout
Voltage output

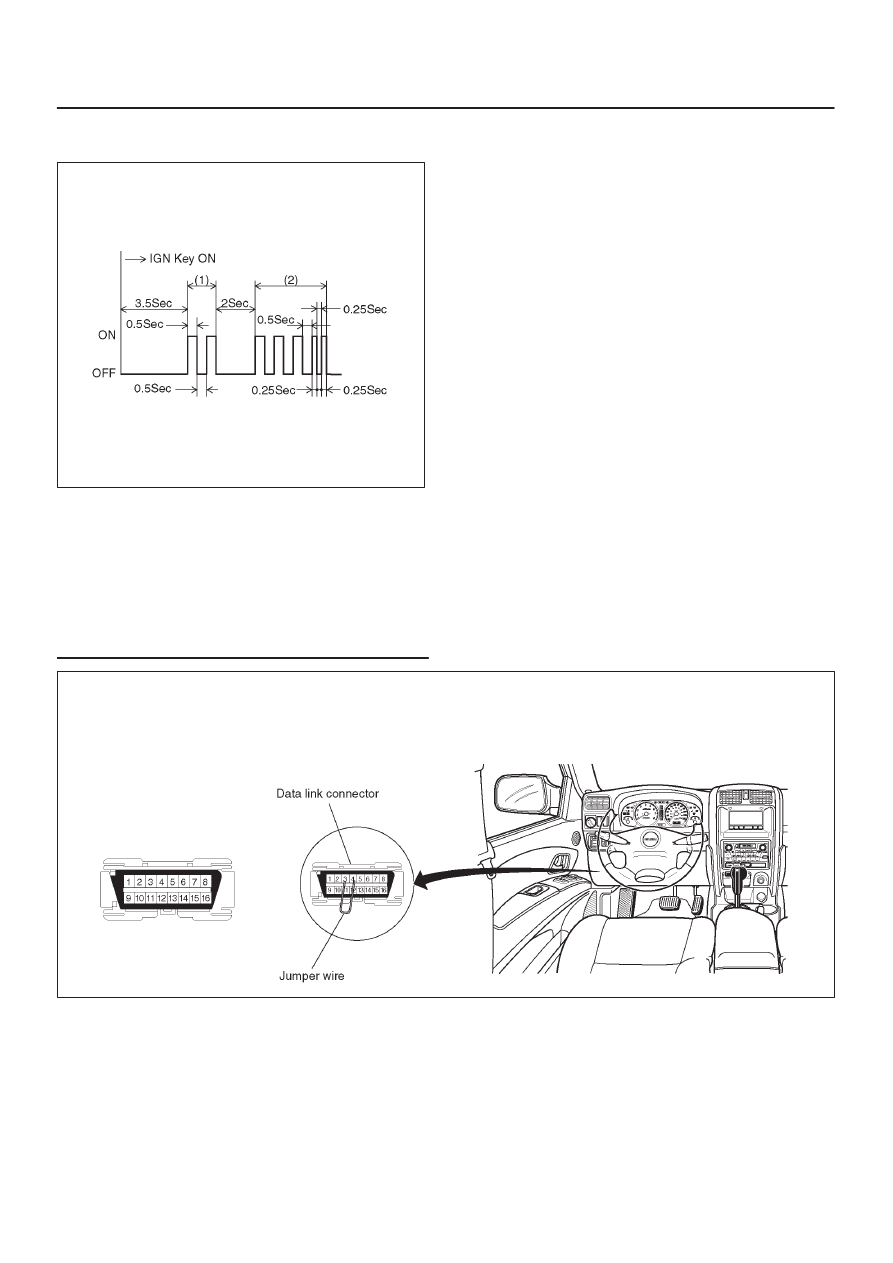

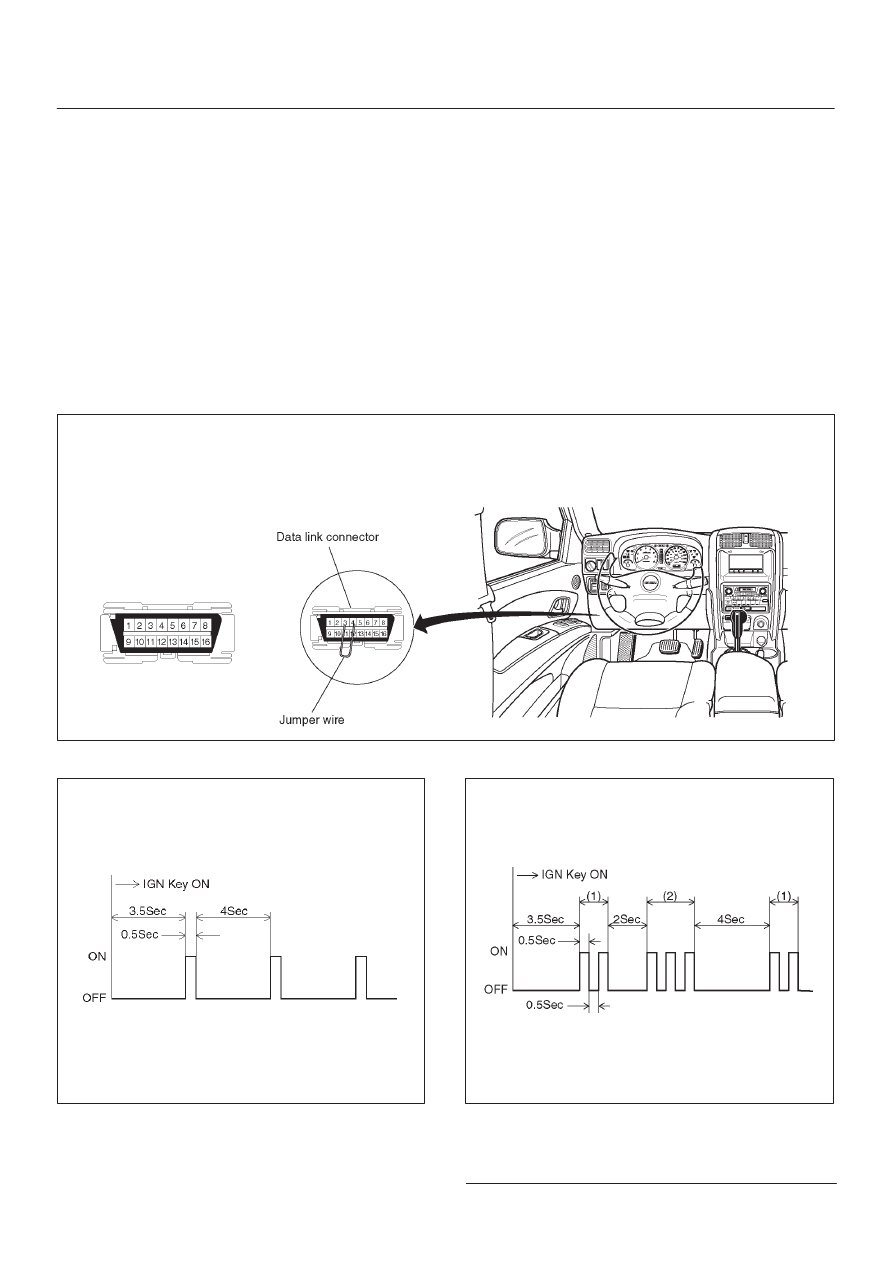

General Diagnosis
General Information
Intelligent Suspension Control troubles can be classified
into two types, those which can be detected by the
warning lamp and those which can be detected as a
vehicle abnormality by the driver.
In either case, locate the fault in accordance with
the“BASIC DIAGNOSTIC FLOWCHART” and repair.
Please refer to
Section 3 for the diagnosis of mechanical
troubles such as abnormal noise, vehicle pulls, excessive
tire wear, wheel hop and shimmy, shake or vibration.
Service Precautions
Required Tools and Items:
D
Box Wrench
D
Special Tool
Some diagnosis procedures in this section require the
installation of a special tool.
J-39200 High Impedance Multimeter
When circuit measurements are requested, use a
circuit tester with high impedance.
Computer System Service Precautions
The Intelligent Suspension Control interfaces directly
with the Control Unit which is a control computer that is
similar in some regards to the Powertrain Control Module.
These modules are designed to withstand normal current
draws associated with vehicle operation. However care
must be taken to avoid overloading any of the Control Unit
circuits. In testing for opens or shorts, do not ground or
apply voltage to any of the circuits unless instructed to do
so by the appropriate diagnostic procedure. These
circuits should only be tested with a high impedance
multimeter (J-39200) or special tools as described in this
section. Power should never be removed or applied to
any control module with the ignition in the “ON”
position.Before removing or connecting battery cables,
fuses or connectors, always turn the ignition switch to
the“OFF” position.
General Service Precautions
The following are general precautions which should be
observed when servicing and diagnosing the Intelligent
Suspension Control and/or other vehicle systems. Failure
to observe these precautions may result in Intelligent
Suspension Control damage.
D
If welding work is to be performed on the vehicle using
an electric arc welder, the Control Unit connectors
should be disconnected before the welding operation
begins.
D
The Control Unit connectors should never be
connected or disconnected with the ignition“ON”.
Parts Handling
Be careful when handling the actuator, control unit, or
G-sensor. They should not be dropped or thrown,
because the semi-conductor G-sensor tip damage may
result.
