Isuzu engine C22NE / 22LE / 20LE. Manual - part 34

ENGINE FUEL  6C-15

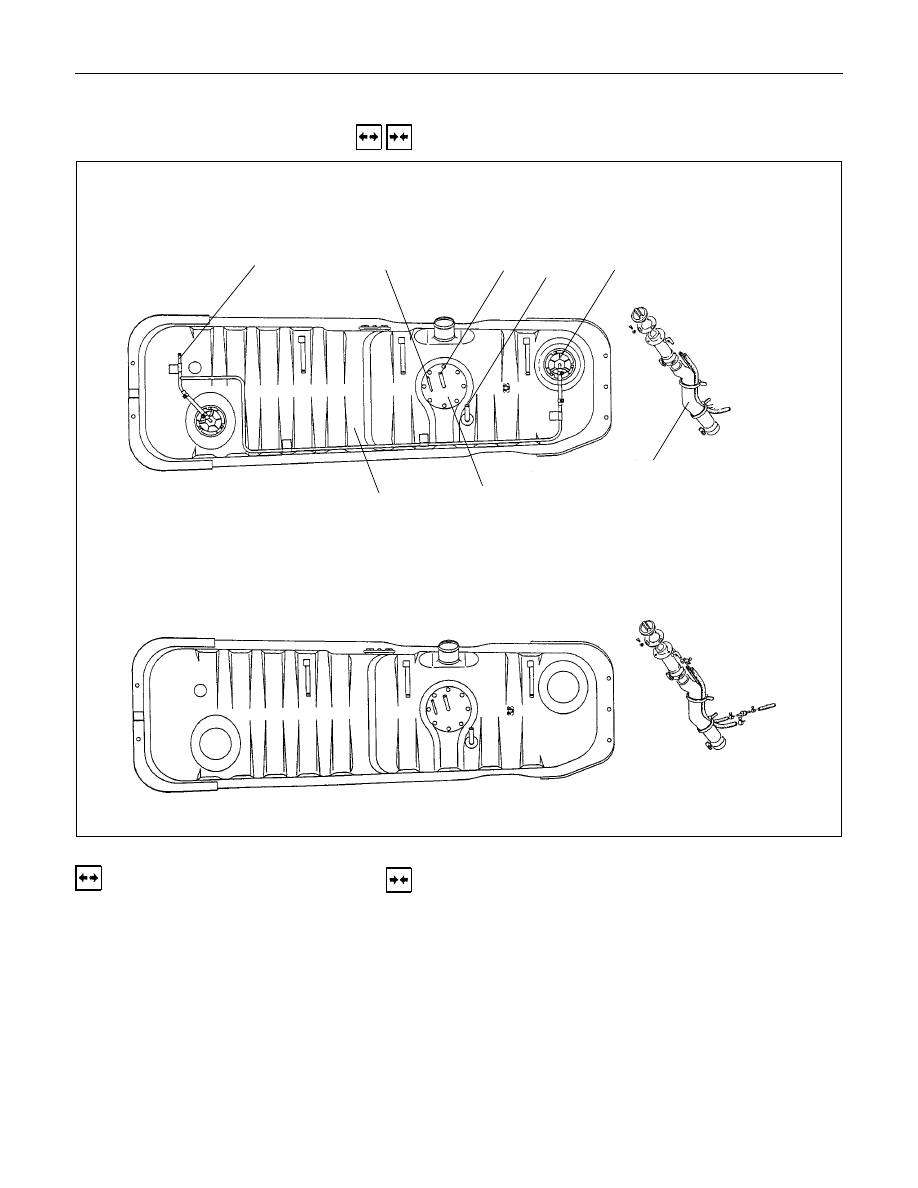

Fuel Tank





Removal and Installation

WITH CANISTER APPLICABLE TO ROLLOVER VALVE

WITH CANISTER & ROLLOVER VALVE

7

6

5

8

4

1

2

3



Removal

1. Fuel hose (Delivery)

2. Fuel hose(Return)

3. Evapo fuel hose

4. Breather hose

5. Fuel filler hose

6. Fuel Pump

7. Fuel tank

8. Roll over valve

Installation

To install, follow the removal steps in the reverse order.

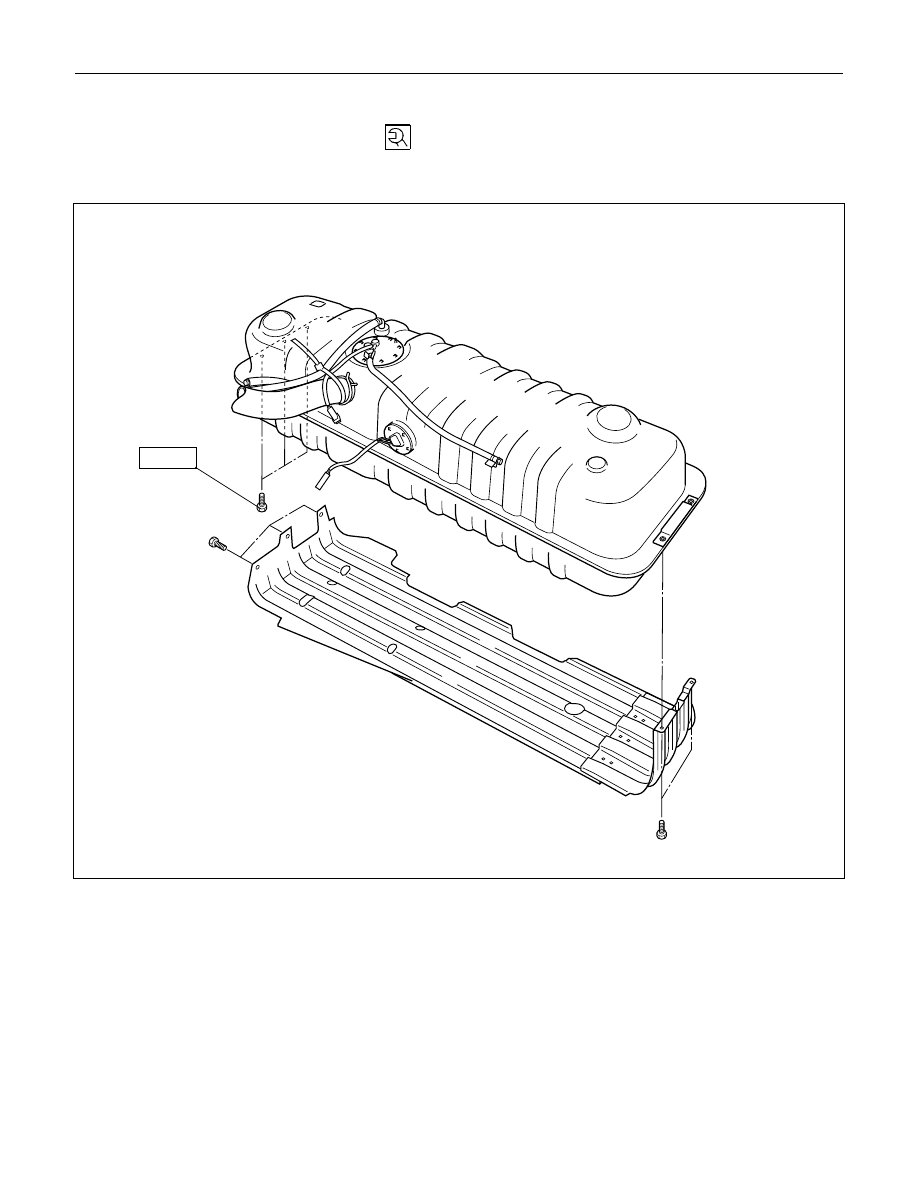

6C-16  ENGINE FUEL

Removal

Preparation

•

Disconnect battery ground cable

•

Loosen fuel filler cap

•

Drain fuel

Tighten drain plug to the specified torque after drain fuel.

N

⋅

m (kgf

⋅

m)

20 (2.0)

NOTE:
Cover fuel hose with waste to prevent any dust entering.

Installation

7. Fuel Tank

•

Tighten fuel tank bolt

N

⋅

m (kgf

⋅

m)

26.5 (2.7)

ENGINE FUEL  6C-17

Main Data and Specifications



Torque Specification

N

⋅

m (kgf

⋅

m)

68 (6.9)
