TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–13

D07RW028

Tech2 OBD II Connection

In order to access OBD II Powertrain Control Module
(PCM) data, use of the Tech2 scan tool kit (7000086) is
required.

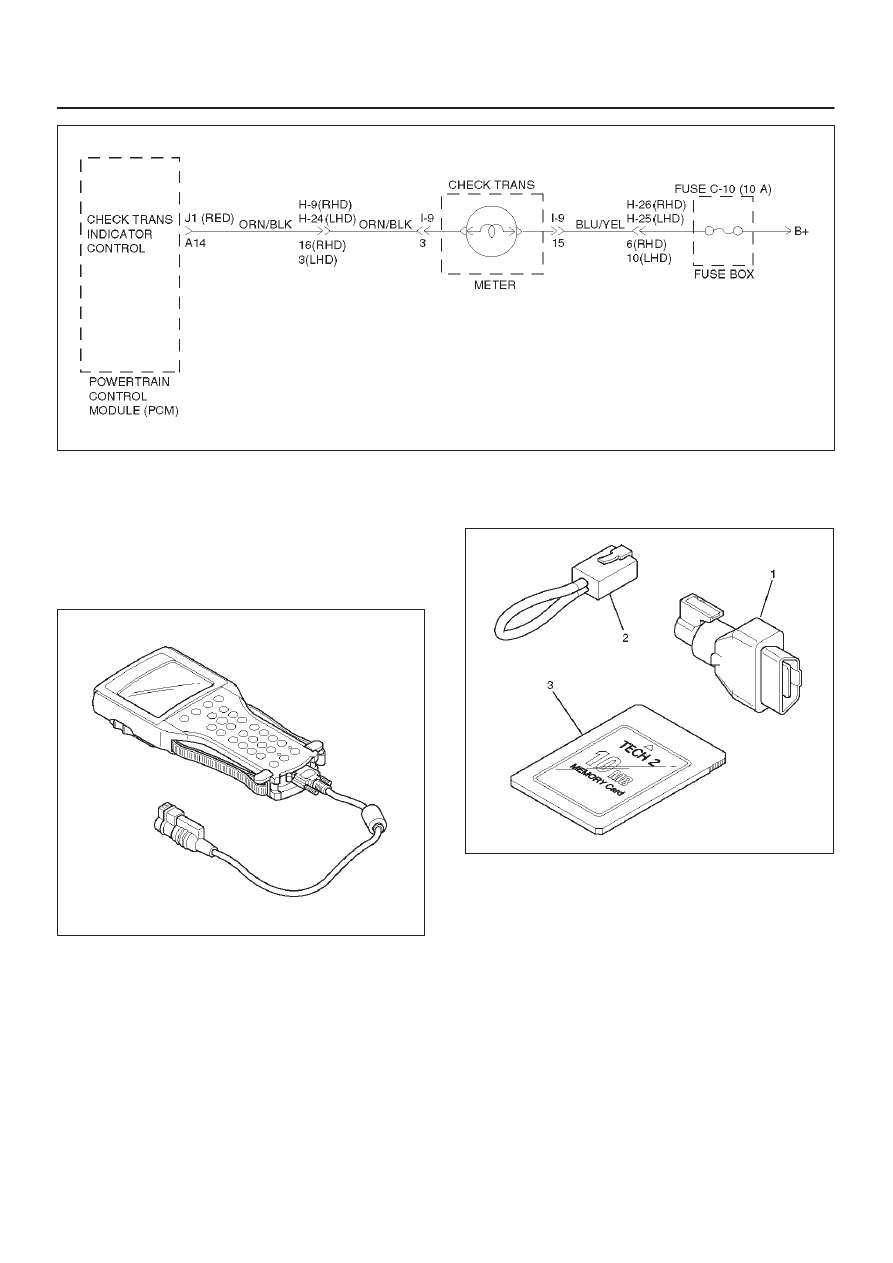

1. The electronic diagnosis equipment is composed of:

1. Tech2 (7000057) hand–held scan tool unit and

DLC cable (3000095).

901RW176

2. SAE 16/19 adapter (3000098) (1), RS 232 loop

back connector (3000112) (2), and PCMCIA card
(3000117) (3).

F07RW033

7A1–14 TRANSMISSION CONTROL SYSTEM (4L30–E)

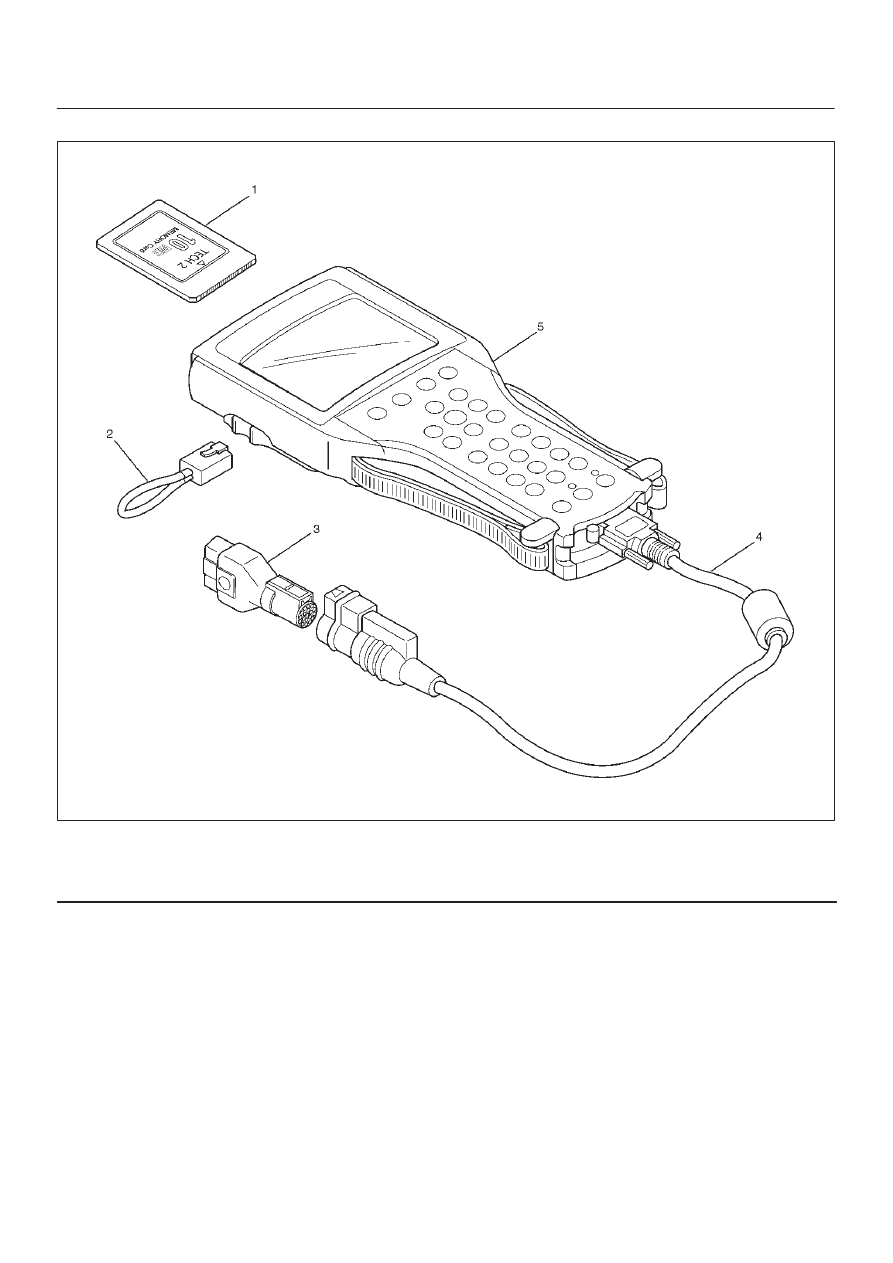

2. Connecting the TECH2

901RW180

Legend

(1) PCMCIA Card
(2) RS 232 Loop Back Connector

(3) SAE 16/19 Adapter
(4) DLC Cable
(5) Tech2

D

Before operating the Isuzu PCMCIA card with the
Tech 2, the following steps must be performed:

1. The Isuzu 2000 System PCMCIA card (1) inserts

into the Tech 2 (5).

2. Connect the SAE 16/19 adapter (3) to the DLC

cable (4).

3. Connect the DLC cable to the Tech 2 (5)

4. Make sure the vehicle ignition is off.

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–15

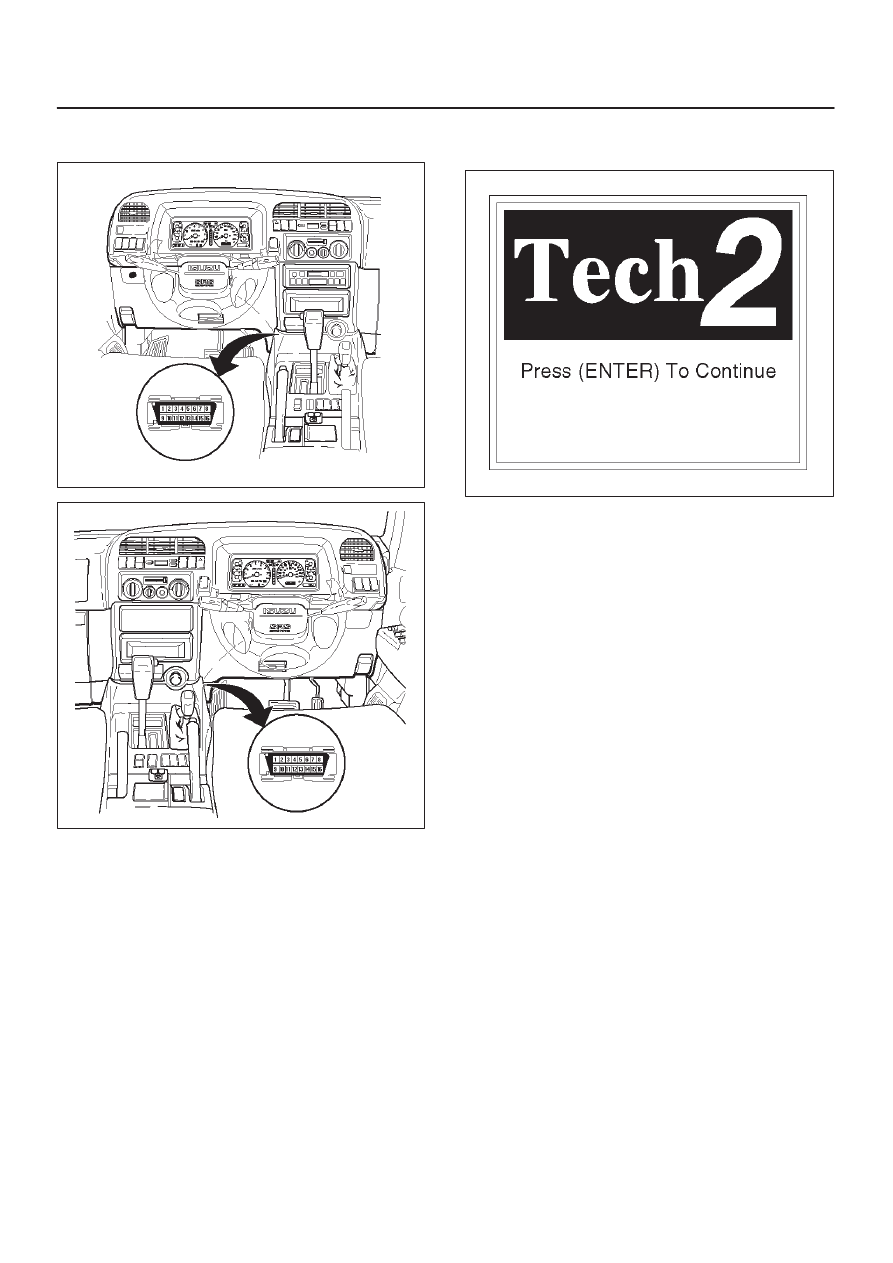

5. Connect the Tech 2 SAE 16/19 adaptor to the

vehicle DLC.

821RW262

821RW263

6. The vehicle ignition turns on.

7. Verify the Tech 2 power up display.

060RW009

NOTE: The RS232 Loop back connector is only to use for
diagnosis of Tech 2 and refer to user guide of the Tech 2.

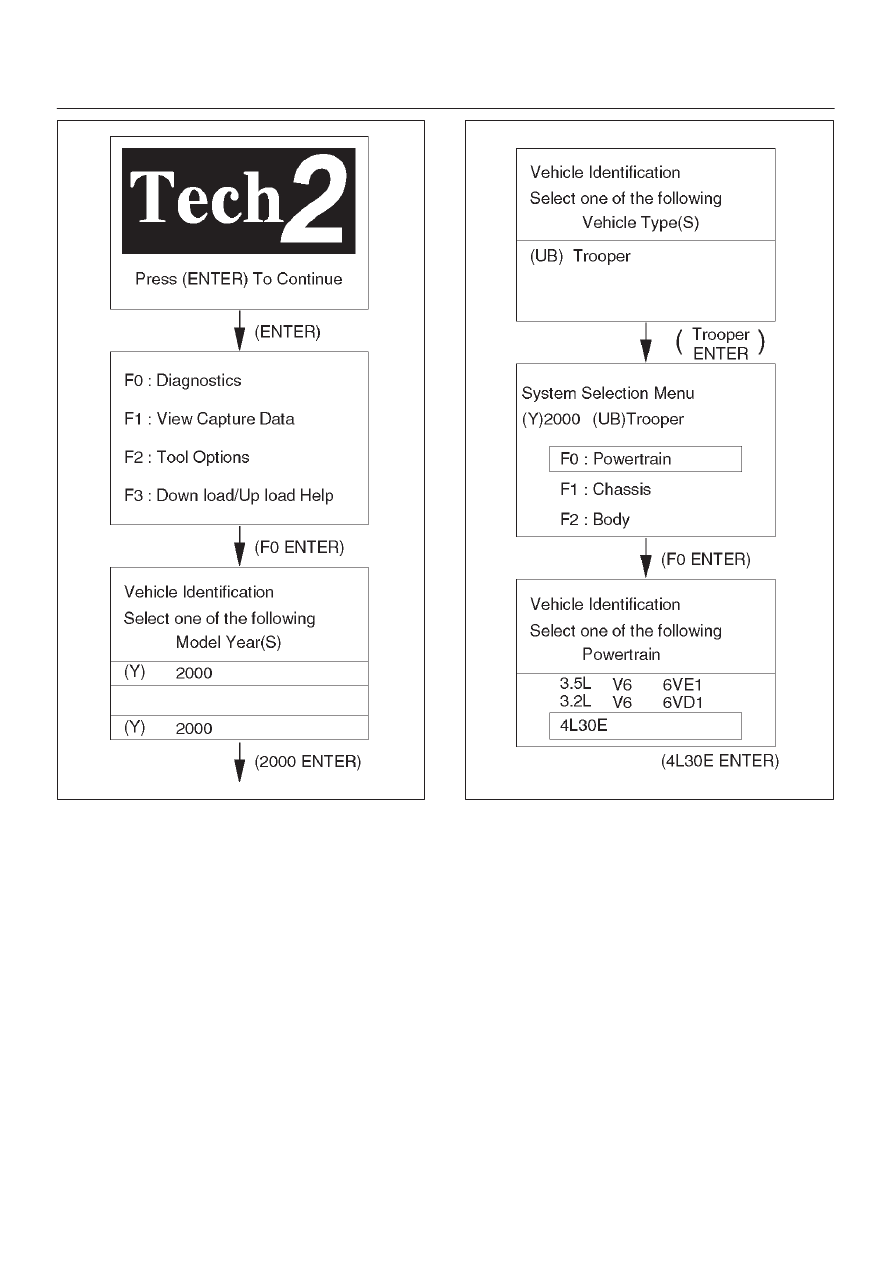

8. The power up screen is displayed when you

power up the tester with the Isuzu systems
PCMCIA card. Follow the operating procedure
below.

7A1–16 TRANSMISSION CONTROL SYSTEM (4L30–E)

060RY00042

060RY00041
