6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

PIN

Refer To

ENG RUN

IGN ON

Wire Color

PIN Function

S59

Auto Cruise Steering Set
Switch

Light GRN

0.0V

0.0V

Chassis Electrical

S60

Not Used

—

—

—

—

6E–27

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinout Table, 80-Way Red Connector – Row “S61

∼

 80”

060RY00051

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

S61

Intake Air Temperature
(IAT)Sensor Ground

GRN

0.0V

0.0V

General Description and
Operation, IAT

S62

ION Sensing Module

RED

1.555V

1.555V

General Description and
Operation, ION Sensing
Module

S63

Bank 1 HO2S 2 High

WHT

0.3V

0.1–0.9V

General Description and
Operation, Catalyst Monitor
HO2S

S64

Bank 2 HO2S 1 High

PNK

0.3V

0.1–0.9V

General Description and
Operation, Catalyst Monitor
HO2S

S65

Bank 2 HO2S 2 High

GRN

0.3V

0.1–0.9V

General Description and
Operation, Catalyst Monitor
HO2S

S66

Transmission Fluid
Temperature Sensor

RED/BLK

0.5–4.9V

(depends on

temperature)

0.5–4.9V

(depends on

temperature)

4L30E  T/Mission

S67

Exhaust Gas Recirculation
(EGR)

YEL/RED

0.6V

0.6V

General Description and
Operation,EGR Control

S68

Accelerator Position(AP)
Sensor 1

WHT

0.41–0.45V

0.41–0.45V

General Description and
Operation,AP Sensor

S69

Throttle Valve DC
Motor(+)

RED

Duty Cycle

Duty Cycle

General Description and
Operation,ETC

S70

Not Used

—

—

—

—

S71

Not Used

—

—

—

—

S72

Ignition Feed for ETC

RED/BLU

B+

B+

Chassis Electrical

S73

Auto Cruise Main Lamp

GRY/BLU

B+

B+

Chassis Electrical

S74

Variable Intake Manifold

WHT/BLU

0.0V

B+(rpm 3600

over)

General Description

S75

Not Used

—

—

—

—

S76

Throttle Position(TP) 1
Sensor Signal

BLU

0.5–0.8V

0.5–0.8V (at

idle)

General Description and
Operation,TPS

6E–28

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

PIN

Refer To

ENG RUN

IGN ON

Wire Color

PIN Function

S77

5Volt Referrence (AP
Sensor 3)

ORN

5.0V

5.0V

Appropriate Sensor

S78

Accelerate Position(AP)
Sensor 2

YEL

0.41–0.45V

0.41–0.45V

General Description and
Operation,AP Sensor

S79

Accelerate Position(AP)
Sensor 3

BLU/GRN

4.55–4.99V

0.41–0.45V

General Description and
Operation,AP Sensor

S80

Manifold Absolute
Pressure(MAP)

GRN

0V

0V

General Description and
Operation, Manifold Absolute
Pressure

6E–29

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

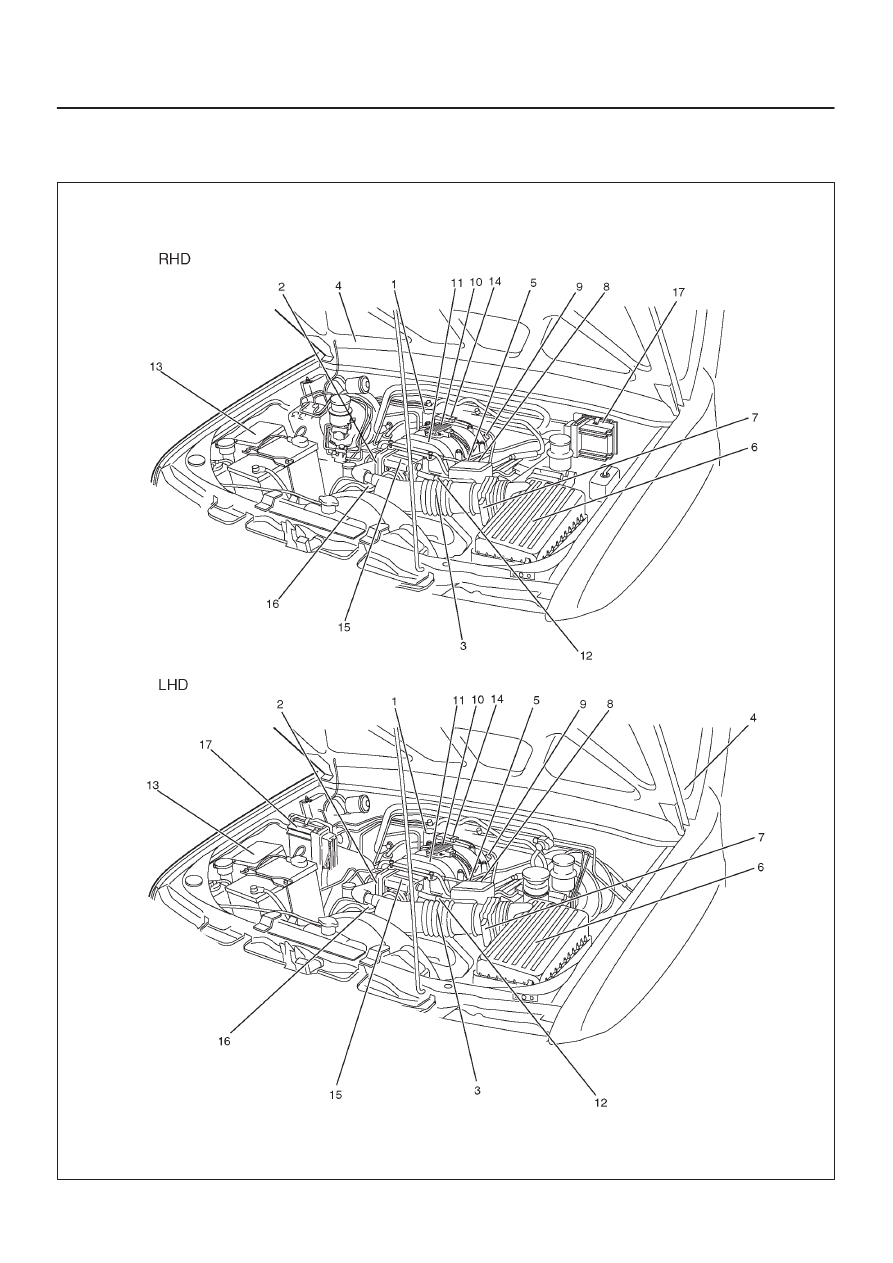

Component Locators

Engine Component Locator

060R200222–X
