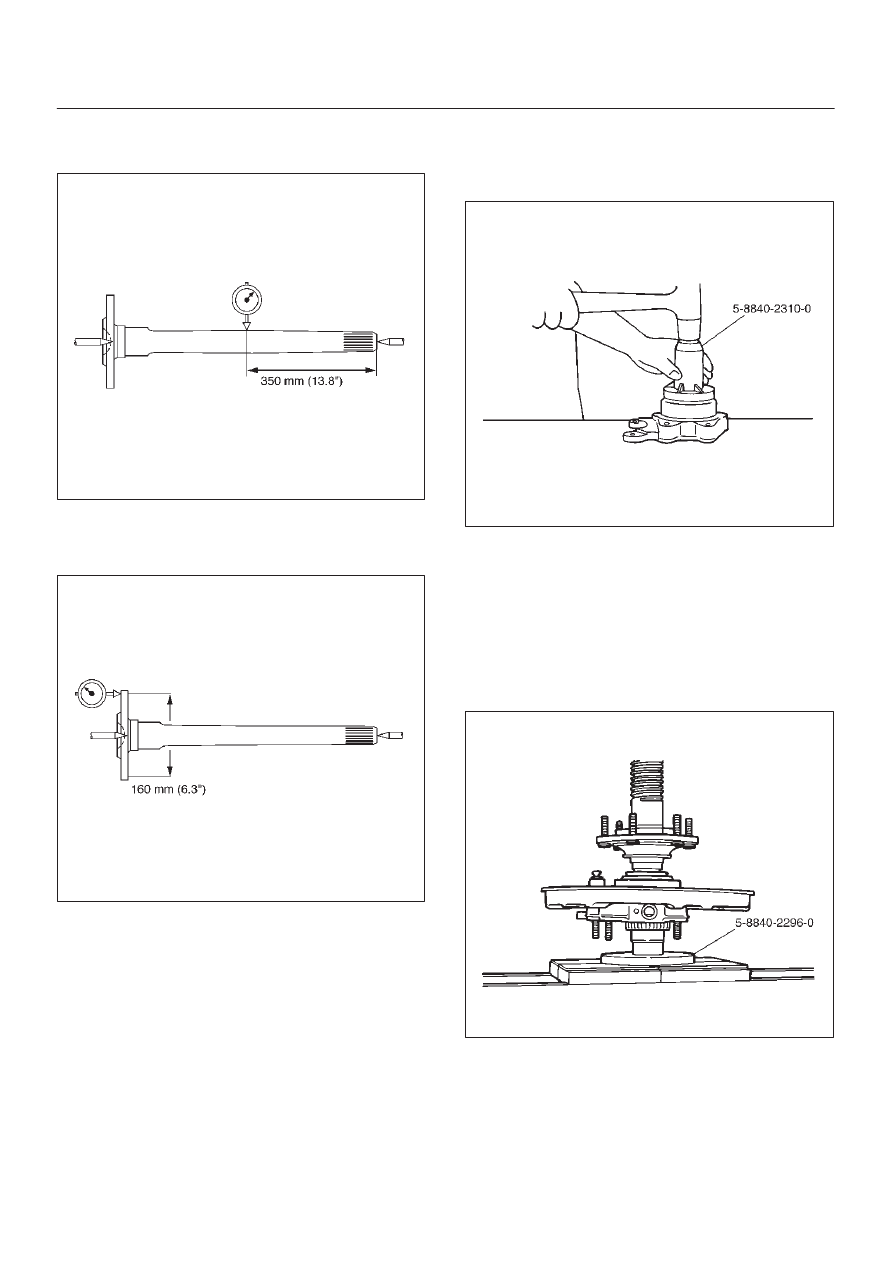

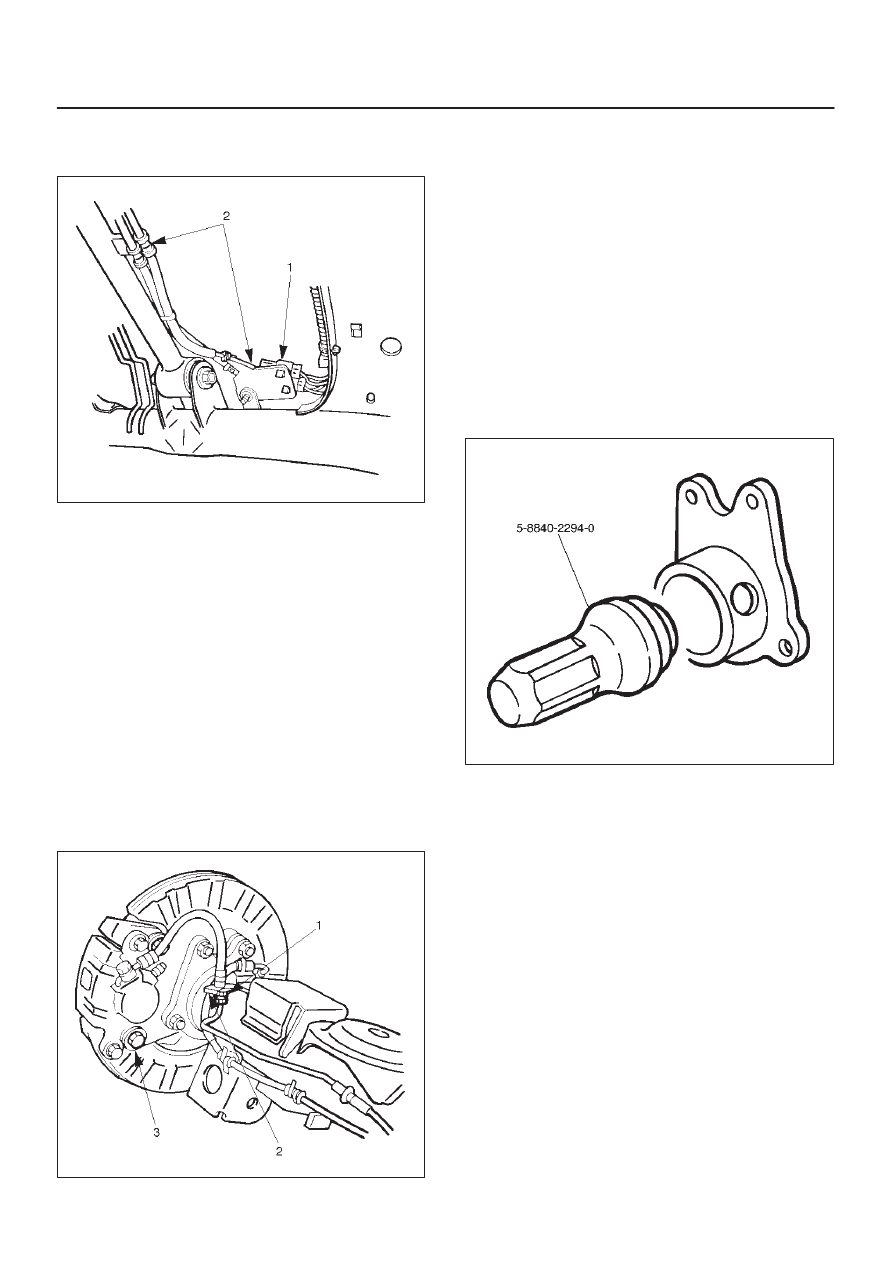

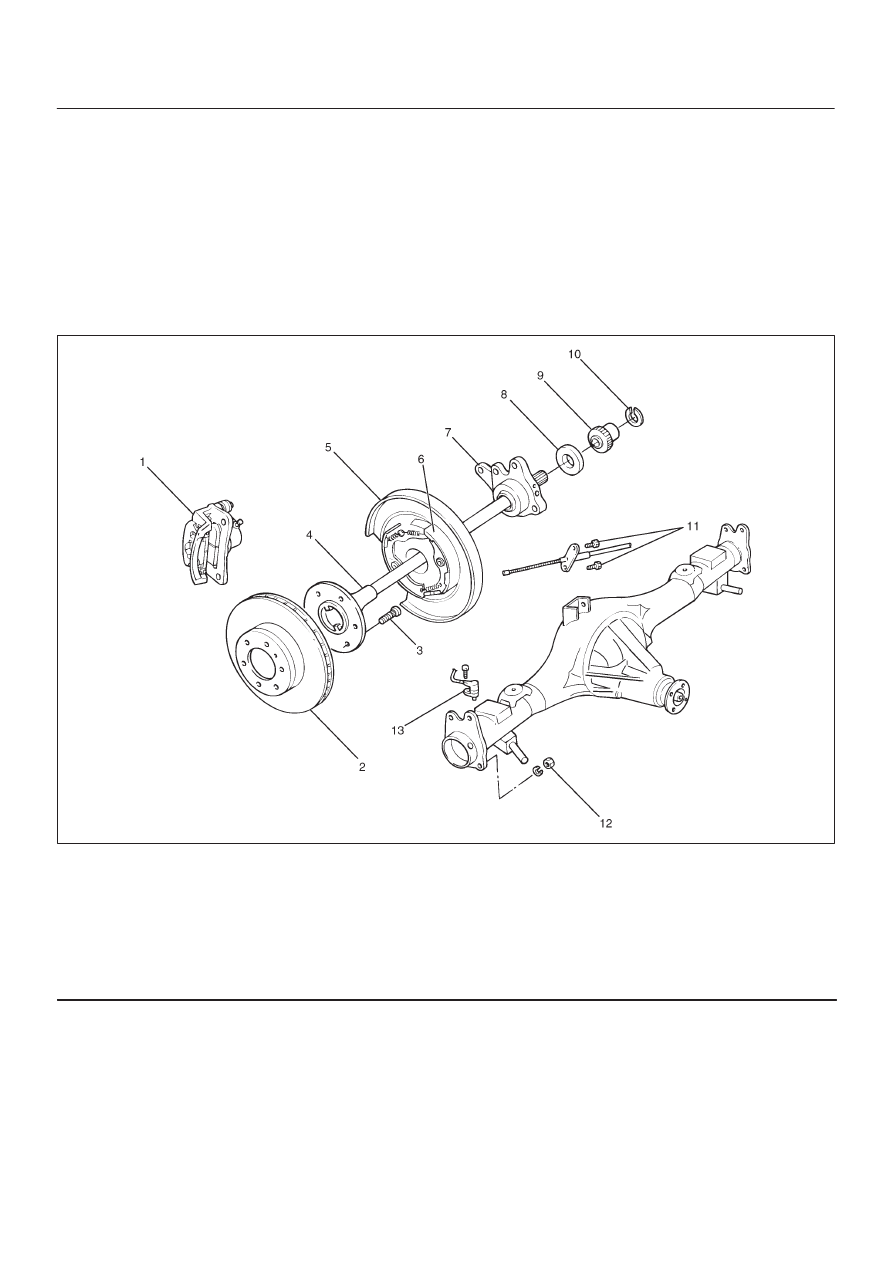

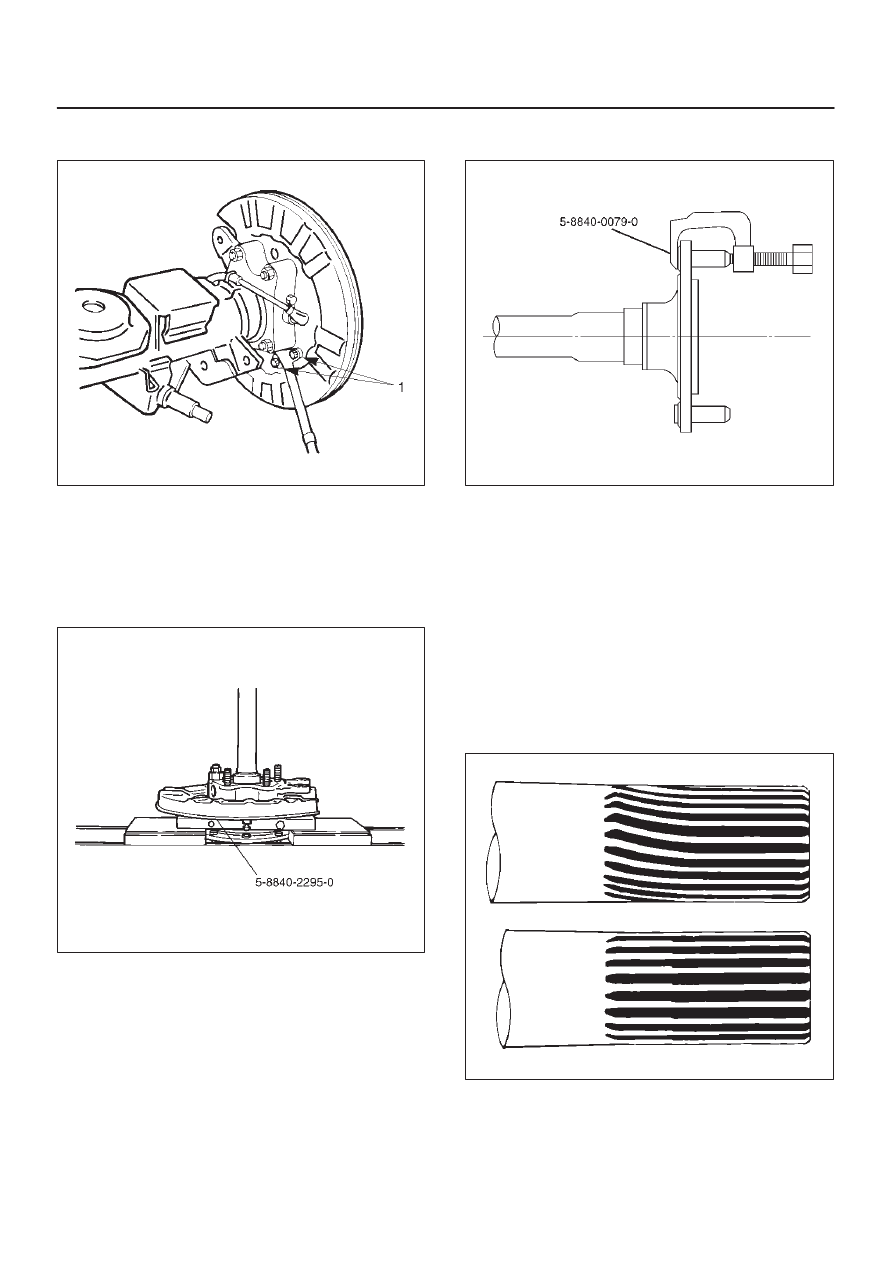

DIFFERENTIAL (REAR 220mm) 4A2A–5 8. Disconnect the ABS connectors (1) and remove the brackets (2) attached to the frame and center link 350RS001 9. Loosen the brake tube flare nut, remove the clip and take out the brake tube. 10. Remove the shock absorber fixing nut from the axle housing. 11. Remove the stabilizer linkage mounting nut from the axle housing. 12. Remove the lateral rod fixing nut from the axle housing. 13. Remove the center link mounting bolt and nut from the axle housing. 14. Remove the trailing link fixing bolt and nut from the axle housing. 15. Jack down and remove the coil spring and insulator. vehicle on completion of steps 1 – 11. 17. Remove the brake caliper fixing bolt (3), loosen the flare nut (1), release the clip (2) and take out the brake 306RS001 18. Remove brake disc. bolt and the clip and bracket on the axle housing 20. Remove the brake pipe clip and fixing bolt on the axle housing and take out the brake pipe. 21. Remove the bearing holder fixing nut and take out the axle shaft assembly, be sure not to damage the oil 22. Remove differential assembly, refer to Differential Assembly in this section. Oil Seal Replacement Remove the oil seal, carefully not to damage the housing, 420RW028 Installation 1. Install differential assembly, refer to Differential Assembly in this section. 2. Install axle shaft assembly then tighten the bearing holder mounting nut to the specified torque. Be sure Torque: 74N·m (7.5kg·m/54lb ft) 3. Install brake pipe. and harness, refer to 4–Wheel Anti–Lock Brake 5. Install brake disc. section. 7. Install axle housing assembly. housing. For the procedures in items 9–13, refer to 10. Install the center link bolt and nut to the axle housing. |
