GENERAL INFORMATION 0A-9

Pin Tang Lock Type

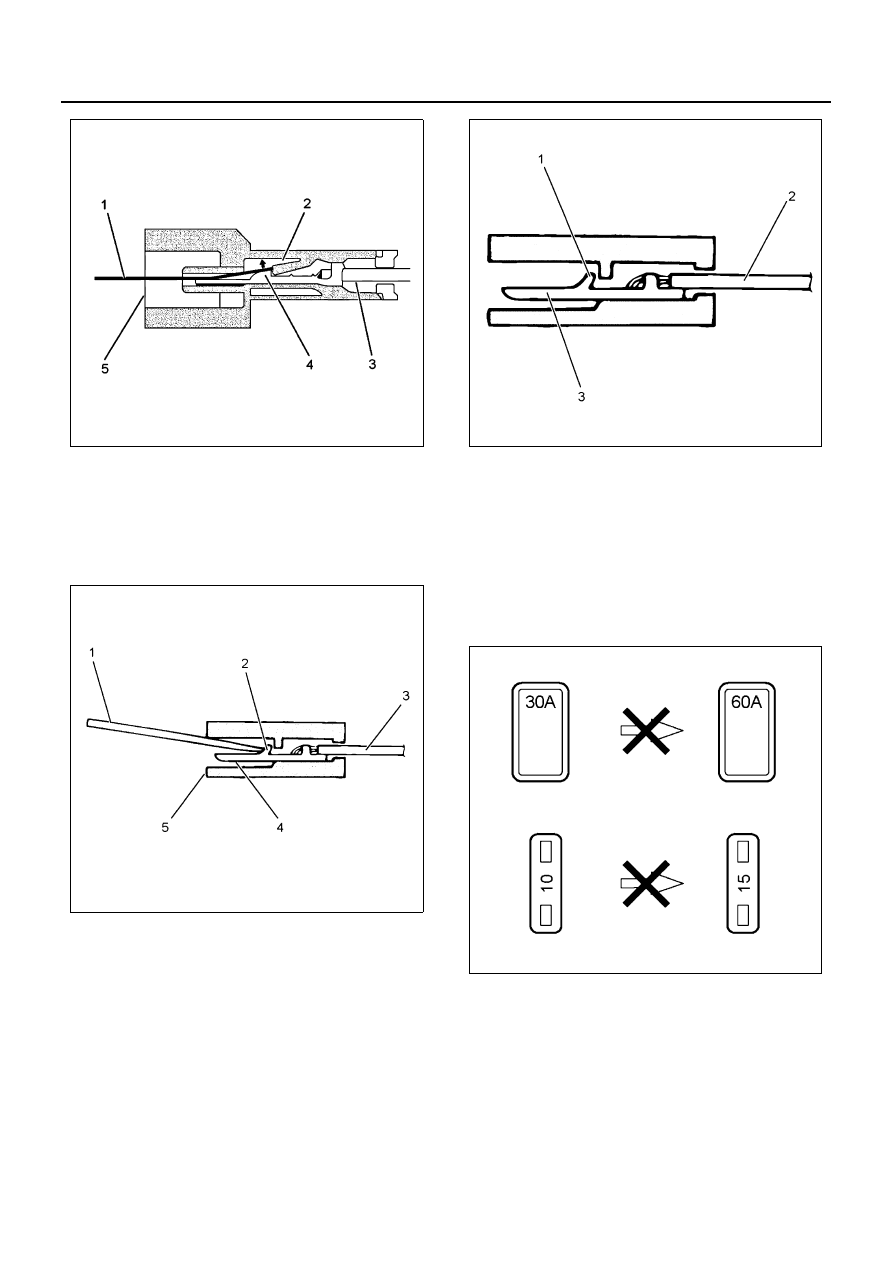

1. Insert a thin flat-tip screwdriver or equivalent (1)

into the connector housing open end (5).

2. Push the tang lock (2) flat (toward the wire side of

the connector). Pull the wire (3) with pin (4) free
from the wire side of the connector.

Connector Pin Insertion

1. Check that the tang lock (1) is fully up.
2. Insert the pin (3) from the connector wire (2) side.

Push the pin in until the tang lock closes firmly.

3. Gently pull on the wires to make sure that the con-

nector pin is firmly set in place.

Fuse Replacement

Warning:

WARNING:
WHEN A FUSE IS BLOWN OUT, REPLACE IT WITH
A NEW ONE OF THE SAME CAPACITY AFTER FIND-
ING THE CAUSE.
IF A FUSE OF TOO LARGE CAPACITY IS USED, IT
RESULTS TO BE MEANINGLESS WHEN AN OVER
CURRENT FLOWS. THEREFORE, A WIRE MAY BE
BURNED RESULTING IN A FIRE.

Electric Equipment Handling

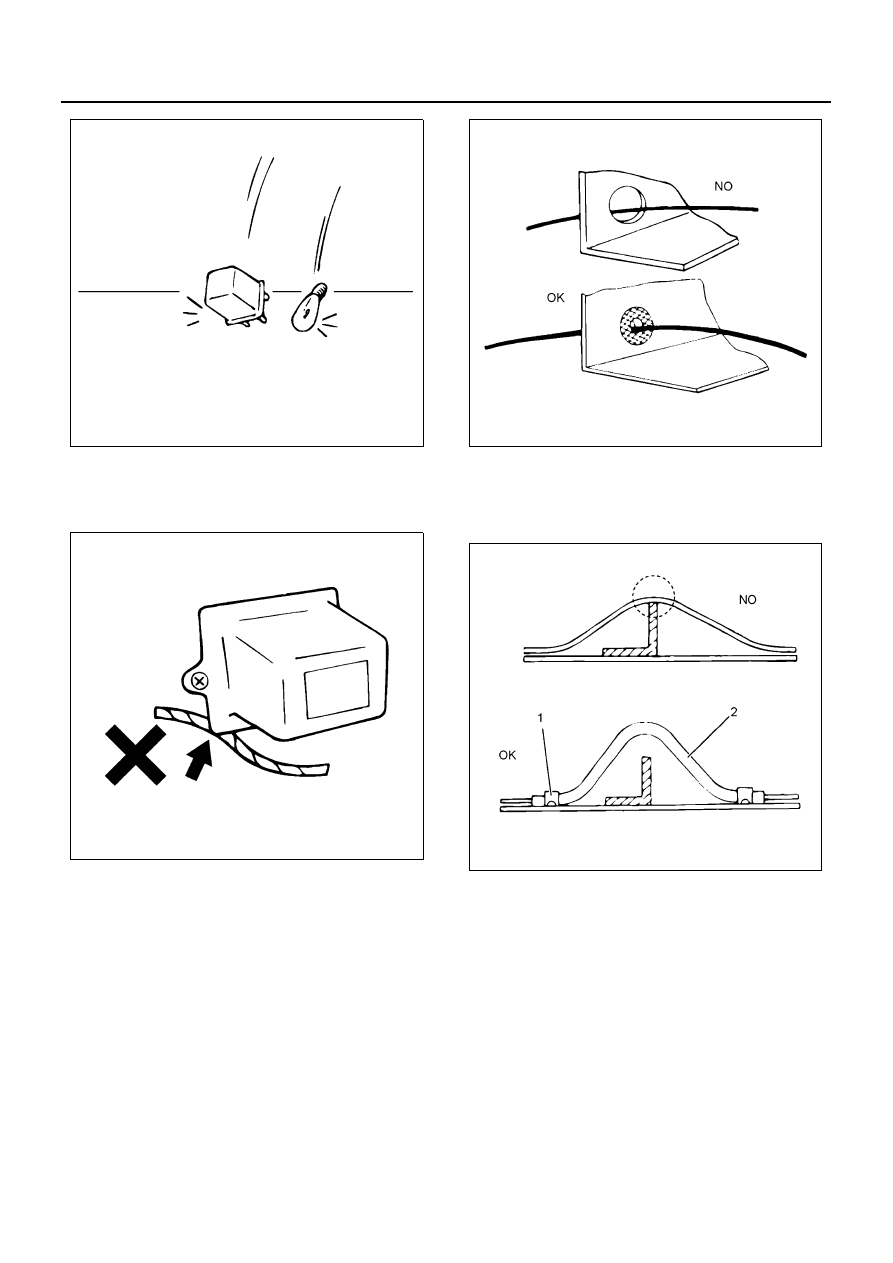

Be careful when handling electrical parts. They should
not be dropped or thrown, because short circuit or other
damage may result.

N7A0257E

N7A0258E

N7A0259E

N7A0260E

0A-10 GENERAL INFORMATION

Cable Harness

1. When installing the parts, be careful not to pinch or

wedge the wiring harness.

2. All electrical connections must be kept clean and

tight.

3. Use a grommet or guard tube to protect the wiring

harness from contacting a sharp edge or surface.

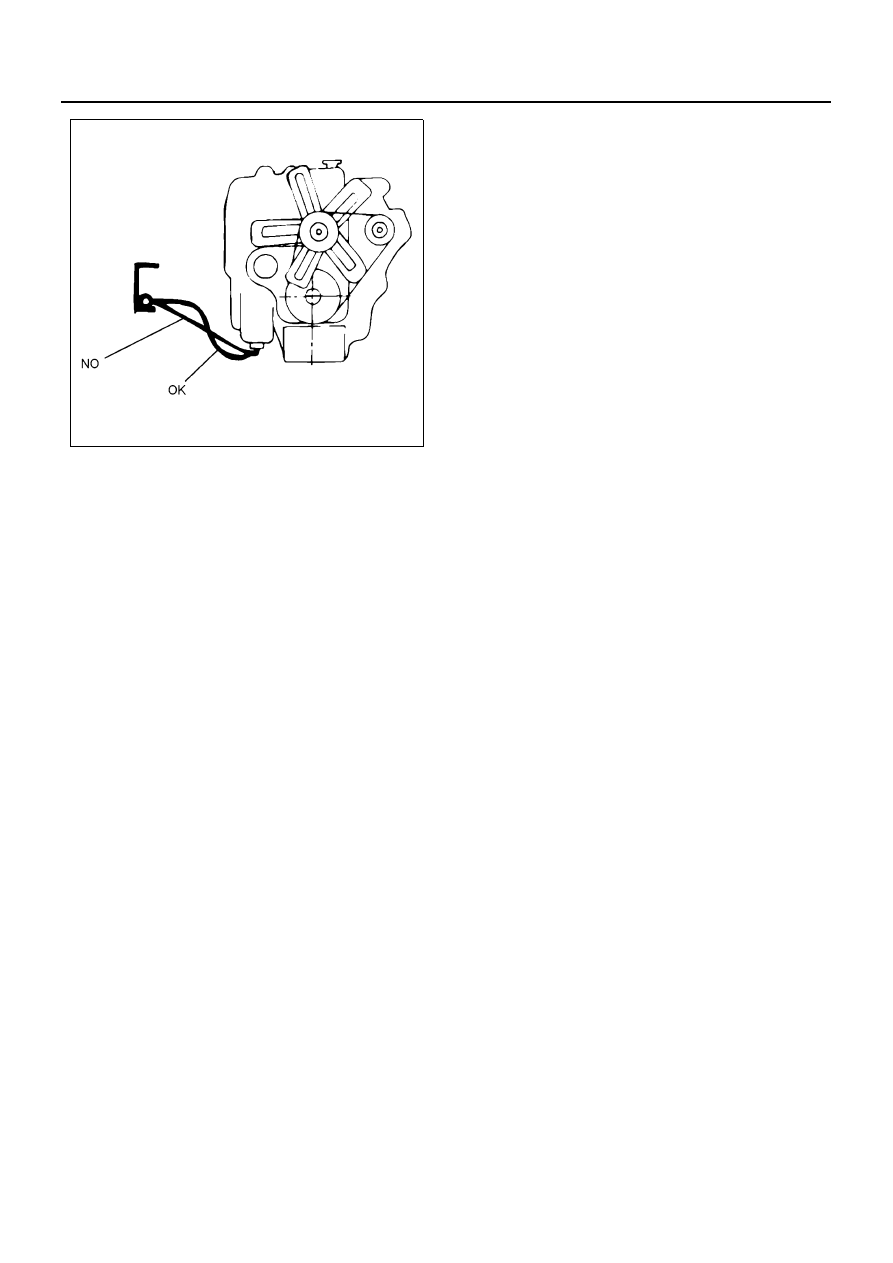

4. Position the wiring harness with an enough clear-

ance from the other parts, and guard the wiring
harness with a vinyl tube (2) and clips (1) to avoid
direct contact.

5. The wiring harness between engine and chassis

should be long enough to prevent chafing or dam-
age due to various vibrations.

N7A0261E

N7A0262E

N7A0263E

N7A0264E

GENERAL INFORMATION 0A-11

N7A0265E

0A-12 GENERAL INFORMATION

VEHICLES WITH SRS AIRBAG SYSTEM

Notes for Handling SRS Airbag System

All the information necessary to securely and properly
carry out service operations for SRS airbag system is
provided in the section “Seat Belt, SRS Airbag.” In this
section, notes related to the SRS airbag system are pro-
vided, which are to be observed when carrying out ser-
vice operations for items other than SRS airbag system.
When doing an inspection work, make sure to set the ig-
nition switch to “LOCK”.
Be careful not to impact the SRS airbag system and its
peripheral parts to prevent the deployment of the airbag.
Also, before carrying out service operations for SRS
parts, SRS harnesses and other service operations as
shown below, make sure to temporarily deactivate the
SRS airbag system. Not observing the following proce-
dure may result in an injury because of sudden deploy-
ment of the airbag, or damage to the SRS airbag
system.

1. Repairs around the steering wheel
2. Repairs around the instrument panel, glove box

and fuse box.

3. Repairs around the dashboard and center console.
4. Installation of car stereo etc.
5. Sheet metal coating on the right side of the cab

Deactivation of SRS Airbag System

• Turn the ignition key to “LOCK”, and release the

key.

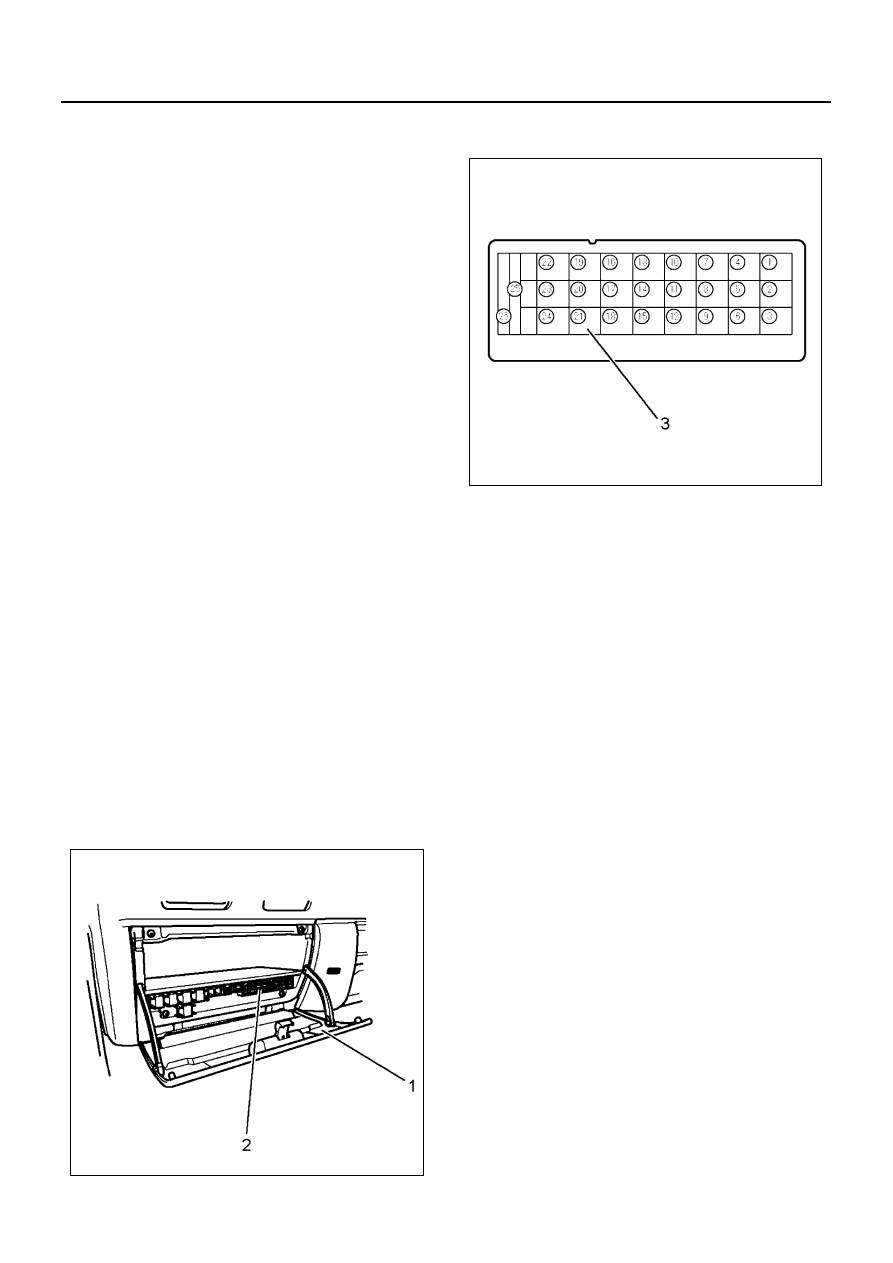

• Remove the SRS fuse (3) from the fuse box (2) lo-

cated in the lower part of the glove box (1), or dis-
connect the ground cable from the battery. And
leave all these parts untouched for about 15 sec-
onds or more.

• In 15 seconds or more after removing the fuse and

the ground cable of the battery, remove the two
yellow connectors located in the lower part of the
steering column.

Reactivation of SRS Airbag System

• Carry out the operation in the reverse order of de-

activation.

• Turn the ignition switch to “ON.”
• Check that the AIRBAG warning lamp turns off af-

ter blinking seven times. (If the warning lamp is not
activated correctly, refer to “SRS Control System.”)

Caution:

• Do not expose the airbag assembly to the temper-

ature of 93

°C (199°F) or more. Accidental airbag

deployment may result.

• If the airbag assembly and controller are dropped

from a height of about one meter or more, do not
use the airbag assembly.

• Check the part number before installing the airbag

assembly. If a not applicable item is installed, mal-
function may result.

• When disposing of the airbag assembly, make sure

to deploy the airbag. If the airbag is discarded with-
out being deployed, secondary accident may re-
sult.

Handling of Airbag Controller Connector

• Removal of connector (2)

Remove the connector from controller (1) by press-
ing the arrow mark on the connector.

N7A0266E

N7A0267E
