7B-14 MANUAL TRANSMISSION (MSB)

Tighten:
Clutch housing to flywheel housing bolts to

• M10: 46 N

⋅m (4.7 kg⋅m / 34 lb⋅ft)

• M12: 91 N

⋅m (9.3 kg⋅m / 67 lb⋅ft)

MANUAL TRANSMISSION (MSB) 7B-15

UNIT REPAIR

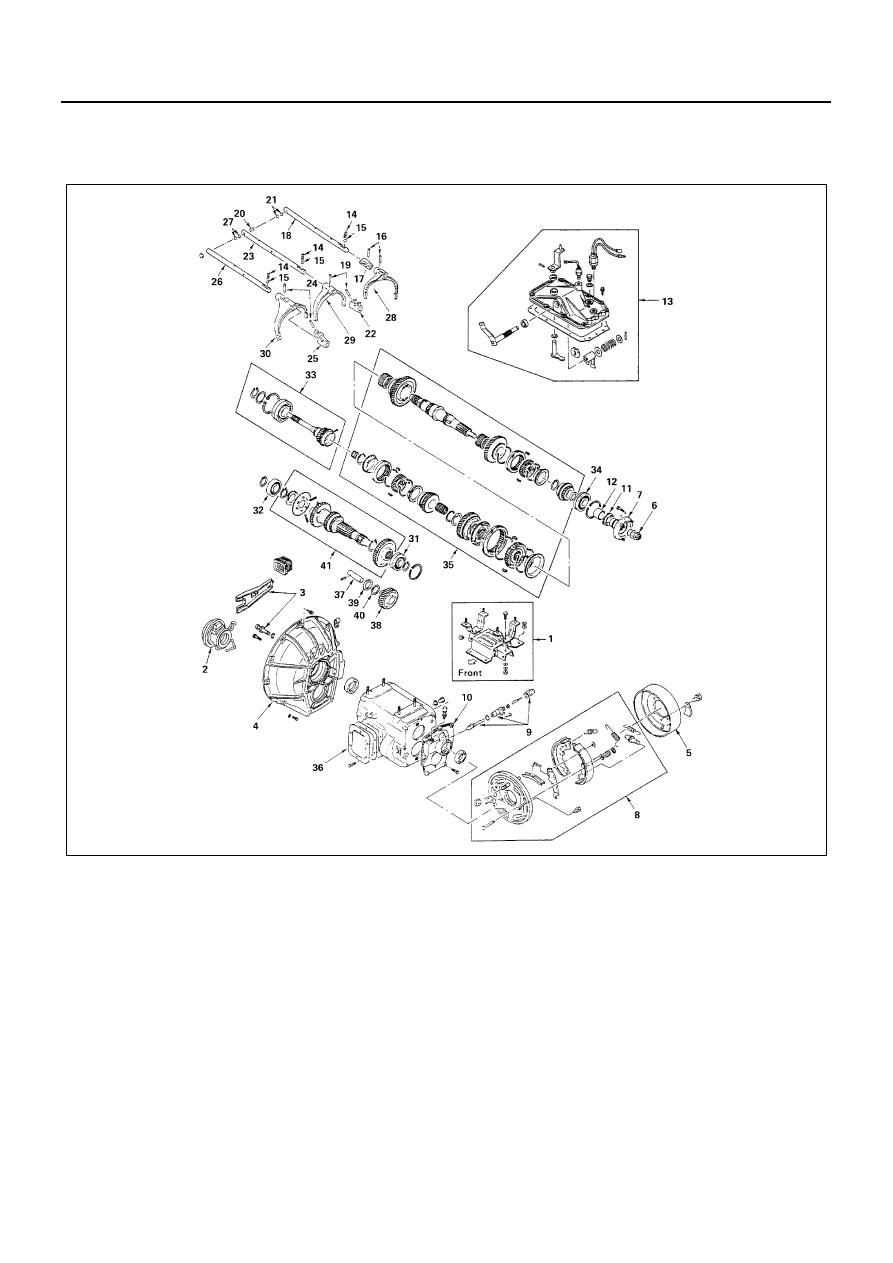

Major Components

Legend

1. Mission mounting assembly

22. 3rd/4th shift block

2. Release bearing assembly

23. 3rd/4th shift rod

3. Shift fork and support bolt

24. Spring pin

4. Clutch housing

25. 1st/2nd shift block

5. Parking brake drum

26. 1st/2nd shift rod

6. Lock nut

27. Interlock ball

7. Coupling driver

28. 5th/Reverse shift arm

8. Parking brake assembly

29. 3rd/4th shift arm

9. Vehicle speed sensor driven gear assembly

30. 1st/2nd shift arm

10. Rear cover

31. Counter shaft rear bearing

11. Vehicle speed sensor drive gear

32. Counter shaft front bearing

12. Spacer

33. Top gear shaft assembly

13. Control box assembly

34. Main shaft rear bearing

14. Detent spring

35. Main shaft assembly

15. Detent ball

36. Side cover

N7A0062E

7B-16 MANUAL TRANSMISSION (MSB)

Disassembly

1. Mission Mounting Assembly

2. Release Bearing Assembly

3. Shift Fork and Support Bolt

4. Clutch Housing

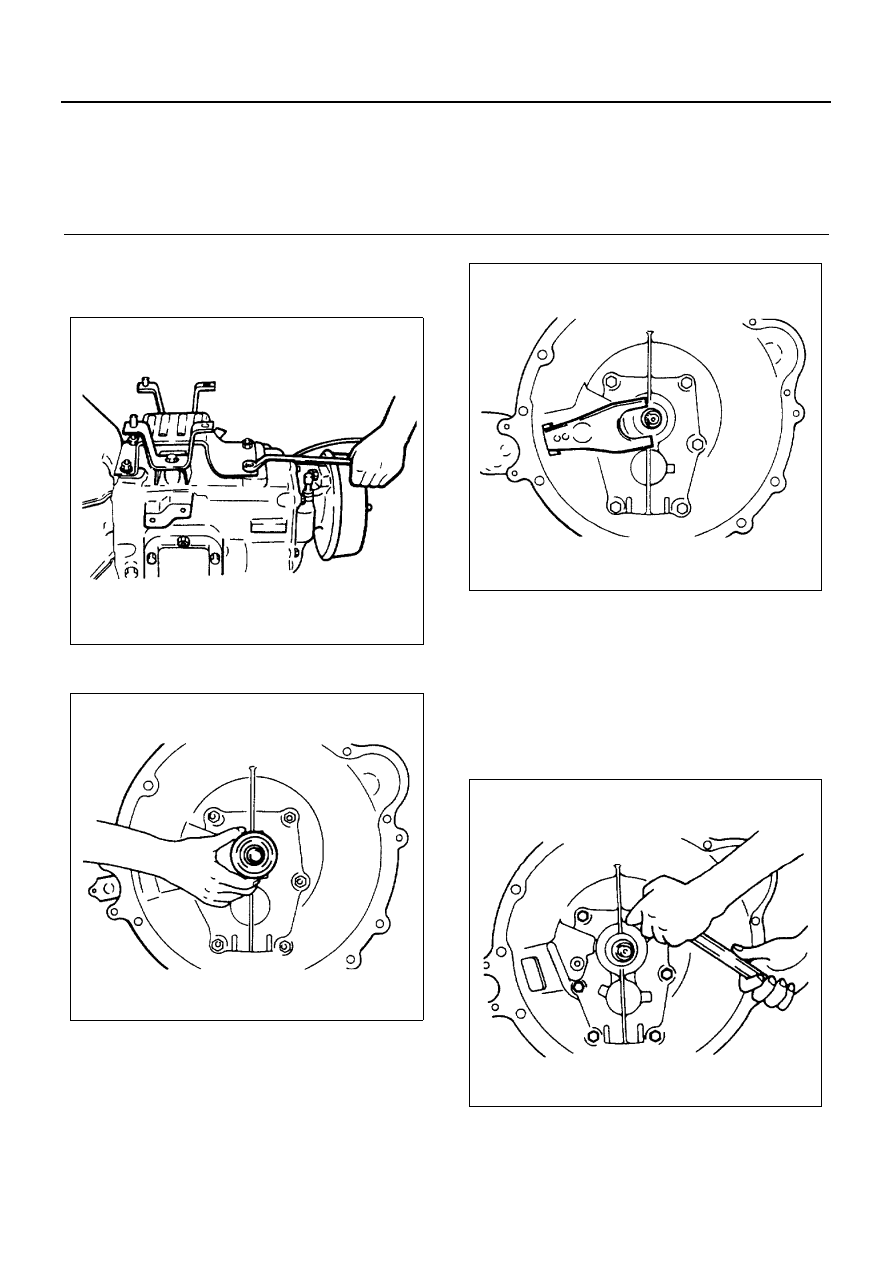

• Remove the clutch housing from the transmis-

sion case.

• Use the screwdriver to remove the oil seal from

the clutch housing.

Caution:
Take care not to damage the sealing seat of the clutch
housing.

5. Parking Brake Drum

• Remove the screw and the adjust hole cover.
• It may be necessary to back off the shoe adjust-

er.

16. Spring pin

37. Reverse idle gear shaft

17. 5th/Reverse shift block

38. Reverse idle gear

18. 5th/Reverse shift rod

39. Thrust washer

19. Spring pin

40. Conical washer

20. Interlock pin

41. Counter shaft assembly

21. Interlock ball

N7A0063E

N7A0064E

N7A0065E

N7A0066E

MANUAL TRANSMISSION (MSB) 7B-17

6. Lock Nut

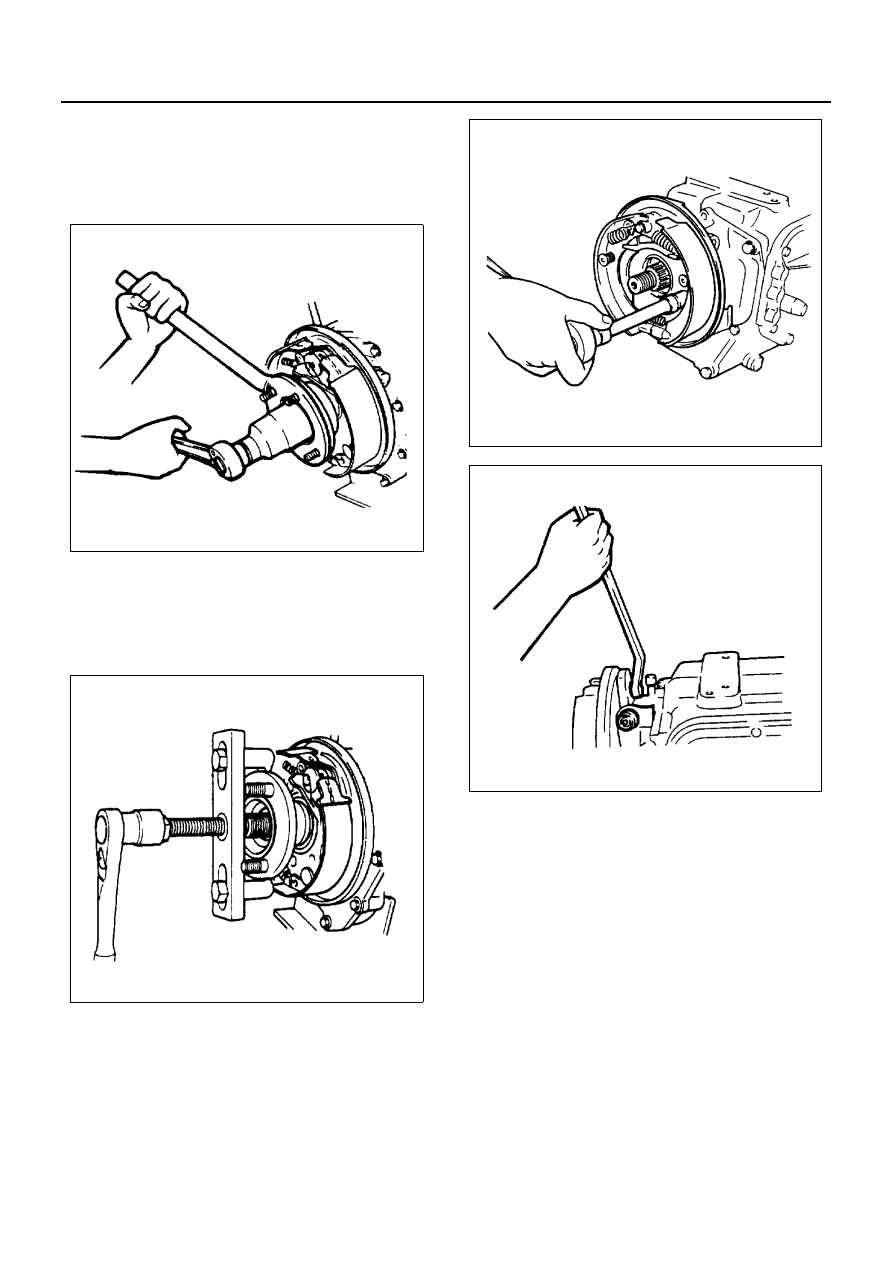

• Make sure to raise the caulking of the coupling

driver lock nut.

• Use the handle to remove the lock nut.

Handle: 5-8840-2043-0

7. Coupling Driver

• Remove coupling driver using the universal

puller.
Universal Puller: 5-8840-2027-0

• Remove the conical washer and the O-ring.

8. Parking Brake Assembly

9. Vehicle Speed Sensor Driven Gear Assembly

• Remove the vehicle speed sensor with the key

rod.

• Remove the fixing bolt.

N7A0067E

N7A0068E

N7A0069E

N7A0070E
