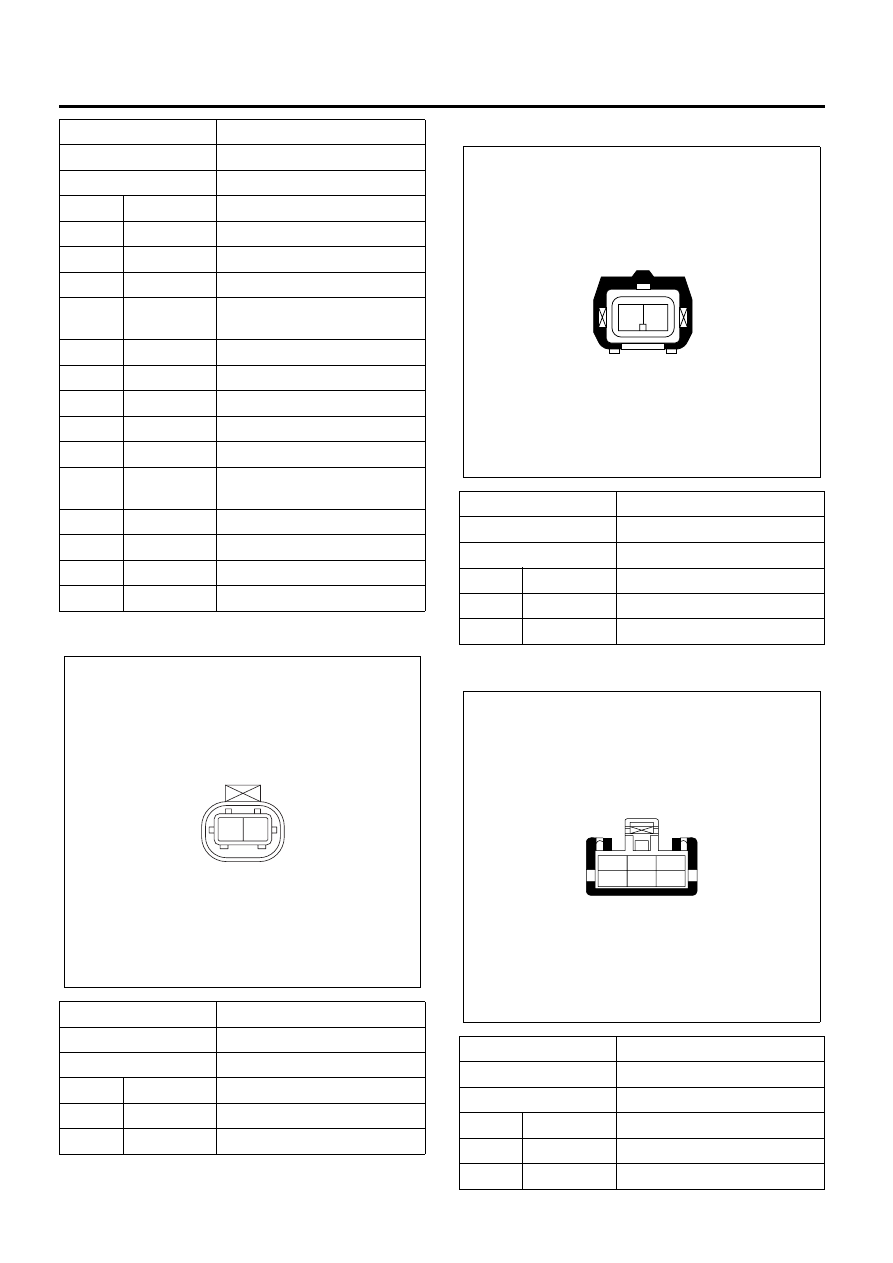

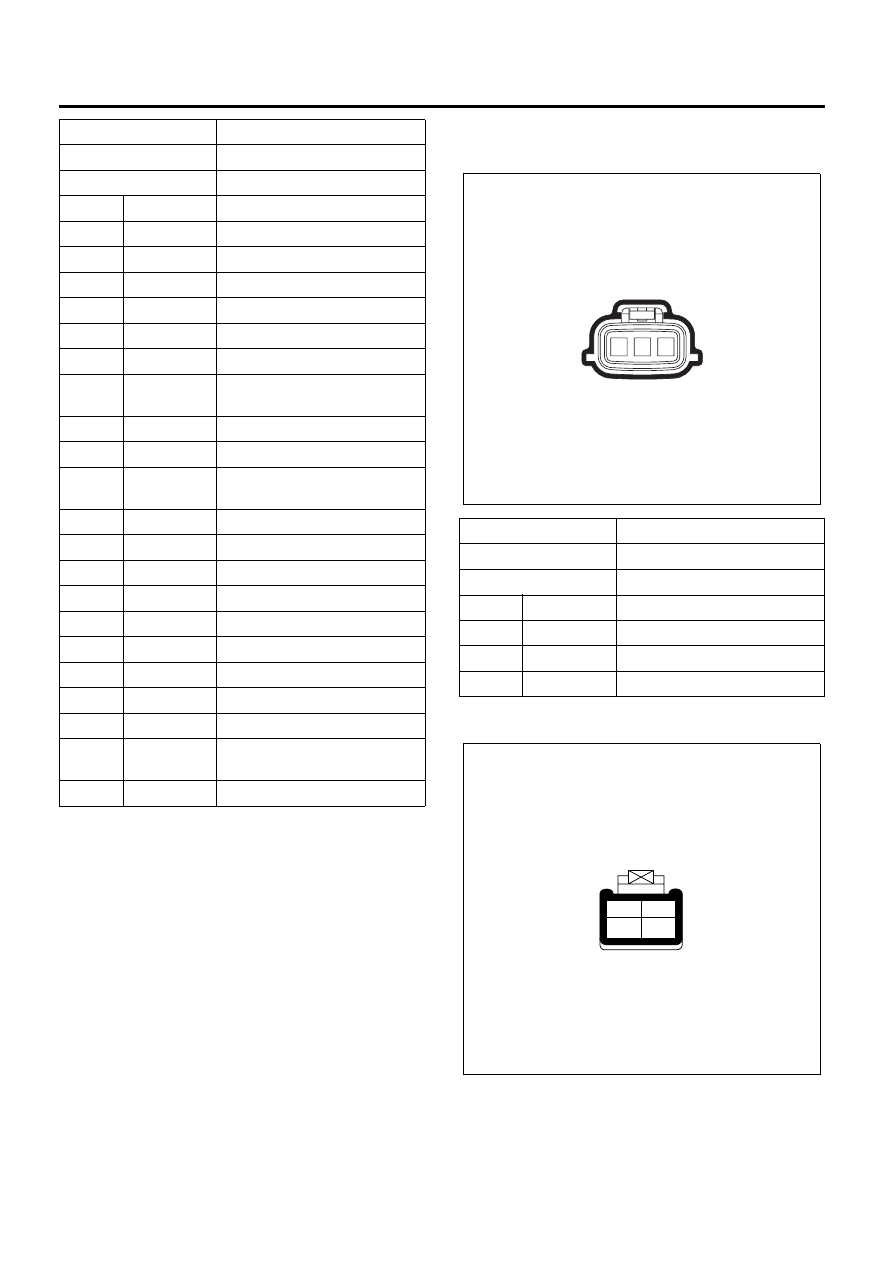

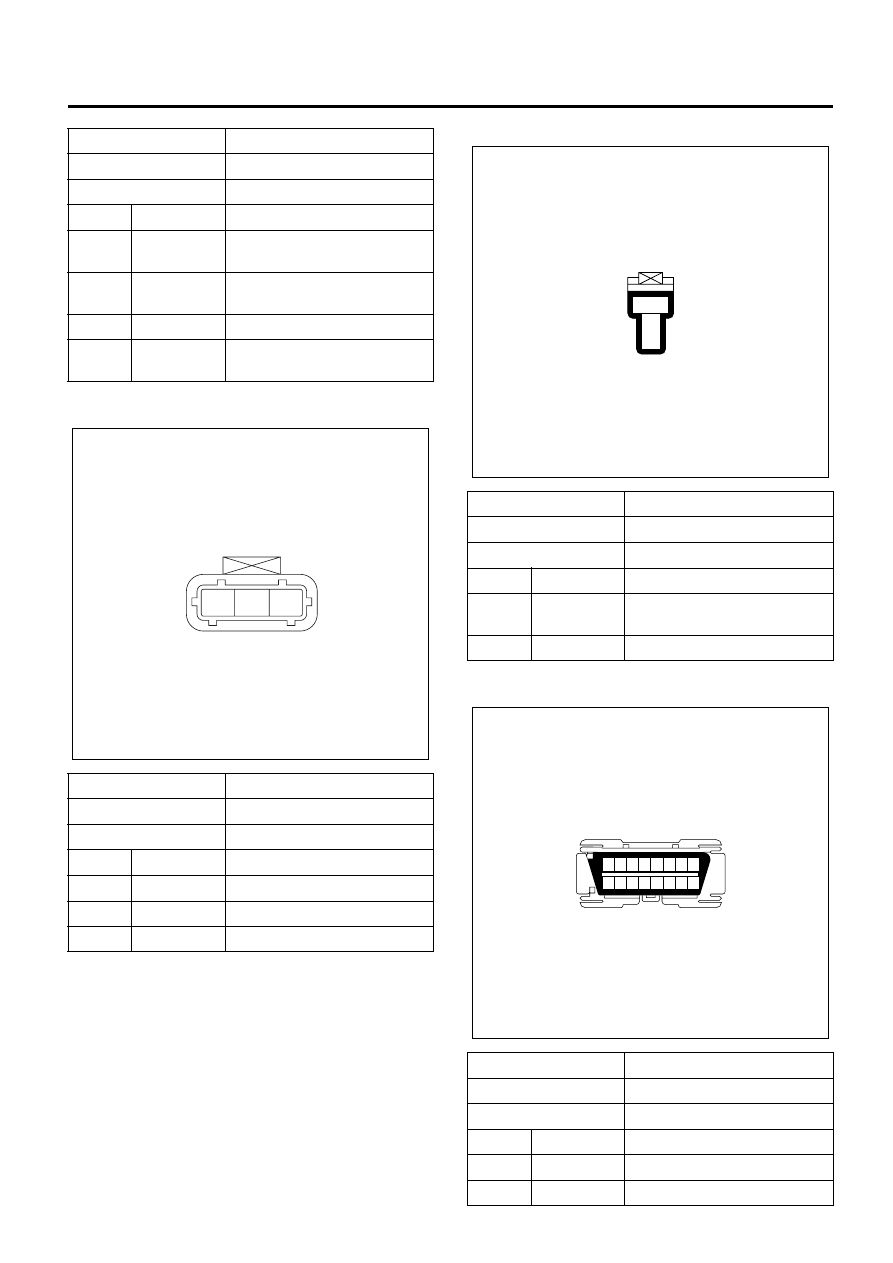

Engine Control System (4JH1) 6E-19 62 LT GRN/ BLK Exhaust Brake Cut Signal Output 63 — Not Used 64 LT GRN/ BLU Exhaust Brake Switch Signal 65 WHT/BLK Brake Pedal 2 Switch Signal 66 — Not Used 67 — Not Used 68 YEL/GRN VSS Signal 69 GRN/BLK Idle Switch Signal 70 — Not Used 71 — Not Used 72 — Not Used 73 — Not Used 77 — Not Used 78 — Not Used 79 — Not Used 80 — Not Used 81 — Not Used Connector No. B-234 Connector Color Black Test Adapter No. J-35616-4A (Pin 1 – 5) J-35616-64A (Pin 6 – 81) Pin Wire Color Pin Function 121 120 119 113 105 97 89 112 104 96 88 111 103 95 87 110 102 94 86 109 101 93 85 108 100 92 84 107 99 91 83 106 98 90 82 116 115 114 118 117 N6A3798E Connector No. B-233 Connector Color Black Test Adapter No. J-35616-64A Pin Wire Color Pin Function 82 — Not Used 83 WHT/RED MAF Sensor 5 Volts Reference 84 BLK/BLU IAT Sensor Signal 85 — Not Used Connector No. B-233 Connector Color Black Test Adapter No. J-35616-64A Pin Wire Color Pin Function |
