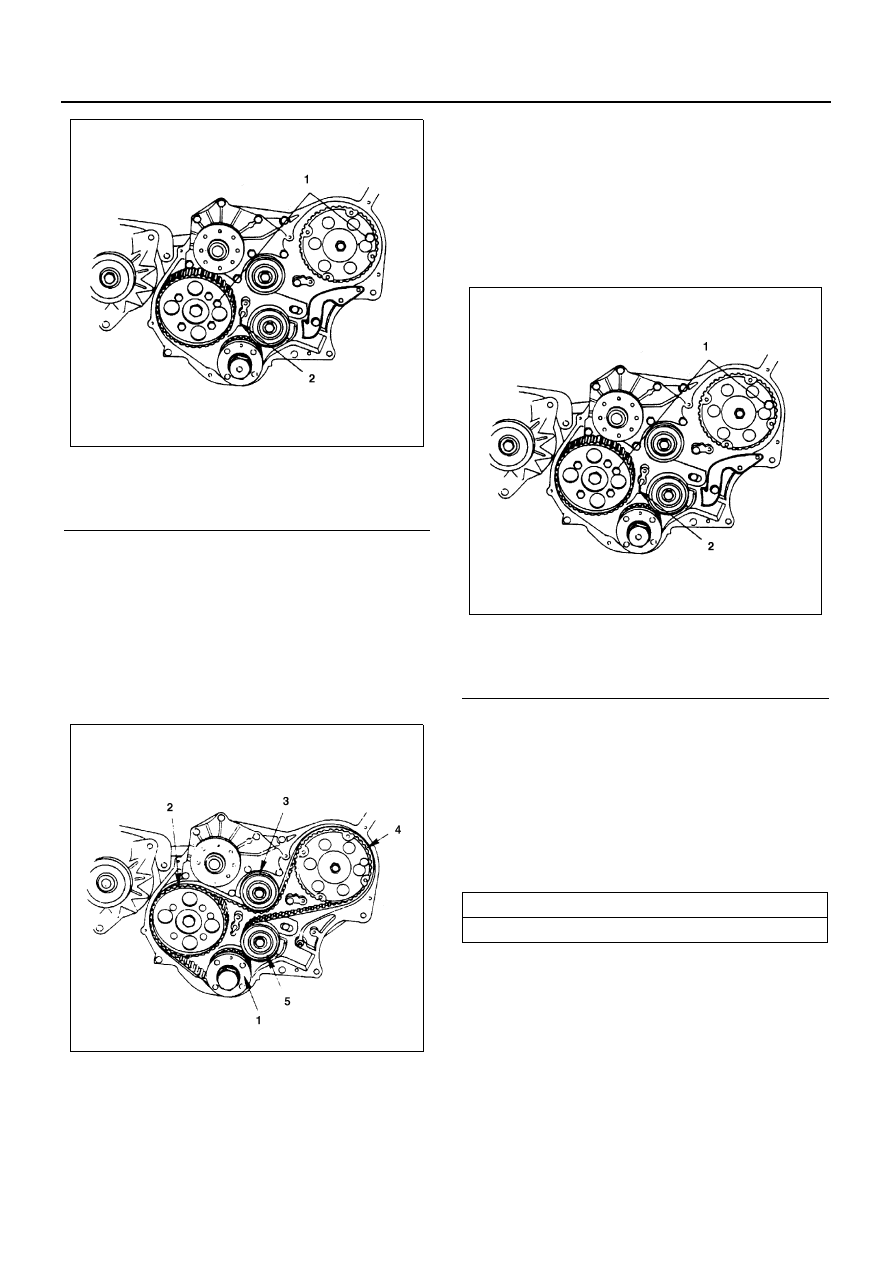

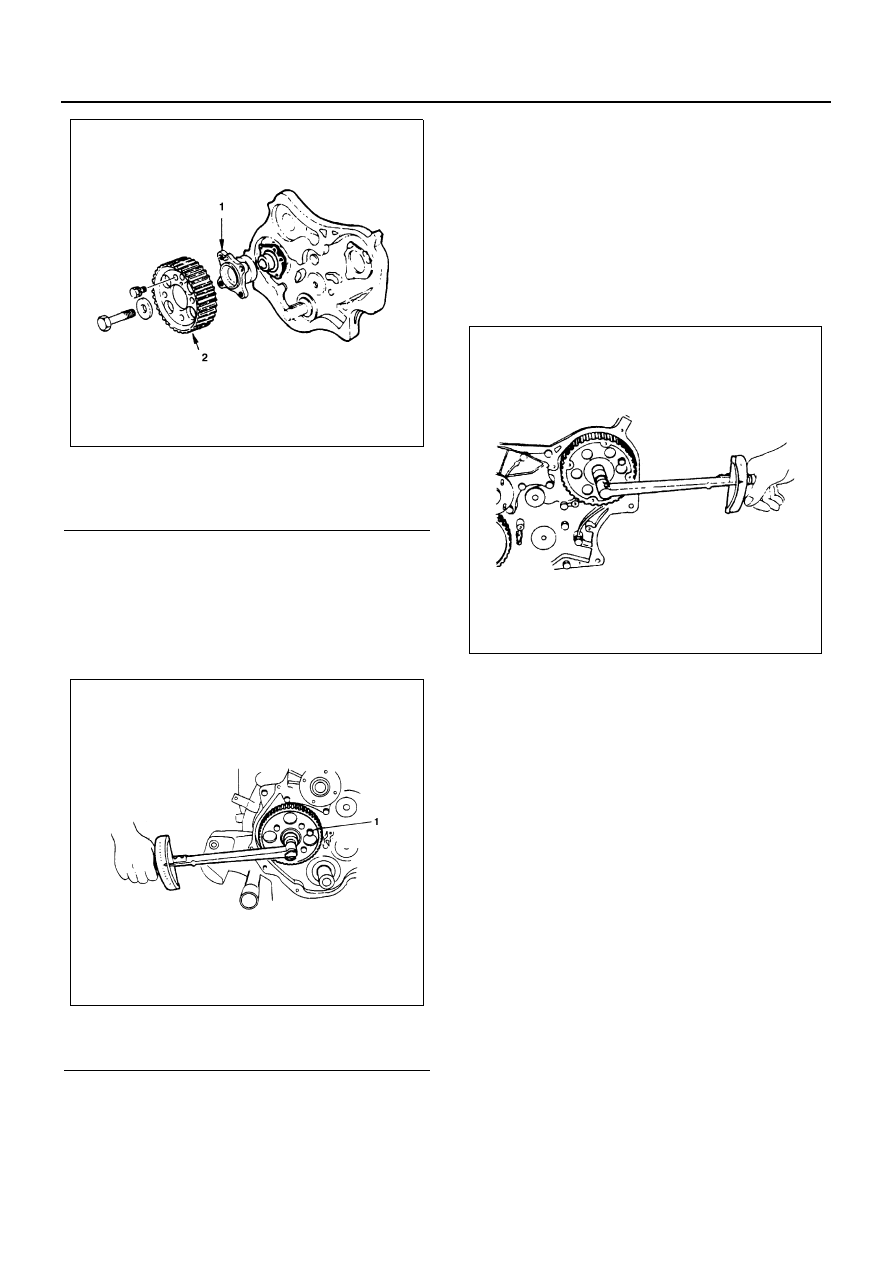

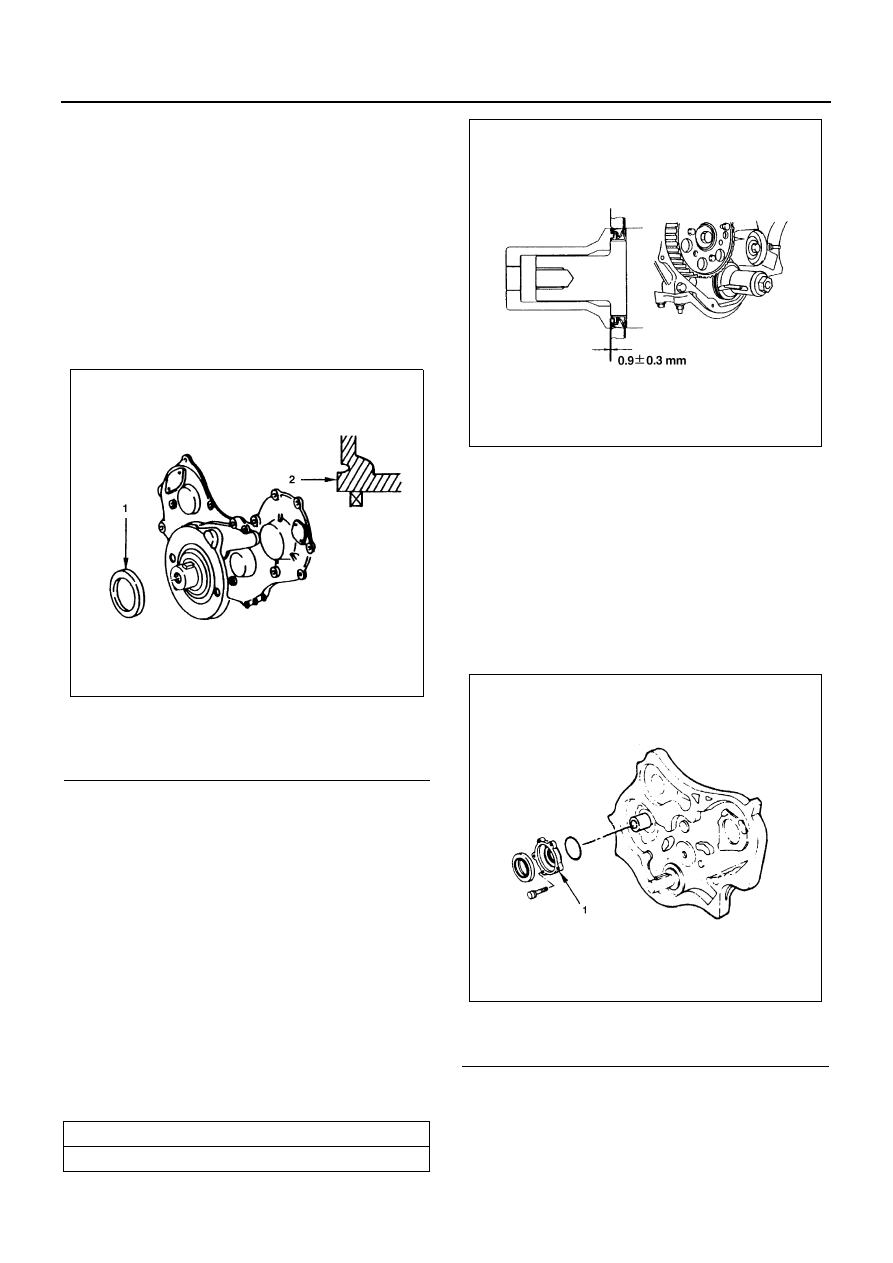

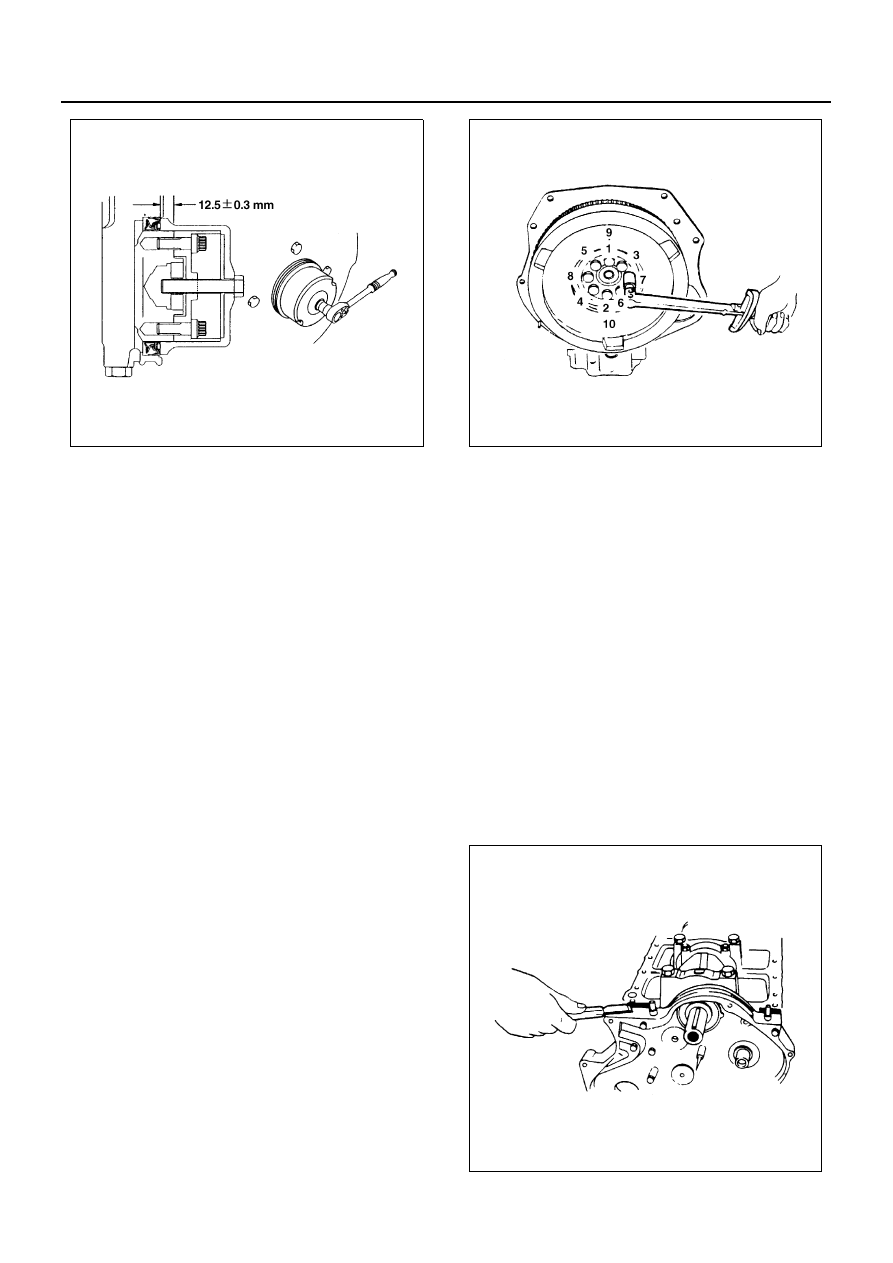

GENERAL ENGINE MECHANICAL 6A-37 4. Cylinder Block Rear Plate Align the rear plate with the cylinder body knock Tighten: ⋅m (8.4 kg⋅m/61 lb⋅ft) 5. Flywheel 1) Thoroughly clean the remove the oil from the threads of crankshaft. 2) Mount the flywheel on the crankshaft and then install the washer. 3) Apply a coat of engine oil to the threads of the flywheel bolts. 4) Align the flywheel with the crankshaft dowel pin. 5) Tighten the flywheel bolts to the specified torque in two steps using the Angular Tighten- Tighten: • Flywheel Bolt to 1st Step: 59 N ⋅m (6.0 kg⋅m/43 lb⋅ft) 2nd Step: 60 ° — 90° 6. Piston and Connecting Rod Above works refer to “PISTON AND CONNECT- 9. Timing Pulley Housing 1) Install the timing pulley housing to the cylinder body. Notice: 2) Tighten the timing pulley housing bolt together with the timing pulley housing gasket to the Tighten: ⋅m (1.9 kg⋅m/14 lb⋅ft) 3) Cut away the gasket protruding above the fit- ting surfaces (as shown in the illustration). 10. Timing Gear Housing N6A3145E N6A3112E N6A3146E |
