Isuzu N-Series. Manual - part 535





Engine Electrical   6D-7

Maintenance
The most common indication of charging system
troubles is an undercharged or overcharged battery.
Since the battery itself may be defective, the first step
should be to check its condition as described under
“Diagnosis of Battery.” In the case of an undercharged
battery, check for battery drain caused by grounds or
by accessories left turned on.
Keep the generator and all other electrical system
terminals clean and tight. A loose or badly corroded
terminal connection will create excessive resistance in
the system and result in hard starting, dim lights etc.
Inspect the generator system at regular intervals and
correct any potential causes of trouble before vehicle
performance is affected.

Diagnosis of Charging System
Trouble in the charging system will be evidenced as
one or more of the following three conditions:

1. The battery discharge warning light will stay on.
2. An undercharged battery as evidenced by slow

cranking.

3. An overcharge, or overvoltage, condition.

Undercharged Battery
Inspection

1. Accessories to be sure none were left on for

extended periods.

2. Drive belt for proper tension. Refer to “Drive Belt”

in Section 6B.

3. The ECM main relay has been ON stuck at the

ignition switch OFF position. (Battery voltage is
consumed.)

4. Battery. Refer to “Diagnosis of Battery” earlier in

this section.

5. Wiring and connections for corrosion or looseness.

Overcharge (or Overvoltage) condition
A charging rate in excess of 29.5-volts for a prolonged
period may cause early electrical system failure.
Blown fuses, light bulbs burned out, and even battery
failure may result. If this condition exists, test the
generator as described under “Generator Output Tests”
later in this section.

Noisy Generator
Inspection

1. Drive pulley for looseness.
2. Mounting bolts for looseness.
3. Bearings for dirt, damage, or wear.

Generator noise may also be caused by worn or
damaged diodes and/or starter.

Electrical Tests

Before performing the following generator electrical
tests on the vehicle, be certain that the system wiring is
not defective and generator belts are not slipping. Also,
the battery must be fully charged for a valid test of the
charging system.

Notice:
To avoid damage to the vehicle electrical system,
always observe the following precautions:

• Do not polarize the generator.
• Do not short across or ground any of the terminals

in the charging circuit except as specifically
instructed herein.

• NEVER operate the generator with the output

terminal open-circuited.

• Be sure the generator and battery have the same

ground polarity.

• When connecting a charger or booster battery to

the vehicle battery, connect negative to negative
and positive to positive.

1. With the engine control switch “ON” and engine not

running, connect a voltmeter from terminal “E” to
ground. The voltmeter should read zero volts.

2. With the engine control switch “ON” and engine not

running, connect a voltmeter from terminal “B” to
ground. The voltmeter should read at least 24
volts.

3. With the engine control switch “ON” and the engine

not running, connect a voltmeter from white wire
side of the connector to ground. The voltmeter
should show 24 volts.

4. With the engine control switch “ON” and the engine

not running, the “charge” light should be on. This
shows that the other circuit in the connection is
working.

5. With the engine running and the headlight high

beams turned on, read the voltage at the “B” post
on the generator. The voltage should be at least 24
volts.

6. If steps 1 through 4 are not OK, check connectors

in the harness for looseness or corrosion and
retest.

7. If step 5 voltage is low, substitute a known good

regulator and test again. If the voltage is still low,
bench test the generator.

6D-8   Engine Electrical

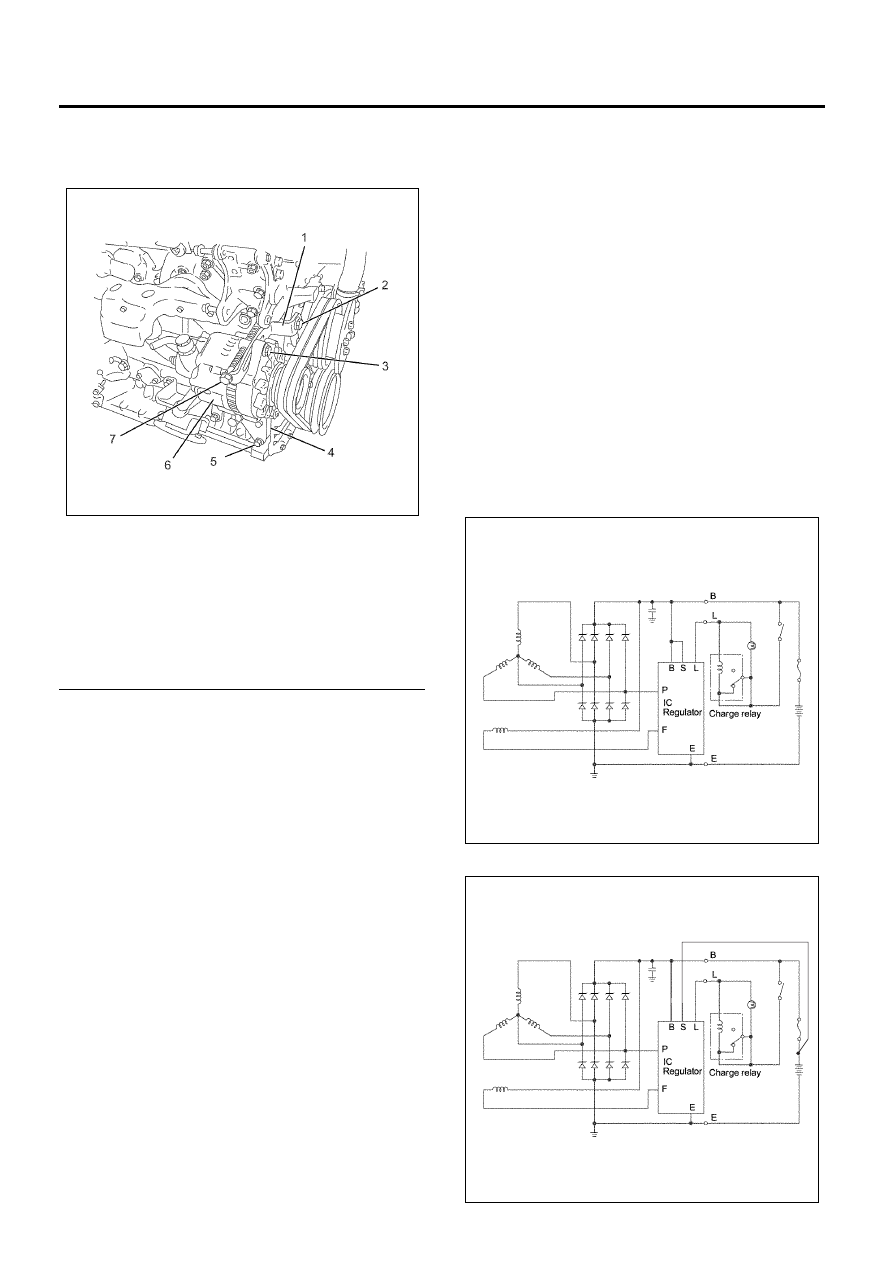

Generator

Component

Legend

1. Generator Adjusting Bracket
2. Bracket Mounting Bolt
3. Generator Adjusting Nut
4. Generator Bracket
5. Generator Bracket Mounting Bolt
6. Generator
7. Generator Adjusting Bolt (Model equipped with

A/C only)



Repair Instruction

Description of Generator

The generator is a 24 volt, 50A or 60A or 80A, model
with a solid state regulator mounted to the brush holder.
The generator must be disassembled to remove the
regulator or brush holder assembly. The generator rotor
bearings contain enough grease to eliminate periodic
lubrication. Two brushes carry current through two slip
rings to the field coil.
The stator windings are assembled on the inside of a
laminated core that forms part of the generator frame.
A rectifier bridge connected to the stator windings
contains six diodes that change the stator AC voltages
to a DC voltage.
The vacuum pump is attached to the rear of the
generator.

Generator Output Tests

To check the generator in a test stand, proceed as
follows:

Important:

• Use a fully charged battery when performing these

tests.

1. Connect an ammeter from the positive (+) battery

side to the generator output wire. This is 8 mm
(0.032 in) (black) wire. Leave the carbon pile
disconnected.

2. Slowly increase the generator speed and observe

the voltage meter. If voltage is uncontrolled with
speed and increases above 30 volts on a 24-volt
system, replace the regulator and check the rotor
winding. If the voltage is below 30 volts, connect
the carbon pile across the battery.

3. Run the generator at 5,000 RPM and adjust the

carbon pile to obtain maximum current output,
which should be more than 42A (50A) or 50A (60A)
or 75A (80A) at 28 to 29 volts.

4. If the output is not within 10 amperes of the rated

output, check the rotor winding, rectifier bridge,
and stator as described later under “Inspection”
and “Electrical Bench Tests.”

50A Model

60A, 80A Model

N6A6401E

N6A6402E

N6A6587E

Engine Electrical   6D-9

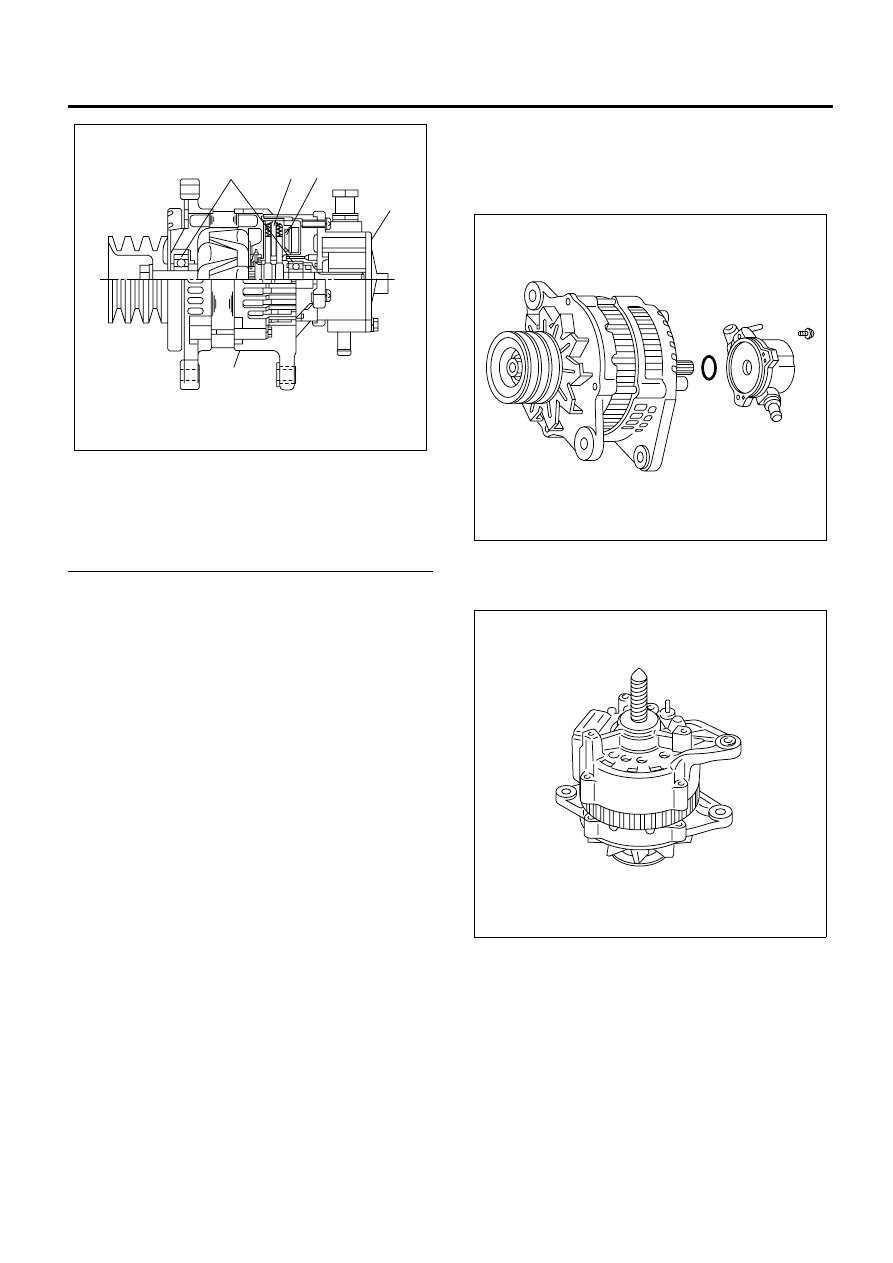

Legend

1. Ball Bearings
2. Brush Holder
3. Voltage Regulator
4. Vacuum Pump
5. Generator



Notice:

• Before performing the generator output test,

inspect all charging system components, wires
and terminals for wear or damage. Repair or
replace any parts found defective.

Removal

• Disconnect the battery negative cable.
• Remove the A/C compressor. (Refer to “Engine

Assembly” in Section 6A)

1. Electrical wiring at the generator.
2. Vacuum and oil hoses attached to the rear of the

vacuum pump.

3. Loosen the lower mounting bolts.
4. Loosen the adjusting nut.
5. Drive belts.
6. Adjusting bolts.
7. Generator.

Inspection

• Mount brackets for damage.
• Drive belts for wear or damage.

Disassembly

1. Vacuum pump assembly.

• Remove the vacuum pump screws attached to

the back of the generator. Remove the vacuum
pump in the direction in line with the rotor shaft.
Remove the side plate fixing bolts and the side
plate, then remove the rotor and vanes.

2. Through bolts.

• Tape the rotor shaft splines to prevent

accidental damage.

• Separate the front cover assembly from the

rear cover assembly.
When separating the front and rear cover
assemblies, be sure the stator assembly stays
seated in the rear cover.

1

2

3

4

5

N6A6588E

N6A6589E

N6A6590E

6D-10   Engine Electrical

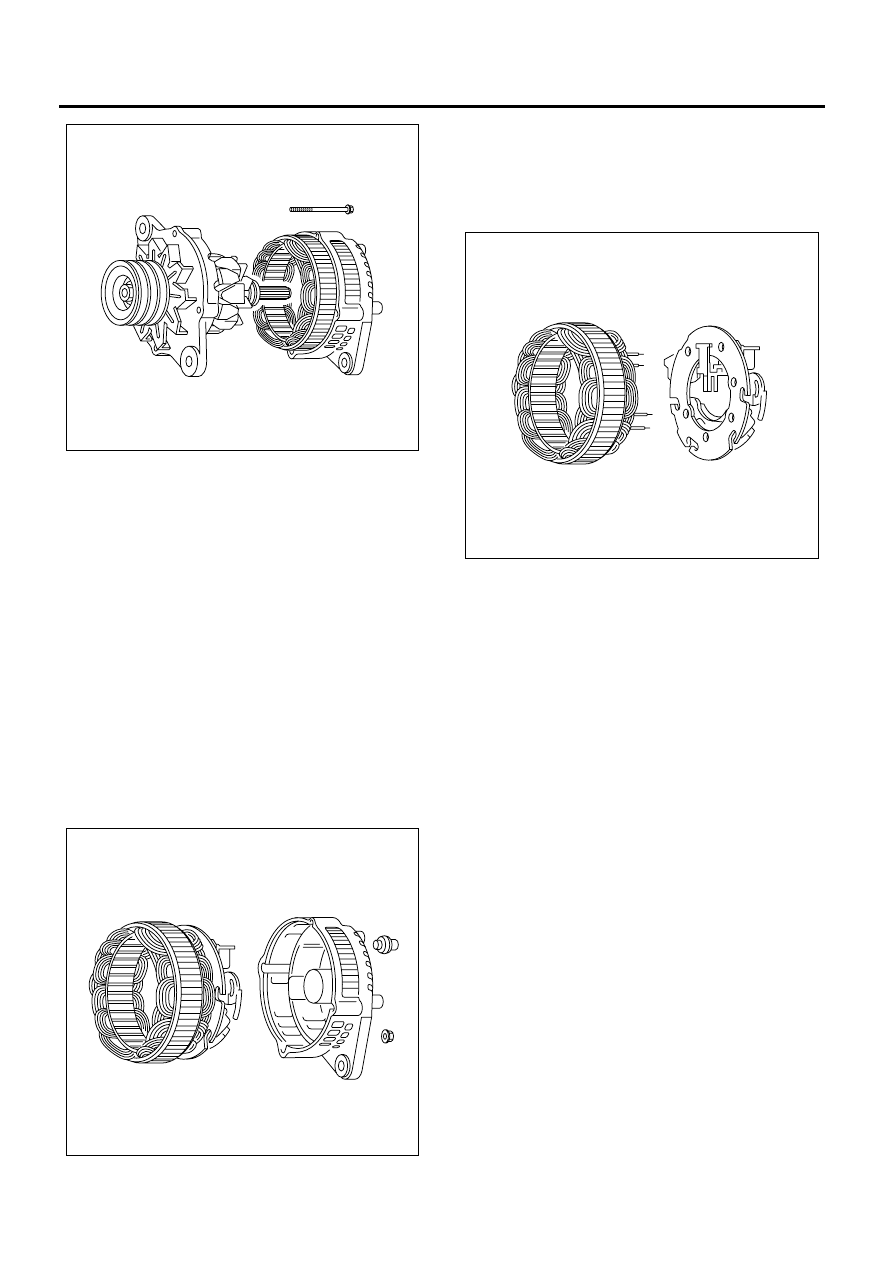

3. Pulley and rotor assembly.

• Be sure not to damage the oil seal when

removing the pulley and rotor assembly from
the rear cover assembly.

4. Rear cover and stator assembly.
5. Pulley nut.

• Clamp the rotor assembly in a vise to remove

the pulley nut.

6. Pulley.
7. Fan.
8. Spacer.
9. Rotor and rear bearing.

10. Bearing retainer.
11. Front ball bearing.
12. Front cover.
13. Rear cover.

• Remove nuts at the rear cover battery terminal

and diode brush regulator assembly.

14. Stator and diode brush regulator assembly
15. Diode brush regulator assembly.

• Separate the diode brush regulator assembly

from the stator by melting the solder on the
stator coils, diodes and N terminal leads. When
melting solder, hold the lead wire with long-
nose pliers to prevent heat from being
transferred to the diodes.

16. Stator.

N6A6591E

N6A6592E

N6A6593E
