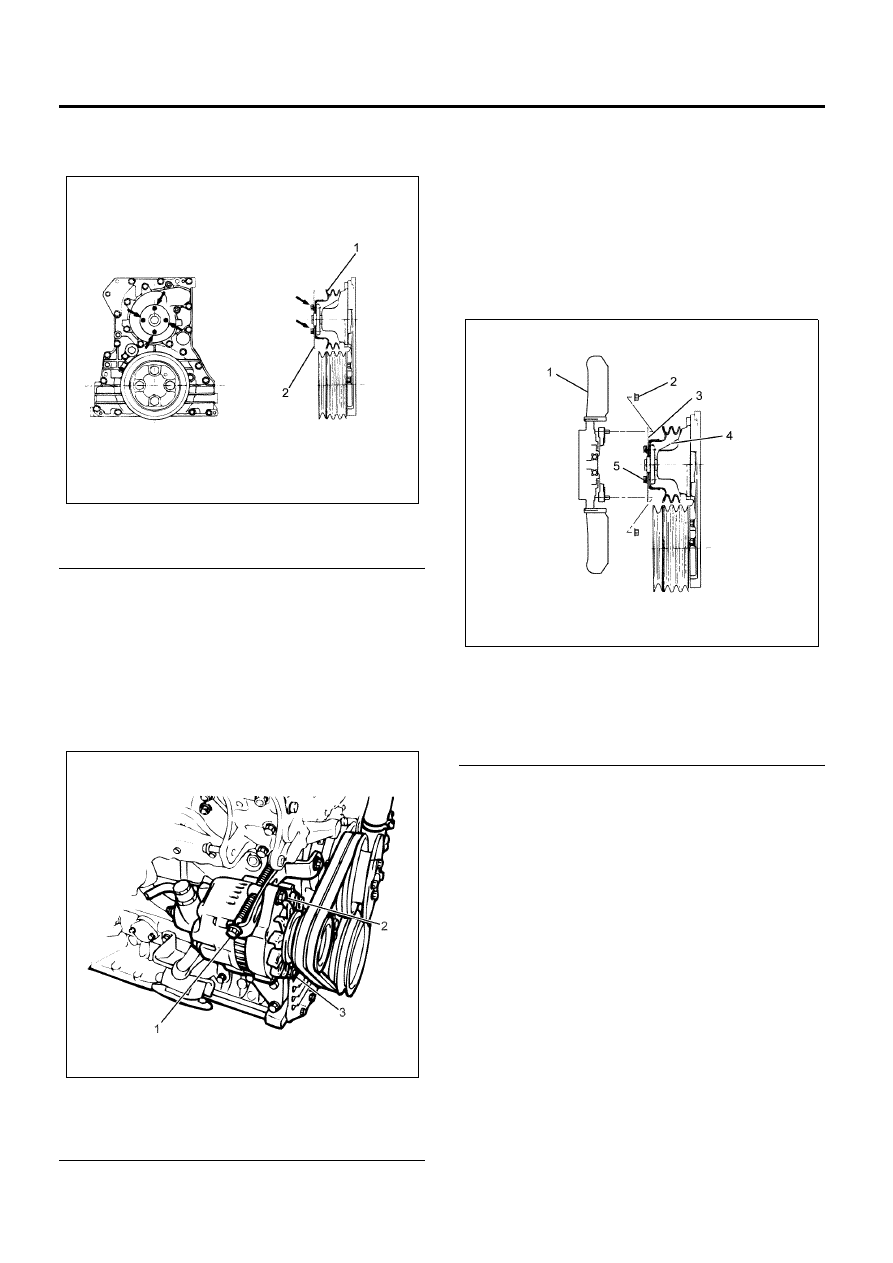

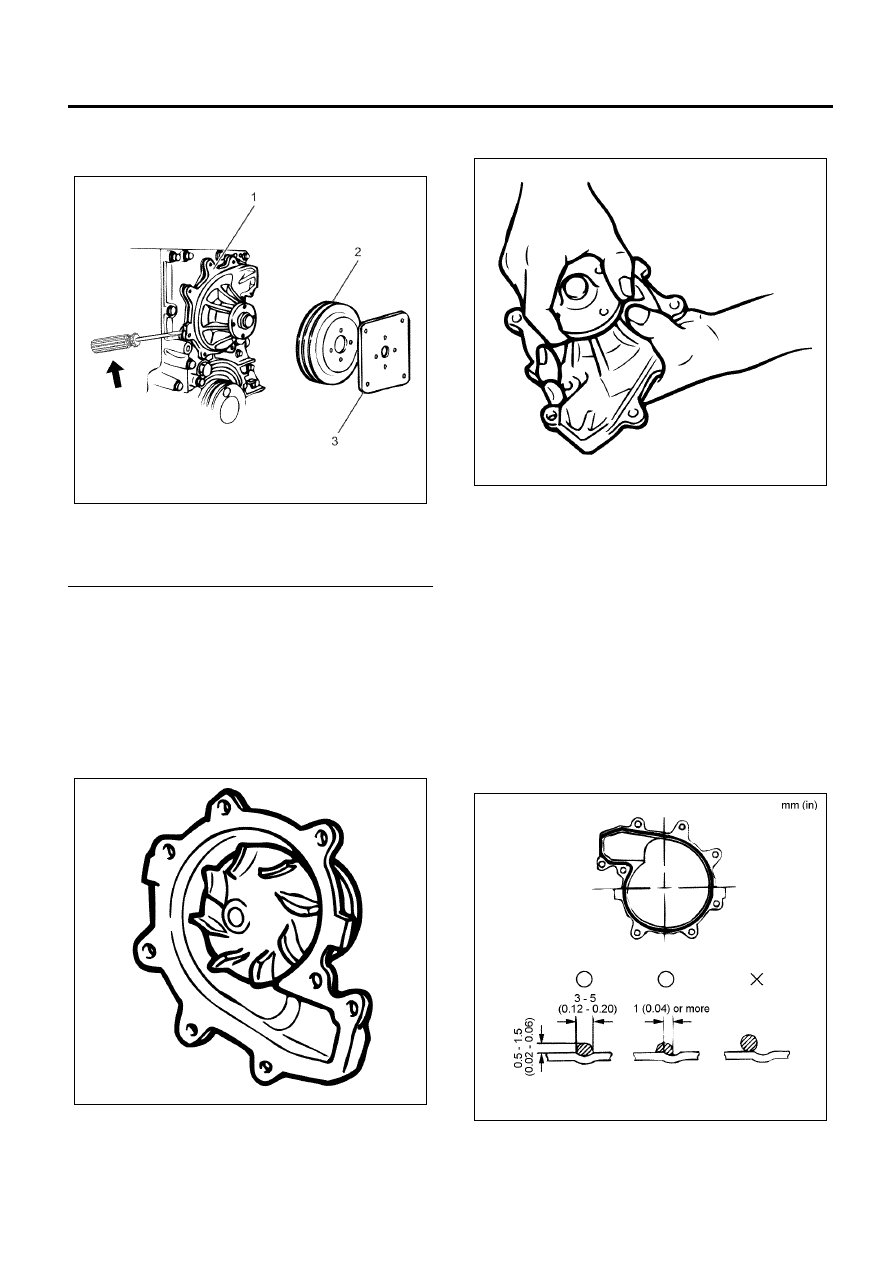

Cooling System 6B-11 7. Remove the water pump assembly while inserting and scraping with the driver at the position shown Legend 1. Water Pump

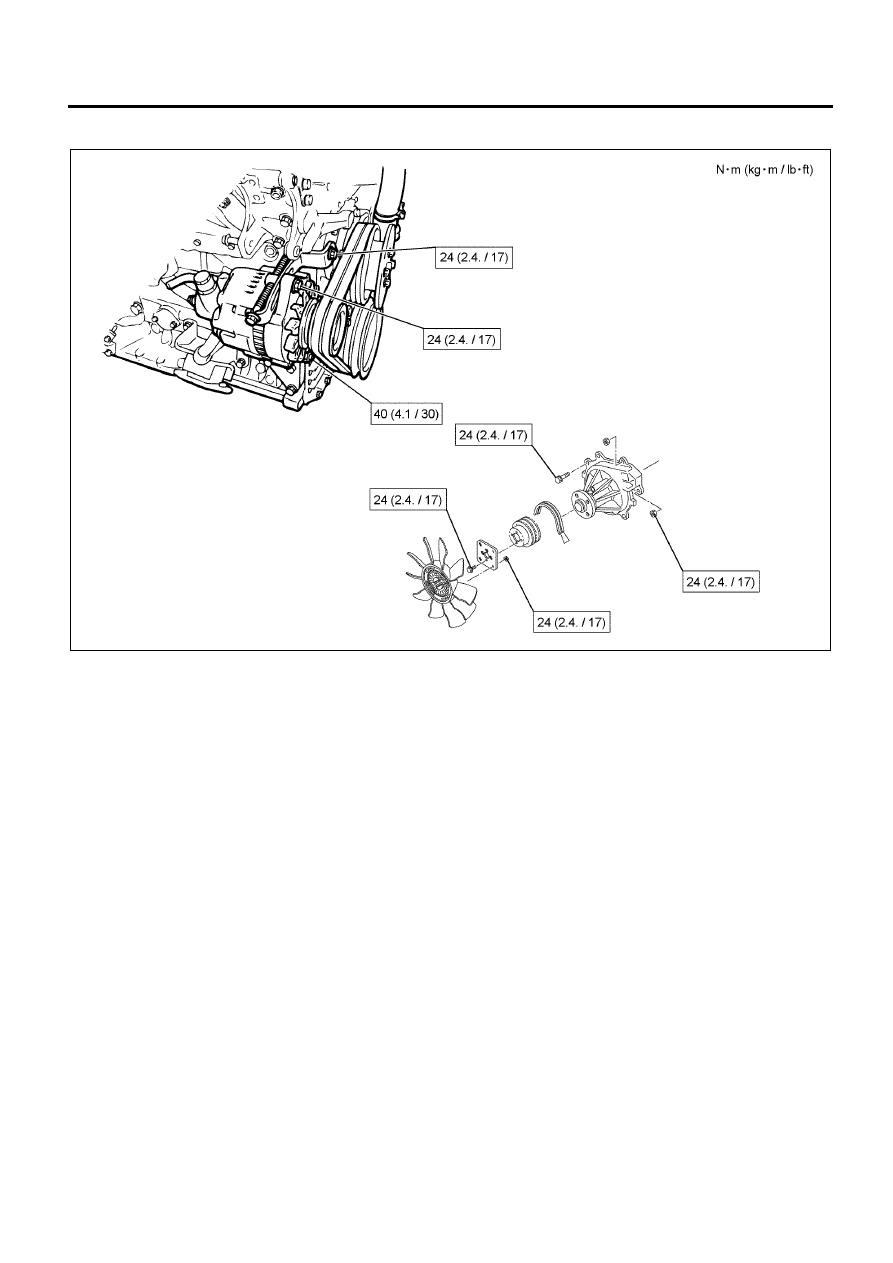

Inspection 1. External check • Check for cracks or damage in the pump body. pump assembly. 2. Bearing nut check • Rotate the fan center while pushing it along the radial direction. Confirm that there is no • If you find abnormalities, replace with the water pump assembly. Installation 1. Mount the water pump assembly. • Coat the fluid gasket (ThreeBond 1207C or equivalent) to a bead diameter 3 to 5 mm (0.12 • Mount the water pump to match with the studs of the front cover within 7 minutes after coating • Refer to the figure for the offset in position of the fluid gasket. Tighten: Bolts and nuts to 24 N ⋅m (2.4 kg⋅m/17 lb⋅ft) N6A6340E N6A6341E N6A6342E N6A6343E |
