Isuzu N-Series. Manual - part 393





6C-50 FUEL SYSTEM

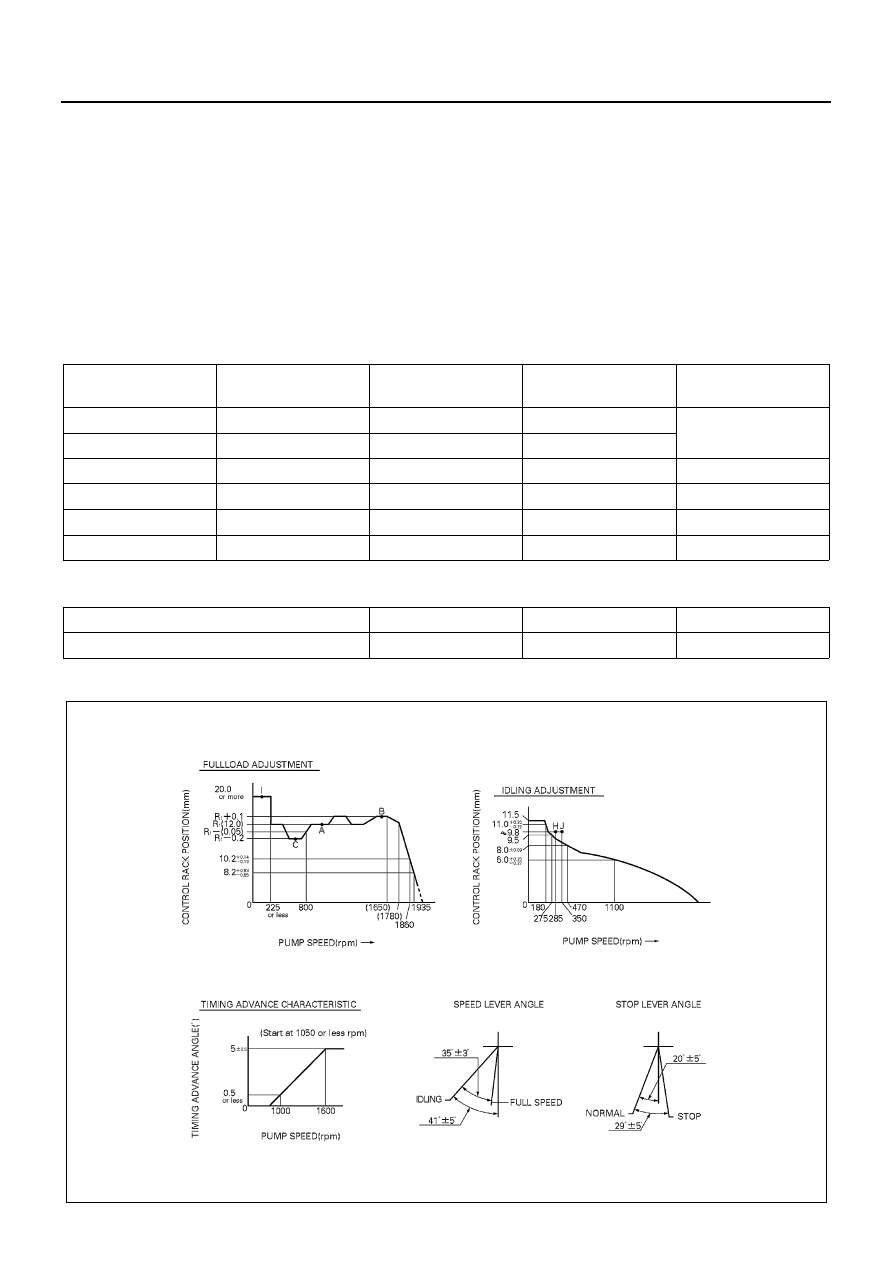

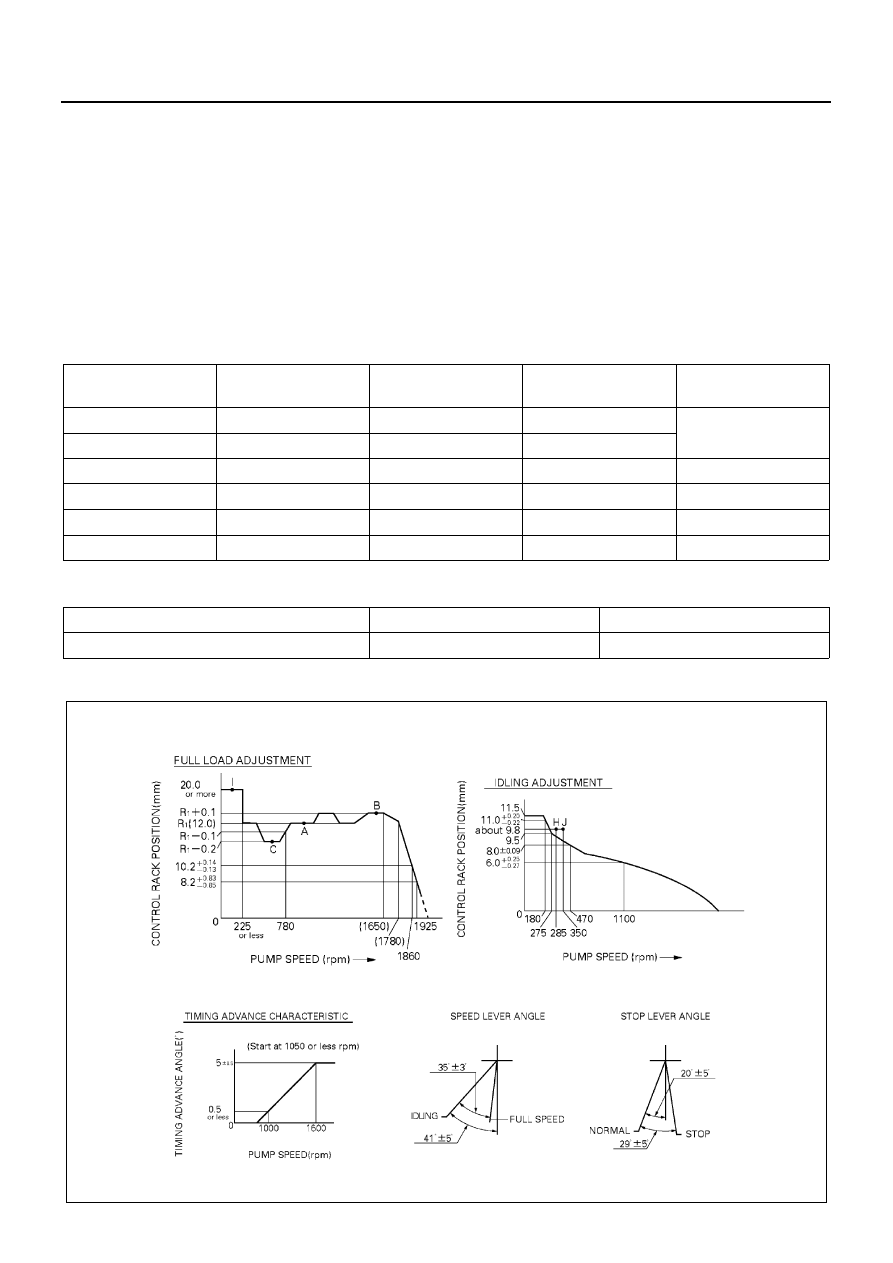

Injection Volume and Governor Performance Diagram

Injection Volume

Timing Advance Specification

Governor Adjustment

Identification Numbers

: 101401-7070/101401-7060

[4HF1 Engine]

Pre-stroke

: No. 1 plunger 4.1

±0.05 mm (0.1614±0.0020 in)

Injection order

: 1 — 3 — 4 — 2 (interval 90

°±30′) Plungers are numbered from the Governor side

Tappet clearance

: Bolt adjustment type

: More than 0.3 mm (0.0118 in) for all cylinders.

: Shim adjustment type

: Manually rotate the camshaft 2 — 3 times and confirm that it
rotates smoothly.

Adjusting point

Pump speed (r.p.m.)

Injection volume (cc/

1000 strokes)

Variance (%)

Remarks

960

61

±1.6

±4

Basic

H

285

16

±1.3

±10.0

A

960



61

±1

Basic

B

1,600

(62)

±2

C

500

(60.5)

±2

I

150

(82)

+16

−0

Pump Speed (r.p.m.)

1,050 or less

1,000

1,600 or more

Degree for Angle of Lead (deg.)

Start

0.5 or less

Finish 5

±0.5

N6A0947E

FUEL SYSTEM 6C-51

Injection Volume and Governor Performance Diagram

Injection Volume

Timing Advance Specification

Identification Numbers

: 101401-7090

[4HF1 Engine]

Pre-stroke

: No. 1 plunger 4.1

±0.05 mm (0.1614±0.0020 in)

Injection order

: 1 — 3 — 4 — 2 (interval 90

°±30′) Plungers are numbered from the Governor side

Tappet clearance

: Bolt adjustment type

: More than 0.3 mm (0.0118 in) for all cylinders.

: Shim adjustment type

: Manually rotate the camshaft 2 — 3 times and confirm that it
rotates smoothly.

Adjusting point

Pump speed (r.p.m.)

Injection volume (cc/

1000 strokes)

Variance (%)

Remarks

960

61

±1.6

±4

Basic

H

285

16

±1.3

±10.0

A

960



61

±1

Basic

B

1,600

(62)

±2

C

500

(60.5)

±2

I

150

(82)

+16

−0

Pump Speed (r.p.m.)

1,050 or less

1,000

1,600 or more

Degree for Angle of Lead (deg.)

Start

0.5 or less

Finish 5

±0.5

6C-52 FUEL SYSTEM

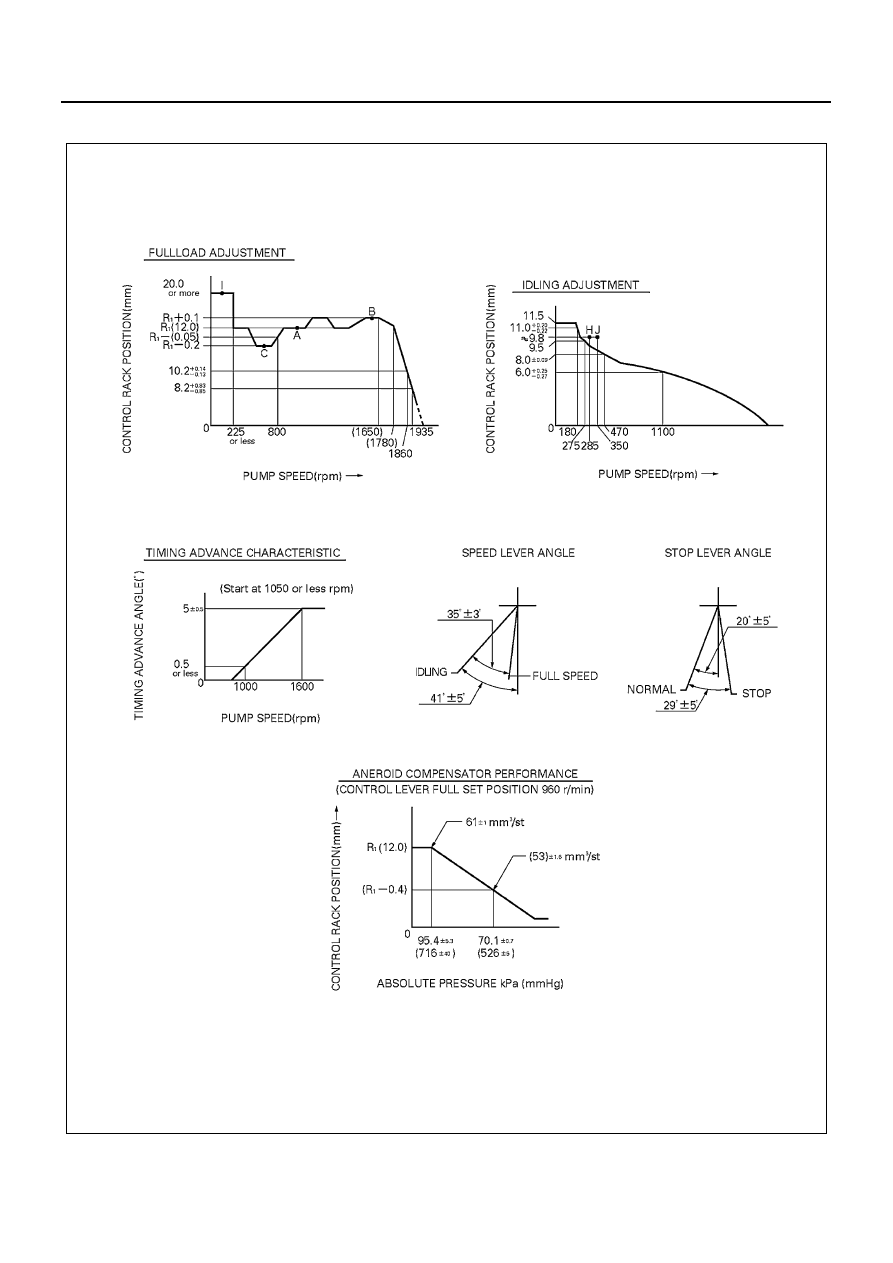

Governor Adjustment

N6A0948E

FUEL SYSTEM 6C-53

Injection Volume and Governor Performance Diagram

Injection Volume

Timing Advance Specification

Governor Adjustment

Identification Numbers

: 101401-7311

[4HF1 Engine]

Pre-stroke

: No. 1 plunger 4.1

±0.05 mm (0.1614±0.0020 in)

Injection order

: 1 — 3 — 4 — 2 (interval 90

°±30′) Plungers are numbered from the Governor side

Tappet clearance

: Bolt adjustment type

: More than 0.3 mm (0.0118 in) for all cylinders.

: Shim adjustment type

: Manually rotate the camshaft 2 — 3 times and confirm that it
rotates smoothly.

Adjusting point

Pump speed (r.p.m.)

Injection volume (cc/

1000 strokes)

Variance (%)

Remarks

960

61

±1.6

±4

Basic

H

285

16

±1.3

±10.0

A

960



65

±1

Basic

B

1,600

(62)

±2

C

500

(63.5)

±2

I

150

(82)

+16

−0

Pump Speed (r.p.m.)

1,000

1,600 or more

Degree for Angle of Lead (deg.)

0.5 or less

Finish 5

±0.5

N6A1655E
