8-320 CAB AND CHASSIS ELECTRICAL

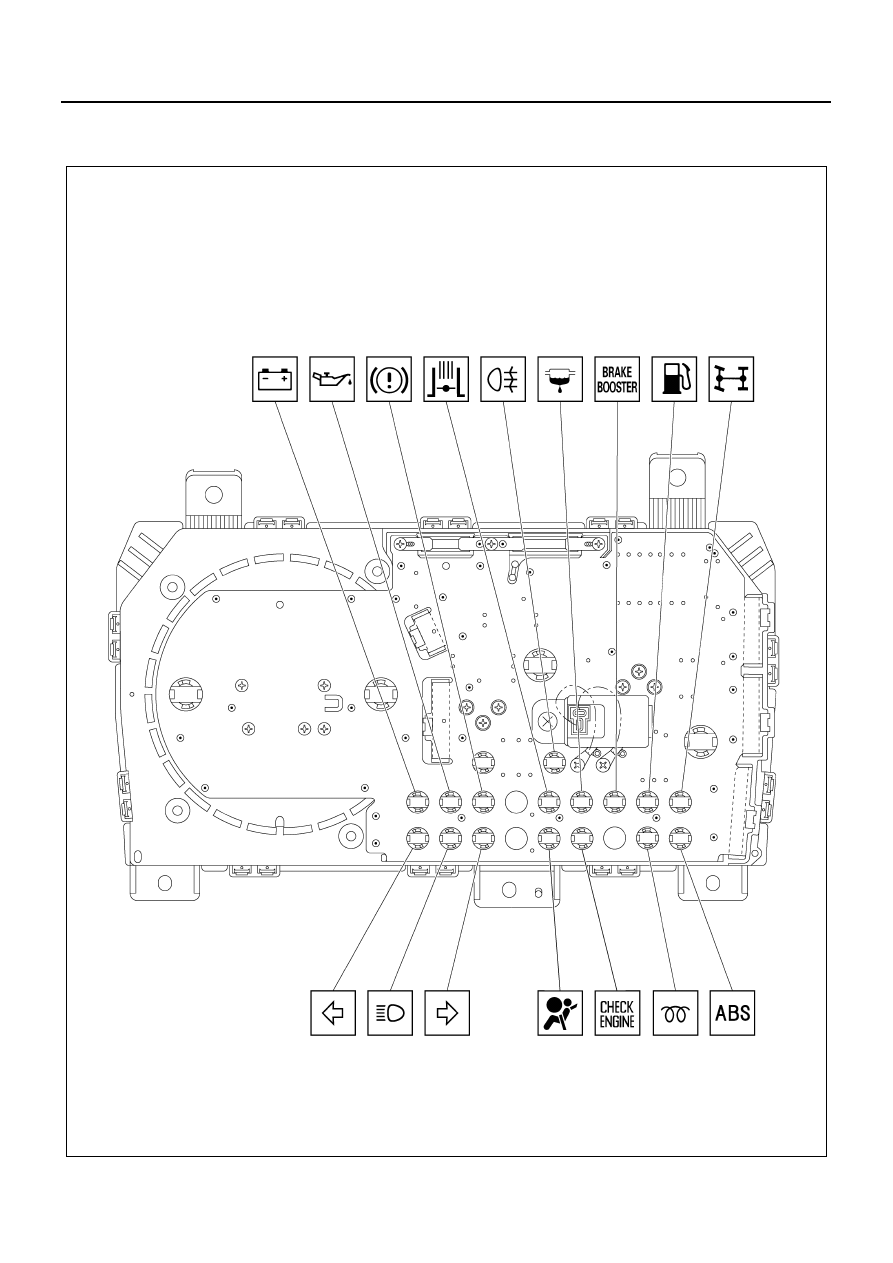

Bulb Location for Warning Lens

Except 4HK1-TC

N8A5567E

CAB AND CHASSIS ELECTRICAL 8-321

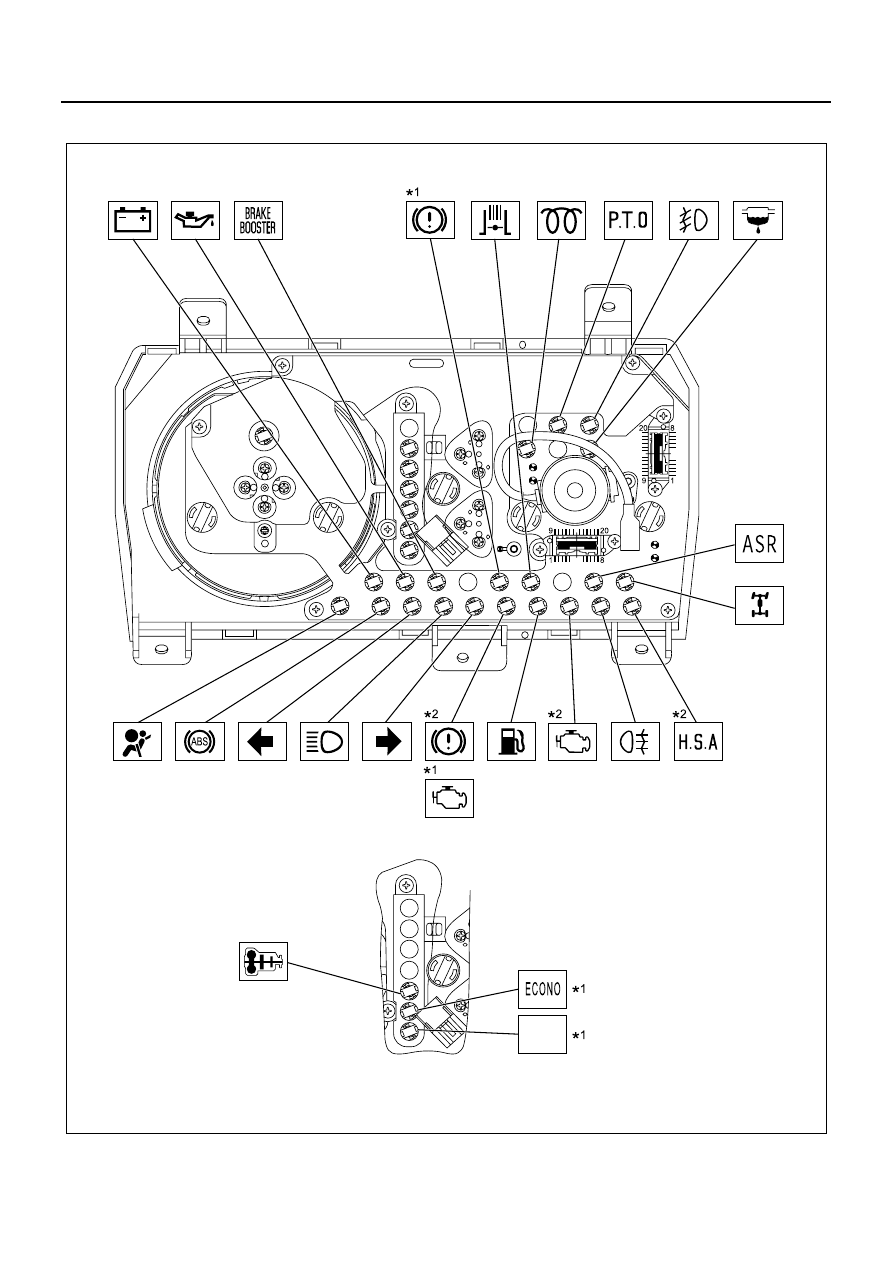

For 4HK1-TC

*

1 : Smoother

*

2 : Without Smoother

1ST

START

N8A5568E

8-322 CAB AND CHASSIS ELECTRICAL

Table for Meter Connector Terminal Connections

Except 4HK1-TC

B-336

B-51

B-55

ECT - Engine Coolant Temperature

B-55

B-52

B-51

B-336

N8A0483E

Terminal No.

Connected to

1

IGN  (+)

2

—

3

Speed pulse input

4

—

5

Ground

6

Illumination (+)

Terminal No.

Connected to

1

Exh.  Brake

2

Exh.  Brake

3

Airbag

4

Check engine

5

PTO

6

Glow

7

ABS

8

IGN  (+)

9

4WD

10

Fuel low

11

Vacuum / Booster

12

Sedimenter

13

Low coolant

14

Brake

Terminal No.

Connected to

1

Speed pulse input

2

—

3

Power output (sensor)

4

ECT unit (GAUGE)

5

Fuel tank unit (GAUGE)

6

—

7

Ground

8

Turn signal (LH)

9

—

10

Beam (+)

11

Turn signal (RH)

12

—

CAB AND CHASSIS ELECTRICAL 8-323

B-52

For 4HK1-TC

Terminal No.

Connected to

1

Oil pressure

2

Vacuum SW

3

Charge

4

Parking / Rear fog

5

Illumination (+)

6

—

7

Illumination (

−)

8

Signal (tacho)

9

Ground (tacho)

10

Ground

11

—

12

+B

1

1

8

9

20

8

9

20

B-53

B-51

B-52

N8A0484E
