8-256 CAB AND CHASSIS ELECTRICAL

Front Passenger Seat Side Power Window Mo-
tor

Inspection
Before checking to see if the motor functions correctly,
be sure to check the circuit through the front passen-
ger’s switch connector

 and the driver’s power win-

dow switch connector

.

If the motor does not operate smoothly, either the motor
or the circuit between the switch and the motor is defec-
tive.

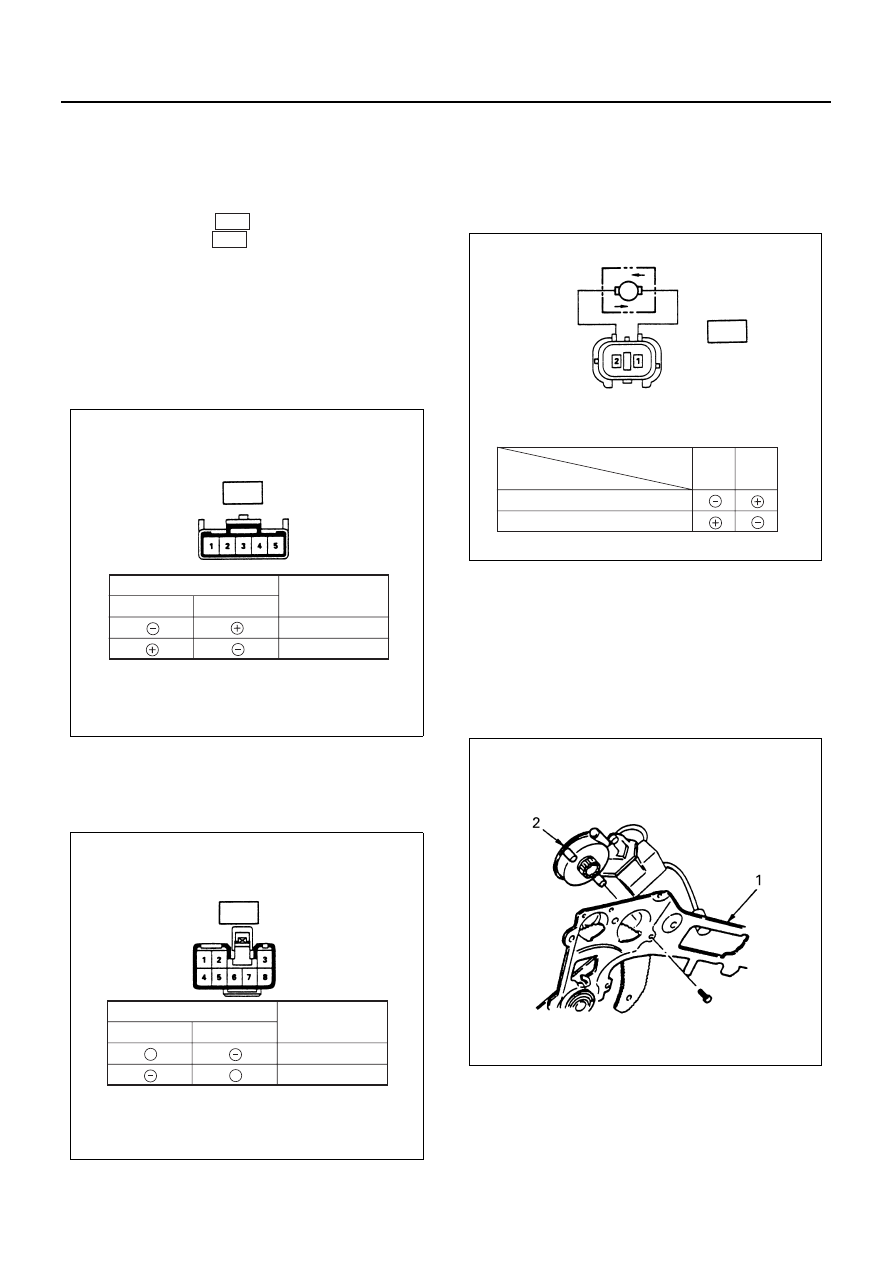

1. Circuit inspection of the front passenger seat side

window
Disconnect the switch connector and apply battery
voltage to the harness side connector terminals to
check its function.

2. Circuit inspection of the driver seat side switch

Disconnect the switch connector and apply battery
voltage to the harness side connector terminals to
check its function.

3. Inspection of the front passenger window motor

Disconnect the motor connector and apply battery
voltage to the motor side connector terminals to
check its function.
Repair or replace the motor when the result of in-
spection is found abnormal.

Removal
Preparation:
Disconnect the battery ground cable.

1. Window Regulator Assembly

Refer to Section 2 for Window Regulator and
Glass.

2. Power Window Motor

Remove three screws.

Installation
To install, follow the removal steps in the reverse order.

D-7

D-3

D-7

Harness side

Connecting terminal

Direction of

3 (L/Y)

5 (BR/Y)

operation

DOWN

UP

N8A0243E

Harness side

D-3

Connecting terminal

Direction of

4 (G/Y)

5 (R/Y)

operation

DOWN

UP

+

+

N8A0244E

D-6

M

1

2

DOWN

UP

Terminal No.

Direction
of operation

N8A0245E

N8A0246E

CAB AND CHASSIS ELECTRICAL 8-257

Windshield Wiper and Washer

General Description

The circuit consists of the starter switch, windshield wiper & washer switch, wiper motor, washer motor and the inter-
mittent relay.
When the wiper & washer switch is turned on with starter switch on, the battery voltage is applied to the wiper motor
to activate the wiper.
The washer motor squirts glass cleaning fluid while the washer switch is being pushed. The intermittent relay is used
to control motion of the wiper.

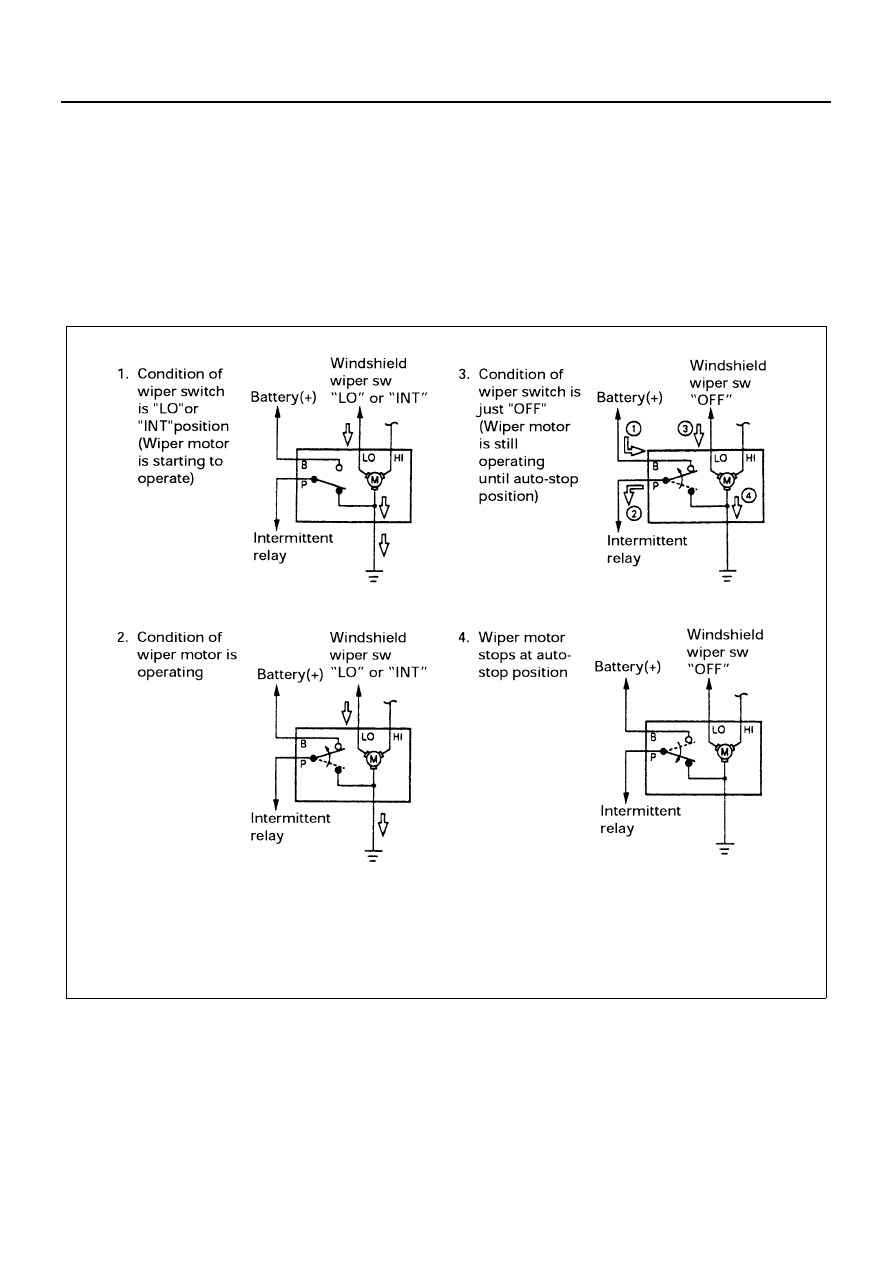

Operation of Windshield Wiper Motor

(When wiper “LO” or “INT” position)

Notice:
Arrow marks indicate the direction of current.

N8A0250E

8-258 CAB AND CHASSIS ELECTRICAL

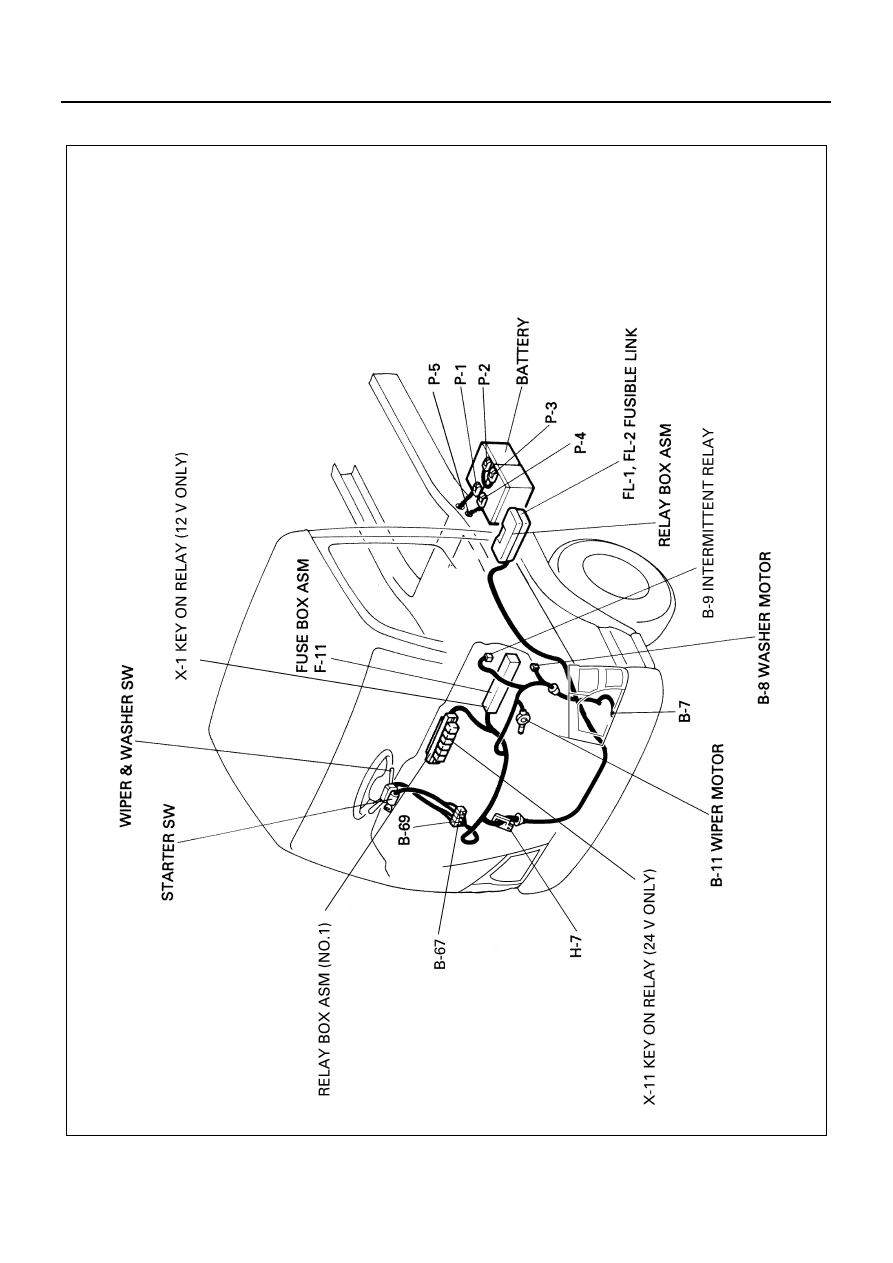

Parts Location

N8A5299E

CAB AND CHASSIS ELECTRICAL 8-259

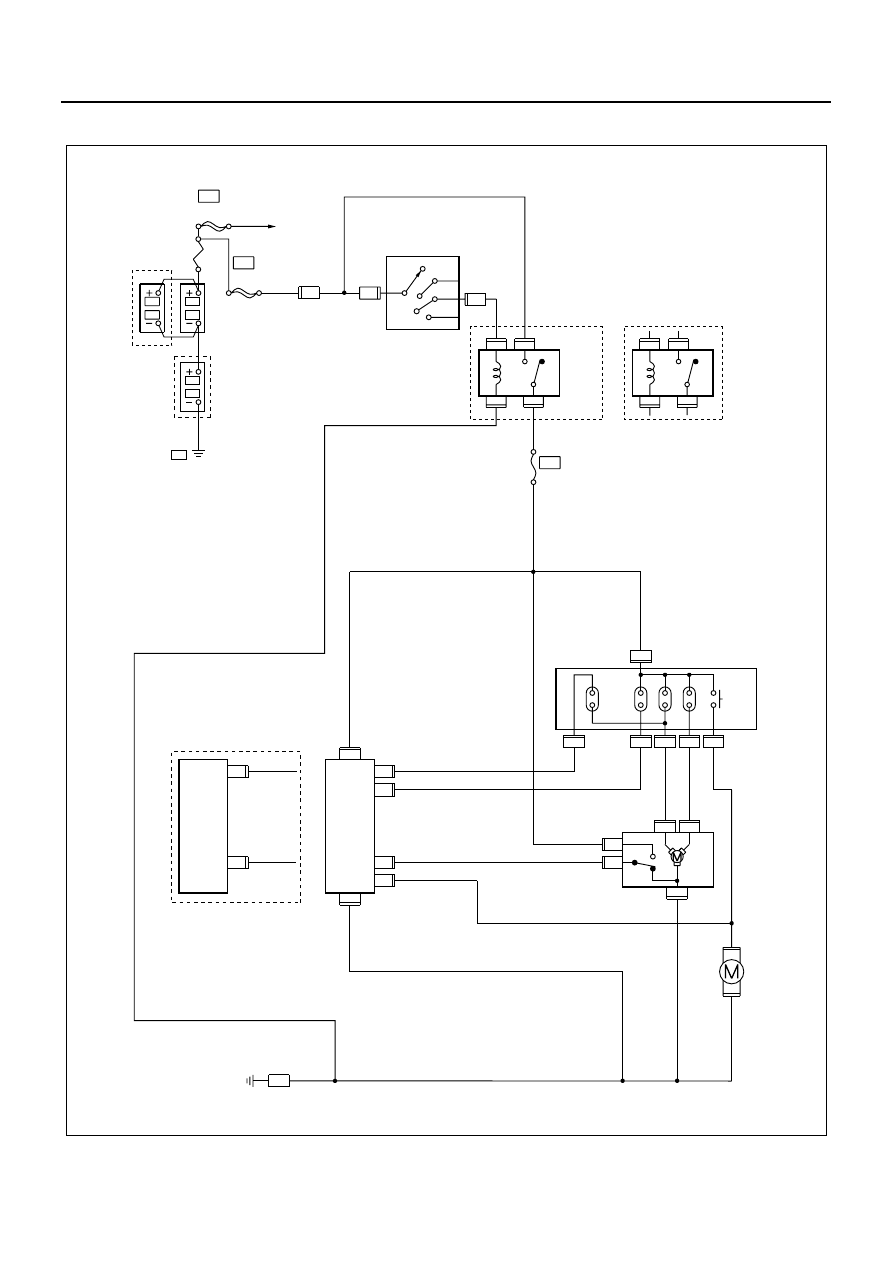

Circuit Diagram

B-11

B-11

B-11

B-11

B-11

B-69

B-69

B-69

B-69

B-69

B-69

B-9

B-9

B-9

B-9

B-9

B-9

B-8

B-8

B-7

B

ST

ACC

ON

B-67

B-67

P-1

P-2

P-3

P-4

P-5

 (24V MODEL)

2

3

8

3

6

7

4

2

B

PS

I

PM

W

E

B

P

4

5

2

3

LO

HI

1

3

8

7

4

6

1

P

OFF

I

H

W

L

1

2

HEADLIGHT BRACKET (LH)

3B

0.5B

0.5B(24V)

1.25B(12V)

0.5L/B

0.5BR/Y(24V)

0.85BR/Y(12V)

0.5L(24V)

1.25L(12V)

0.5L/B

0.5L/O(24V)

0.85L/O(12V)

0.5L/R(24V)

0.85L/R(12V)

0.5BR/W(24V)

0.85BR/W(12V)

0.5BR/R(24V)

1.25BR/R(12V)

WIPER, WASHER SWITCH
(COMBINATION SWITCH)

0.5L(24V)

0.5B

0.85L(12V)

0.5L(24V)

1.25L(12V)

0.5L(24V)

3L

1.25L(12V)

3B/Y

3W/L

3W/L

FL-1 100A or 120A

MAIN

FL-2  40A(24V)

50A(12V)

KEY SW

STARTER SWITCH

F-10  15A

WIPER, WASHER

WIPER MOTOR

WASHER MOTOR

0.5B

H-7

3W/B

1

RELAY; INTERMITTENT

FRAME

B-9

B-9

3

7

(WITHOUT RELAY; INTERMITTENT)

0.85L/R

0.85L/R

SHORT CIRCUIT CONNECTOR

2L

P-3

P-4

4JH1

FUSE BLOCK

X-11

X-11

X-11

X-11

RELAY
KEY ON

(24V)

(12V)

X-1

X-1

X-1

X-1

5

2

3

1

5

2

3

1

N8A5300E
