Isuzu N-Series. Manual - part 1132

8-240 CAB AND CHASSIS ELECTRICAL

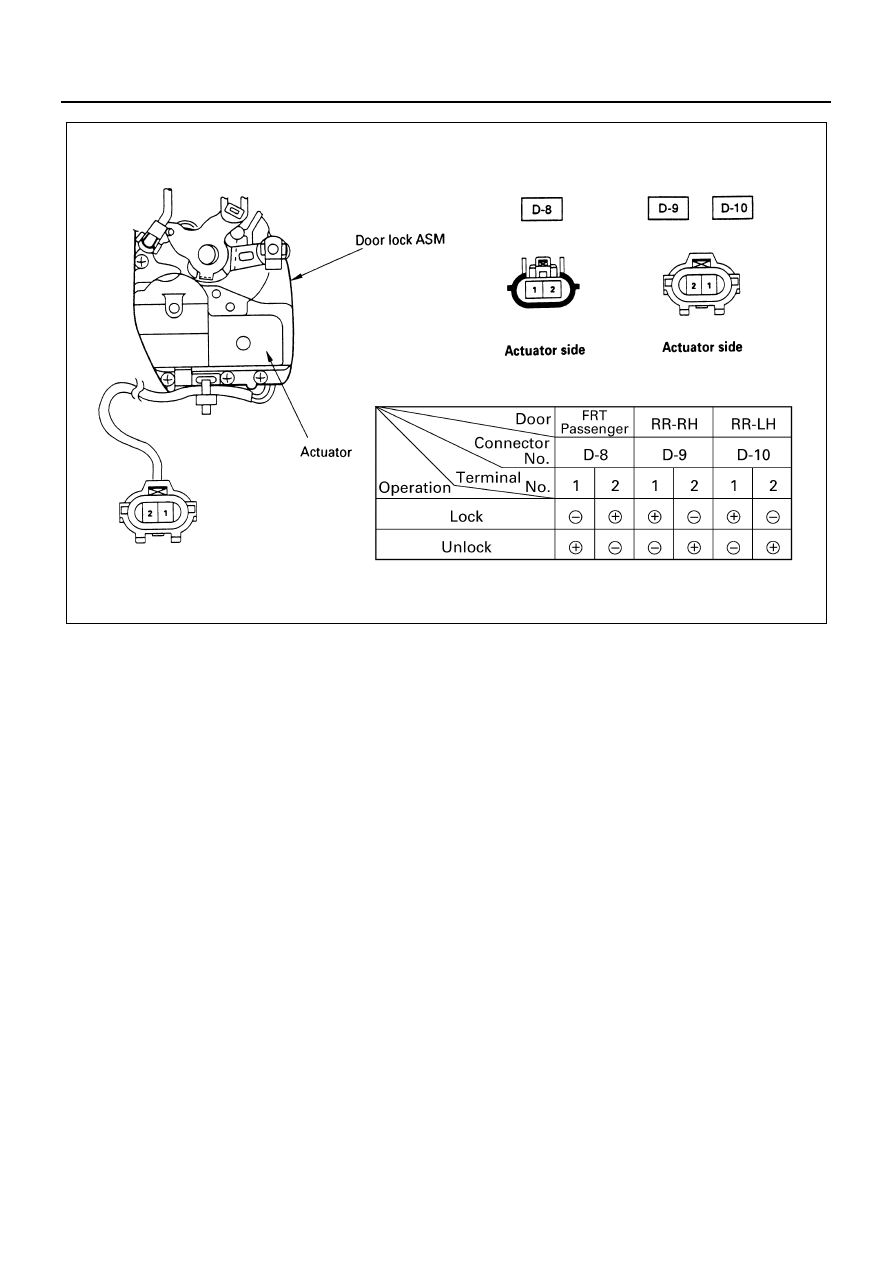

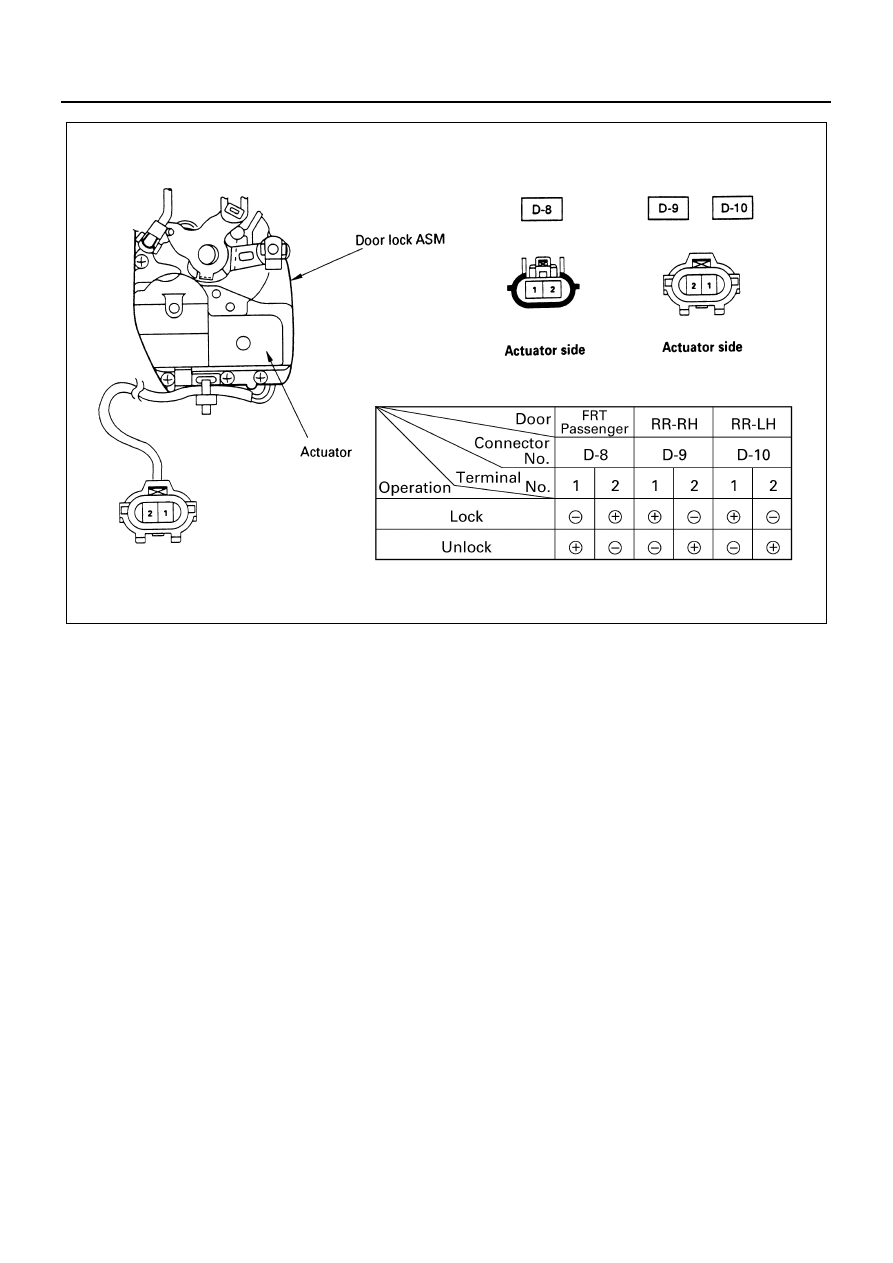

Removal and Installation
Refer to Section 2 “CAB AND FRAME” for “DOOR
LOCK ASSEMBLY”.

N8A5267E

CAB AND CHASSIS ELECTRICAL 8-241

Power Window

General Description

The circuit consists of the starter switch, power window switch for each of the windows and power window motor.
When the starter switch is turned on, the battery voltage is applied to each of the power window switches through the
circuit breaker and the power window relay on the circuit.
By operating the switches of each window to select “UP” or “DOWN”, the revolving direction of the power window
motor changes to open or close the window.
The driver’s power window switch has a built-in one-touch operating circuit which allows to automatically open the
window by operating the switch to the AUTO position.
When the driver’s power lock switch at the driver side is depressed, the power source to the passenger’s power win-
dow switches will be shut off and passenger’s side power window motor will not operate if the switch is operated.

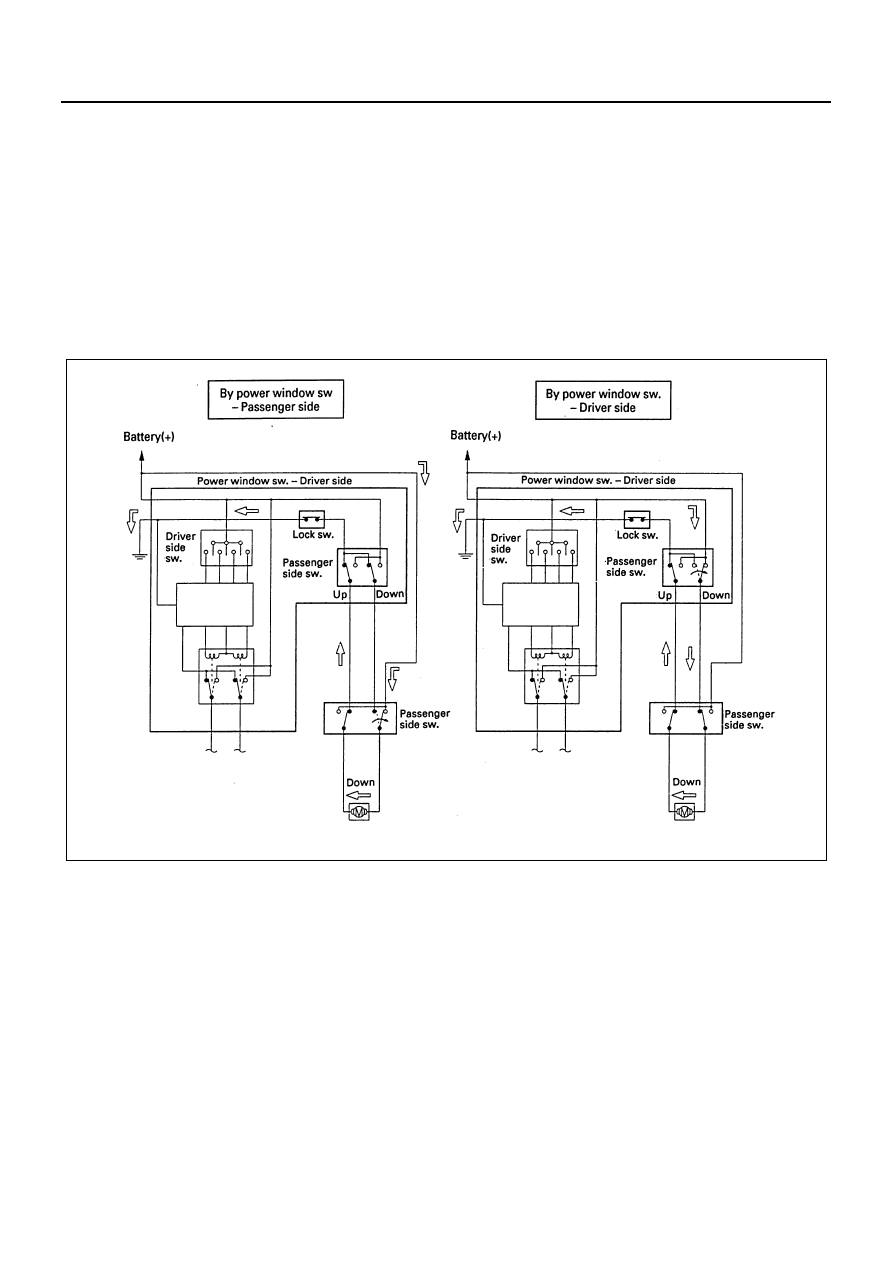

Operation of Passenger Side Window

Notice:
Arrow marks indicate the direction of current.

N8A5268E

8-242 CAB AND CHASSIS ELECTRICAL

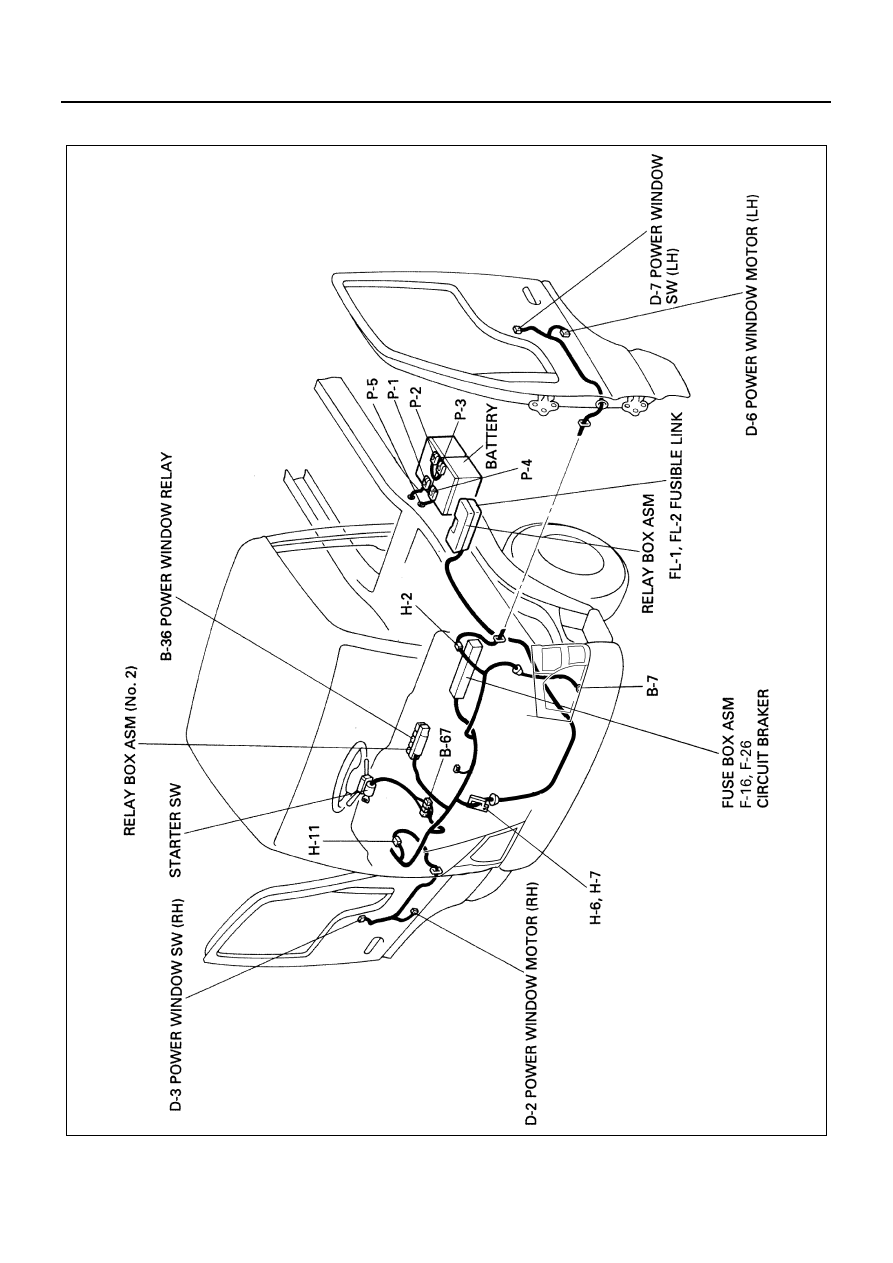

Parts Location

N8A5269E

CAB AND CHASSIS ELECTRICAL 8-243

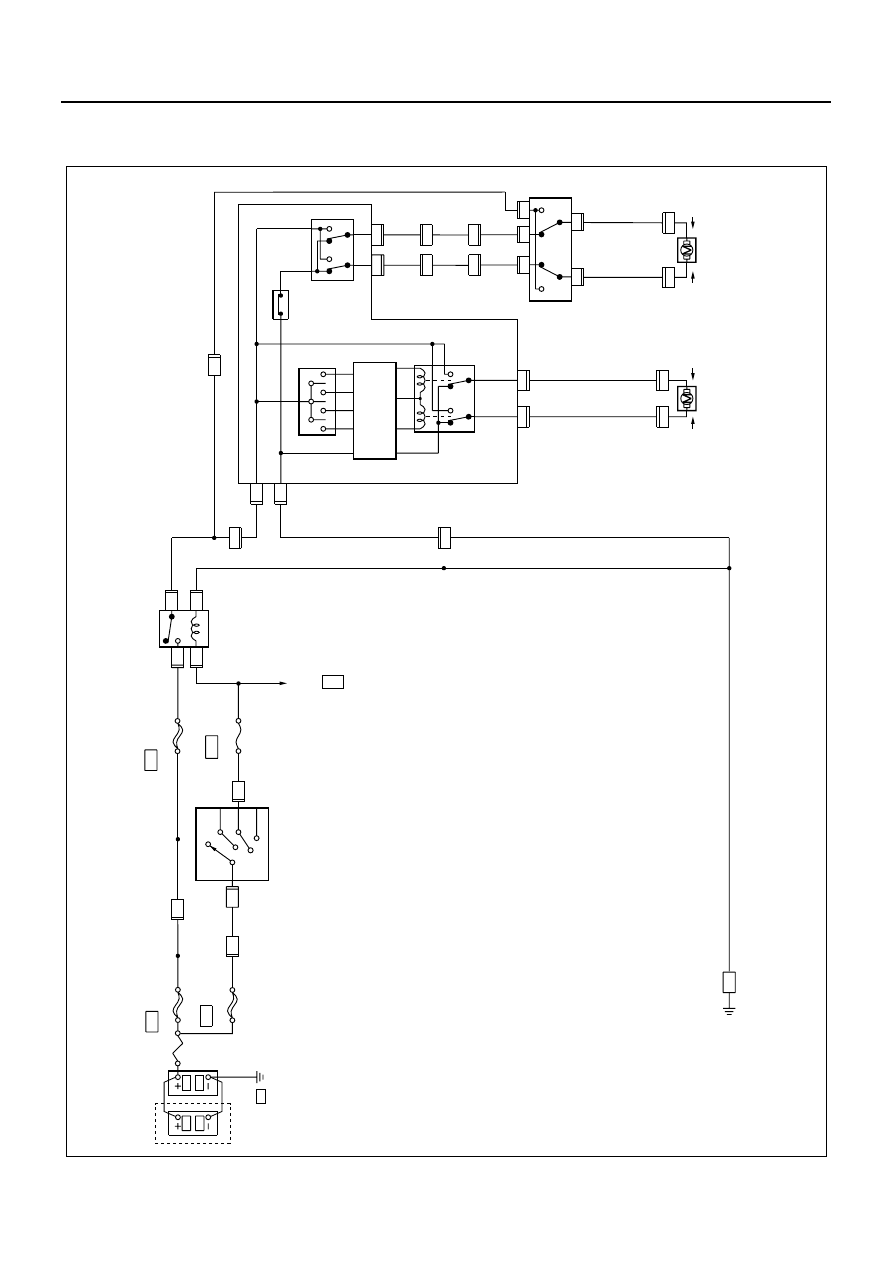

Circuit Diagram

For 12 Volt

X-7

B-67

H-2

H-11

H-11

D-3

H-11

D-3

D-3

H-11

X-7

X-7

X-7

H-2

H-2

D-3

D-7

D-7

D-7

D-7

D-7

D-6

D-6

D-2

D-2

D-3

D-3

B

OFF

ON

ACC

ST

B-7

B-67

FL-1

100A

MAIN

STARTER SWITCH

P-1

P-2

P-5

8W

3W/B

F-26

30A

F-16  10A

METER

3B/Y

0.5B/Y

2B/L

2L/B

1.25L/B

2L/B

2B

0.5B

POWER WINDOW SWITCH (DRIVER)

WINDOW LOCK SWITCH

WINDOW SWITCH (DRIVER)

WINDOW
SWITCH
(PASSENGER)

AUTO CIRCUIT

1.25L/B

1.25L/Y

1.25BR/Y

1.25L

1.25L/W

POWER WINDOW MOTOR

(PASSENGER)

UP

DOWN

UP

DOWN

UP

DOWN

FL

DOWN

UP

DOWN

POWER WINDOW SWITCH (PASSENGER)

1.25G/Y

1.25R/Y

3W/B

SW

3B

HEADLIGHT BRACKET (LH)

12

12

12

35

24

1

3

85

54

1

6

8

1

5

4

1

2

3

2

85

METER B-51 (8)

B

E

0.5B/Y

RELAY; POWER WINDOW

UP

2B

FL-2  50A

KEY SW

5W

8W/B

H-6

2

H-7

3W/L

1

POWER WINDOW

1.25G/Y

1.25R/Y

1.25G/Y

1.25R/Y

2B

FRAME

POWER WINDOW MOTOR

(DRIVER)

2L

P-3

P-4

4JH1

N8A5270E
