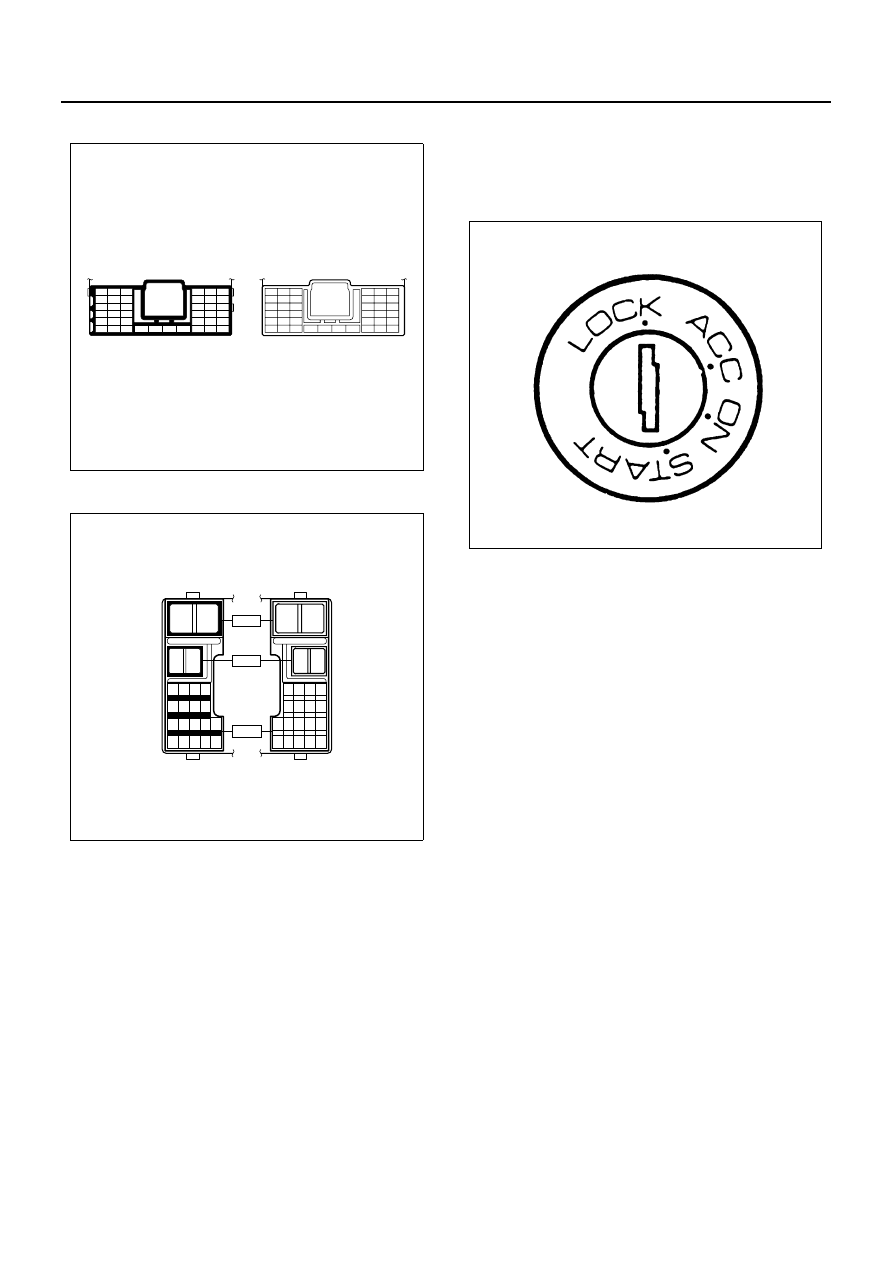

Starter Switch

The starter switch positions are LOCK, ACC, ON and
START. Turning the starter key to these positions a cir-
cuit for starting the engine, the operation of accessories,
or stop the engine.

1

2

3

7

8

9

13

14 15

19

20 21

25

26 27

31

32 33

34

35

36

37

4

5

6

10

11 12

16

17 18

22

23 24

28

29 30

38

39 40

6

5

4

12

11 10

18

17 16

24

23 22

30

29 28

40

39 38

3

2

1

9

8

7

15

14 13

21

20 19

27

26 25

33

32 31

34

35

36

37

N8A5488E

1

2

1

2

1 2 3 4

5 6 7 8

9 10 11 12 13

14 15 16 17 18

2

1

2

1

4 3 2 1

8 7 6 5

13 12 11 10 9

18 17 16 15 14

H - 6

H - 7

H - 8

N8A5489E

N8A0072E

CAB AND CHASSIS ELECTRICAL 8-65

Inspection

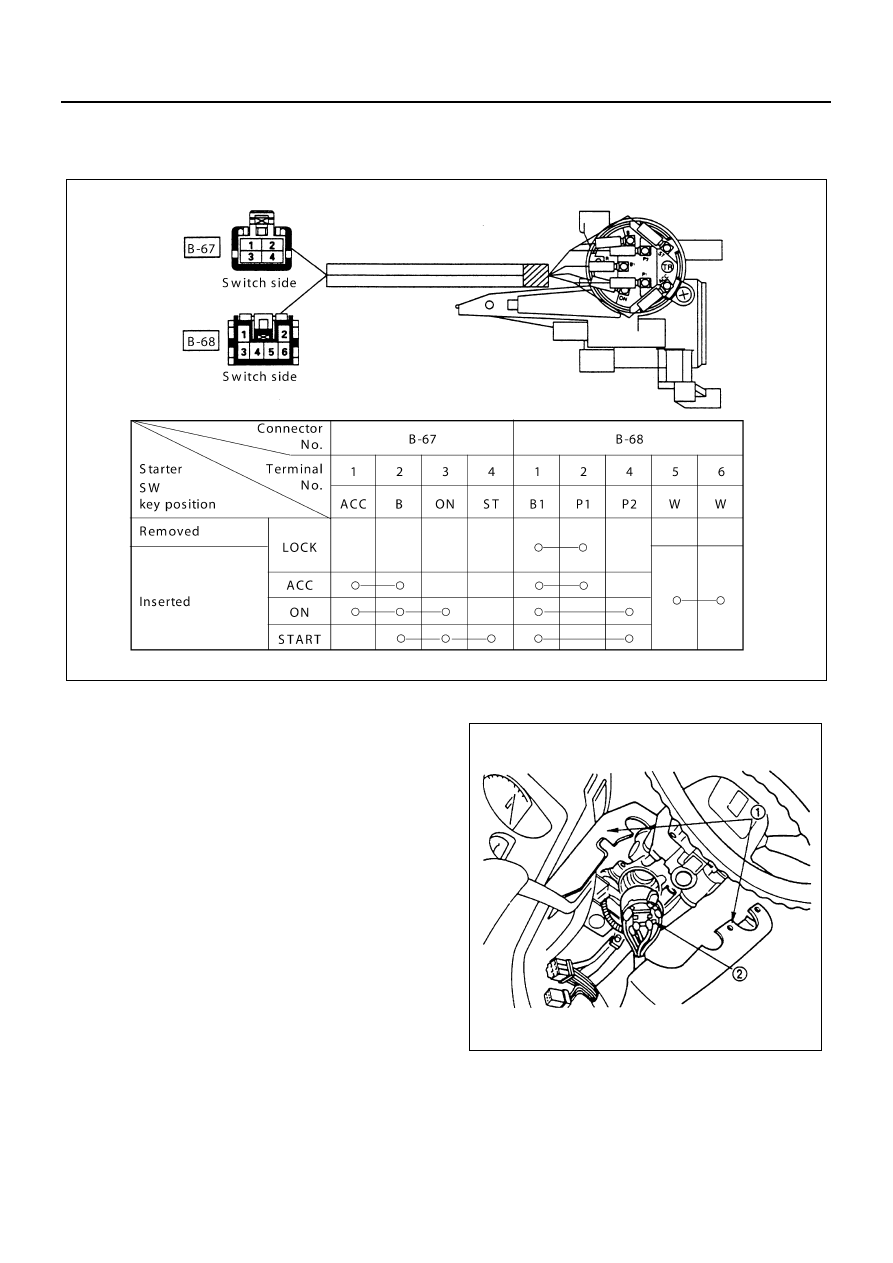

Check the continuity between the starter switch connector terminals.
Repair or replace the switch when the result of inspection is found abnormal.

Removal
Preparation:
Disconnect the battery ground cable.

1. Steering Cowl

Remove four screws and take off the steering cowl.

2. Starter Switch

1) Disconnect the connector.
2) Remove the screw.

Installation
To install, follow the removal steps in the reverse order.

N8A0073E

N8A5070E

8-66 CAB AND CHASSIS ELECTRICAL

Neutral switch

Inspection
Check to see if there is any continuity between the
switch terminals.
Replace the switch when the result of inspection is
found abnormal.

QOS (Quick On Start) II System (4HF1 and 4JB1 Engine Model)

General Description

The circuit consists of starter switch, QOSII control unit, glow relay, thermo switch, glow plug, fuel cut solenoid, CSD
relay, CSD solenoid and glow indicator light.
The QOS-II controller controls glow plug relay by the ON or OFF signal of QOS thermo switch.
Immediately when the starter switch turns “ON”, the glow plug relay indicator light turns on to start preheating.
The engine should be started after the indicator light is off. However, the glow plug relay keeps preheating for a fixed
period even after the indicator light turns off. When the fixed time is over, QOS-II controller performs to switch the
glow plug relay off to stop preheating.
For details, refer to “PREHEATING SYSTEM”.

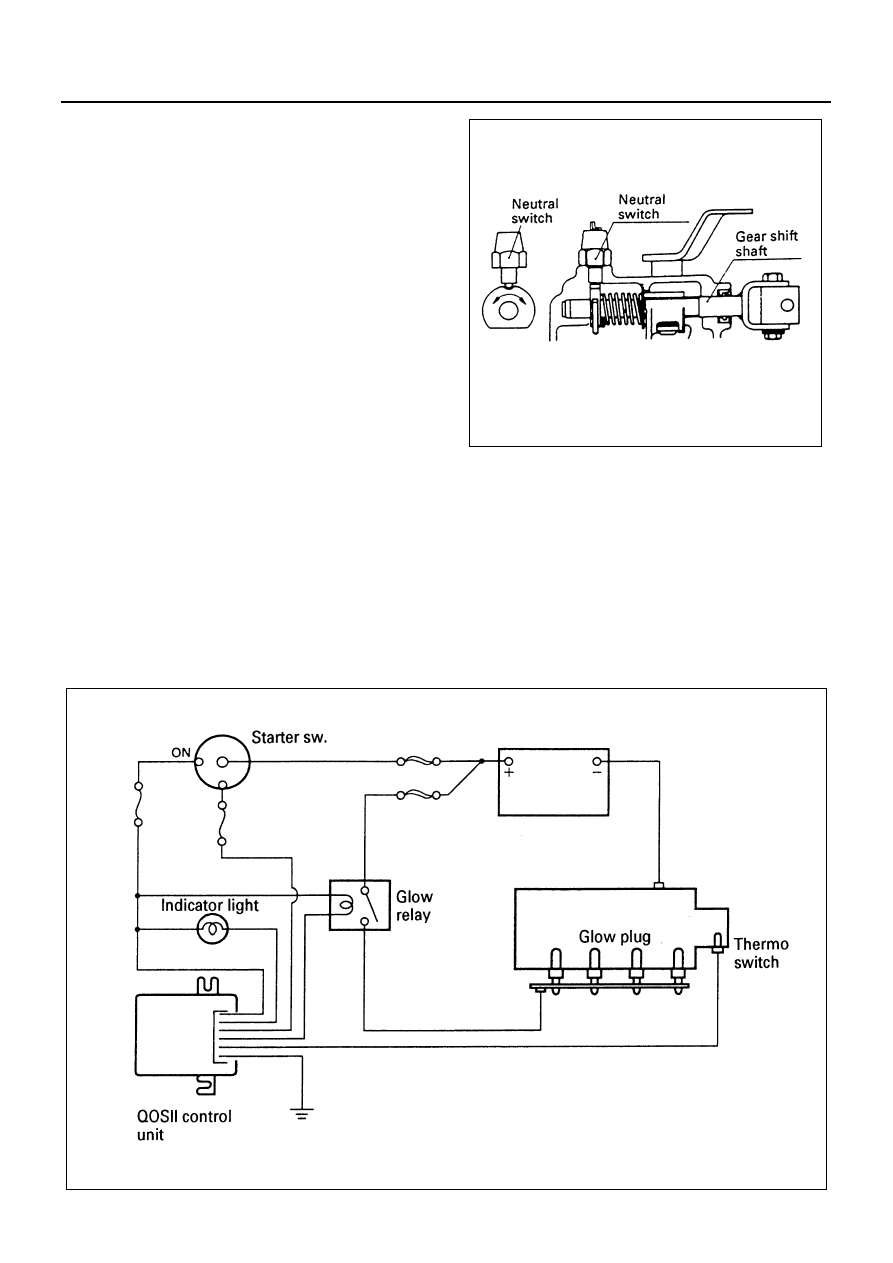

System Circuit

N8A5071E

N8A5072E

CAB AND CHASSIS ELECTRICAL 8-67

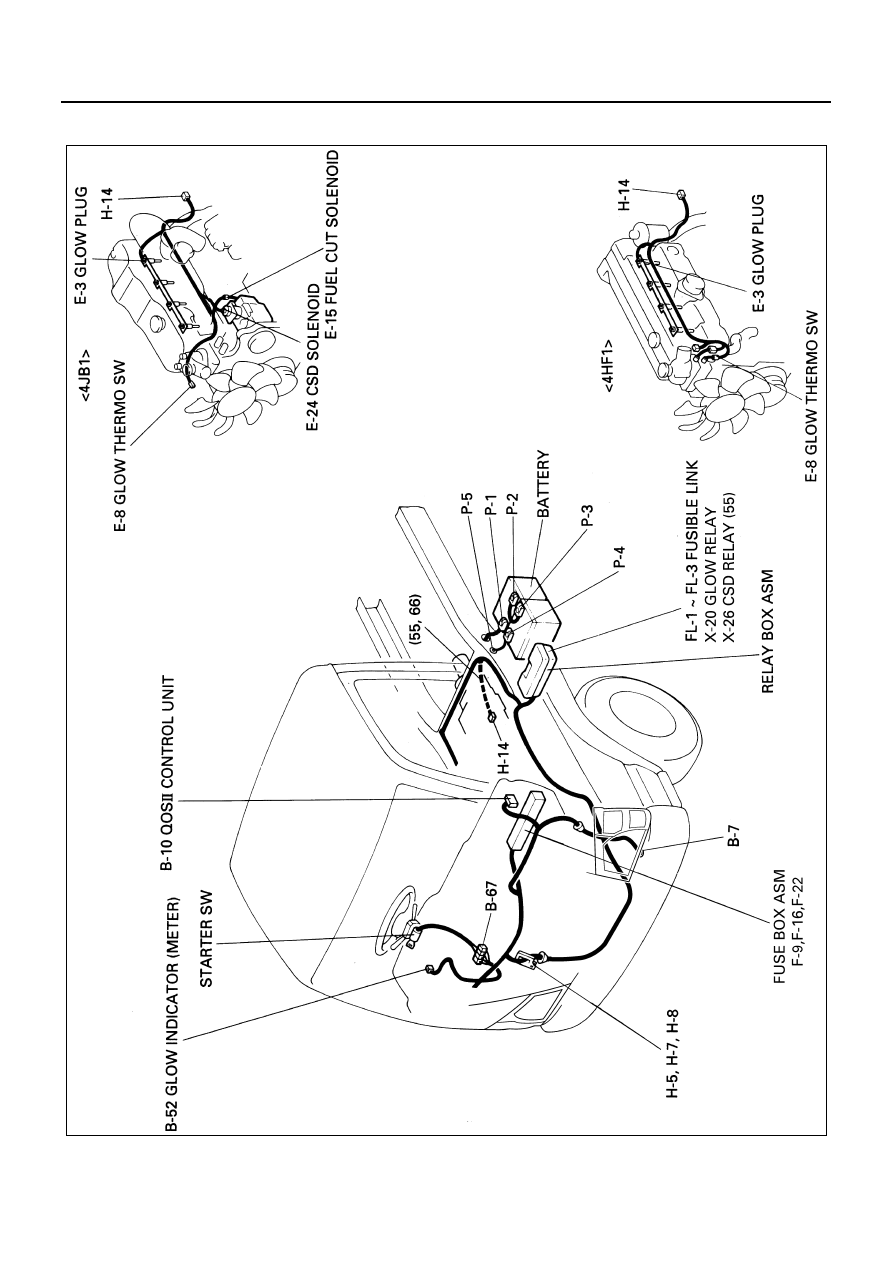

Parts Location

N8A5073E
