CAB AND CHASSIS ELECTRICAL 8-309

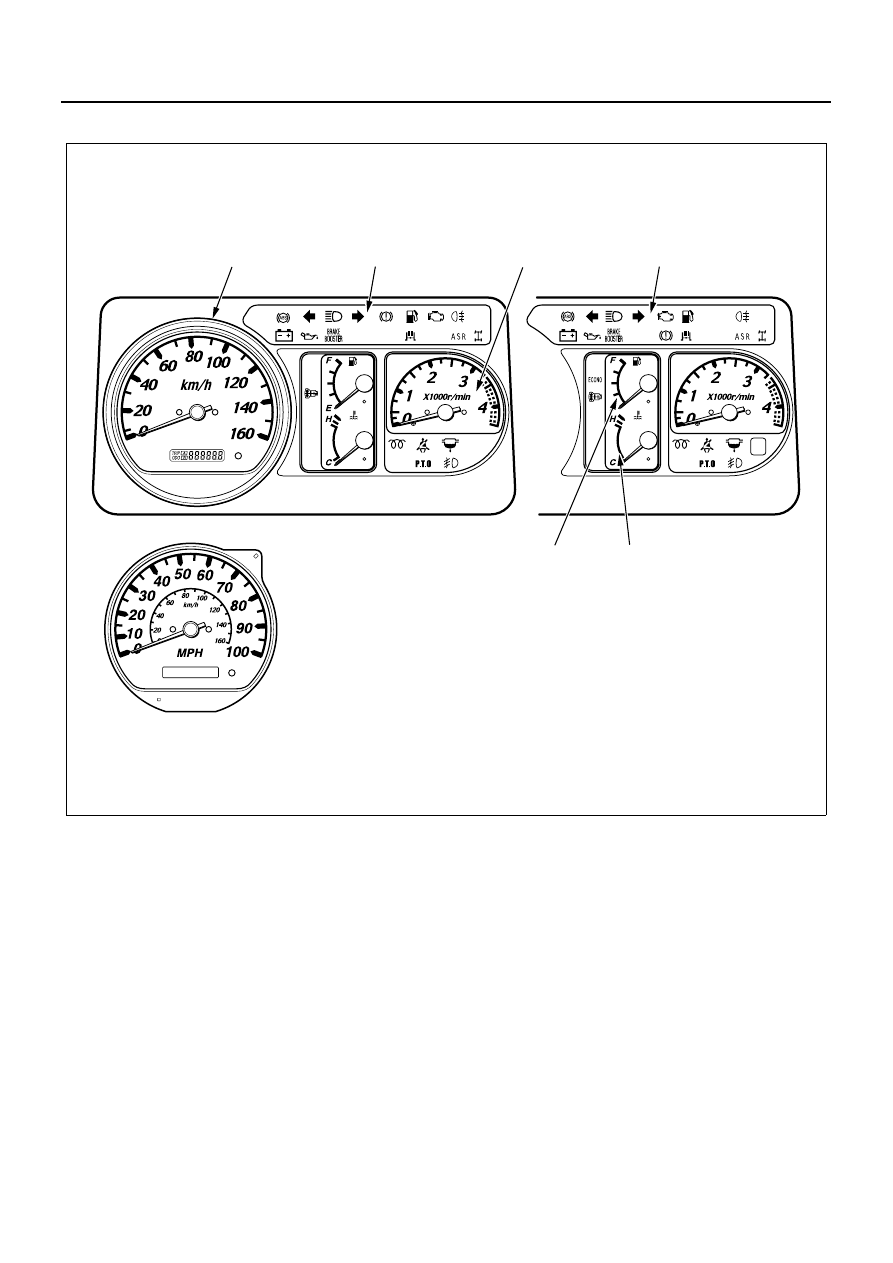

For 4HK1-TC

Without Smoother

Smoother

Fuel gauge

Coolant temperature gauge

Speedometer

Tachometer

Warning lens

Warning lens

1ST

START

N8A0480E

8-310 CAB AND CHASSIS ELECTRICAL

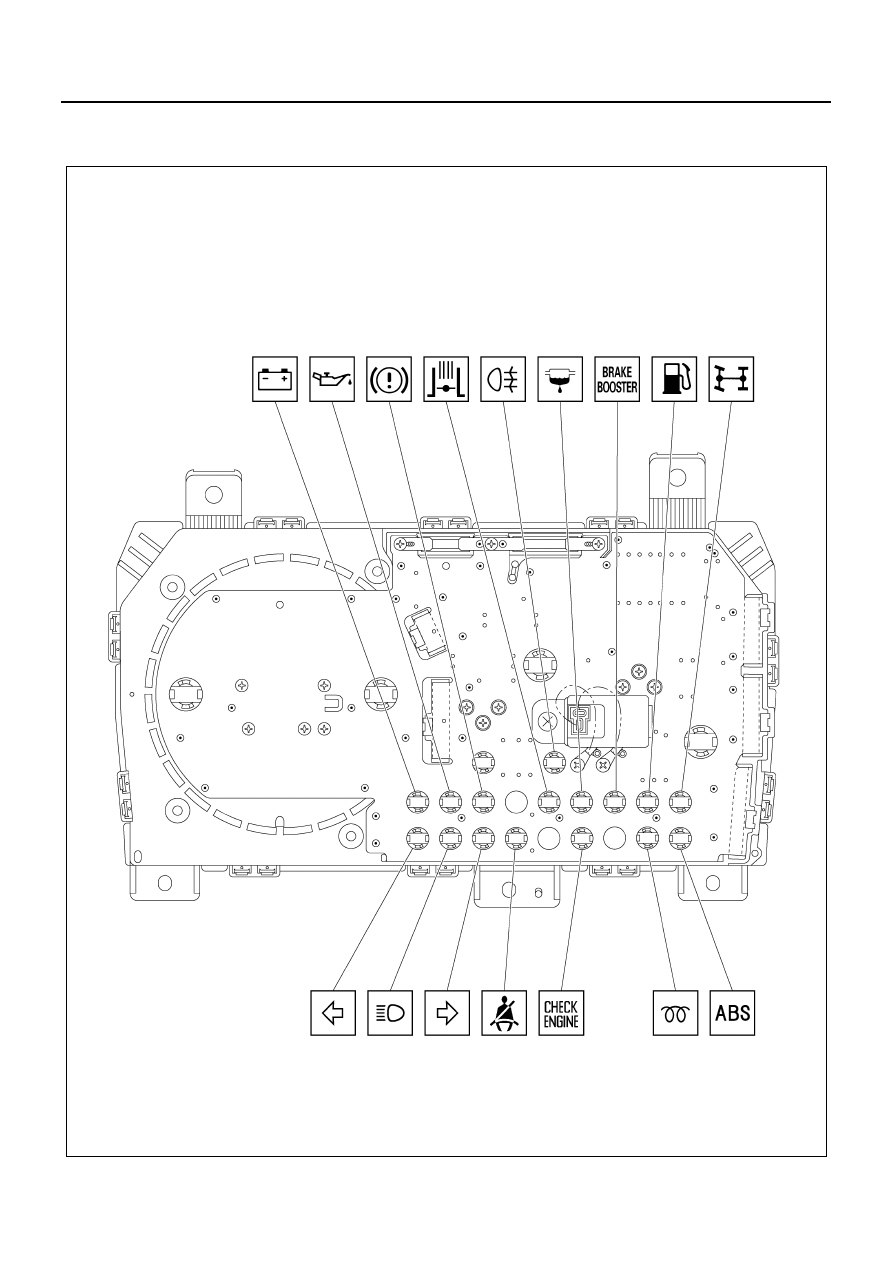

Bulb Location for Warning Lens

Except 4HK1-TC

N8A0481E

CAB AND CHASSIS ELECTRICAL 8-311

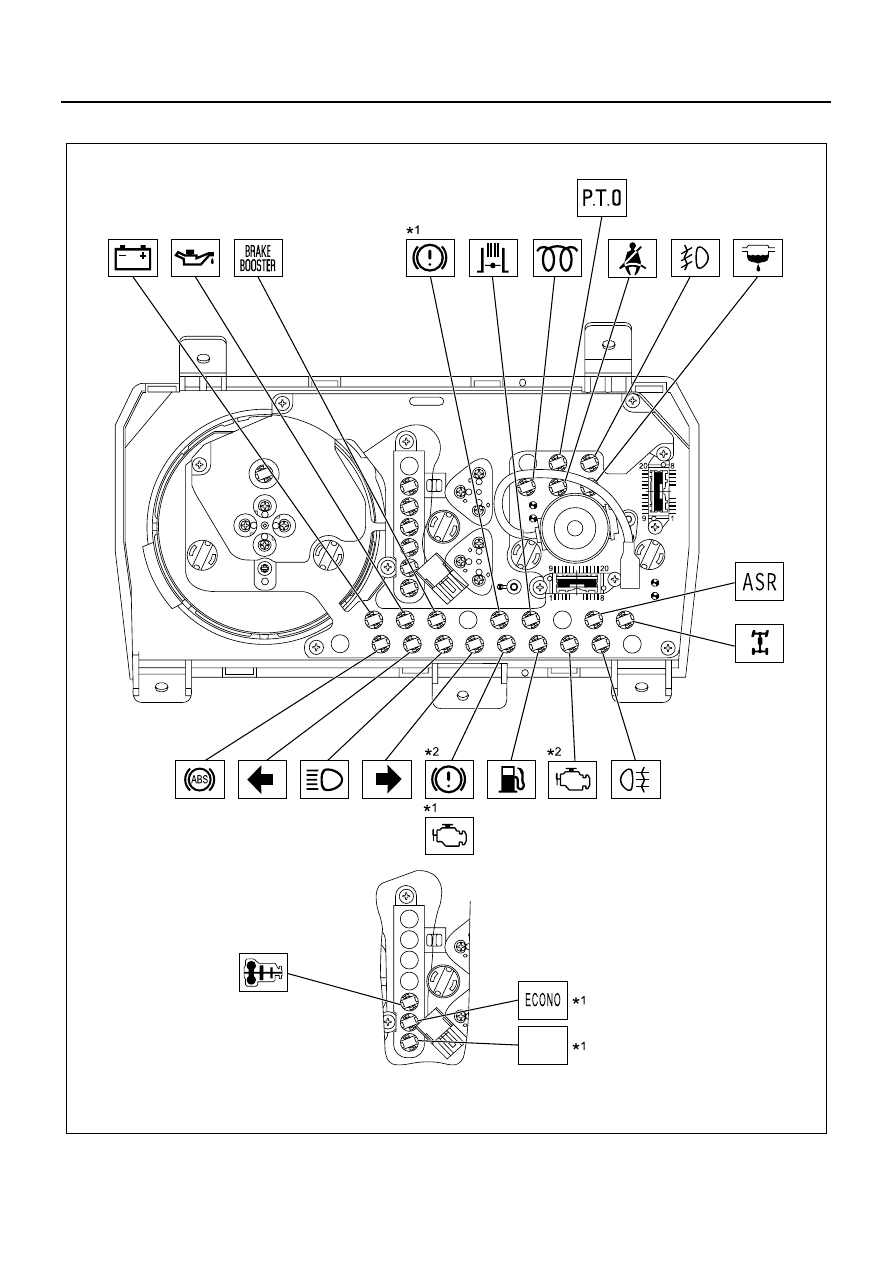

For 4HK1-TC

*

1 : Smoother

*

2 : Without Smoother

1ST

START

N8A0482E

8-312 CAB AND CHASSIS ELECTRICAL

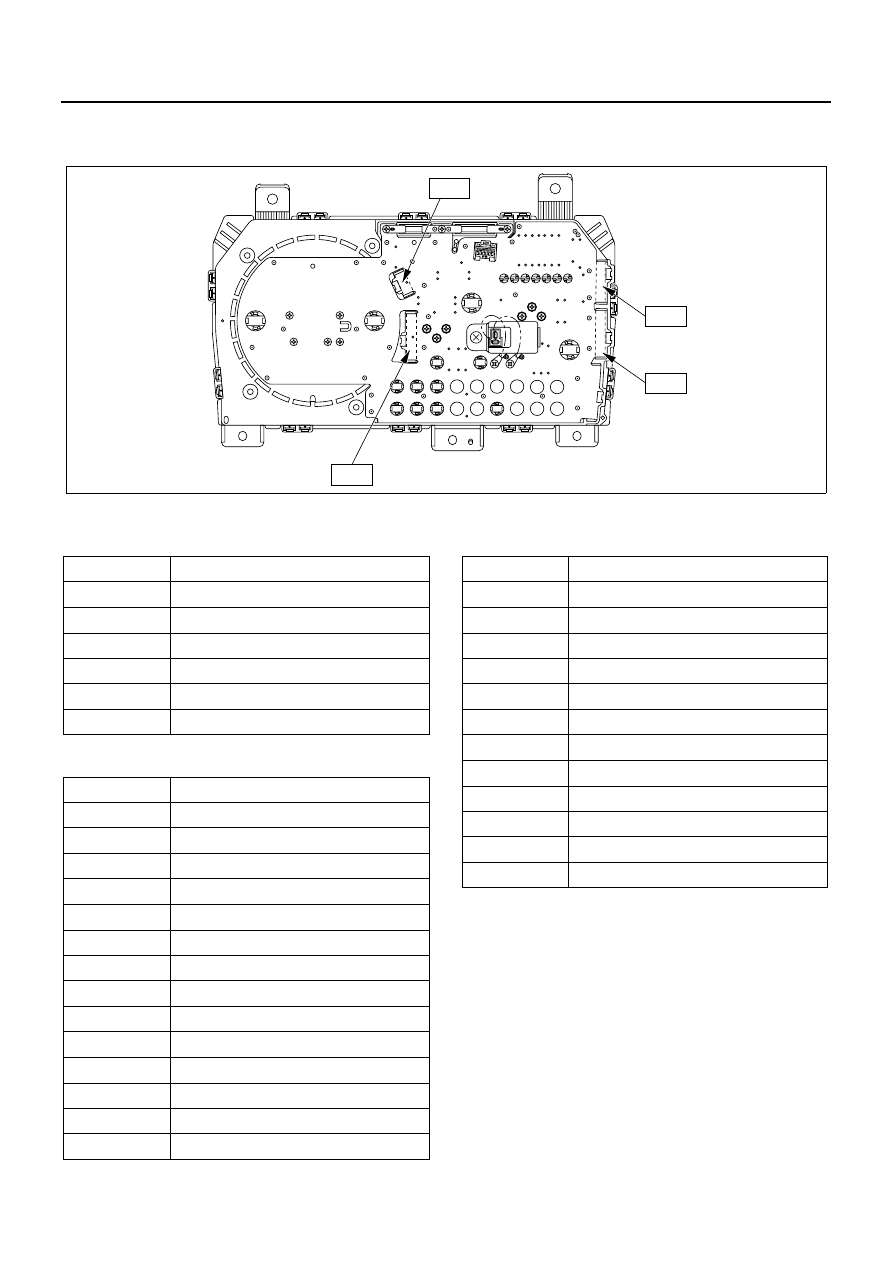

Table for Meter Connector Terminal Connections

Except 4HK1-TC

B-336

B-51

B-55

ECT - Engine Coolant Temperature

B-55

B-52

B-51

B-336

N8A0483E

Terminal No.

Connected to

1

IGN  (+)

2

—

3

Speed pulse input

4

—

5

Ground

6

Illumination (+)

Terminal No.

Connected to

1

Exh.  Brake

2

Exh. Brake / Seat belt (GCC)

3

—

4

Check engine

5

PTO

6

Glow

7

ABS

8

IGN  (+)

9

4WD

10

Fuel low

11

Vacuum / Booster

12

Sedimenter

13

Low coolant

14

Brake

Terminal No.

Connected to

1

Speed pulse input

2

—

3

Power output (sensor)

4

ECT unit (GAUGE)

5

Fuel tank unit (GAUGE)

6

—

7

Ground

8

Turn signal (LH)

9

—

10

Beam (+)

11

Turn signal (RH)

12

—
