Isuzu N-Series. Manual - part 1019

CAB AND CHASSIS ELECTRICAL 8-181

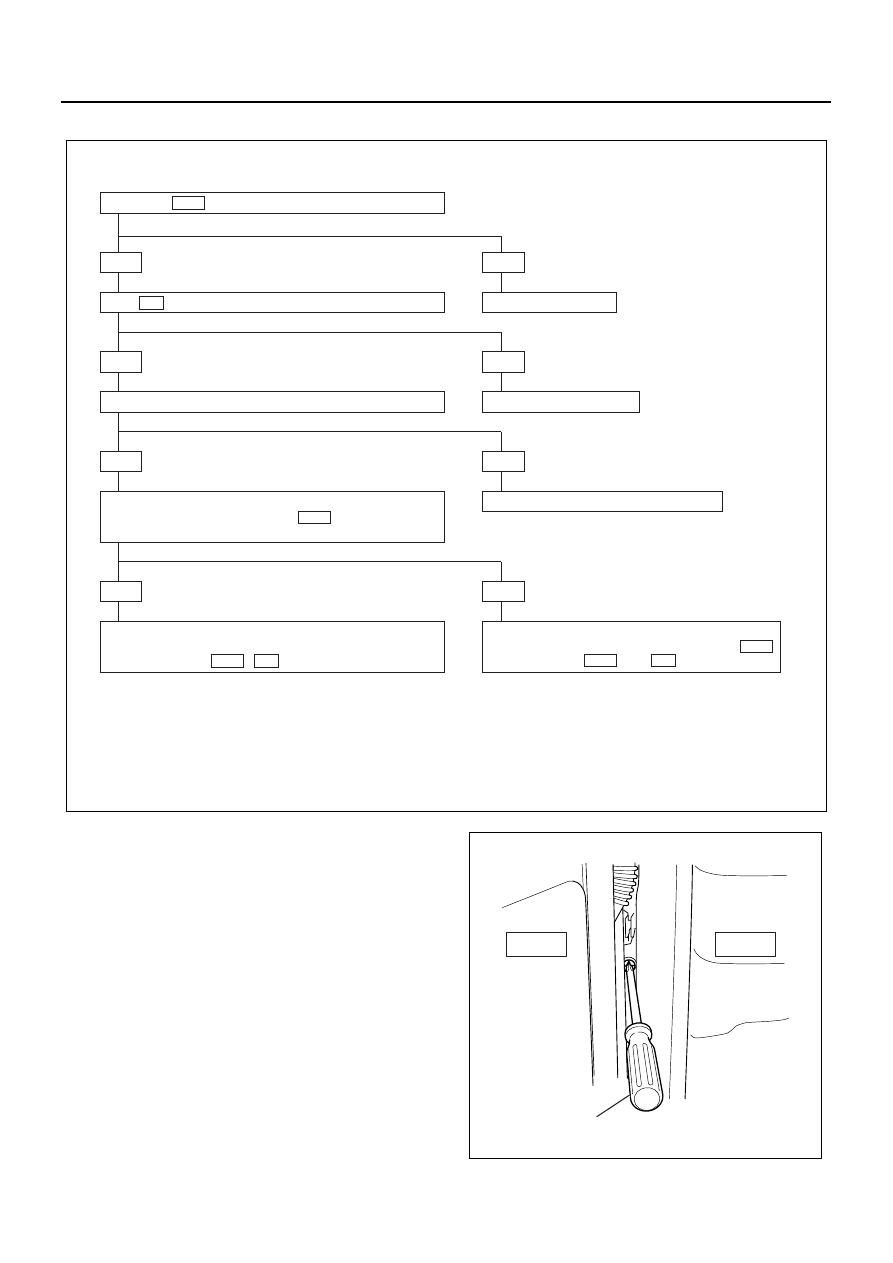

6. Marker Light Inoperative

Lighting Switch

Refer to “HEADLIGHT, FOG LIGHT AND CORNERING
LIGHT” in this section.

Clearance Light/Bulb

Removal

1. Remove the battery ground cable at the battery.
2. Remove the front combination light.

• Open the cab door. Insert a screwdriver (1) into

the space between the cab and the cab door.
Use the screwdriver to force out the stud pin at
the center of the grommet (the pin securing the
front combination light).

• Remove the fixing screw.

• IS FUSE F-25 (15A) NORMAL?

• IS J-9 SECURELY GROUNDED?

YES

REPLACE THE FUSE

• IS MARKER LIGHT RELAY NORMAL?

YES

GROUND IT SECURELY

• IS THERE BATTERY VOLTAGE APPLIED TO THE

MARKER LIGHT CONNECTOR J-24 WHEN TURNING
THE LIGHTING SWITCH ON?

YES

REPLACE THE MARKER LIGHT RELAY

• REPAIR A POOR CONNECTION AT THE CONNECTORS

OR AN OPEN CIRCUIT BETWEEN THE MARKER LIGHT
CONNECTORS J-25 - J-9

YES

REPAIR A POOR CONNECTION AT THE
CONNECTORS OR AN OPEN CIRCUIT OF 2 X-22
OR BETWEEN 5 X-22 AND J-9

N8A0165E

Door side

Cab side

N8A5471E

8-182 CAB AND CHASSIS ELECTRICAL

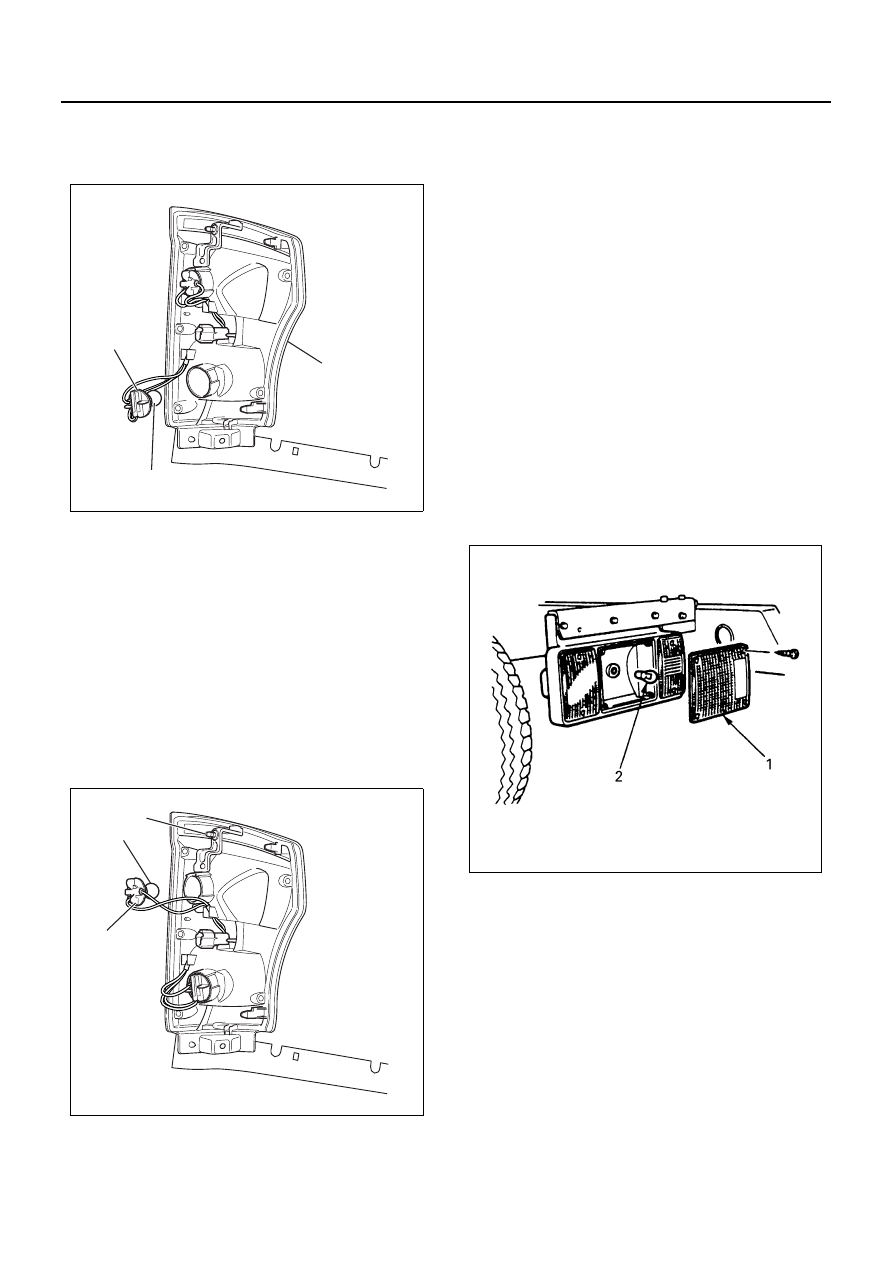

• Remove the two catches.
• Remove the front combination light (1) connec-

tor.

3. Remove the clearance light bulb.

• Turn the bulb socket (3) to the left to remove it.
• Press the bulb (2) in and turn it to the left to re-

move it from the socket.

Installation
Installation procedure of cornering/clearance light bulb

1. Install the cornering/clearance light bulb.

• While pressing the bulb (2), turn it clockwise to

fit.

Notice:
Do not let the glass portion dirty with sebum etc.

• Turn the bulb socket (3) clockwise to fit.

2. Installation procedure of front combination light as-

sembly

• Connect the connector of the combination light

assembly.

• Position it by aligning two pawls with the groove

of H/L.

• Fit the iron PIN (1) in the upper portion of the

side by aligning it with the center of correspond-
ing grommet.

Notice:
Push it into securely with a force of approx. 250 N (25
kgf) until click is heard.

• Pull the front combination light assembly lightly

toward the front of vehicle to make sure that the
PIN and grommet are engaged securely.

• Tighten one bolt in the lower portion of front

combination light assembly.

3. Hook the seal rubber on two projections under H/L.
4. Connect the battery ground cable.
5. Check lighting of each light.

Taillight Bulb

Removal

1. Lens
2. Bulb

Installation
To install, follow the removal steps in the reverse order.

N8A5477E

N8A0445E

N8A0167E

CAB AND CHASSIS ELECTRICAL 8-183

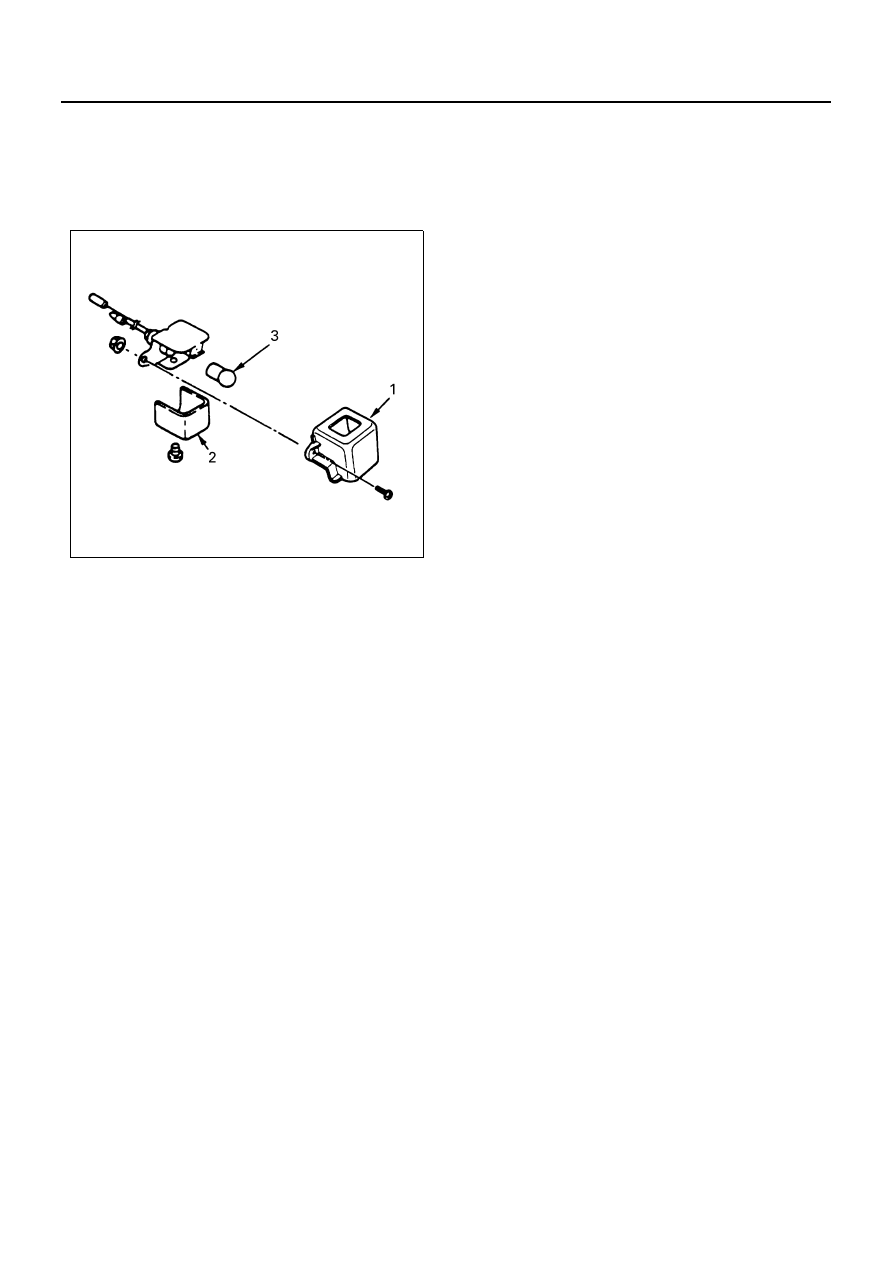

License Plate Light Bulb

Removal

1. Cover
2. Lens
3. Bulb

Installation
To install, follow the removal steps in the reverse order.

Turn Signal Light, Hazard Warning Light,
and Stoplight

General Description

The circuit consists of the starter switch, turn signal light
(front and rear), turn signal light switch, hazard warning
light, flasher unit, stoplight and stoplight switch.
When turning on the respective switches with the starter
switch on, the turn signal light will operate. When the
turn signal light is flashing, the indicator light in the meter
also starts flashing. When the hazard warning switch is
turned on, the current flows to the flasher unit through
the hazard warning switch to cause the hazard warning
light to flash, independent of the position of the starter
switch. At the same time, the indicator lights in the meter
also start flashing.
The stoplight switch will turn on and the light comes on
once the brake pedal is depressed, independent of the
position of the starter switch.

N8A0168E

8-184 CAB AND CHASSIS ELECTRICAL

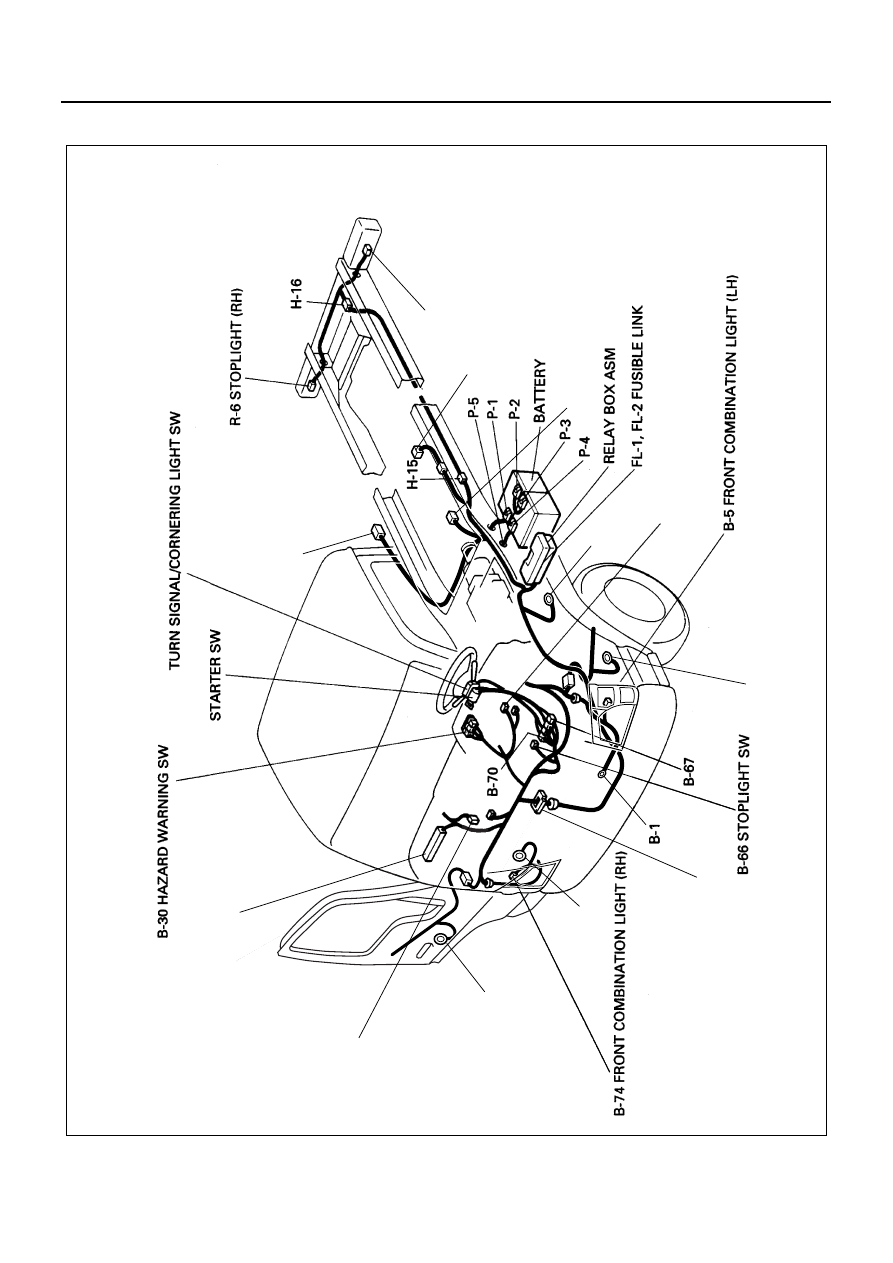

Parts Location

B-7

H5 - H7

H-22

SIDE

TURN

SIGNAL

LIGHT

(RH)

(FOR EC/TURKEY
