2-90 CAB AND FRAME

Installation

For installation, reverse the removal procedure taking
the following point into consideration.

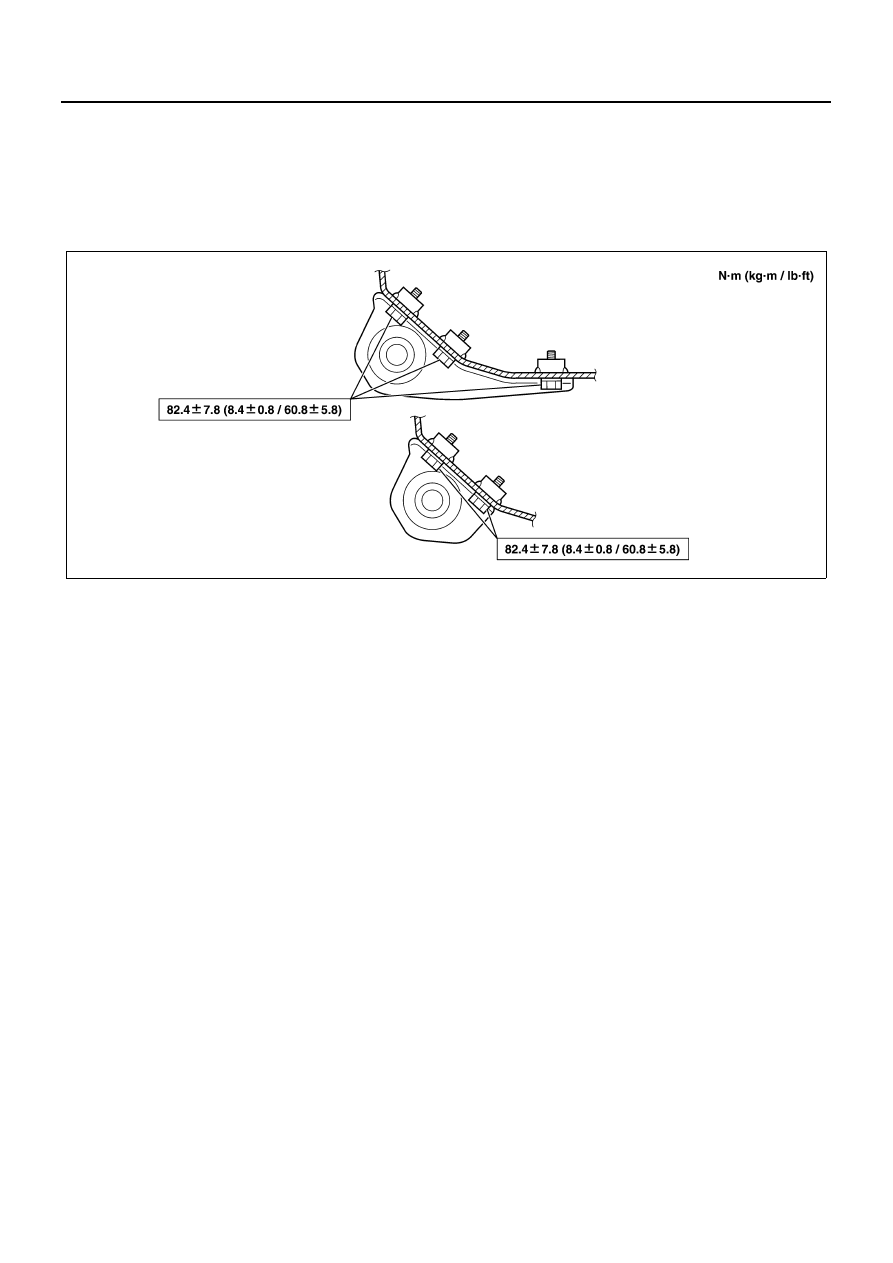

• Tighten the cab mounting bolt to the specified

torque.

Tighten:
82.4

±7.8 N⋅m (8.4±0.8 kg⋅m/60.8±5.8 lb⋅ft)

Fixing Torque

N2A0146E

CAB AND FRAME 2-91

BODY PANEL SEALING (SINGLE CAB MODEL)

This paragraph describes body panel sealing. The sealing procedure described in this text should be performed as
follows.

Purpose

1

Anti-rust

2

Air-water tightness

3

Sound insulation

External finish

A

Specially important

B

Important

C

Common

Sealing range

Vehicle model

N

Narrow cab

W

Wide cab

N2A0147E

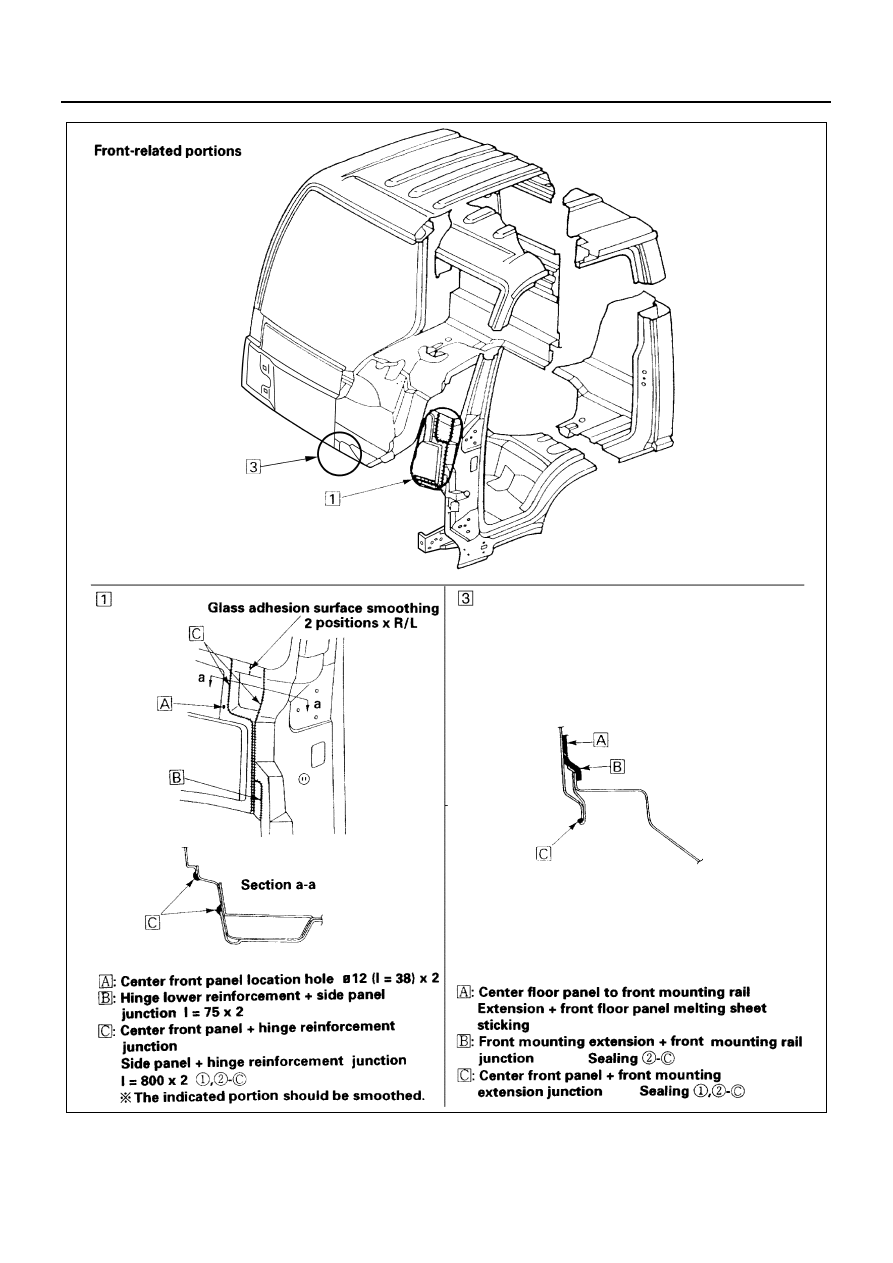

2-92 CAB AND FRAME

N2A0148E

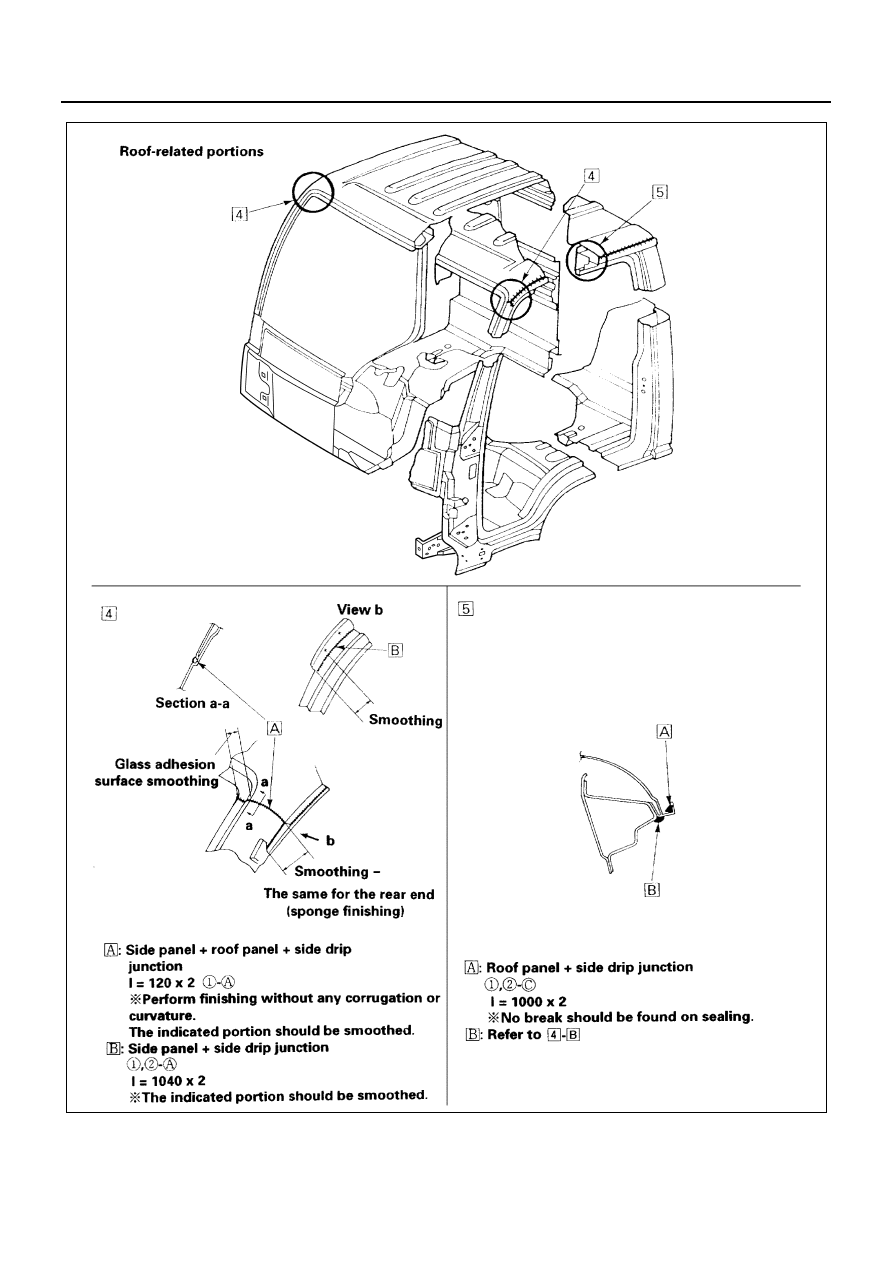

CAB AND FRAME 2-93

N2A0149E
