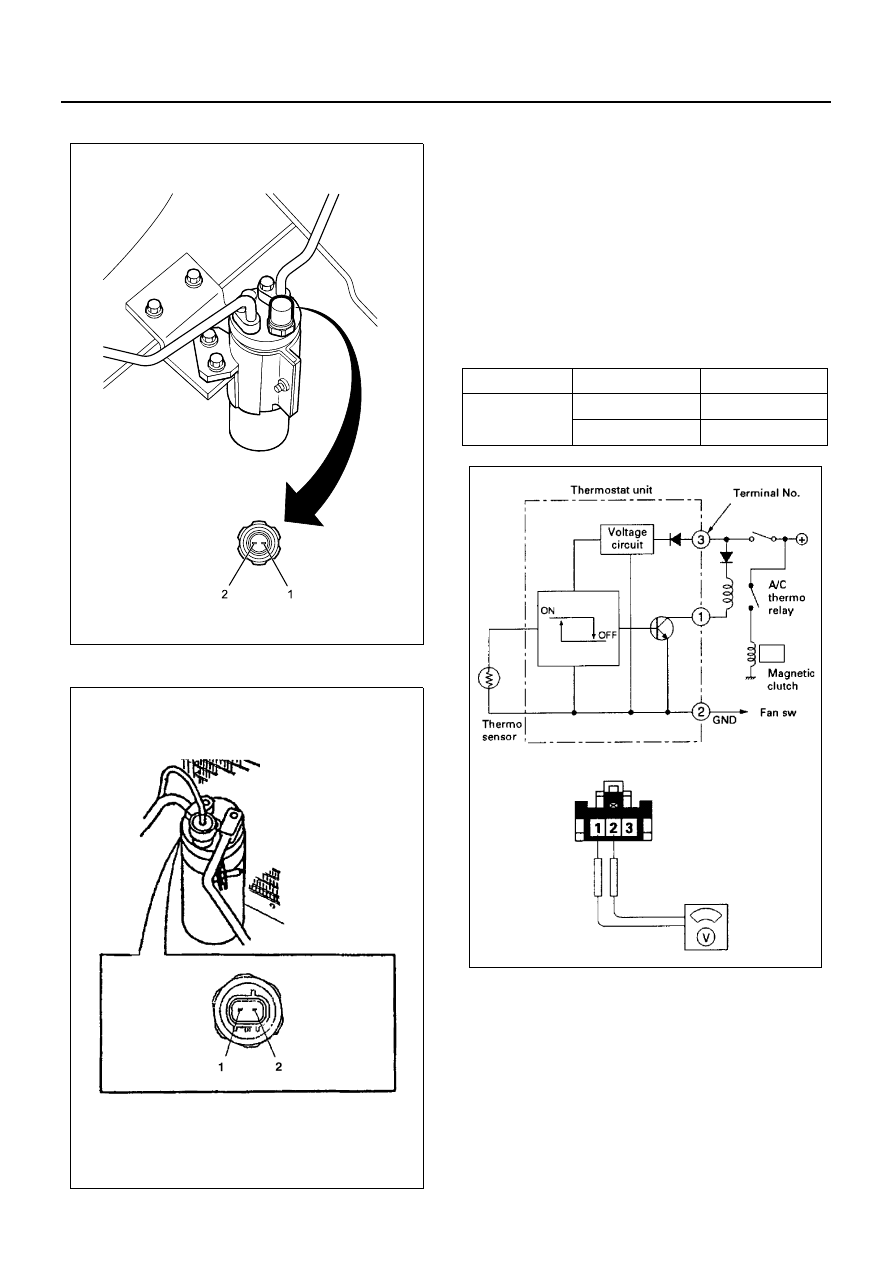

Electronic Thermostat

1. With the air select lever set to “VENT” and the air

source select lever to “CIRC”, start the air condi-
tioning.

2. While shifting the temperature control lever from

“FULL COOL” through the “FULL HOT”, check to
see if the magnetic clutch turns on and off.
(*Note that the time required to reach the “OFF”
point depends on the warm or cold air at 3.5

±

0.5

°C at the electronic thermostat thermo sensor).

3. While the magnetic clutch is turning “ON” and

“OFF”, measure the voltage between chassis side
connector terminal No. 1 and No. 2.

N1A0157E

N1A0012E

Terminal No.

Magnetic CIutch

Voltage

1 — 2

ON

0 V

OFF

Battery voltage

N1A0013E

00-32 SERVICE INFORMATION

MAIN DATA AND SPECIFICATIONS

HEATER UNIT

Temperature control

Reheat mix system

Capacity

kW (kcal) 4.30 (3,700)

Air flow

(m

3

/hr) 280

HEATER CORE

Type

Fin & tube type

EVAPORATOR ASSEMBLY

Capacity

kW (kcal) 4.47 (3,850)

Air flow

(m

3

/hr) 420

EVAPORATOR CORE

Type

AI-laminate louver fin type

EXPANSION VALVE

Type

External pressure equalizer type

THERMOSTAT SWITCH

Type

Electronic thermostat

°C (°F) OFF: Below 3.5 ± 0.5 (38.3 ± 0.9)

ON: Above 5.0

± 0.5 (41.0 ± 0.9)

CONDENSER

Type Parallel

flow

Radiator performance

kW (kcal) 11.0 (9,500) - NPR, NKR (for GCC)

5.1 (4,400) - NKR (for Taiwan), NPR (for Australia)

RECEIVER/DRIER

Internal volume

cc (lmp. fl oz) 300 (8.5) - NKR (for Taiwan), NPR (for Australia)

250 (7.1) - NKR, NPR (for GCC)

PRESSURE SWITCH

Type

Dual pressure switch (for GCC and Taiwan)

kPa (kg/cm

2

 / PSI)

• Low pressure control (for GCC)

ON: 206

± 30 (2.1 ± 0.3 / 30 ± 4)

OFF: 177

± 25 (1.8 ± 0.2 / 26 ± 3)

• High pressure control (for GCC)

ON: 2350

± 200 (24.0 ± 2.0 / 341 ± 29)

OFF: 2940

± 200 (30.0 ± 2.0 / 426 ± 29)

• Low pressure control (for Taiwan)

ON: 221

± 20 (2.25 ± 0.2 / 32 ± 3)

OFF: 196

± 20 (2.0 ± 0.2 / 28 ± 3)

• High pressure control (for Taiwan)

ON: 2350

± 200 (24.0 ± 2.0 / 341 ± 29)

OFF: 2940

± 200 (30.0 ± 2.0 / 426 ± 29)

SERVICE INFORMATION 00-33

Triple pressure switch (for Australia)

• Low pressure control

ON: 206

± 30 (2.1 ± 0.3 / 30 ± 4)

OFF: 177

± 25 (1.8 ± 0.2 / 26 ± 3)

• Medium pressure control

ON: 1470

± 100 (15 ± 1.0 / 213 ± 14)

OFF: 1079

± 120 (11 ± 1.2 / 156 ± 17)

• High pressure control

ON: 2350

± 200 (24.0 ± 2.0 / 341 ± 29)

OFF: 2940

± 200 (30.0 ± 2.0 / 426 ± 29)

REFRIGERANT

g (lbs) R-134a / 450 (0.99) (for GCC)

Type/Specified amount

R-134a / 600 (1.32) (for Australia, Taiwan)

COMPRESSOR

Model

DKS-15-D (except Taiwan)
DKS-13CH (for Taiwan)

Swash plate type (except Taiwan)

Number of cylinder

10

Bore

mm (in) 30.5 (1.2)

Stroke

mm (in) 21.4 (0.8)

Displacement

cc (lmp fl oz) 156 (4.4)

Swash plate type (for Taiwan)

Number of cylinder

6

Bore mm

(in) 36

(1.42)

Stroke

mm (in) 21.4 (0.84)

Displacement

cc (lmp fl oz) 131 (3.7)

Maximum speed

(rpm) 7,000 (up to 8,400)

Direction of rotation

Clockwise (Front-side view)

Lubrication system

Pressure differential type

Lubricant

cc (lmp fl oz) ZXL-100PG / 180 (5.0)

(ISUZU PART NO. 8-97101-338-0)

Shaft seal

Lip type

Weight

kg (lbs) 4.4 (9.7) (except Taiwan)

4.1 (9.0) (for Taiwan)

MAGNETIC CLUTCH

Type

Electromagnetic single-plate dry clutch

Rated voltage

12 (24) Volts D.C.

Starting torque

N

⋅m (kg⋅m / lb⋅ft) 49 (5.0 / 36)

Direction of rotation

Clockwise (Front-side view)

Weight

kg (lbs) 2.1 (4.6)

00-34 SERVICE INFORMATION

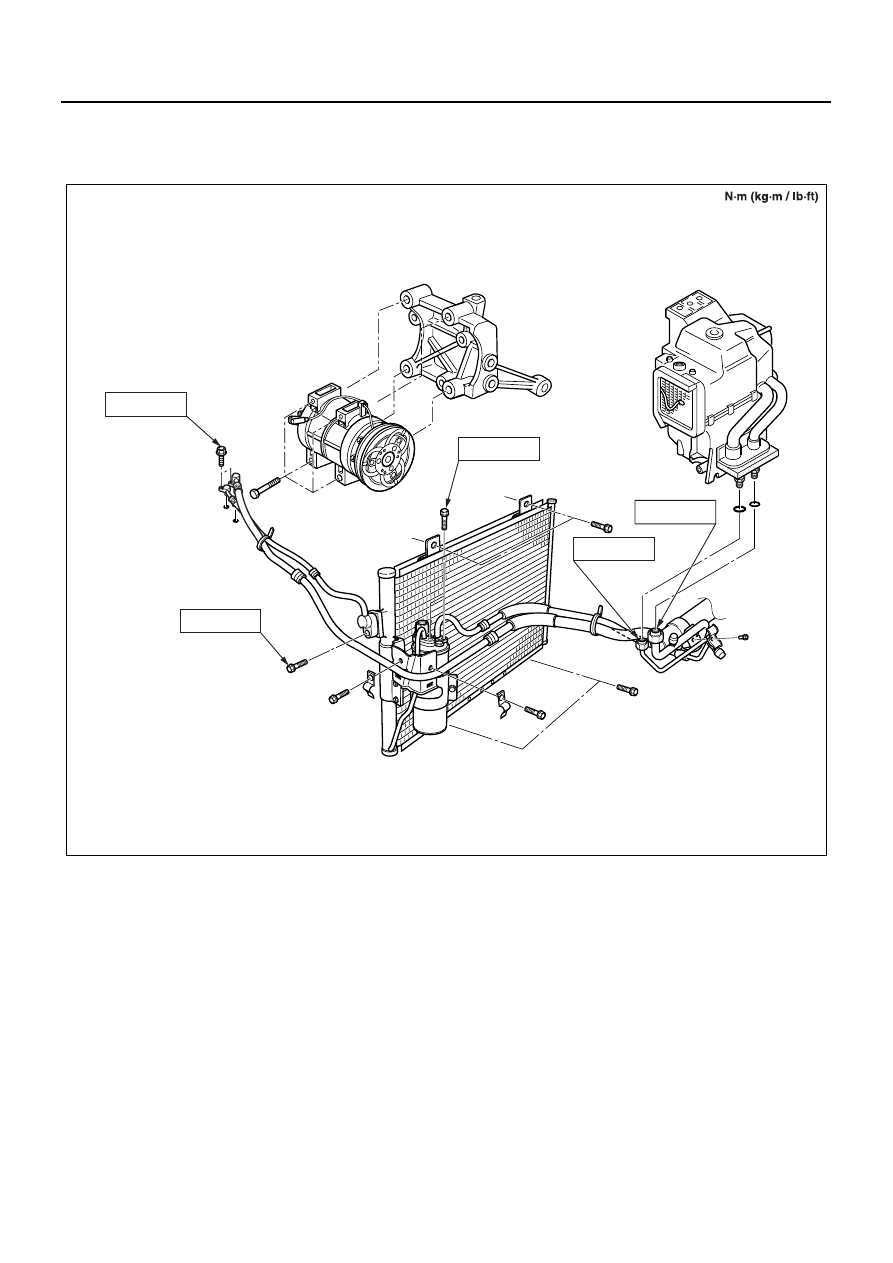

FIXING TORQUE

Refrigerant Line Fixing Torque (Except 4HK1-TC Engine Model For Australia)

15 (1.5/11)

15 (1.5/11)

6 (0.6/4)

15 (1.5/11)

25 (2.5/18)

N1A0014E
