8J–28

EXTERIOR/INTERIOR TRIM

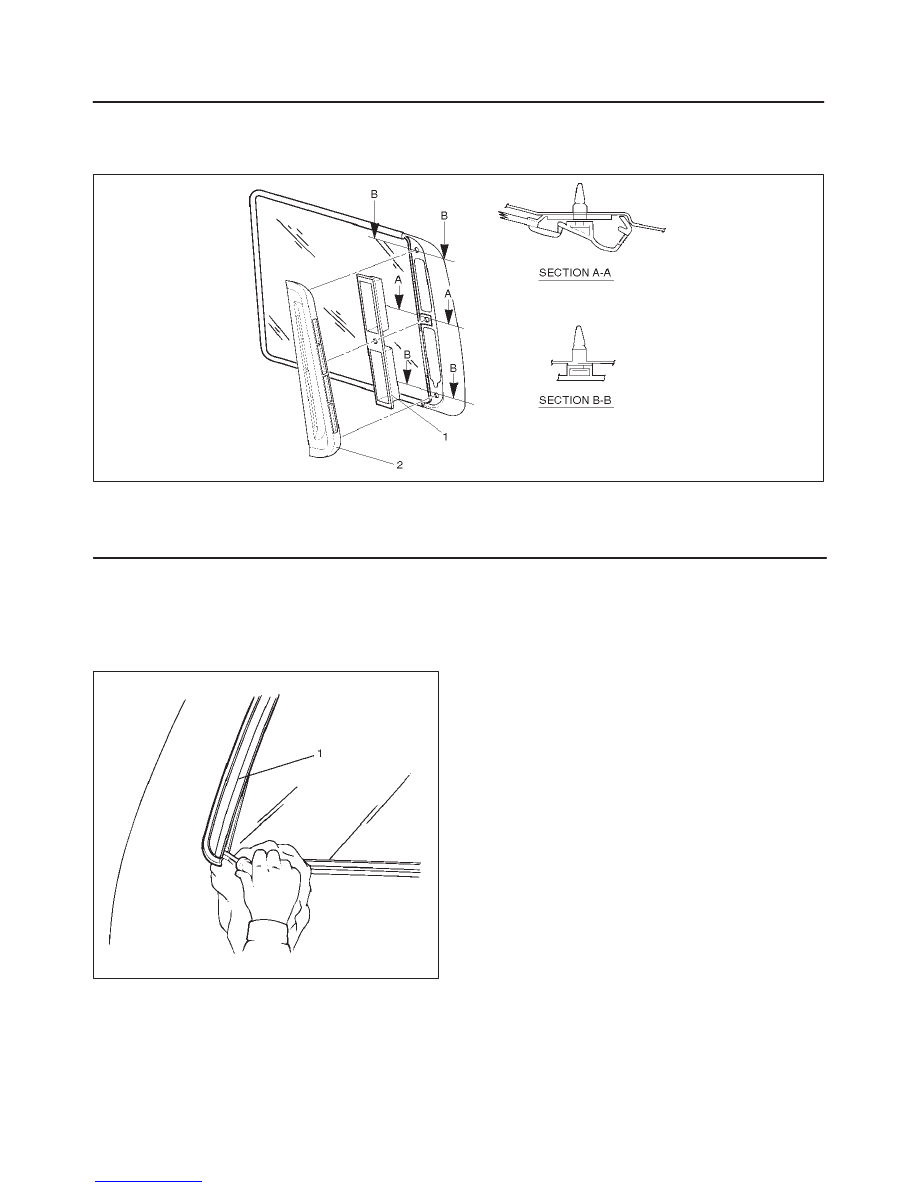

Ventilation Assembly

Ventilation Assembly and Associated Parts

641RS001

Legend

(1) Outlet Valve Assembly
(2) Ventilation Assembly

Removal

1. Remove the ventilation assembly(1).

D

Pry the ventilation assembly retainers free from the
body panel.

641RS002

2. Remove the outlet valve assembly.

Installation

1. Install the outlet valve assembly.

D

Insert the upper and lower catches of the outlet
valve into the body panel flange and fix them
securely.

2. Install the ventilation assembly.

D

Fix the clips to the body panel securely so that the
ventilation assembly will not come off the body
panel.

EXTERIOR/INTERIOR TRIM

8J–29

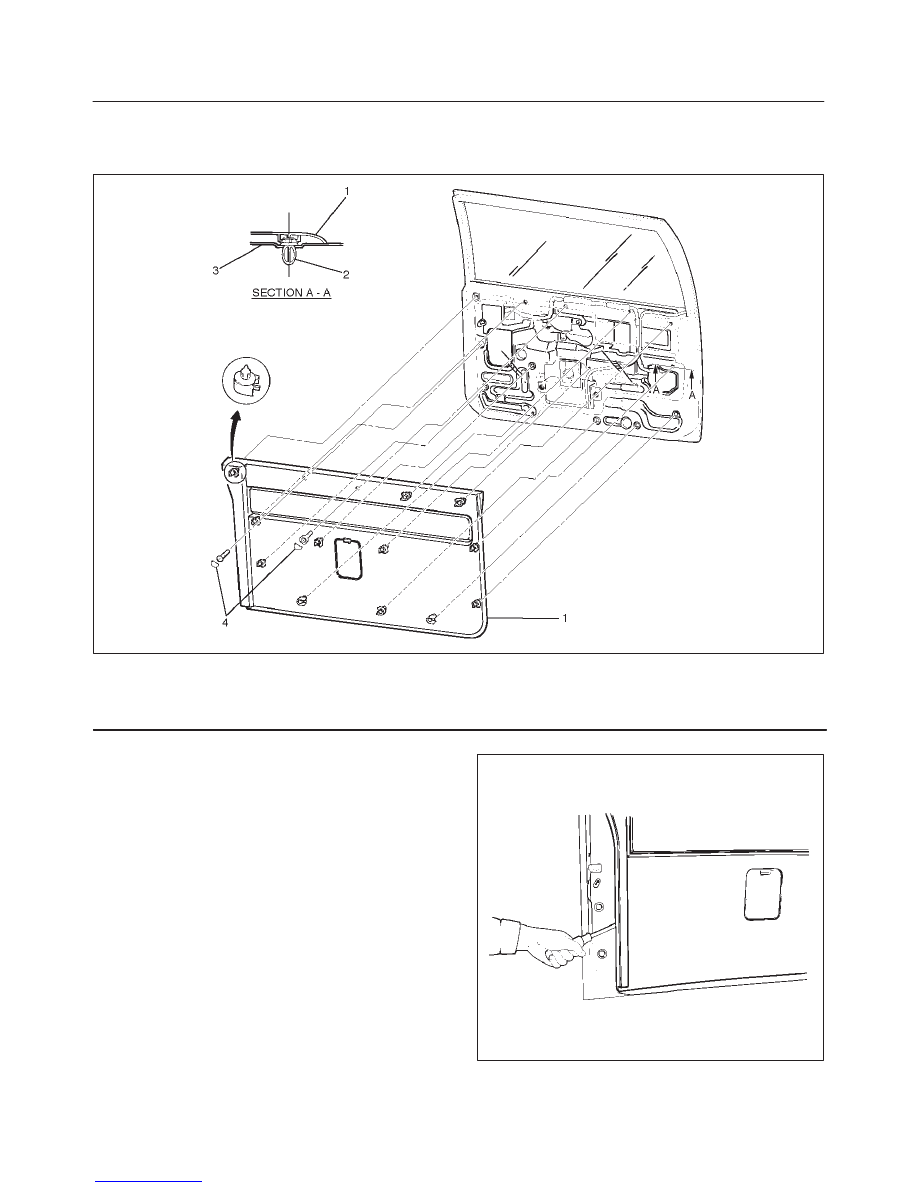

Tailgate Trim Panel (LH)

Tailgate Trim Panel (LH) and Associated Parts

683RS002

Legend

(1) Tailgate Trim Panel (LH)
(2) Clip

(3) Tailgate Panel
(4) Cap and Screw

Removal

1. Disconnect the battery ground cable.
2. Remove the cap and screw.
3. Remove the tailgate trim panel (LH).

D

Pry the trim panel retainers free from the tailgate
panel.

684RS001

Installation

To install, follow the removal steps in the reverse order.

8J–30

EXTERIOR/INTERIOR TRIM

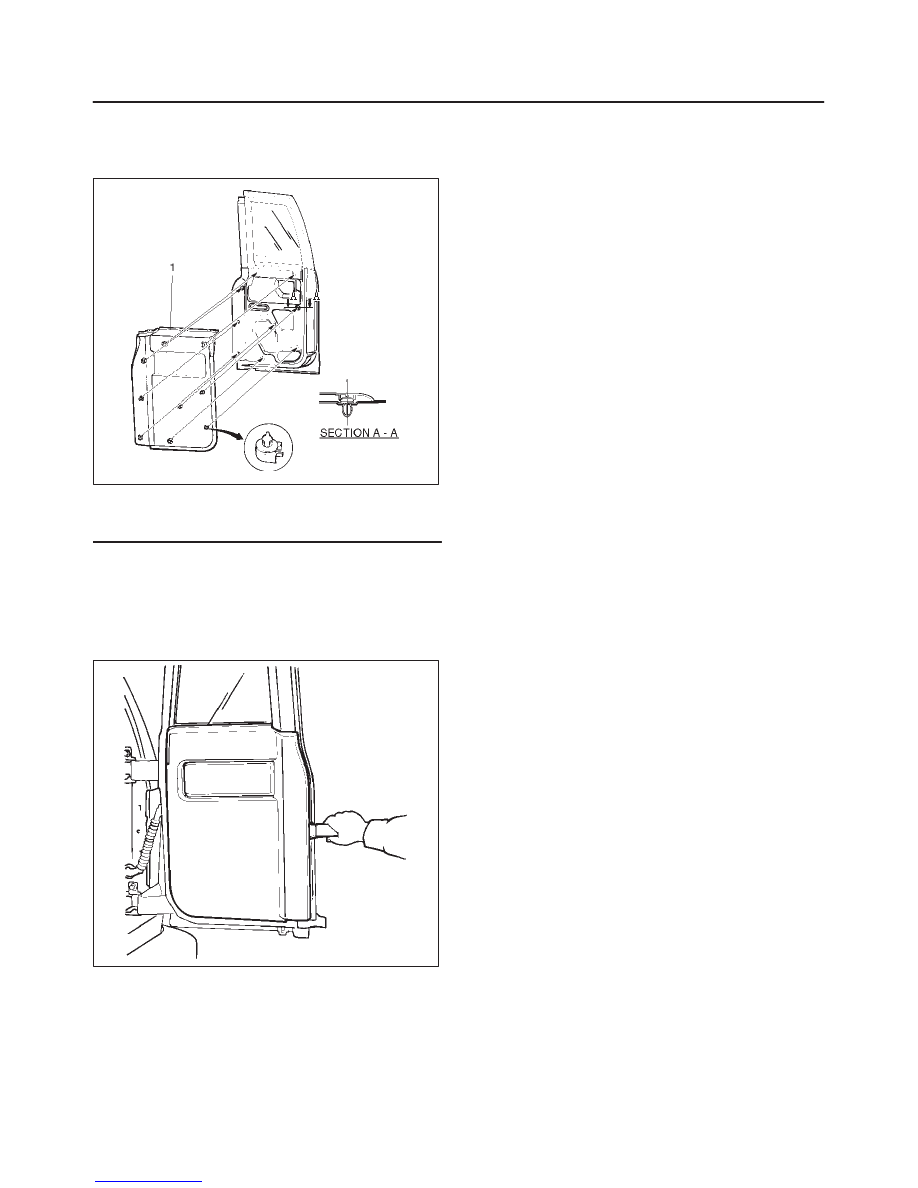

Tailgate Trim Panel (RH)

Parts Location

684RS002

Legend

(1) Tailgate Trim Panel

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (RH).

D

Pry trim panel retainer free from the tailgate panel.

684RS003

Installation

1. Install the trim panel (RH).

D

Insert the retainer of the trim panel into the tailgate
panel and fix it securely.

EXTERIOR/INTERIOR TRIM

8J–31

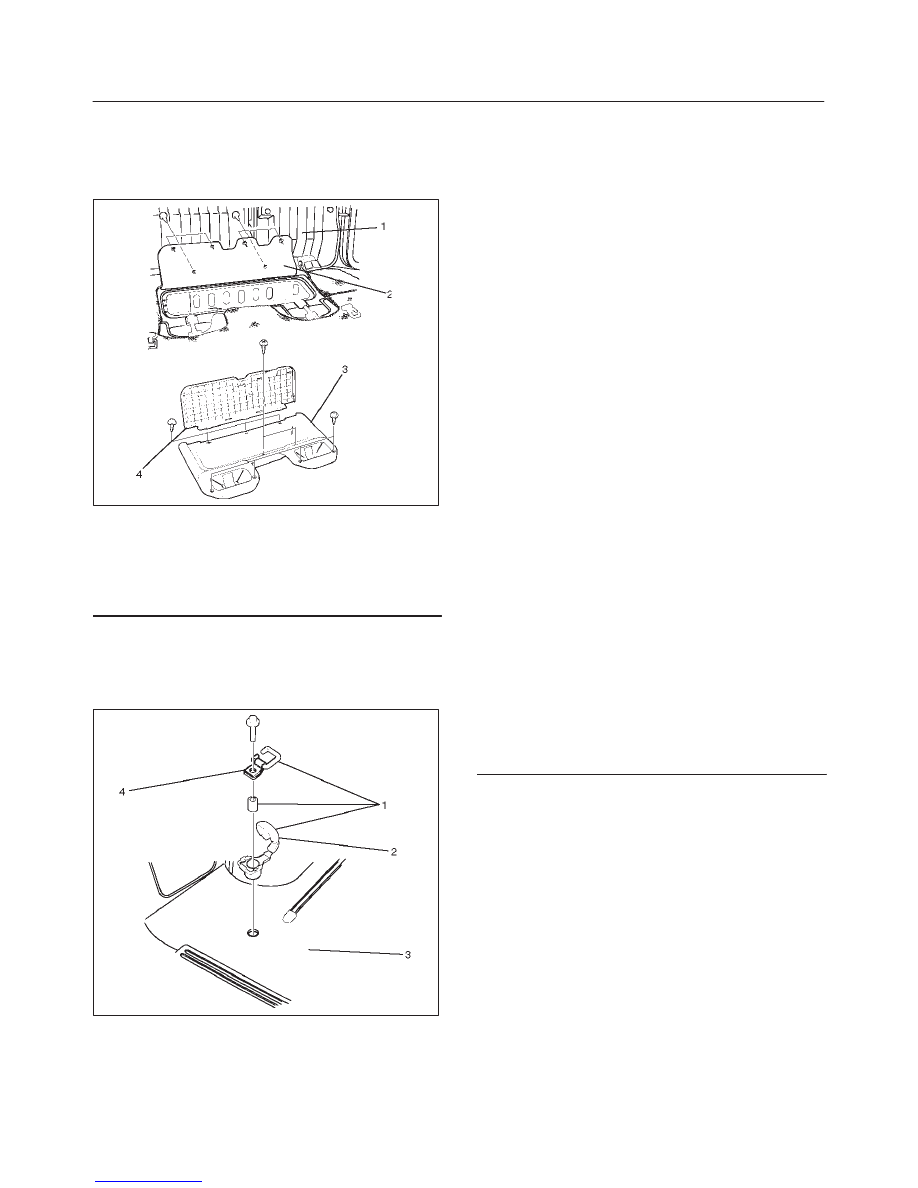

Luggage Floor Box

Luggage Floor Box and Associated
Parts

643RS006

Legend

(1) Rear Seat
(2) Floor Carpet
(3) Luggage Floor Box
(4) Luggage Floor Box Cover

Remove

1. Fold the rear seat assembly to the front direction.
2. Remove the luggage floor box cover.

D

Remove the clips which connect the floor carpet
and the luggage floor box cover.

3. Remove the luggage floor box.

Installation

To install, follow the removal steps in the reverse order.

Rope Hook Set

Rope Hook Set and Associated Parts

676RS003

Legend

(1) Rope Hook Set
(2) Cover
(3) Luggage Floor Carpet
(4) Hook

Removal

1. Remove the rope hook set.

D

Open the hook cover and hook fixing bolt.

Installation

1. Install the rope hook set.

D

Tighten the hook fixing bolt to the specified torque.

Torque: 13 N·m (113 lb in)
