8G–4

SEATS

Disassembly

1. Remove the head rest.
2. Remove the reclining knob.
3. Remove the dial(1) (W/height adjuster).

D

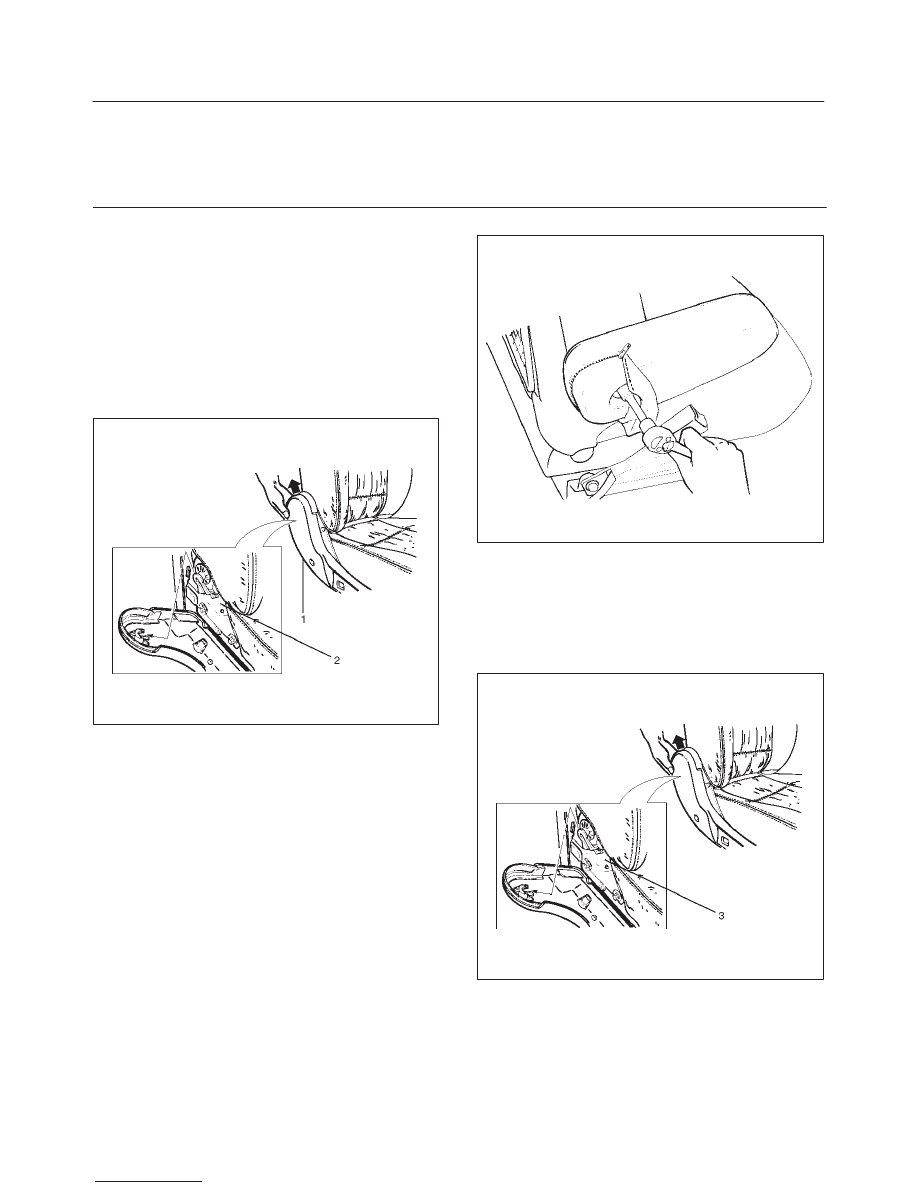

Remove the side cover fixing screws and the dial
lock spring(2).

750RW025

4. Remove the side cover.
5. Remove the armrest assembly.

D

Open the armrest fastener and remove the armrest
fixing bolt.

750RS004

6. Remove the trim cover.
7. Remove the pad and frame assembly.
8. Remove the hinge cover.
9. Remove the back board assembly(3).

D

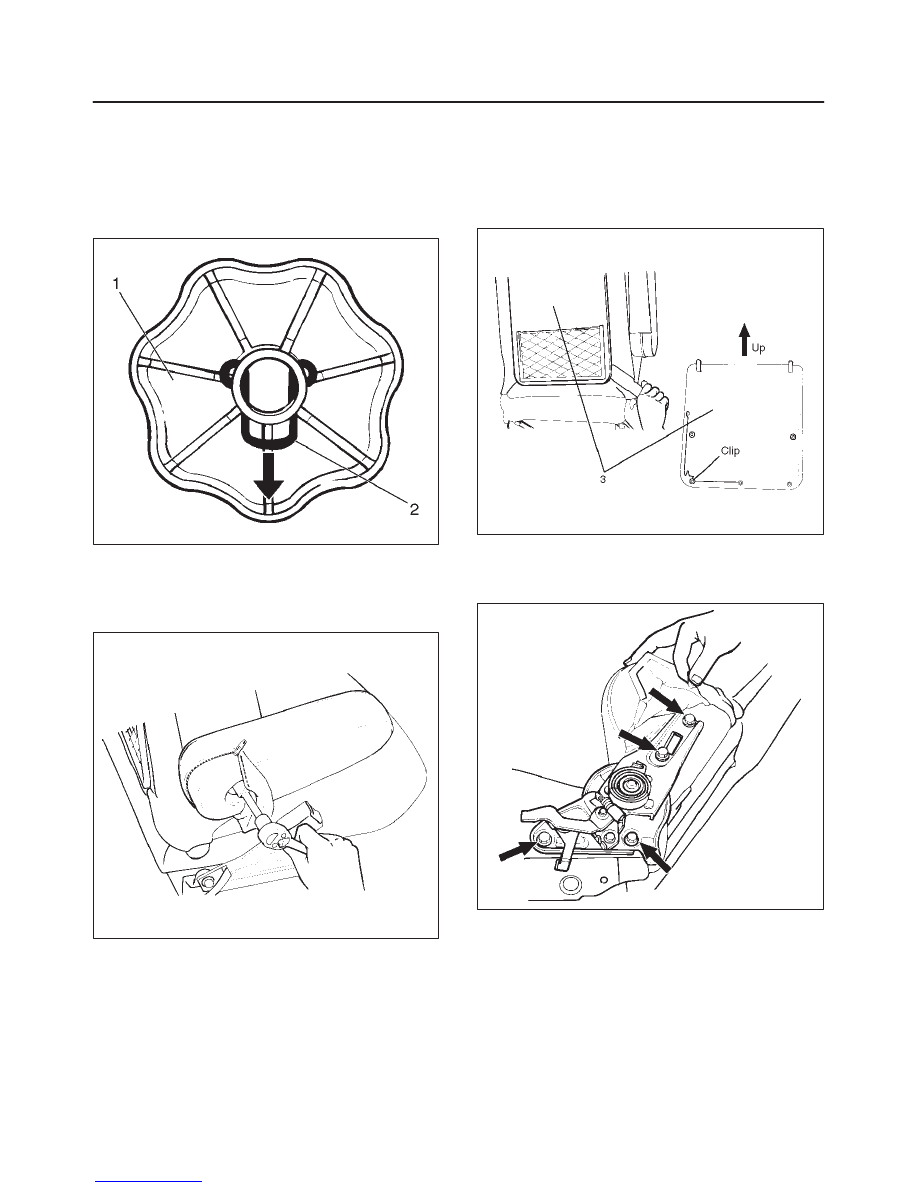

Pull out the back board while prying the clip of the
back board free from the seat back assembly.

750RS005

10. Remove the reclining device.

D

Turn up the seat back trim cover in order to remove
the reclining device fixing bolts.

750RS006

SEATS

8G–5

11. Remove the seat back assembly.

D

Remove the seat back assembly fixing nut on the
opposite side of the reclining device.

750RS007

12. Remove the guide holder.

D

Pull the guide holder out by holding the bottom end
of it from the seat back assembly.

13. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat back.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

14. Remove the pad and frame assembly.
15. Remove the seat adjuster.

D

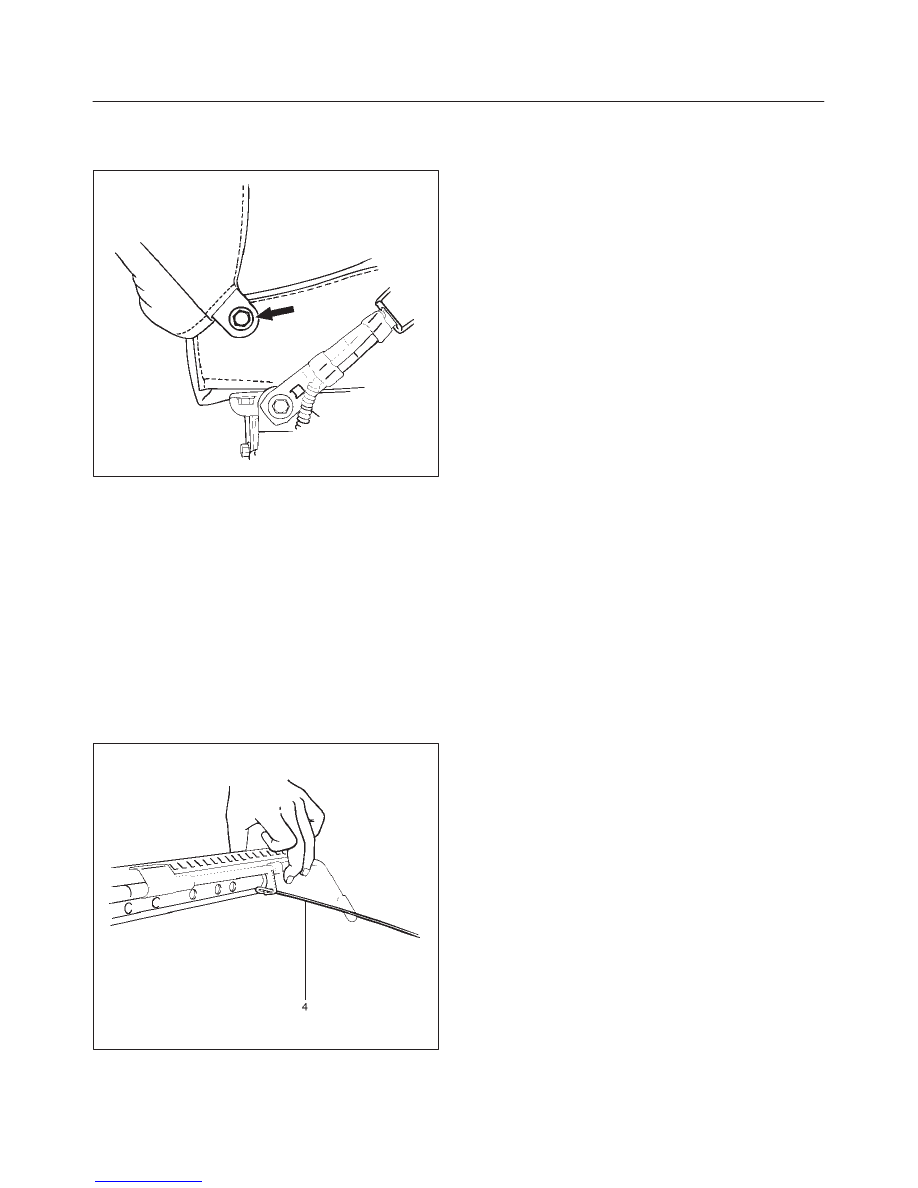

Disconnect the release wire(4) and remove the
fixing bolts.

750RW006

D

Remove the seat belt buckle assembly.

16. Remove the height adjuster.
17. Remove the spacer (W/O height adjuster).
18. Remove the seat cushion assembly.
19. Remove the trim cover.

D

Remove the trim cover hog rings from the back side
of the seat cushion assembly.

D

With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.

20. Remove the frame assembly.
21. Remove the pad assembly.

Reassembly

To reassembly, follow the disassembly steps in the
reverse order, noting the following points.

1. Tighten the armrest assembly fixing bolts to the

specified torque.

Torque: 18 N·m (13 lb ft)

2. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 47 N·m (35 lb ft)

8G–6

SEATS

Power Seat Assembly

General Description

The circuit consists of the power seat switch, front tilt
motor (driver’s seat only), rear tilt motor (driver’s seat
only),  slide motor and the recliner motor.

The power seat switch has a tilt & slide switch and a
recliner switch.
The motor built in the seat can be actuated by operating
these switches to move the seat to desired position,
independent of the position of the starter switch.

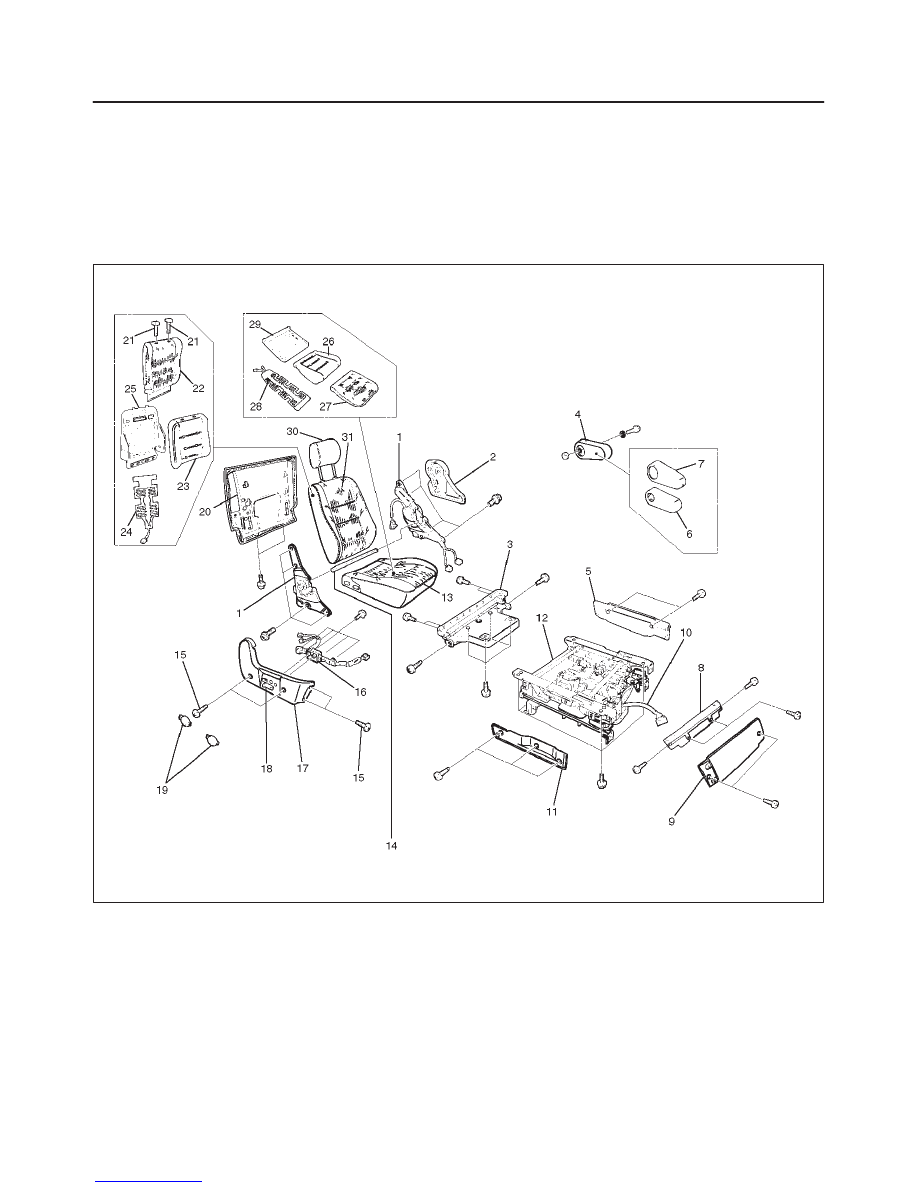

Disassembled View

750RS011

Legend

(1) Reclining Device
(2) Inner Cover
(3) Rear Cover
(4) Armrest Assembly
(5) Inner Lower Cover
(6) Pad & Frame Assembly
(7) Trim Cover
(8) Front Lower Cover
(9) Front Cover

(10) Power Seat Harness

(11) Outer Lower Cover

(12) Adjuster Assembly
(13) Seat Cushion Assembly
(14) Connecting Shaft
(15) Outer Cover Fixing Screws
(16) Switch Assembly
(17) Outer Cover
(18) Switch Knob
(19) Outer Cover Cap
(20) Back Board Assembly
(21) Guide Holder

SEATS

8G–7

(22) Trim Cover
(23) Pad Assembly
(24) Seat Heater
(25) Frame Assembly
(26) Pad Assembly

(27) Trim Cover
(28) Seat Heater
(29) Frame Assembly
(30) Head Rest
(31) Seat Back Assembly

Disassembly

1. Disconnect the battery ground cable.
2. Remove the head rest.
3. Remove the switch knob.

D

Pull the switch knob out.

4. Remove the outer cover cap.
5. Remove the outer cover fixing screws.

D

Pull up the outer cover(1) to remove the cover from
the reclining device(2).

750RS012

6. Remove the front cover.
7. Remove the front lower cover.
8. Remove the rear cover.
9. Remove the outer cover.

D

Disconnect the switch connectors and remove the
harness fixing clips.

10. Remove the switch assembly.

D

Remove the switch fixing screws from the outer
cover.

11. Remove the armrest assembly.

D

Open the armrest fastener and remove the fixing
bolt.

750RS004

12. Remove the trim cover.
13. Remove the pad & frame assembly.
14. Remove the inner cover

D

Remove the cover fixing screw.

D

Pull up the inner cover to remove the cover from the
reclining device(3).

750RW007
