Isuzu Trooper (2000 year). Manual - part 454





8D–13

WIRING SYSTEM

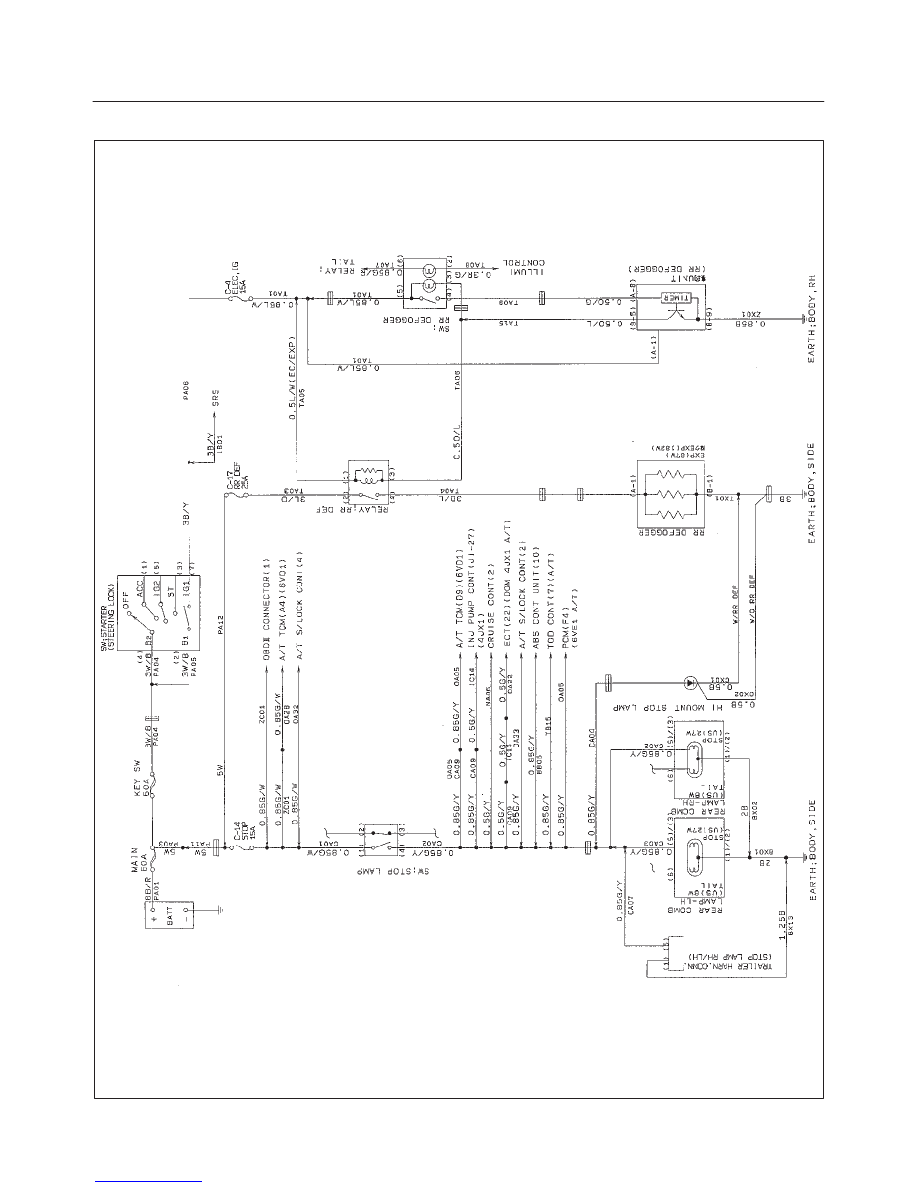

Stoplight and Rear Defogger

8D–14

WIRING SYSTEM

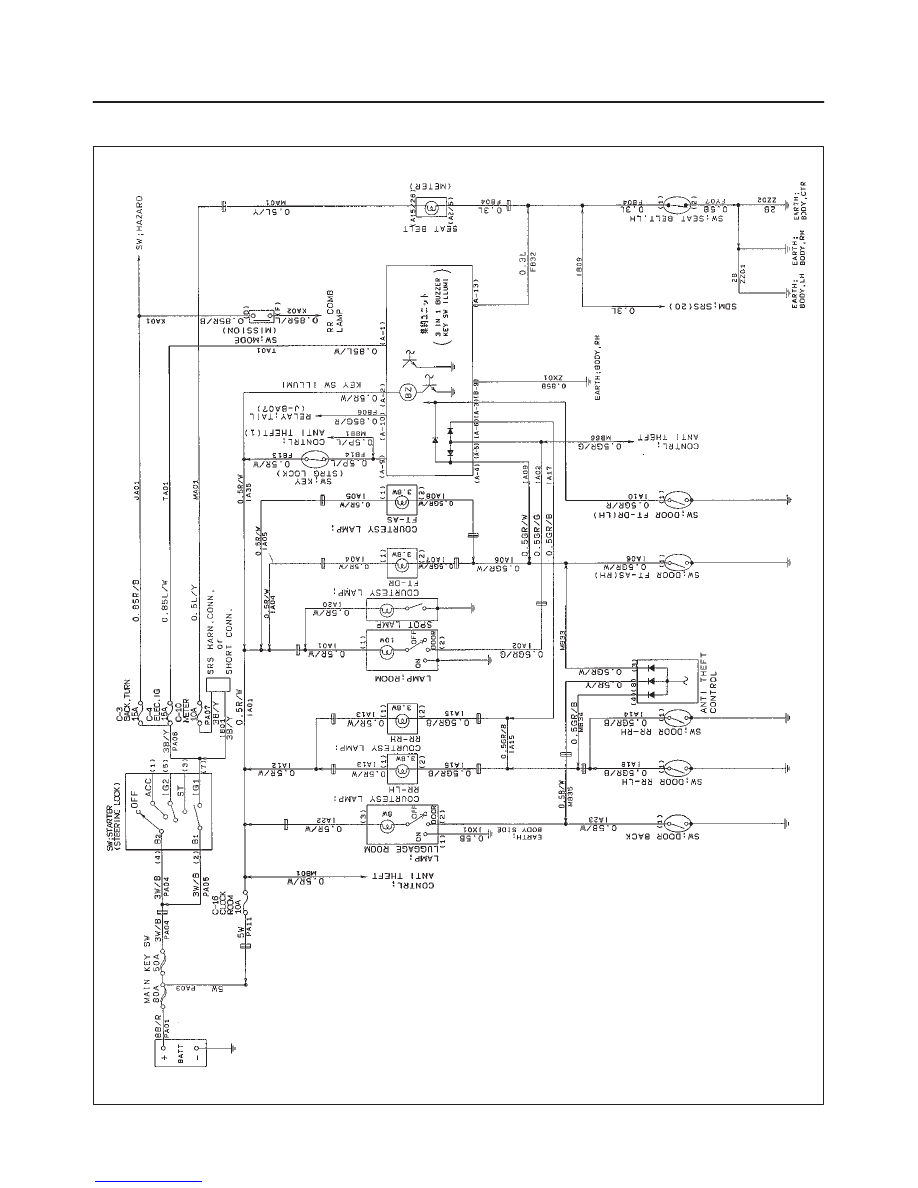

Dome Light, Courtesy Light, Stop Light and Luggage Room Light

8D–15

WIRING SYSTEM

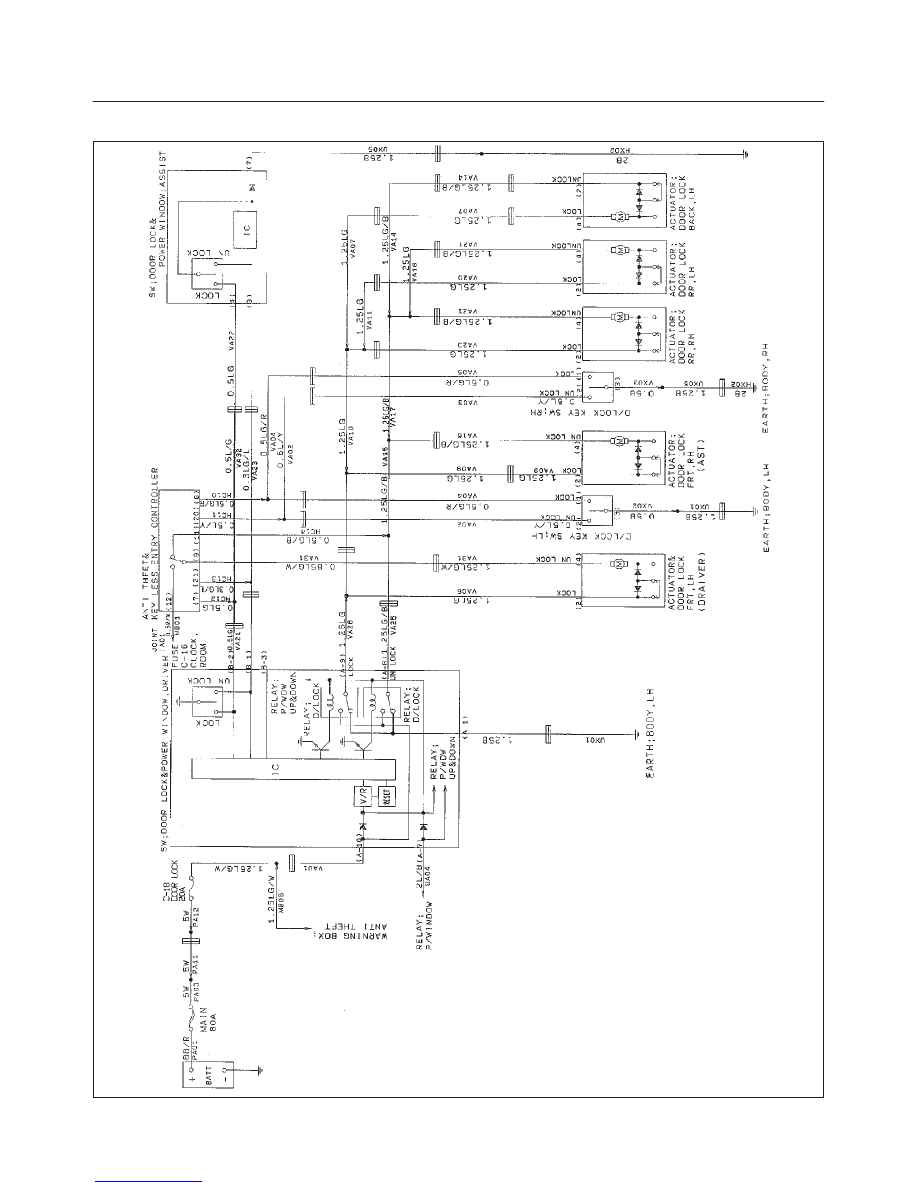

Door Lock (W/ Keyless Entry)

8D–16

WIRING SYSTEM

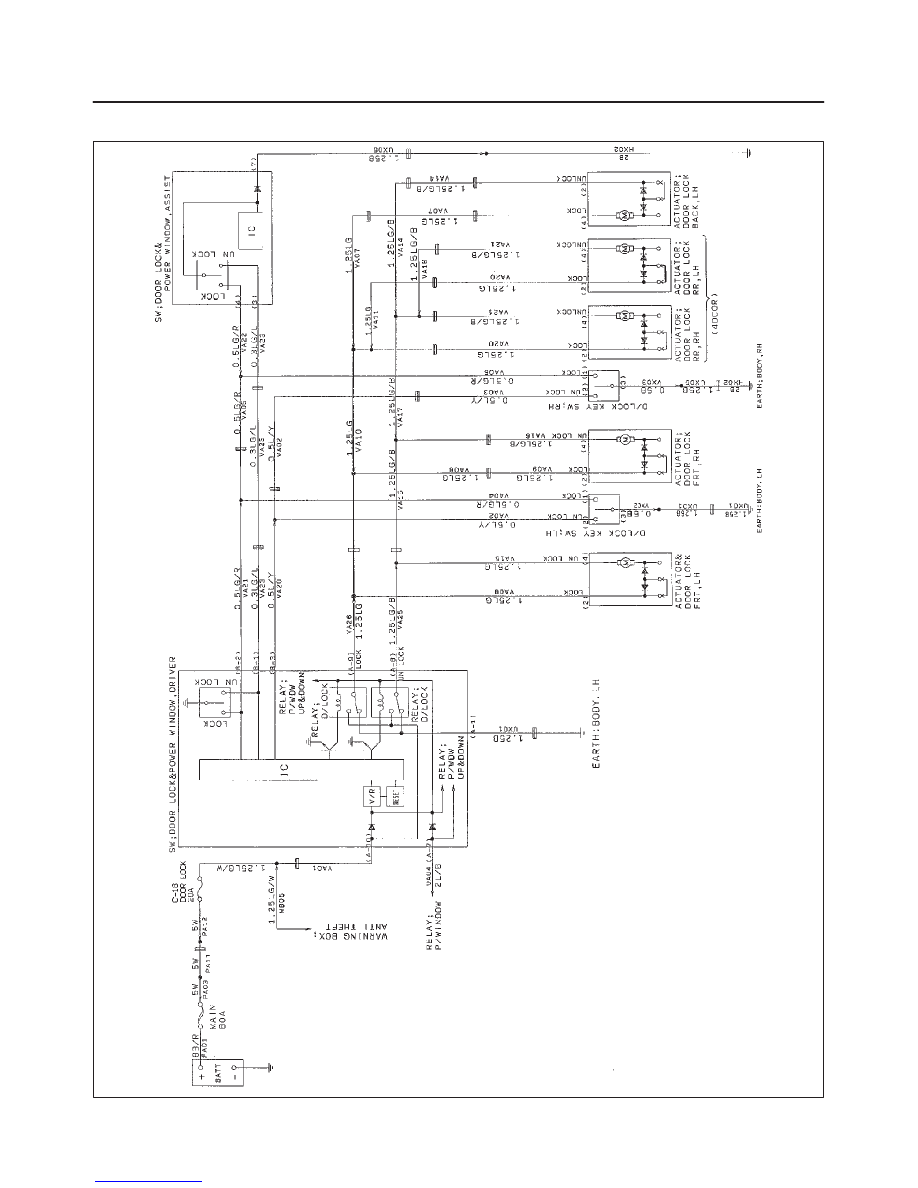

Door Lock (W/O Keyless Entry)
