ENTERTAINMENT

8C–1

TROOPER

BODY AND ACCESSORIES

ENTERTAINMENT

CONTENTS

Service Precaution

8C–1

. . . . . . . . . . . . . . . . . . . . . .

Cigarette Lighter

8C–2

. . . . . . . . . . . . . . . . . . . . . . . .

General Description

8C–2

. . . . . . . . . . . . . . . . . . . . . .

Removal

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Digital Clock

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rod Type Antenna

8C–3

. . . . . . . . . . . . . . . . . . . . . .

Removal

8C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diversity Glass Antenna

8C–4

. . . . . . . . . . . . . . . . . .

Glass Antenna System Parts Location

8C–4

. . . .

Glass Antenna Pattern

8C–5

. . . . . . . . . . . . . . . . .

Glass Antenna Amplifier Removal

8C–5

. . . . . . .

Glass Antenna Amplifier Installation

8C–5

. . . . . .

Radio

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Speaker

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tweeter Assembly

8C–7

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Speaker

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

8C–2

ENTERTAINMENT

Cigarette Lighter

General Description

When the cigarette lighter is pushed in with the starter
switch at either “ACC” or “ON” position, a circuit is formed
in the cigarette lighter case to heat the lighter coil.
The cigarette lighter is sprung back to its original position
after the lighter coil is heated.

Removal

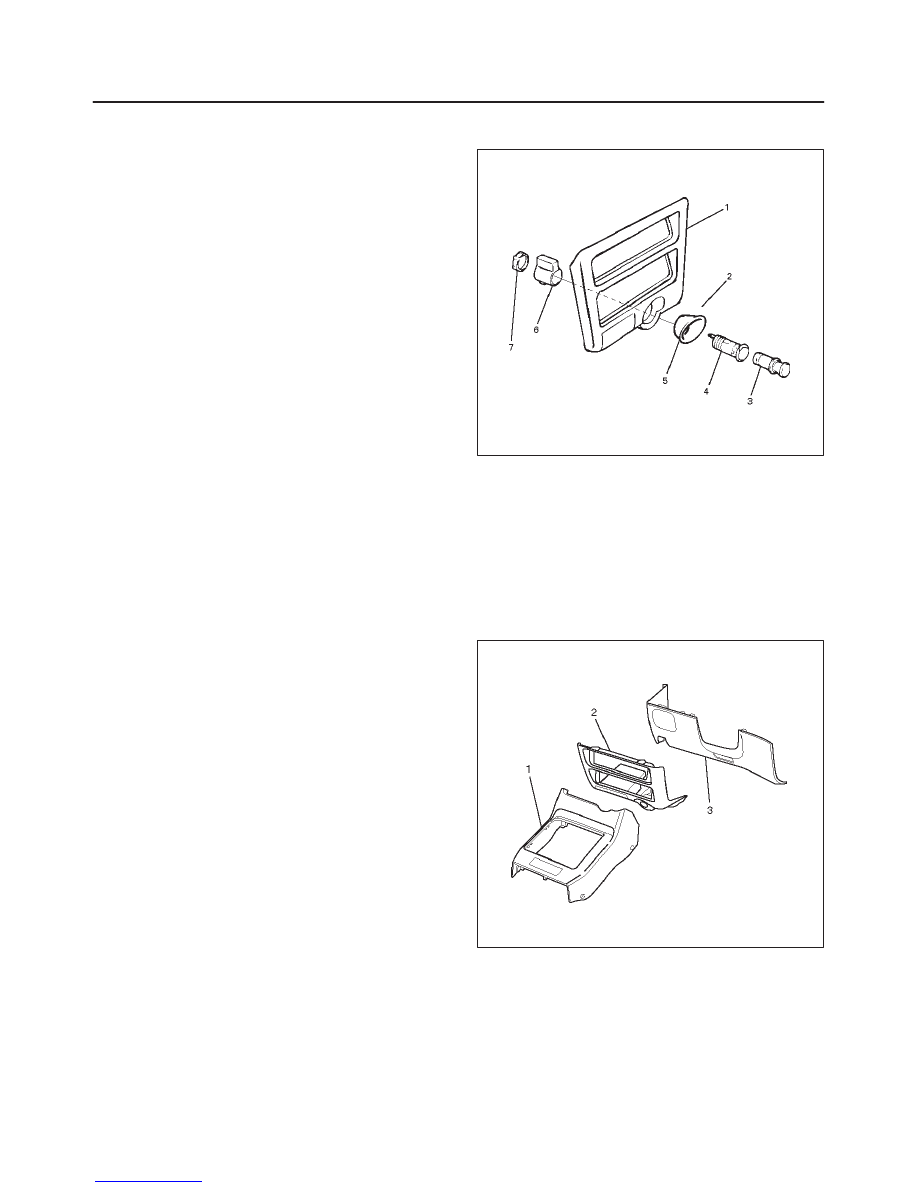

1. Disconnect the battery ground cable.
2. Remove the lower cluster assembly(1).

Refer to the Instrument Panel Assembly removal
steps in Body Structure section.

3. Disconnect the connectors, remove the socket of the

illumination light, the retaining ring(7), the outer
case(6), the cigarette lighter(3) and socket(4), the
bezel(5) and then remove the cigarette lighter
assembly(2).

 826RS007

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. When installing the bezel, align the projected portion

of the socket with the notch of the bezel.

Digital Clock

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.

821RW024

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

ENTERTAINMENT

8C–3

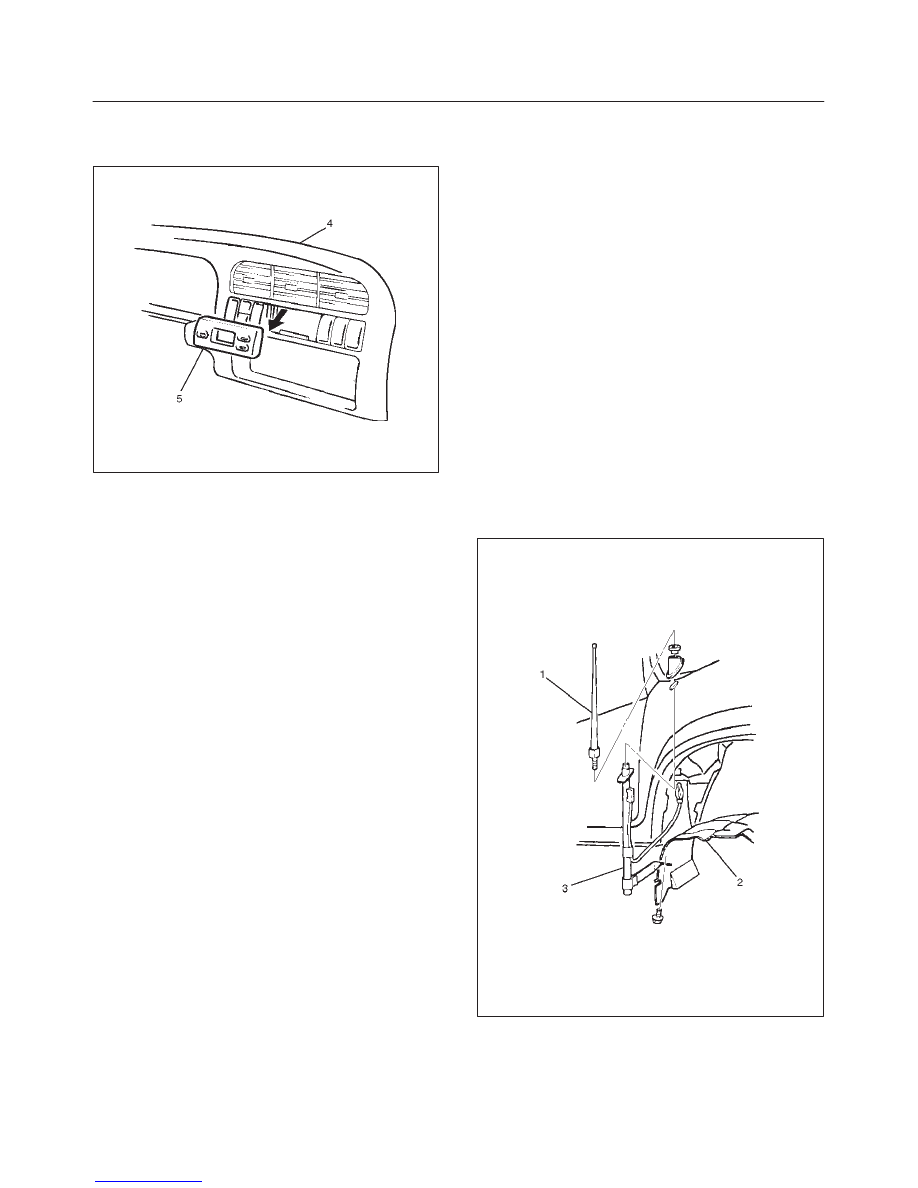

6. Disconnect the connector and push the lock from the

back side of the instrument panel cluster assembly to
remove the digital clock(5).

821RW034

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push in the switch with your fingers until it locks

securely.

Rod Type Antenna

Removal

1. Disconnect the battery ground cable.
2. Turn the antenna rod(1) counterclockwise to remove

it.

3. Remove three screws and nine clips to remove the

fender inner liner(2).

4. Disconnect the feeder cable connector at the inside of

the vehicle, remove the housing bracket screw, turn
the lock nut counterclockwise to remove it together
with the base mold and then remove the housing(3).

890RS004

Installation

To install, follow the removal steps in the reverse order.

8C–4

ENTERTAINMENT

Diversity Glass Antenna

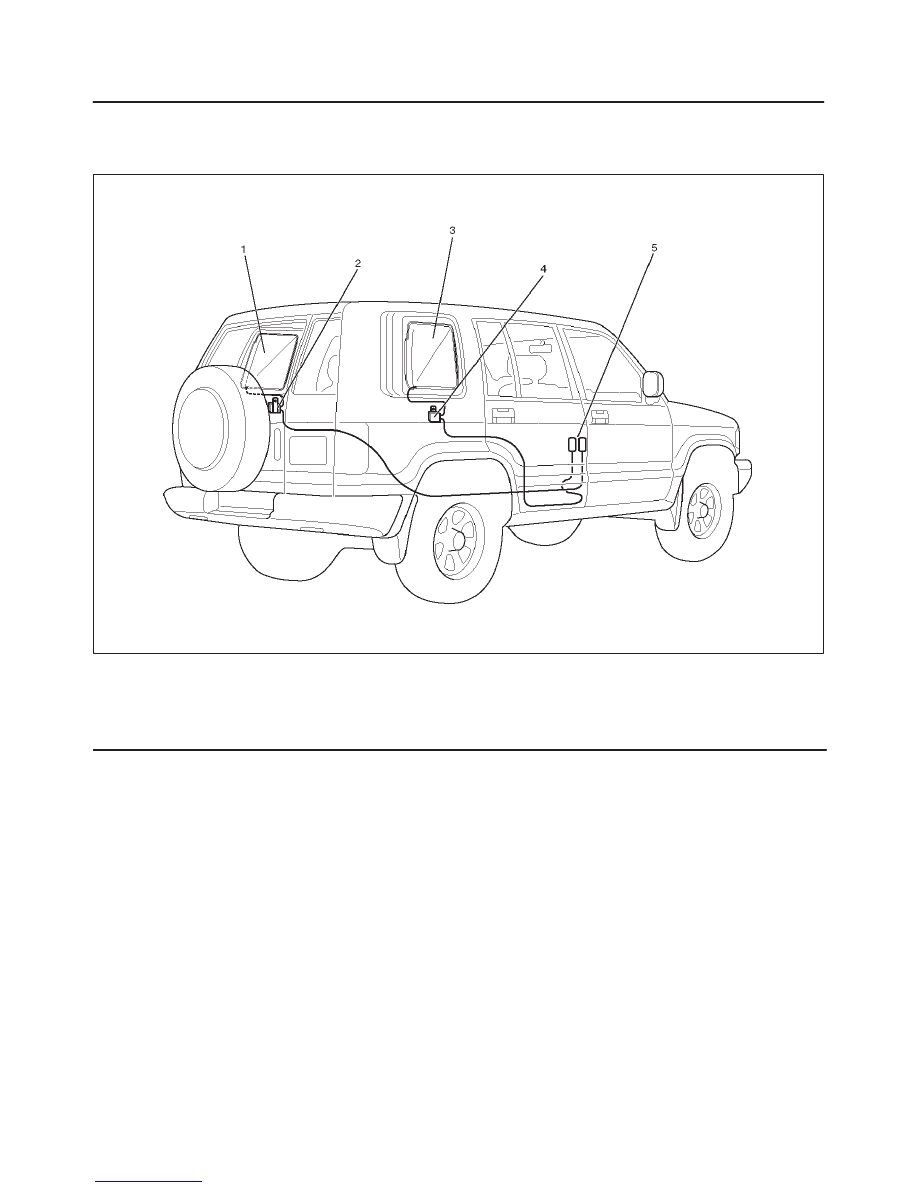

Glass Antenna System Parts Location

890RW014

Legend

(1) Glass Antenna (LH)
(2) Glass Antenna Amplifier
(3) Glass Antenna (RH)

(4) Glass Antenna Amplifier
(5) Connection with the audio side feeder cables at

the dash side (RH)
