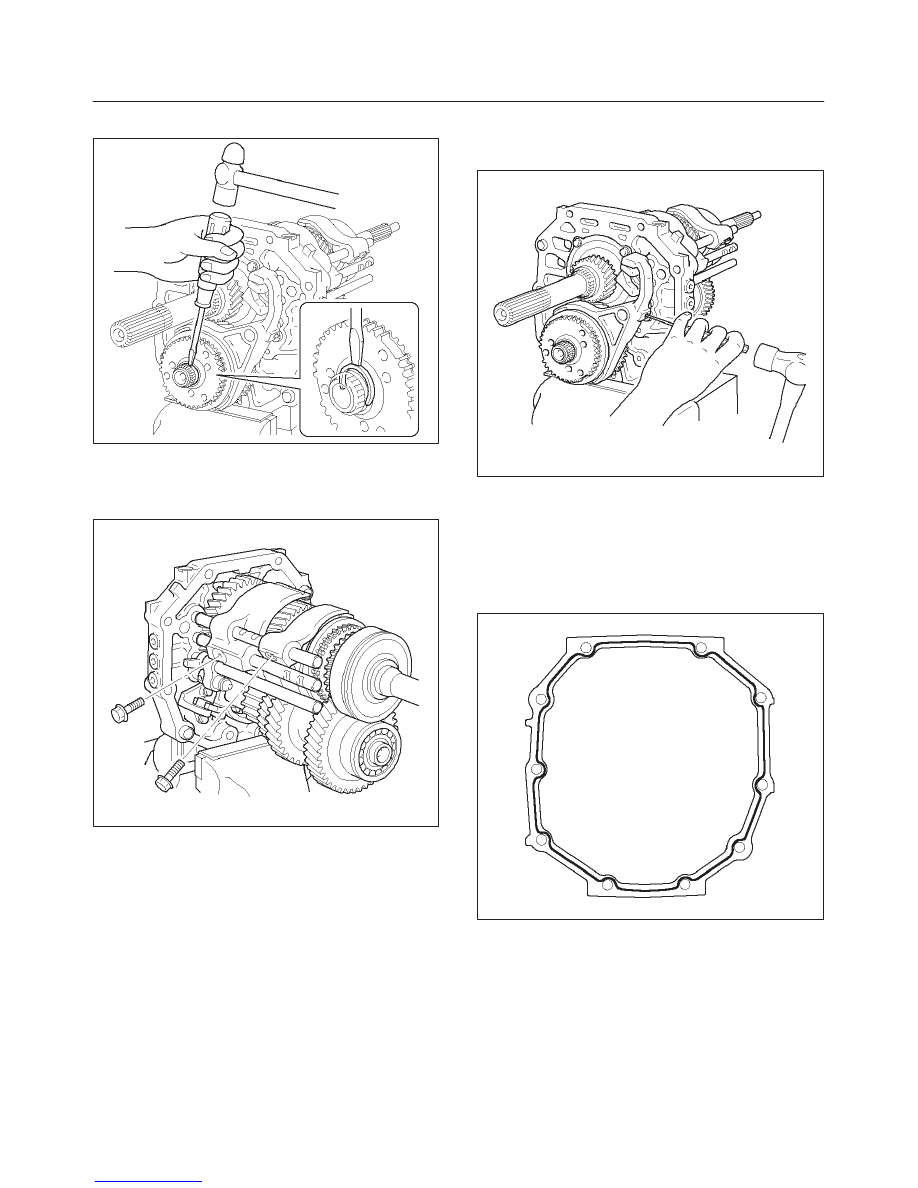

MANUAL TRANSMISSION 7B–57 10. Install the new snap ring. 226RW026 32. Install the shift arm bolts. 1. Install and torque the 2 shift arm bolts. Torque: 19.5 N·m (14 lb ft) 226RW023 33. Install the shift arm slotted pin. 1. Using a pin punch and a hammer, drive in the slotted pin to the shift arm. 226RW025 34. Install the transmission case. 1. Clean up the fitting surface. 2. Apply recommended liquid gasket (THREE BOND 1281 or equivalent), as shown. NOTE: D Don’t dry the liquid gasket. 220RW024 |
