7A–96

AUTOMATIC TRANSMISSION (4L30–E)

Extension Housing Assembly

Extension Housing Assembly and Associated Parts

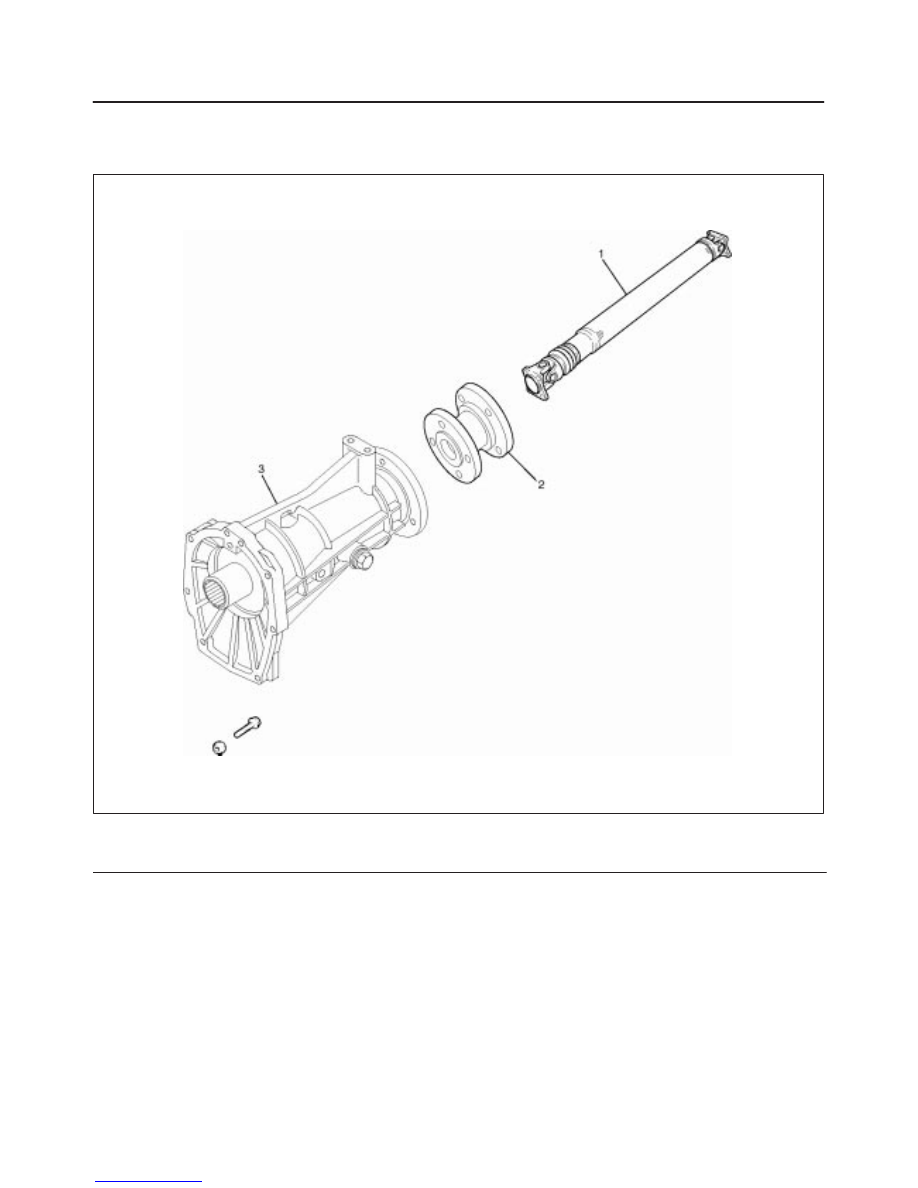

260RY00006

Legend

(1) Propeller Shaft

(2) Mass
(3) Extension Housing Assembly

7A–97

AUTOMATIC TRANSMISSION (4L30–E)

Removal

1. Disconnect battery ground cable.
2. Raise and support vehicle with suitable stands.
3. Disconnect harness connectors and fuel pipe fix bolt.

Connector: speed sensor.

4. Removing the speedometer driven gear bushing and

driven gear, drain extension housing assembly fluid.

5. Remove propeller shaft (1) and mass (2).

NOTE: Apply alignment marks on the flange at both front
and rear sides.

6. Remove extension housing assembly (3) from the

vehicle.

Installation

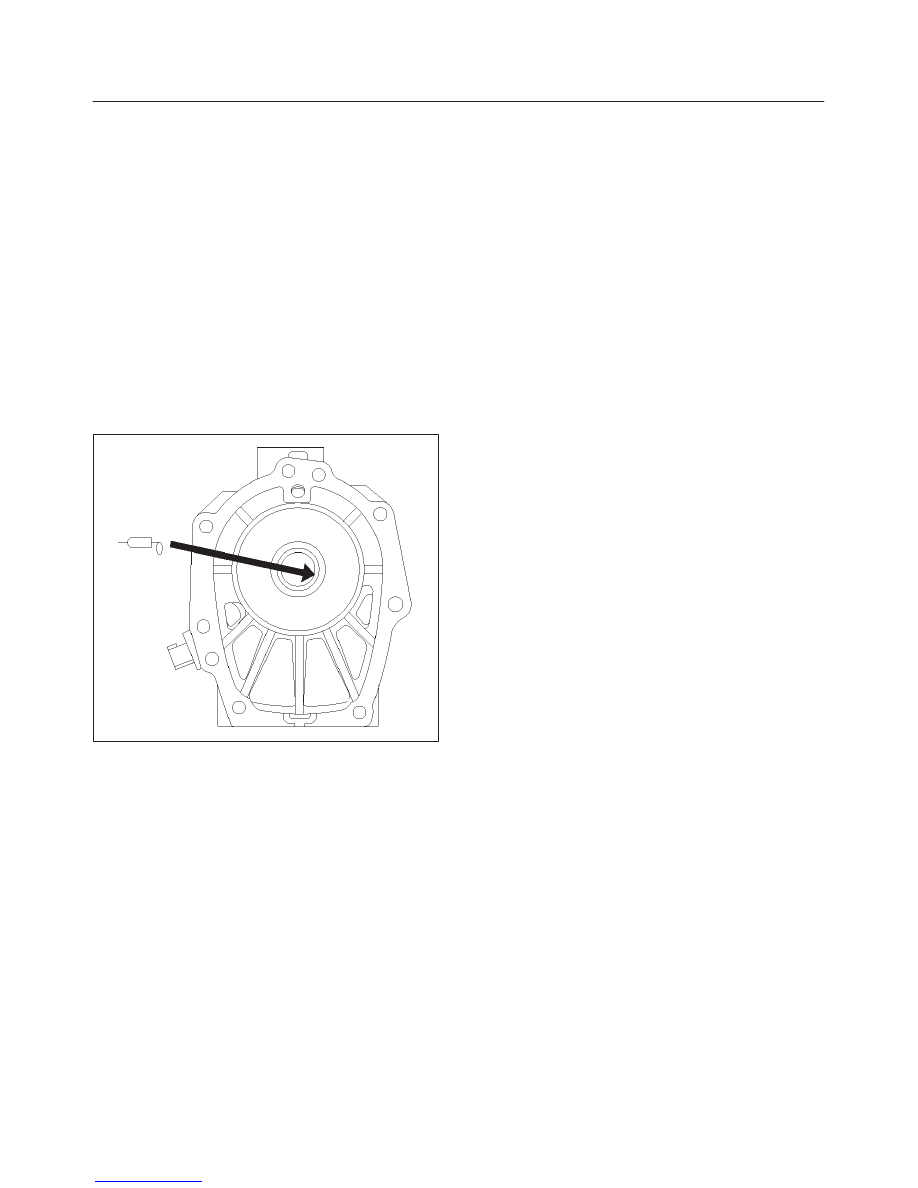

1. Apply a thin coat of molybdenum disulfide grease to

the extension shaft spline as shown in the figure.

260RY00004

7A–98

AUTOMATIC TRANSMISSION (4L30–E)

2. Install extension housing assembly (3) to the

transmission. Tighten extension housing assembly

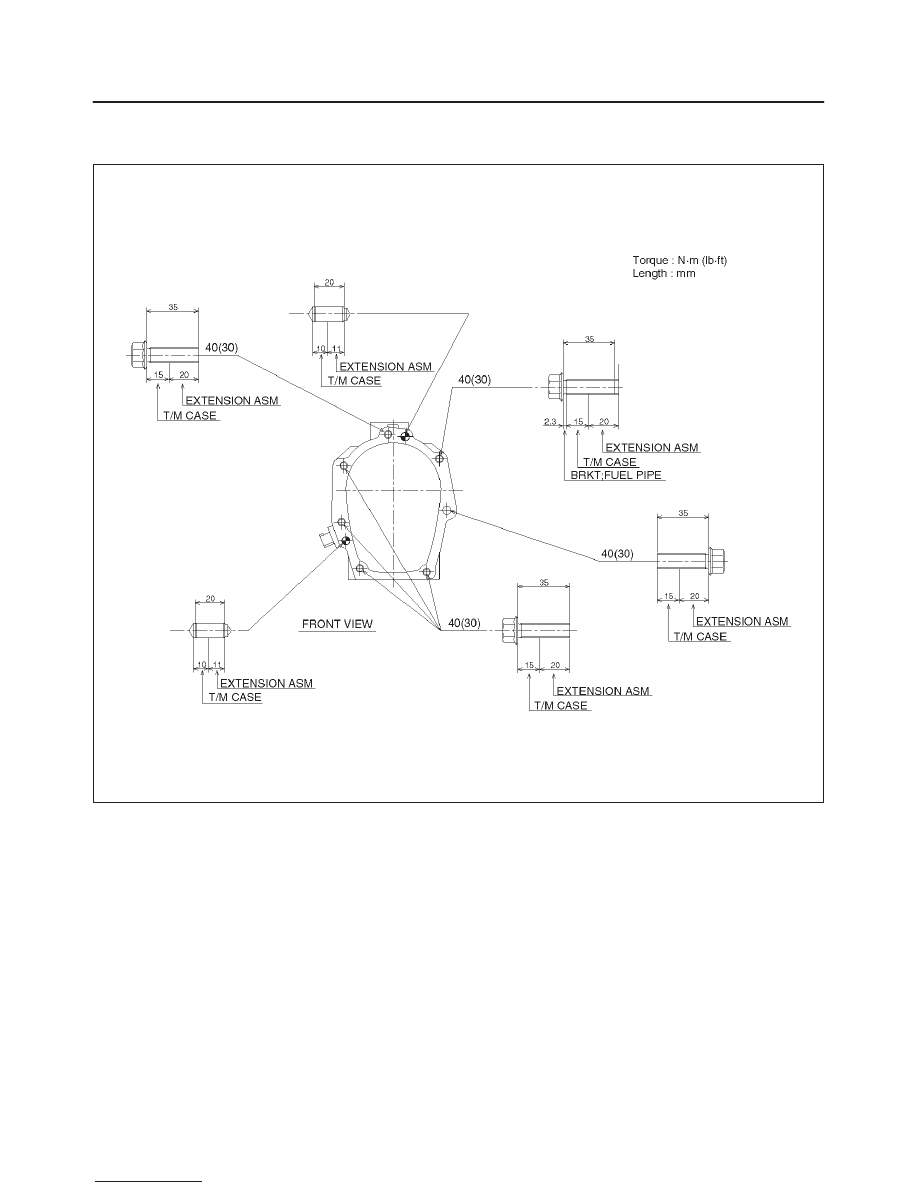

bolts as shown in the figure.

261RY00001

3. Install speedometer driven gear bushing and driver

gear.

4. Connect harness connectors and fuel pipe fix bolt.

Connector: speed sensor.

5. Install propeller shaft (1) and mass (2).

Torque: 63 N·m (46 lb ft)

6. Fill extension housing assembly fluid.
7. Connect battery ground cable.

7A–99

AUTOMATIC TRANSMISSION (4L30–E)

Extension Housing Assembly

Extension Housing Assembly and Associated Parts

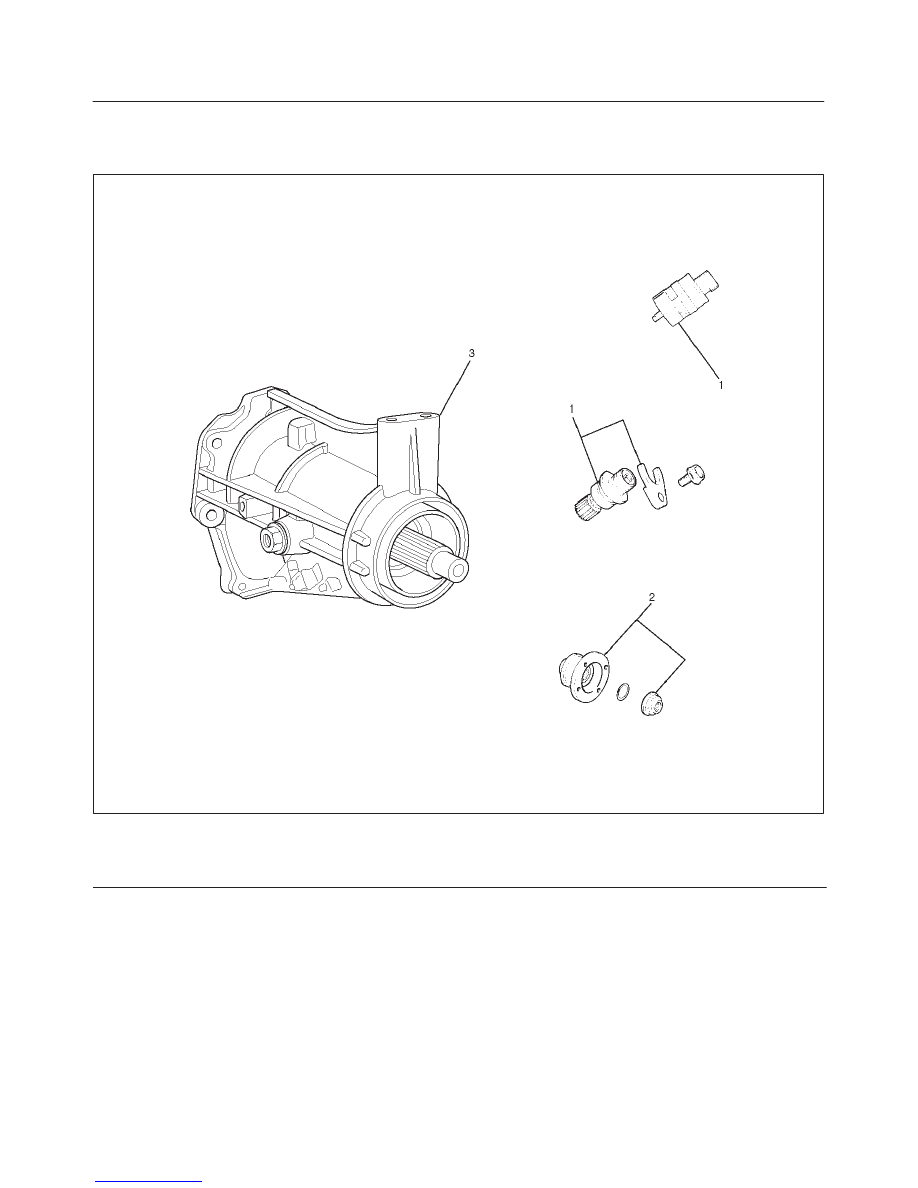

220RY00009

Legend

(1) Speedometer Sensor, Speedometer Driven

Gear and Plate

(2) Companion Flange
(3) Extension Housing Assembly
