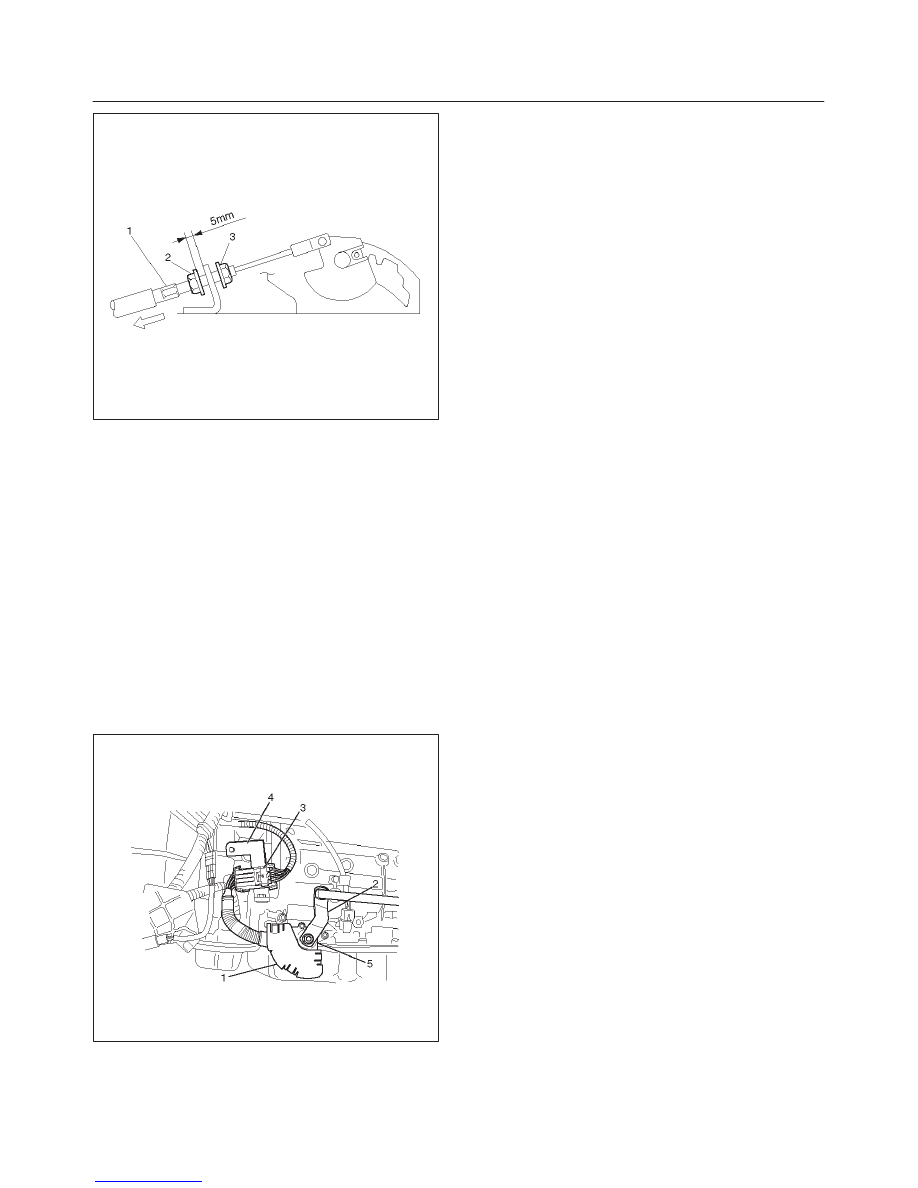

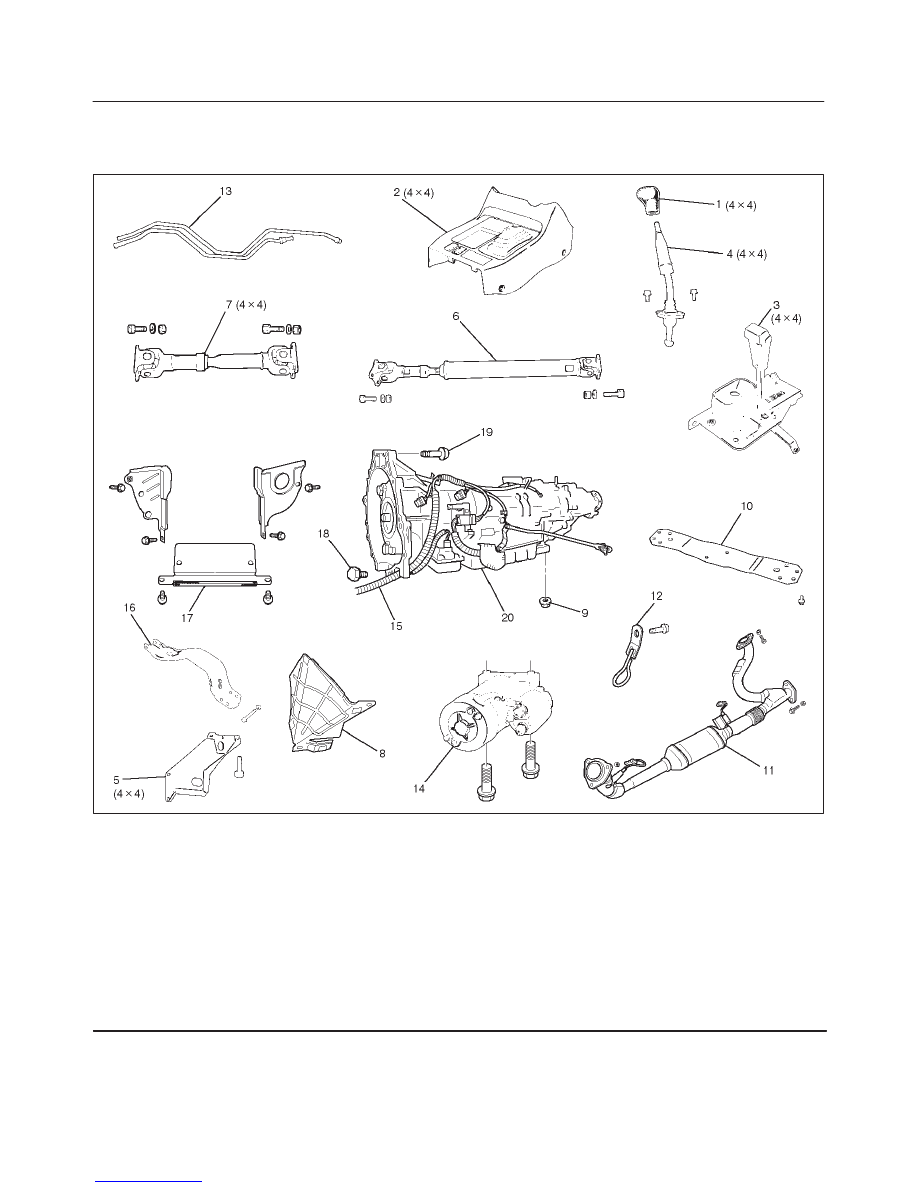

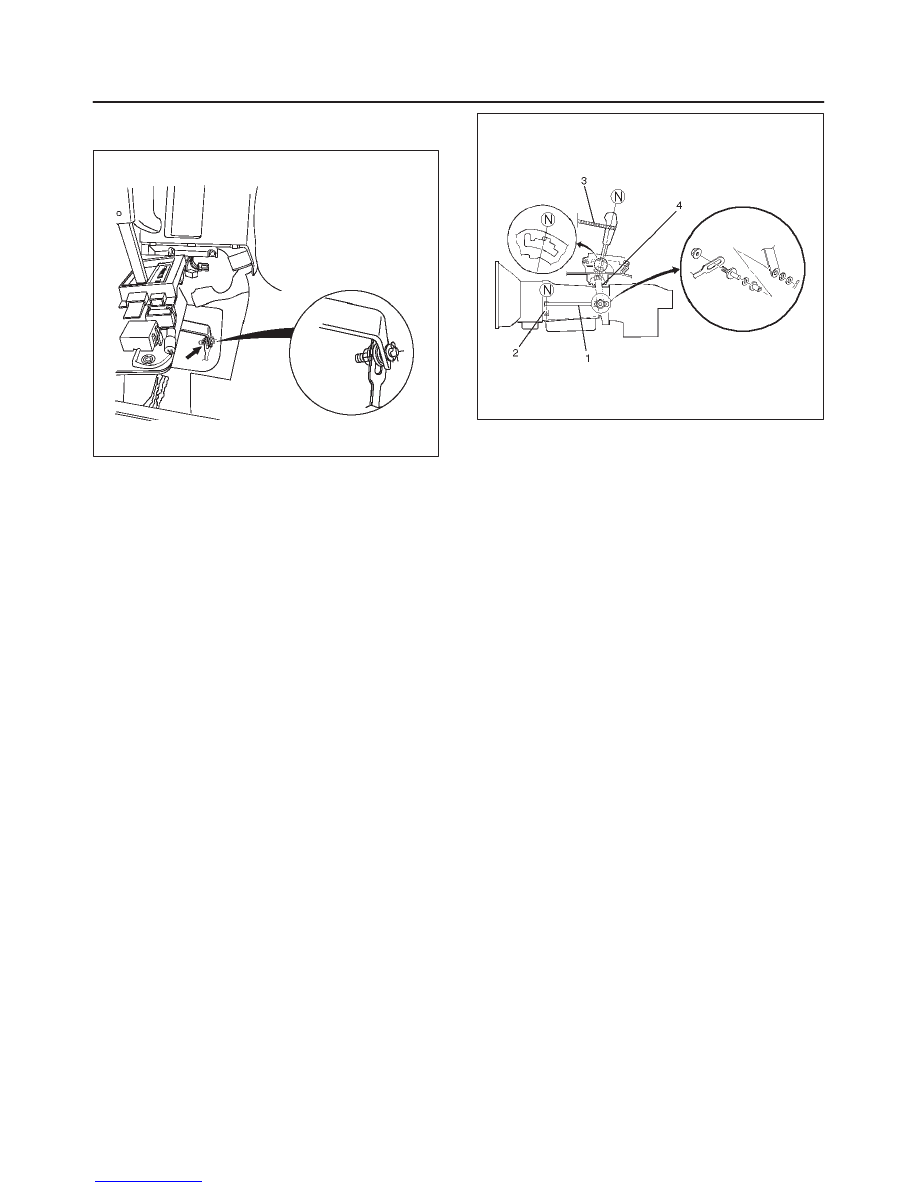

7A–28 AUTOMATIC TRANSMISSION (4L30–E) 5. Disconnect shift control rod (2) from the selector lever assembly side. 256RW013 6. Disconnect wiring harness connectors from the selector lever assembly. 7. Remove selector lever assembly. Installation To install, follow the removal steps in the reverse order, Adjustment of select lever and control rod 1. Place the vehicle on a level surface. NOTE: If the vehicle is not on level surface, the shift 2. Install the shift control rod (1) to the transmission select lever (2), and then place the lever in the “N” 3. Set select lever in the “N” position. secure it (using a rubber band (3), etc.) so that the pin 5. Install the shift control rod (1) to the selector lever arm (4). Torque: 32 N • m (24 lb ft) NOTE: Do not apply oil to the threaded portions. 256RW014 6. After adjustment, make sure that the selector lever operates normally, and that each selector position is Adjustment of shift lock cable 1. Set ignition key in “LOCK” position and selector lever in “P” position. 2. Adjust cable screw cap on selector lever side to provide a gap (slack for cable) of 1 – 2 mm between a. Pull screw cap (1) in arrow direction to remove inner cable slack. b. With cable kept as (a), adjust gap between nut (2) and bracket to 5 mm (0.2 in). c. Lock inner cable by turning nut (3) while holding nut (2) in place. Torque : 3.7 N • m (33 lb in) NOTE: Clean the cable threads, and do not apply oil to |
