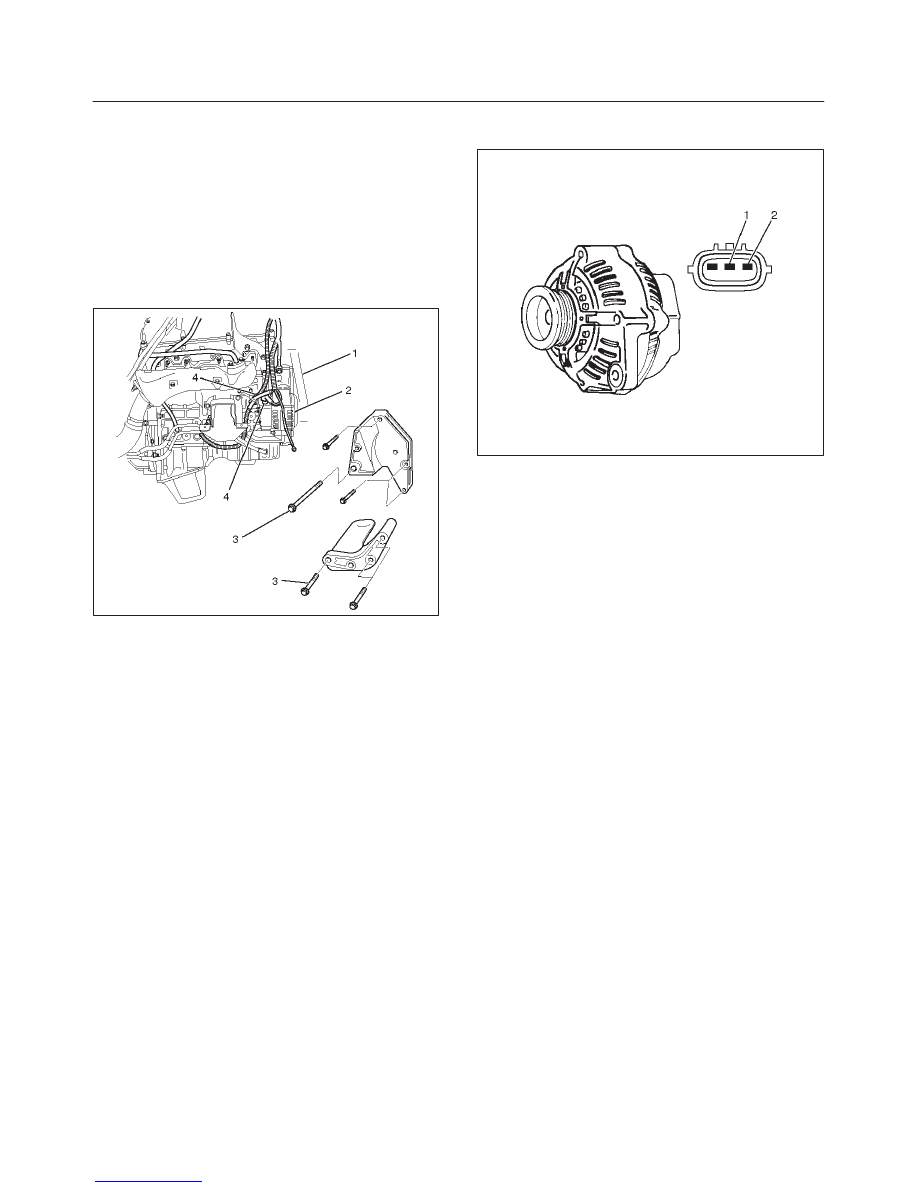

6D3–19 STARTING AND CHARGING SYSTEM Generator Removal 1. Disconnect battery ground cable. then remove drive belt (1). 3. Disconnect the wire from terminal “B” and disconnect the connector (4). 4. Remove generator fixing bolt (3). 060RW002 Inspection 1. Disconnect the wiring connector from generator. and connect a voltmeter between connector terminal 066RW001 If voltage is not present, the line between battery and 3. Reconnect the wiring connector to the generator, run the engine at middle speed, and turn off all electrical 4. Measure battery voltage. If it exceeds 16V, repair or replace the generator. 5. Connect an ammeter to output terminal of generator, and measure output current under load by turning on Installation 1. Install generator assembly to the position to be installed. 2. Install generator assembly and tighten the fixing bolts to the specified torque. Torque: 3. Connect wiring harness connector and direct terminal “B”. 4. Move drive belt tensioner to loose side using wrench, then install drive belt to normal position. 5. Reconnect battery ground cable. |
