6C–10

ENGINE FUEL

Reuse of Quick–Connector

(Delivery Pipe)

D

Replace the pipe and connector if scratch, dent or
crack is found.

D

Remove mud and dust from the pipe and make sure
that the end including spool is free of defects, such as
scratch, rust, and dent, which may cause poor
sealability. If defective, replace with a new pipe.

D

If the retainer removed according to the removal step
above is attached to the pipe, clean and insert it
straight into the quick-connector till it clicks. After it
clicks, try pulling it out to make sure that it is not drawn
and is securely locked.

NOTE: The retainer, once removed from the pipe, cannot
be reused. Just replace with a new retainer. Insert the
new retainer into the connector side until it clicks, and
connect the pipe as inserting it into the retainer until it
clicks.

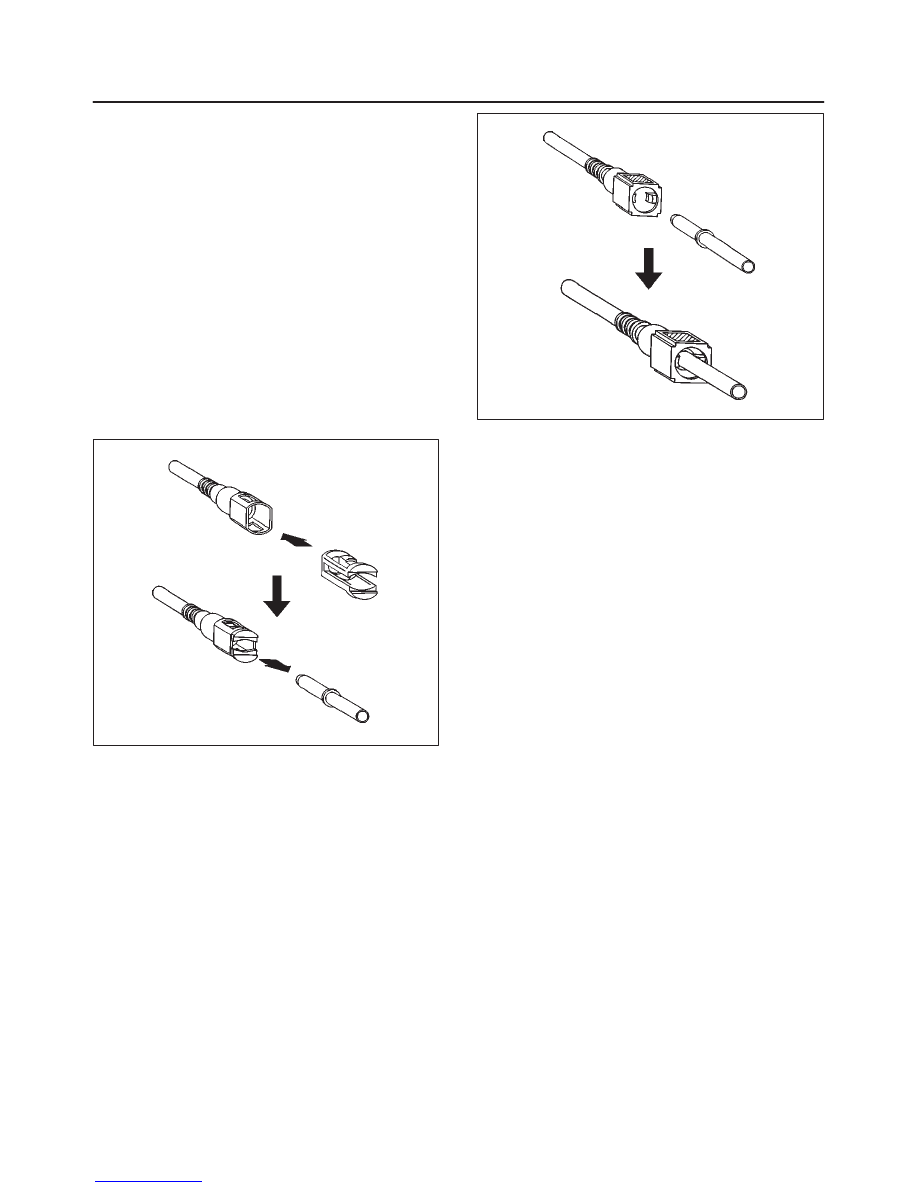

141RW018

(Return Pipe)

D

Replace the pipe and connector if scratch, dent or
crack is found.

D

Remove mud or dust from the pipe and make sure
that the end including spool is free from defects, such
as scratch, rust, and dent, which may cause poor
sealability. If defective, replace with a new pipe.

D

After cleaning the pipe, insert it straight into the
connector until it clicks. After it clicks, try pulling it out
to make sure that it is not drawn and is securely
locked.

141RW017

Assembling Advice

Application of engine oil or light oil to the pipe facilitates
connecting work. The work should be started immediately
after lubrication, since dust may stick to the pipe surface
to cause poor sealability if a long time passes after
lubrication.
Test/Inspection After Assembling

1. Reconnect the battery negative cable.
2. Turn the ignition key to the “ON” position and check

pump startup sound. As the pump is actuated to raise
fuel pressure, check and see fuel leak from the piping
system.

3. Make sure of no fuel leakage by conducting the above

fuel leak check a few times.

4. Start the engine and make sure of stable idling speed

and normal vehicle run.The entry of dust during the
work may sometimes affect the fuel injection system.

6C–11

ENGINE FUEL

Fuel Gauge Unit

Fuel Gauge Unit and Associated Parts

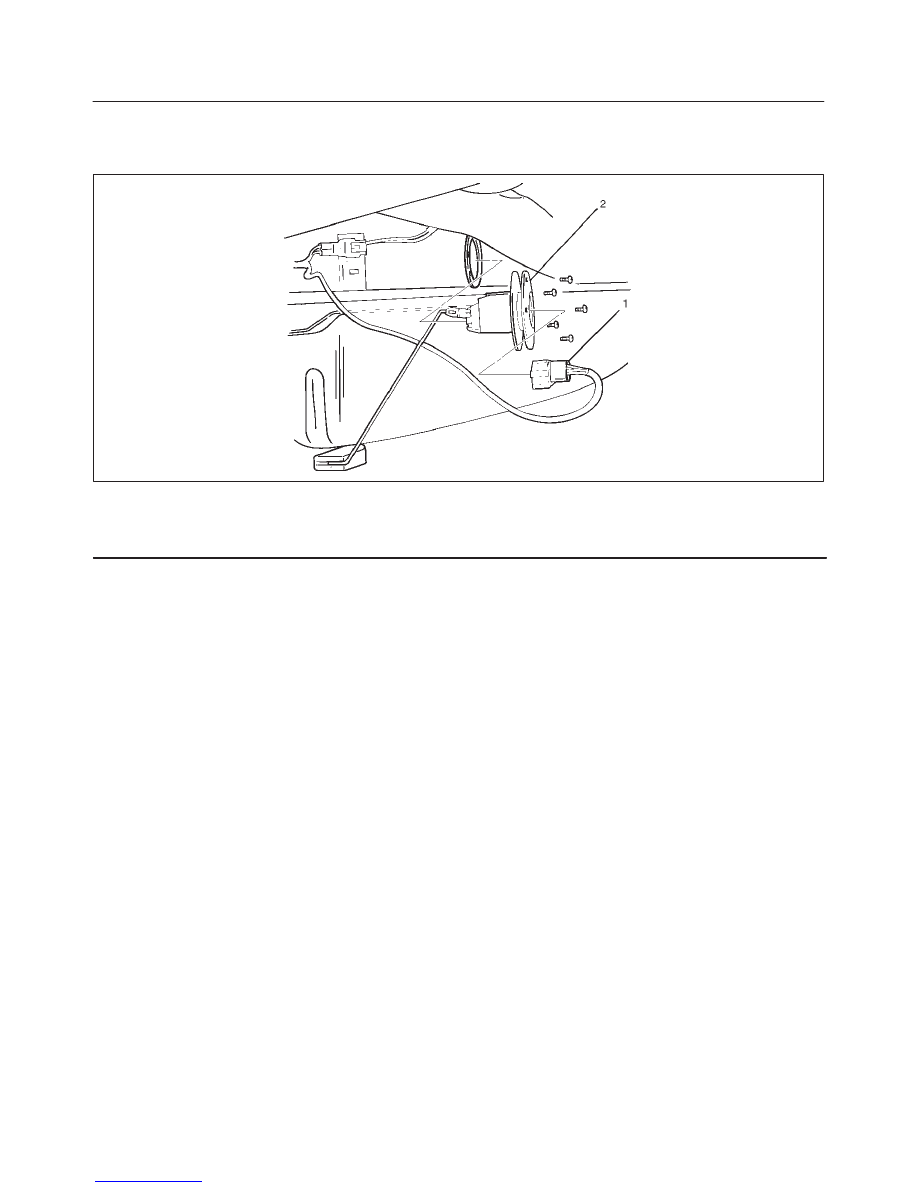

140RS004

Legend

(1) Wiring Connector
(2) Fuel Gauge Unit

Removal

CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission”.

1. Disconnect battery ground cable.
2. Loosen fuel filler cap.
3. Drain fuel.

Tighten drain plug to the specified torque after
draining fuel.

Torque: 20 N·m (14 lb ft) — M8

4. Wiring connector

D

Disconnect wiring connector(1) from the unit.

5. Fuel gauge unit

D

Remove the fixing screws, then the fuel gauge
unit(2).

NOTE: After removing fuel gauge unit, cover fuel tank to
prevent any dust entering

Installation

1. Fuel gauge unit(2).
2. Wiring connector(1).

D

Connect the wiring connector to the fuel gauge unit.

D

Fill the tank with fuel and tighten fuel filler cap.

D

Connect battery ground cable.

6C–12

ENGINE FUEL

Fuel Filler Cap

General Description

Fuel filler cap includes vacuum valve and pressure valve.
In case any high vacuum and any high pressure happen in
tank, each valve works to adjust the pressure to prevent
the tank from being damaged.

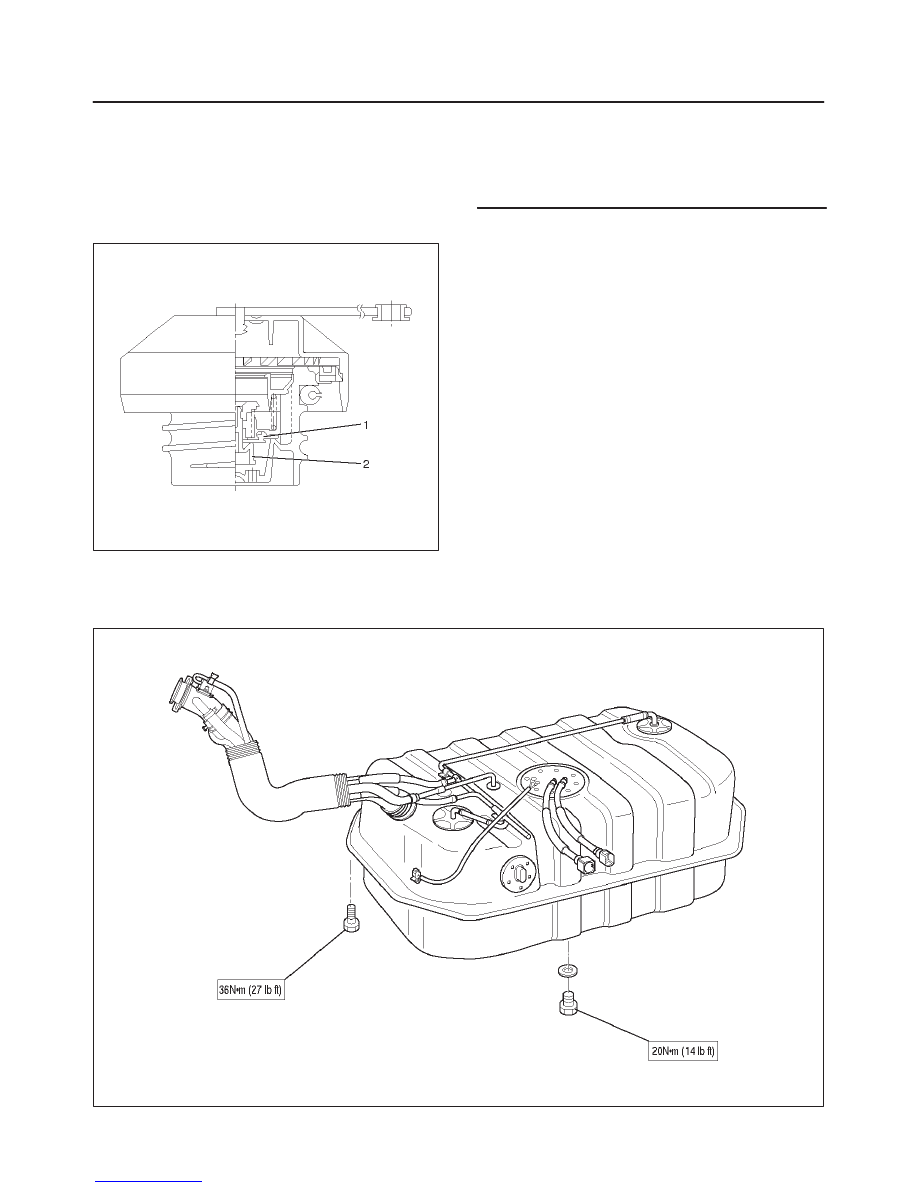

140RW021

Legend

(1) Vacuum Valve
(2) Pressure Valve

Inspection

Check the seal ring in the filler cap for presence of any
abnormality and for seal condition.
Replace the filler cap, if abnormal.

CAUTION: The fuel filler cap valves have
characteristics.
A defective valve, no valve at all or a valve with the
wrong characteristics will do a lot of harm to engine
operating characteristics; be sure to use the same
fuel filler cap as installed in this vehicle.

Main Data and Specifications

Torque Specification

035RW031

ENGINE ELECTRICAL

6D1–1

TROOPER

ENGINE

ENGINE ELECTRICAL

CONTENTS

Battery

6D1–1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Description

6D1–1

. . . . . . . . . . . . . . . . . . . .

Diagnosis

6D1–1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery Charging

6D1–2

. . . . . . . . . . . . . . . . . . . . . .

Jump Starting

6D1–2

. . . . . . . . . . . . . . . . . . . . . . . . .

Battery Removal

6D1–3

. . . . . . . . . . . . . . . . . . . . . .

Battery Installation

6D1–3

. . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

6D1–4

. . . . . . . . . . .

Battery

General Description

There are six battery fluid caps on top of the battery.
These are covered by a paper label.
The battery is completely sealed except for the six small
vent holes on the side. These vent holes permit the
escape of small amounts of gas generated by the battery.
This type of battery has the following advantages over
conventional batteries:

1. There is no need to add water during the entire

service life of the battery.

2. The battery protects itself against overcharging.

The battery will refuse to accept an extensive charge.
(A conventional battery will accept an excessive
charge, resulting in gassing and loss of battery fluid.)

3. The battery is much less vulnerable to self discharge

than a conventional type battery.

Diagnosis

1. Visual Inspection

Inspect the battery for obvious physical damage, such as
a cracked or broken case, which would permit electrolyte
loss.
Replace the battery if obvious physical damage is
discovered during inspection.
Check for any other physical damage and correct it as
necessary.

2. Hydrometer Check

There is a built–in hydrometer (Charge test indicator(1))
at the top of the battery. It is designed to be used during
diagnostic procedures.
Before trying to read the hydrometer, carefully clean the
upper battery surface.
If your work area is poorly lit, additional light may be
necessary to read the hydrometer.

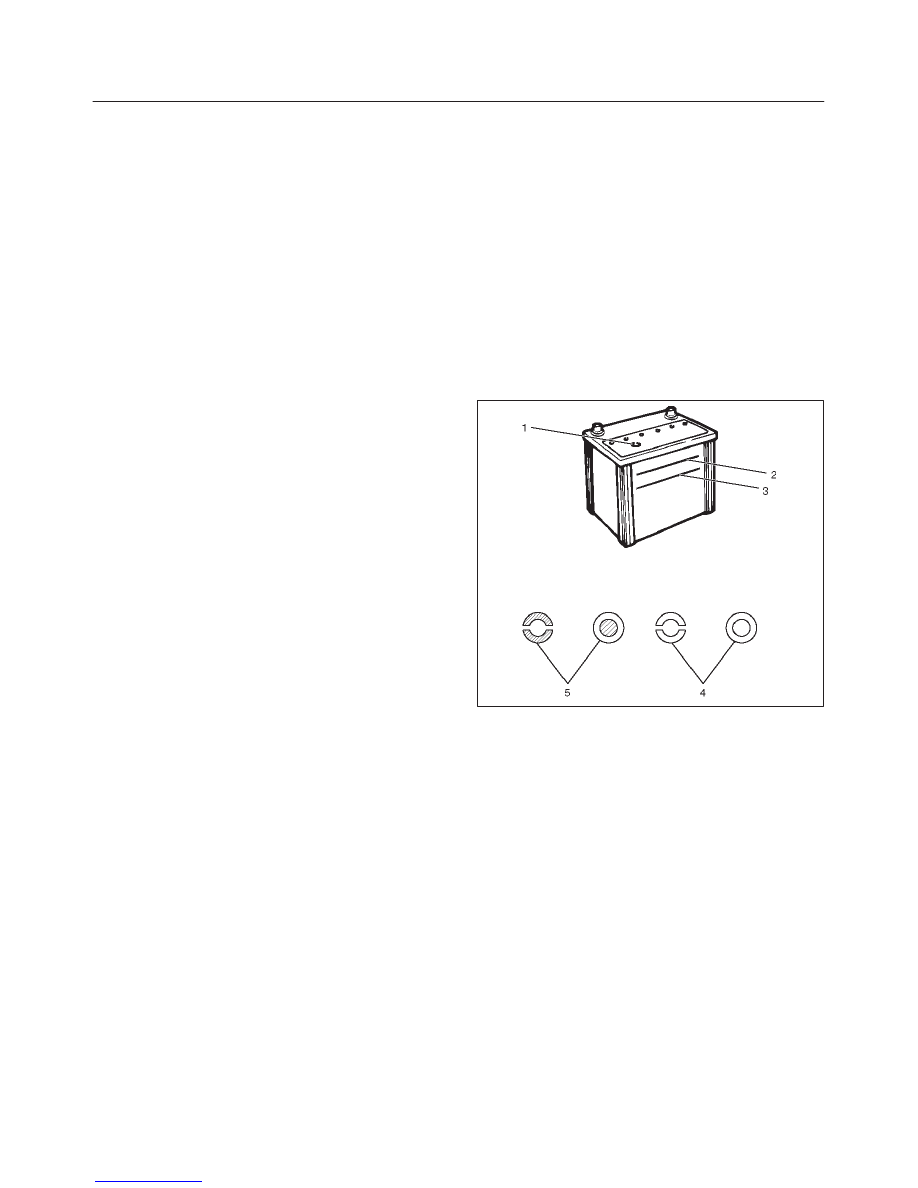

a. BLUE RING OR DOT VISIBLE(5) – Go to Step 4.
b. BLUE RING OR DOT NOT VISIBLE(4) – Go to Step

3.

061RW001
